XSZ E2K Series Rectangular Capacitive Proximity Sensor

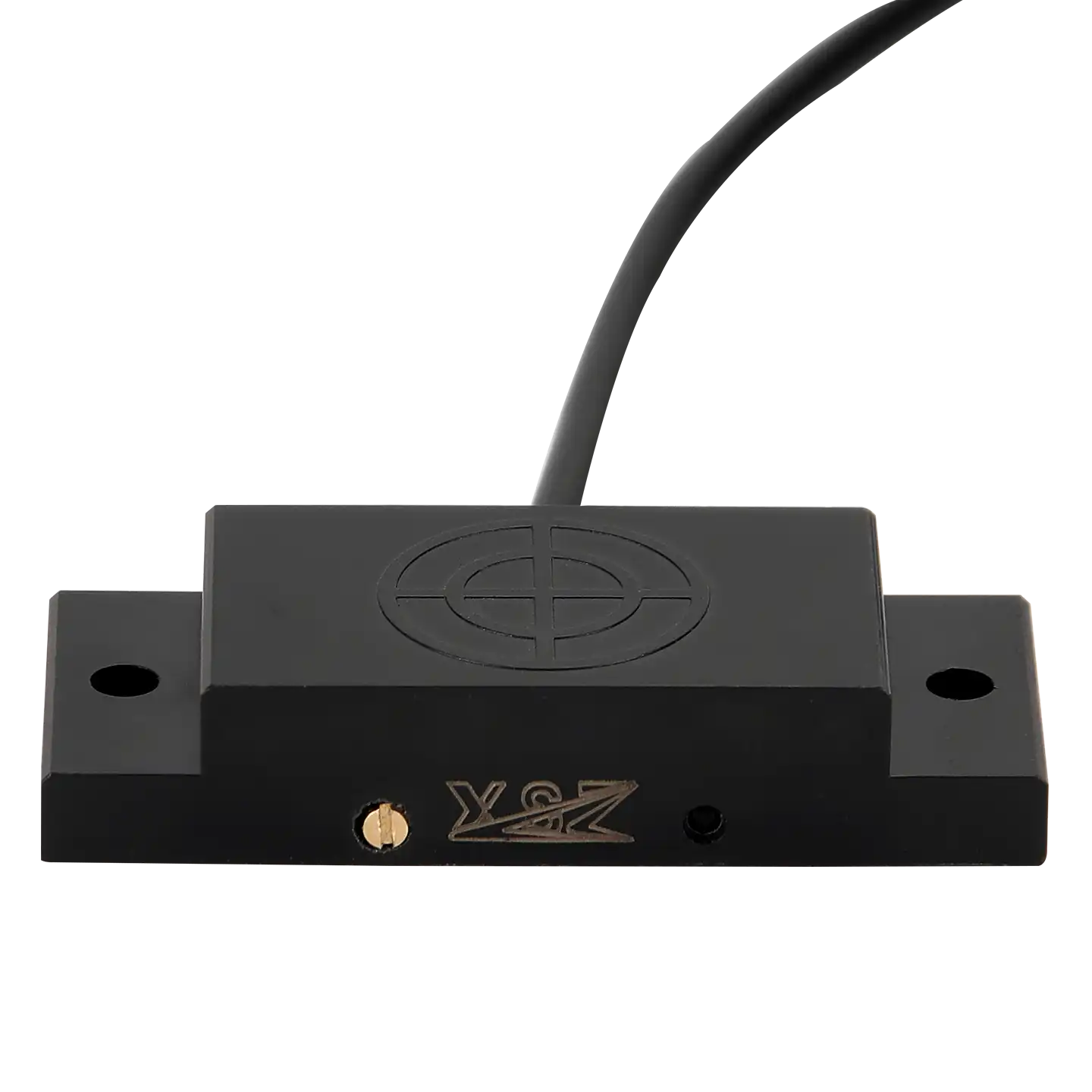

Universal material detection in a space-saving design. The XSZ E2K Rectangular Capacitive Proximity Sensor reliably detects both metallic and non-metallic objects, including plastics, glass, and liquids. Featuring a compact flat-pack housing and an adjustable 8mm sensing distance, it is the ideal solution for tight mechanical clearances.
Key Performance Advantages
Universal Material Detection
Easily identifies conductors and dielectrics alike. Detect plastic components, stone, wood, and accurately monitor liquid levels through non-metallic container walls.
Space-Saving Flat Mount
The rectangular shape (W20×H10×L50) allows the sensor to be mounted flush against machine walls or embedded into tight mechanical spaces where cylindrical sensors cannot fit.
Adjustable Sensitivity
Equipped with a built-in single direction knob (potentiometer), allowing you to conveniently fine-tune the 8mm sensing distance to match the target material’s dielectric constant.
Comprehensive Technical Specifications
| Specification | Standard Value (E2K Series) |
|---|---|
| Dimensions (W×H×L) | W20 × H10 × L50 mm |
| Installation Method | Non-Flush |
| Sensing Distance | 8 mm (Adjustable) |
| Standard Sensing Object | Grounded metal plate 50 × 50 × 1 mm |
| Detectable Object | Conductors and dielectrics (Metal, plastic, liquid, stone, wood, glass, etc.) |
| Sensitivity Adjustment | Single direction knob (Potentiometer) |
| Operating Voltage Range | DC 12 to 24 VDC ±10%, ripple (p-p) Max. |
| Load Current (Output) | 200 mA Max. (Residual Voltage: 1.5V Max.) |
| Current Consumption | 15 mA Max. |
| Response Frequency | 100 Hz |
| Control Output | NPN / PNP available |
| Protection Circuits | Reversed power supply polarity protection, Instantaneous overvoltage protection |
| Indicator | Operation indicator (red) |
| Environmental Specs | Degree of protection: IP65 | Temp: -25 to +70°C | Humidity: 35 to 85% RH |
Wiring & Circuit Diagram
Please consult the wiring diagrams below to securely integrate the NPN/PNP rectangular capacitive proximity switch into your industrial control panel.
Ideal Industrial Applications
Flat design allows easy mounting along conveyor rails for reliable cardboard and plastic packaging tracking.
Accurately detect liquid levels through thin tank walls in compact machines where cylindrical sensors protrude too much.
Perfect for non-metallic component verification in highly constrained manufacturing stations.
Versatile Detection in Tight Spaces
Connect with our XSZ technical experts to integrate our highly flexible rectangular capacitive proximity sensors into your automated systems.
Zhejiang Xinsenzheng Automation Co., Ltd. – PRECISION & INNOVATION
