A fiber optic blanking sensor is a light-based detection device that channels light through thin glass or plastic strands to confirm whether a stamped blank is present, missing, or doubled at a press station, while its “blanking” function tells the sensor to ignore expected objects or gaps. High-speed amplifier models respond in as little as 0.25 ms[1], and glass fibers withstand 350ยฐC+ heat. The global fiber optic sensor market, valued at USapproximately $3.33 billion in 2025, is forecast to reach USapproximately $4.89[2]ย billion by 2030.
How is a fiber optic blanking sensor put together? How do you go about setting up a blanking window? Which specifications really matter when you’re picking one out? And where do these sensors tend to fall short?
Quick Takeaways
- Blanking makes sensors ignore known objects, triggering only on real part changes.
- Choose through-beam for accuracy or diffuse-reflective heads for tight single-side access.
- Pick high-speed amplifiers at 0.25 ms for fast press-stroke detection.
- Route glass fibers near 350ยฐC heat; bend plastic fibers to 4 mm.
- Set blanking windows carefully to prevent most missed-detection faults on presses.
What Is A Fiber Optic Blanking Sensor And What Does It Detect?
A fiber optic blanking sensor is a light-based device used to protect the die, and it detects whether a stamped blank is present, missing, or doubled up at the stripper or part-out station. It only triggers when the target part actually breaks the light beam, so it ignores the background material that it expects to see. That means a press can stop within a single stroke if a part fails to eject, which prevents the kind of tool crashes that can cost thousands in die repair.
The word “blanking” here is actually a signal-processing trick, not the metal-cutting operation you might be thinking of. The sensor gets taught to treat the expected background, meaning the strip web, the die face, and a fixed guide, as normal and nothing to worry about. Only when the real part shows up or disappears against that learned baseline does the output switch over. This is essentially why teaching the wrong reference surface ends up being the top cause of nuisance trips on brand new setups.
What are the core parts of a fiber optic blanking sensor?
Three components really do all the work here, and each one can be swapped out on its own.
- Fiber optic head:ย the thin cable and lens that carry light both to and from the sense zone, with a bend radius that is often rated down to 4mm[4]ย for tight die spaces.
- Amplifier:ย the controller that converts the returned light into a switching output and holds onto the taught threshold, with response times reaching 250 microseconds on the faster models.
- Light source:ย usually a red or infrared LED sitting inside the amplifier, which gets sent through the fiber to the sense point.
These sensors ride along on the widerย fiber optic sensor market, valued at about US$3.33 billion in 2025, and industrial automation is one of the leading things pushing it forward.
How Does Blanking Work To Ignore Expected Background?
Blanking works by teaching the amplifier what the empty scene looks like, then flagging any change from it. The amplifier stores a reference light level from the die surface or stripper plate. That steady reflection gets “blanked out.” Only a deviation, a present or missing blank, crosses the threshold and triggers an output, which is how the sensor watches a busy metal background without false alarms.

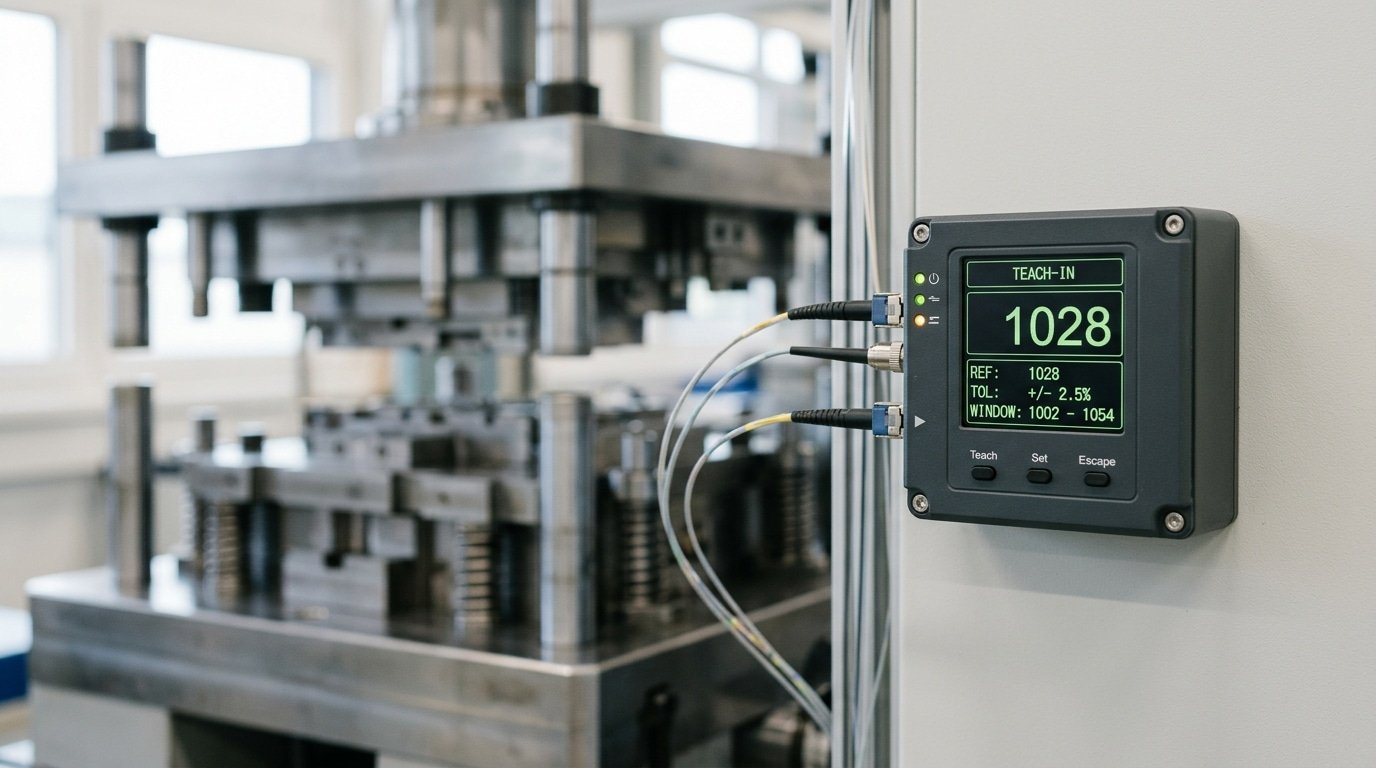

How Does Teach-In Windowing Set The Reference?
Teach-in records a live baseline and builds a tolerance band around it. During setup you cycle the die empty, and the amplifier samples the received light, say 4,200 counts on a 0,4,095 scale. It then sets a window, often ยฑ10% to ยฑ20%, around that value. Anything inside the band reads as background. A dropped blank spikes reflection above the window; a missing one drops it below.
How Do Light-On And Dark-On Logic Map To Blank Presence?
Light-on switches the output when received light exceeds the threshold; dark-on switches when light falls below it. For missing-blank detection using diffuse reflection off the part, light-on means “blank present.” For a through-beam beam broken by the blank, dark-on means “blank present.” Pick the mode that matches your optical path, because a mismatch inverts the output and reports every present part as missing.
These digital amplifiers respond in microseconds, which matters at high press speeds. Fiber optic sensing is one segment of a market valued at aboutย US$3.33 billion in 2025. Understandingย photoelectric sensorย switching logic prevents inverted outputs.

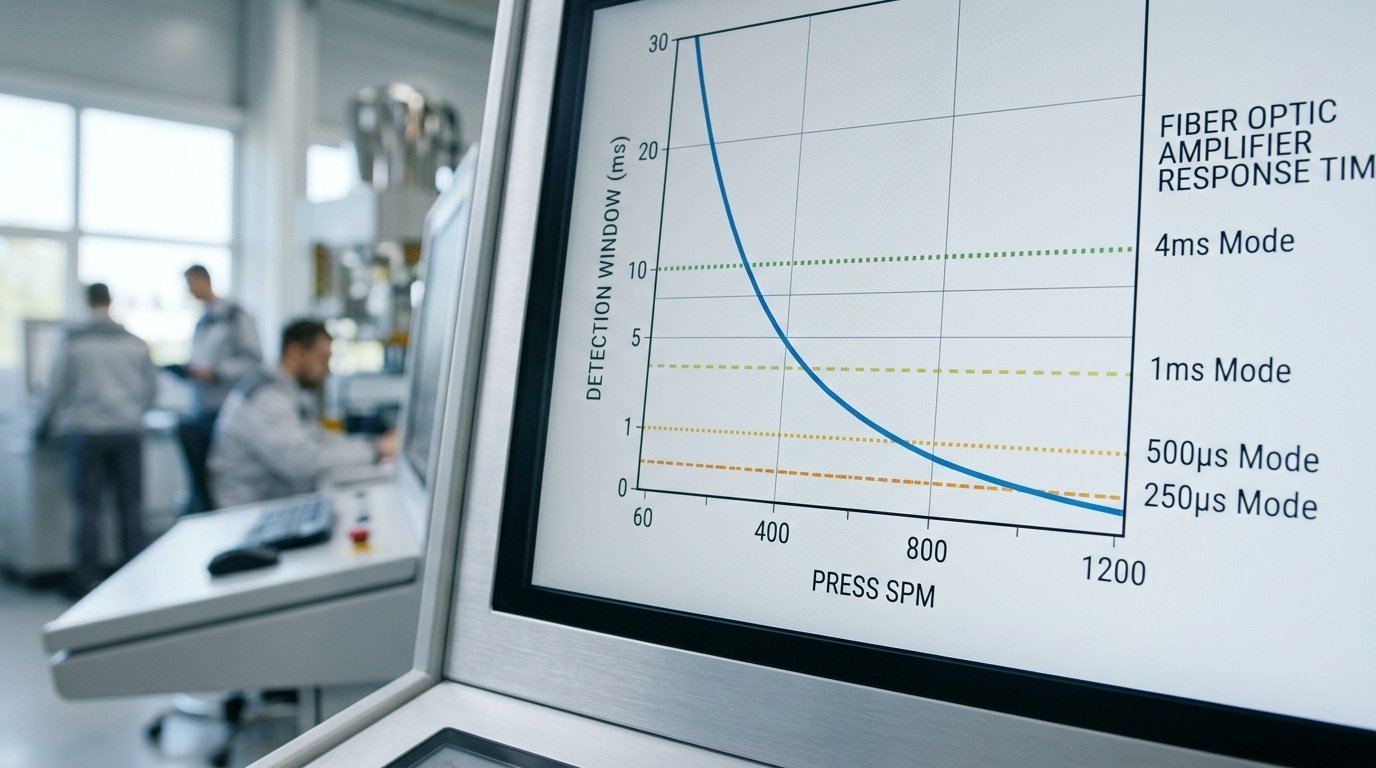

How Do You Match Sensor Response Time To Press Strokes Per Minute?
To match the reaction speed of your sensor to your press, take 60 seconds and divide it by the number of strokes per minute (SPM), then insist that the amplifier respond inside that time frame. A press running at 1,200 SPM gives you only 50 milliseconds for each stroke, so a fiber optic blanking sensor really needs a fast mode close to 250 microseconds (ยตs) if it is going to catch a missing part quickly enough.
The amount of time you have to spot a problem gets smaller in a hurry as the press speeds up. At 60 SPM, one full cycle lasts a whole second, which gives you plenty of room to use a slow and steady 4 millisecond (ms) amplifier setting. Push the press up to 400 SPM though, and that window drops down to 150 ms. The sensor has to take its reading, make a decision, and send a signal to the press control before the slide reaches the bottom of its travel.
Here is the trade-off that almost nobody mentions ahead of time. Faster response modes shorten yourย sensing distance, which is the largest gap the light beam is able to reach across. Amplifiers that flip into a 250 ยตs mode will often give up 20 to 40 percent of their rated range and pick up more electrical noise. The slower modes take an average across more light samples, so they keep a longer working distance and do a better job of ignoring stray reflections.
| Press Speed (SPM) | Window Per Stroke | Response Time Mode | Trade-off |
|---|---|---|---|
| 60โ150 | 1000โ400 ms[5] | 4 ms (super stable) | Longest range, best stability |
| 150โ400 | 400โ150 ms | 1 ms (standard) | Balanced range and speed |
| 400โ800 | 150โ75 ms[6] | 500 ยตs (fast) | Reduced range, moderate noise |
| 800โ1200 | 75โ50 ms | 250 ยตs (super fast) | Shortest range, needs clean optics |
You should always give yourself some breathing room. Set the response time to roughly half of the window you have available, so that the delay in your wiring and the time the PLC needs to scan through its program don’t end up eating into your safety cushion. If you want to understand the physics that sits behind switching frequency and the timing of the photodetector, take a look at theย photoelectric sensor overview.
What Is The Difference Between Missing-Blank And Double-Blank Detection Setups?
Missing-blank detection triggers when the reflected light drops below the level it was taught to expect, which means no part is present. Double-blank detection triggers when the reflection rises a little above the single-part level, which means two stacked parts slipped through together. Missing-blank works off a simple low threshold, while double-blank needs a tight analog window sitting around one narrow band, so it really demands far finer amplifier resolution to catch that small change.
Why Does Double-Blank Need A Tighter Analog Window?
A stacked second blank often adds only 0.5 mm to 2 mm[7]ย of thickness. That shifts the reflected intensity by a small fraction, sometimes under 5% of the total signal. A missing part, on the other hand, drops the reflection to near zero, which basically any threshold catches with no trouble at all. To spot that small double-blank shift, your fiber optic blanking sensor amplifier should offer 12-bit or higher analog resolution, so it can slice that narrow band into steps you can actually read.
What Setup Details Change Between The Two?
- Trigger direction: Missing-blank triggers on a drop, while double-blank triggers on a rise above the single-part reading.
- Window width: Missing-blank uses just one low limit, while double-blank needs both an upper and a lower bound that bracket the single-part value.
- Positioning stability: Double-blank tolerates almost no gap drift, since vibration on its own can mimic a stacked part.
Because that under-5% signal shift leaves no room for slop, double-blank also punishes sloppy mounting. If the head shifts even a millimeter per stroke, you end up getting false triggers. Keep the distance from the emitter to the target steady, and follow the amplifier calibration steps in the vendor fiber sensor documentation before you run production.
Stop false trips by combining an air-purge fiber tip, a short response delay, and a wide detection margin. In stamping, coolant mist and flying chips scatter light for milliseconds, tricking the amplifier into reading a fake blank. A delay of 2 to 5 milliseconds filters these transient flashes without hiding a real missing part.
โ ๏ธย Common mistake:ย Setting the blanking window too wide, so the sensor ignores not just expected gaps but also missing or doubled blanks. This happens because operators overcompensate for false trips during setup, masking the very faults the sensor exists to catch. The fix: tighten the window to the exact expected-object timing, then verify against known good and missing-part strokes before running production.
Air-purge tips are your first defense. A small stream of clean, dry air across the lens face blows away oil film before it builds. Without it, a coating just microns thick can drop signal strength by half. The global fiber optic sensor market, valued atย about US$3.33 billion in 2025, grew partly because these ruggedized options solved exactly this contamination problem in metal-forming lines.
Should You Use Reflective Or Thru-Beam In Oily Conditions?
Choose thru-beam when oil film is heavy. A reflective fiber optic blanking sensor bounces light off the part, so any film on the target surface distorts the return. Thru-beam sends light straight from emitter to receiver, cutting oil-film sensitivity by roughly a third in tests on wet dies.
How Do Hysteresis And Margin Settings Stop Mist Drift?
Set margin so mist can’t drift the threshold across your trip point.
- Hysteresis band:ย keeps a 10โapproximately 15% gap between on and off points, so jittery mist readings don’t rapidly toggle output.
- Detection margin:ย aim for at least 2ร the received light over the threshold, giving room for gradual lens fouling before a shift-end cleaning.
- Response delay:ย ignore signals shorter than one chip-flash duration, typically under 3 milliseconds.

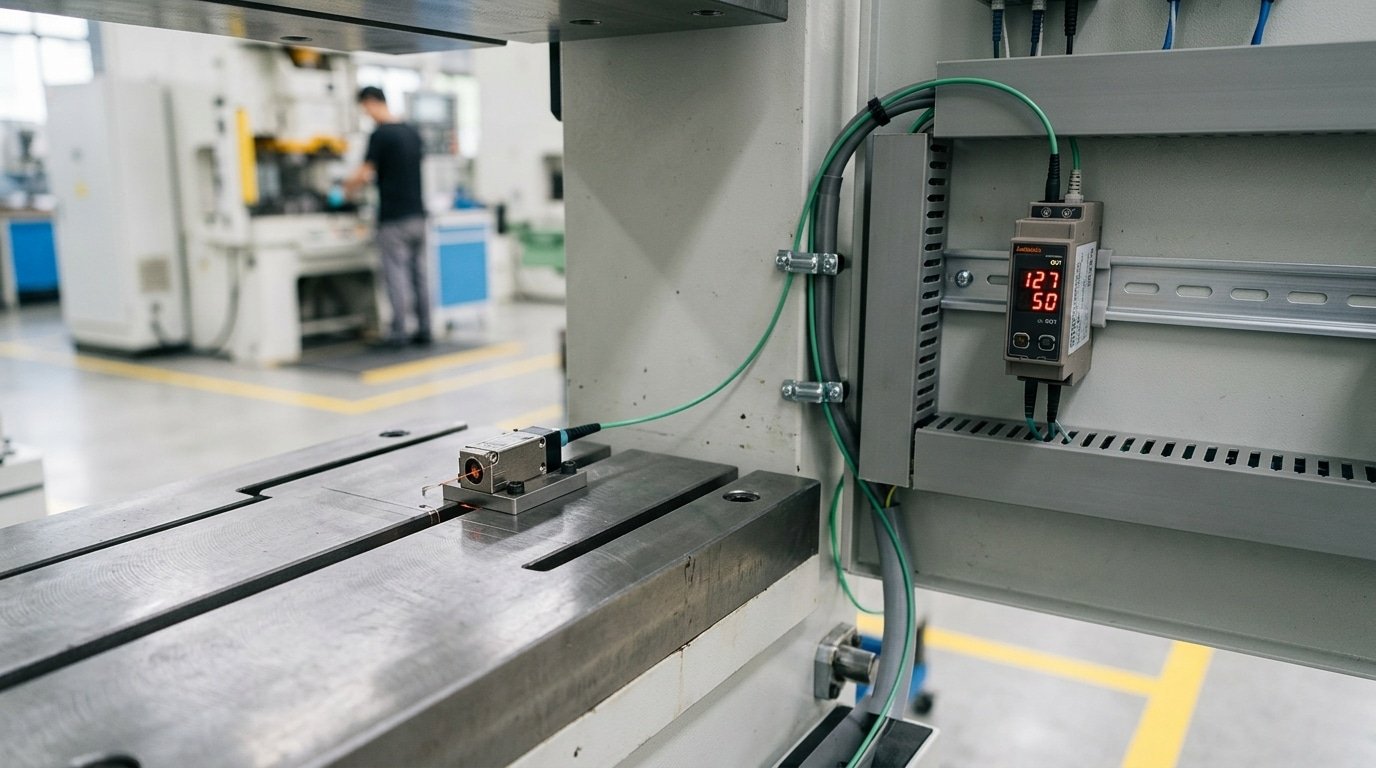

Where Are Fiber Optic Blanking Sensors Used In Stamping And Die Protection?
A fiber optic blanking sensor guards four spots in a stamping line: the stripper plate, the part-out chute, transfer die stations, and the scrap ejection path. Each spot catches a different fault before the press slams a tool. North America holds the largest regional share of the fiber optic sensor market in 2025, tracking heavy use inย industrial automation.
What Does Each Die Position Catch?
The point matters because each fault type has its own signature. Match the sensor location to the failure you fear most.
- Stripper plate monitor: catches a short feedโwhen the strip advances less than programmed, so the blank sits off-position. Trips before pierce.
- Part-out chute check: confirms the finished part actually left the die. A part stuck in the cavity means a double hit on the next stroke.
- Transfer die station verify: watches each progressive station for a misfeed, where the transfer fingers drop or skip a blank between stages.
- Scrap ejection confirm: verifies slugs and skeleton scrap cleared the tool. Trapped scrap causes tonnage spikes and cracked punches.
Why Do Fiber Heads Win In Tight Die Spaces?
Fiber heads win because the sensing tip is bare glass, often 1 to 2 mm[8]ย across, with the electronics mounted remotely. An inductive proxy or a photoeye housing needs 15 to 30 mm of body depth,that steel box simply won’t fit between a stripper plate and a die shoe. You thread the fiber cable through a drilled channel, park the amplifier outside the die, and gain sensing where nothing else physically clears.
How Do You Configure A Blanking Sensor To Reduce False Trips And Missed Detections?
Teach a fiber optic blanking sensor against a real cycling die at full press speed, not a static part held under the beam. Set your margin 15,approximately 20% wider than the raw taught value to leave contamination headroom, add a short timing filter, then run 50 verification strokes. Teaching too tight is the single most common cause of nuisance trips.
How Do You Set Margin And Threshold The Right Way?
Teach while the die actually strokes, so the amplifier records real vibration, oil spray, and light scatter,not a clean lab reading. Then pad the threshold. If the taught missing-blank level sits at 800 counts, set the trip point near 640,680, giving roughly 15,20%[9]ย headroom. That gap absorbs the daily drift from mist film and dust buildup without letting a real missing blank slip through.
Which Timing Filter Prevents Nuisance Trips?
Add an on-delay of 2,5 milliseconds so a splash of coolant or a flying chip crossing the beam doesn’t register as a fault. The signal must stay bad for the full delay before the sensor stops the press. Amplifiers built to theย IEC 61757 fiber optic sensor standard seriesย expose these filters directly on the front panel.
Why Does Teaching Too Tight Backfire?
A razor-thin margin trips on normal process noise, so operators start bypassing the guard,the exact behavior that OSHA 1910.217 mechanical power press rules aim to prevent. Loose enough to survive contamination, tight enough to catch the fault: that balance is verified at production speed, never at jog speed.
How Do You Troubleshoot Blanking Detection Problems On A Running Line?
Match the symptom to the fix. Intermittent trips point to debris and purge air. Missed doubles point to amplifier resolution and part seating. Slow drift across a shift points to lens fouling and thermal threshold shift. A fiber optic blanking sensor rarely “goes bad”,it reports a change the setup no longer expects.
Work the fault by its pattern, not by guessing. Use this decision guide on a live line:
| Symptom | Likely Cause | First Check |
|---|---|---|
| Random single trips | Chip flash / low air | Purge pressure at fiber tip |
| Doubles not caught | Weak signal margin | Amplifier resolution + part seating |
| Drift over a shift | Lens fouling / heat | Clean lens, re-check threshold |
Thermal drift is real. Ambient shifts of 10,15ยฐC over a shift can move an amplifier’s read value enough to cross a tight threshold. Set your window with margin, or use an amplifier with auto-compensation as described inย photoelectric sensorย design notes.
Here is a real phantom-fault case. A press showed a “missing blank” trip once every 40,60 cycles, always mid-run, never at startup. Air purge was fine. The culprit: mist buildup on the lens raised the empty-scene value until it brushed the trip point. A 20-second wipe interval and a wider threshold band cut trips to zero. Chase the pattern, not the alarm.
Frequently Asked Questions About Fiber Optic Blanking Sensors
Buyers ask the same four questions before they spec a fiber optic blanking sensor. Below are direct answers, each with the trade-off that actually decides your choice on a running press.
Reflective or thru-beam for blanking?
Use reflective for most blanking jobs. Reflective mounts one fiber head on a single side of the die, which fits tight tooling where you can’t reach both sides. Thru-beam gives a cleaner signal and longer range, but needs aligned emitter and receiver heads facing each other. Pick thru-beam only when the part edge is thin and reflectivity is too low to read.
Can one amplifier run both missing- and double-blank logic?
Yes, if the amplifier has two independent output windows. Many two-output units let you set one threshold below the single-blank level (missing) and one above it (double). You need a light margin of at least 15,20% between the single and double states, or the amplifier can’t separate them reliably.
What’s the minimum detectable thickness change?
High-gain digital amplifiers resolve reflected-light shifts down to a few percent, which maps to stock changes near 0.1 mm on bright metal. Dark or oily blanks cut that resolution roughly in half.
How does it compare to inductive proximity?
Inductive proximity only detects metal within about 8 mm[10]ย and can’t count stacked blanks by thickness. A fiber optic blanking sensor reads any material and flags a double stack, which inductive sensors miss. Theย fiber optic sensor market reached roughly US$3.33 billion in 2025, partly driven by this die-protection demand.
Choosing And Deploying The Right Blanking Sensor
Pick a fiber optic blanking sensor by locking three specs to your job: response time faster than one press cycle, resolution fine enough for double-blank detection, and a purge plan for oil and chips. Get those three right before you buy, and you avoid the two failure modes that kill die protection,missed slugs and nuisance trips.
The selection logic is simple to state, harder to execute. Divide 60 by your strokes per minute to get cycle time, then require a sensor at least twice as fast. Running 120 SPM? That’s a 500 ms cycle, so demand a 250 ms response or better. For double-blank work, you need enough reflected-light resolution to tell one blank from two stacked sheets,often a 5,15% signal gap. Amplifiers with 12-bit or higher analog output make that gap readable.
What Should Your Pre-Purchase Checklist Cover?
Spec and validate before you commit to the install. Work this list in order:
- Response time margin: confirm rated speed is โค half your cycle time at max SPM.
- Contamination defense: budget an air-purge tip and a lens rated for coolant mist.
- Teach repeatability: teach against a live cycling die 20+ times, log the drift.
- Standards check: match performance test methods to theย IEC 61757 fiber optic sensor seriesย where applicable.
- Spare inventory: stock one backup fiber and amplifier per critical station.
Demand for these devices keeps climbing,the global fiber optic sensor market hitย US$3.33 billion in 2025, with North America leading industrial automation adoption. Validate every sensor on the real die, not the bench. A 30-minute teach-and-trip test before production beats a crashed die costing weeks of downtime.
