What Is a Photoelectric Sensor and How Does It Work?

How does a photoelectric sensor turn light into an output?

Think of a photoelectric sensor, sometimes called a photoeye, as a light source and a light detector working together. It does not need to recognize what an object is. It needs a dependable optical difference between the condition you want to detect and the condition you want to ignore.

1. Emit: an LED or laser sends visible or infrared light toward the sensing area.
2. Receive: an optical receiver converts the light reaching it into an electrical signal.
3. Decide: the electronics process that signal and compare it with the detection setting.
4. Switch: the output changes state according to the selected operating logic. A PLC—a programmable logic controller—can then use that state.

Many sensors pulse their light and filter the received signal to distinguish it from surrounding illumination. That helps reject interference; it does not make every sensor immune to sunlight or another nearby emitter. The basic processing chain is described in Datasensing’s photoelectric sensor overview.

This guide focuses on industrial presence-detection switches. Some optical sensors also measure distance, color or contrast, but a basic ON/OFF output does not automatically provide those measurements. A laser specifies the light source—not a separate fourth sensing mode.

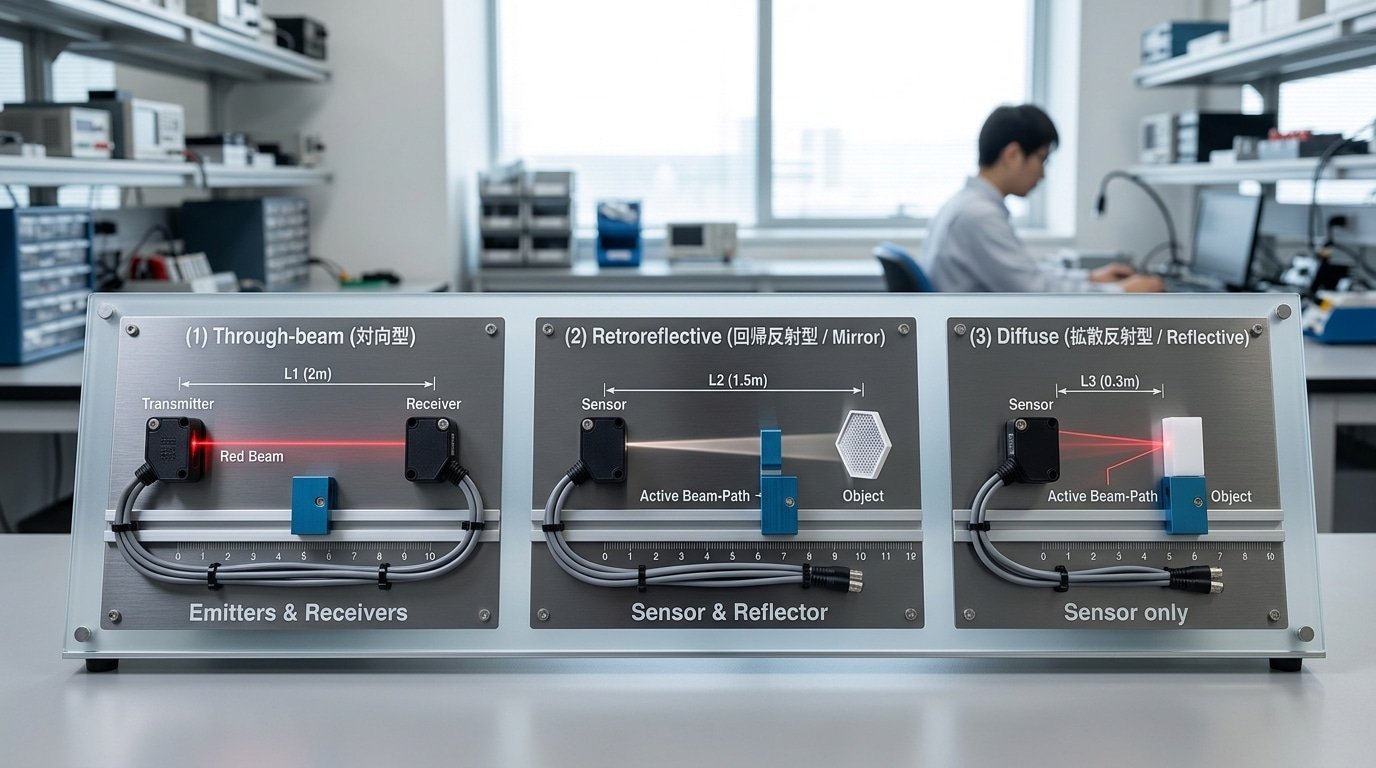

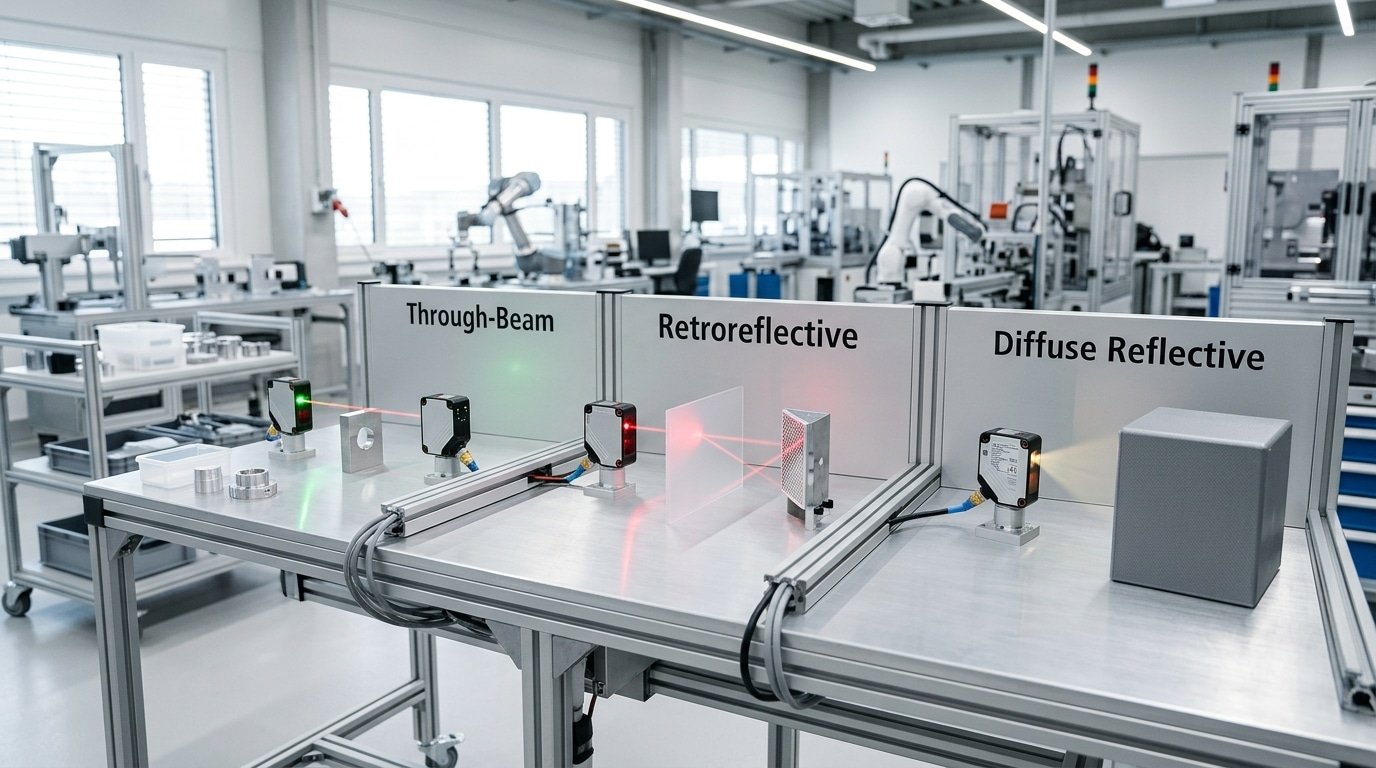

How do through-beam, retro-reflective and diffuse sensors differ?

The key difference is where the receiver gets its light. Follow that path before looking at the housing shape: two similar-looking sensors can require completely different installations.

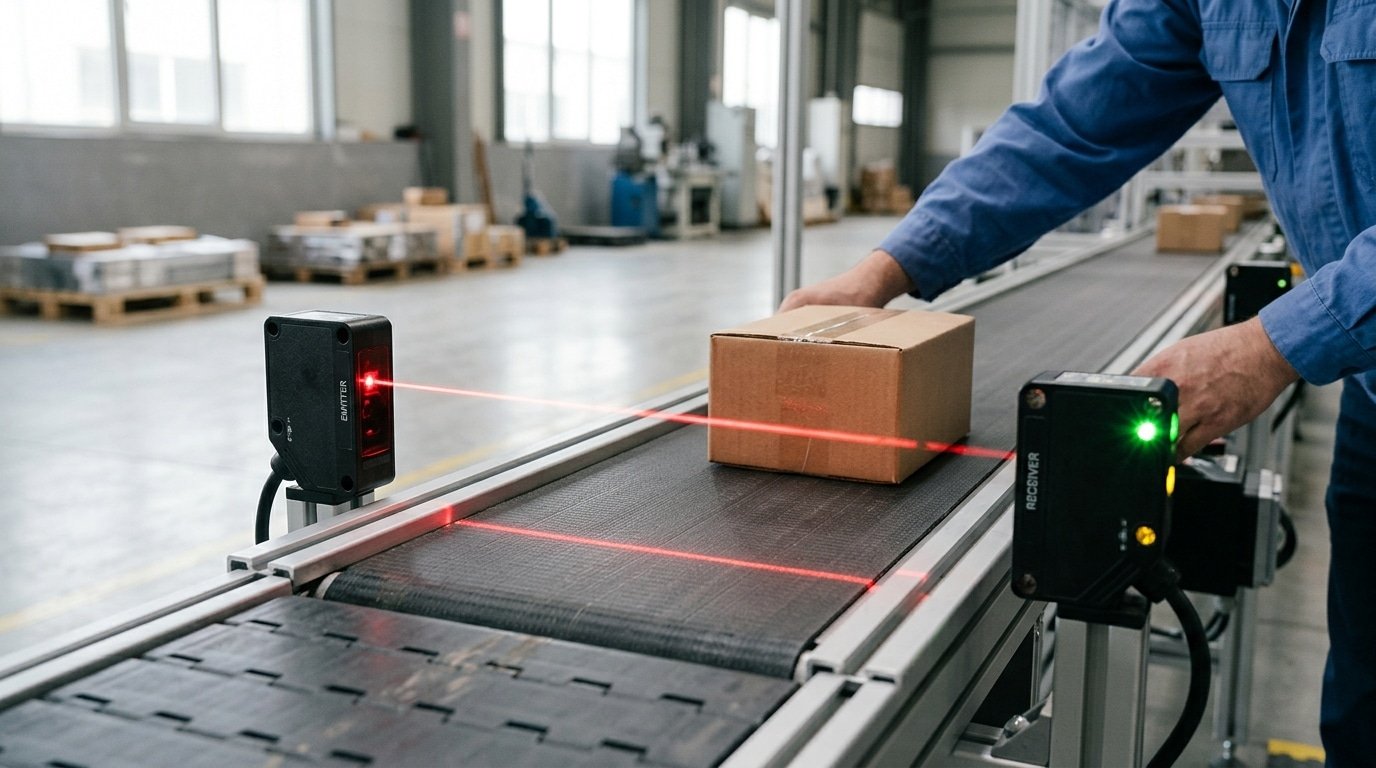

Through-beam: the object interrupts light between two units

Retro-reflective: the object interrupts light returning from a reflector

Diffuse: the object itself returns light to the sensor

These original diagrams simplify the optical paths; they are not installation drawings or beam-size specifications. The three arrangements are also explained in KEYENCE’s introductory guide.

Fiber optics and fork housings change how the optics are packaged. A fiber unit can carry light to a small sensing head; an optical fork can hold the emitter and receiver opposite one another in a shared body. Still ask whether the target is interrupting light or returning it.

Does “output ON” mean an object is present?

Not always. There are three separate questions: is light reaching the receiver, is the output active, and what does the controller interpret that output to mean?

Light-ON and Dark-ON describe the received-light condition

Light-ON activates the output for the light-received condition. Dark-ON activates it for the light-interrupted or sufficiently reduced-light condition. “Light” and “dark” refer to the sensor’s optical signal, not whether the factory lights are on.

In a correctly arranged through-beam installation, an opaque object reduces received light, so Dark-ON can make the output active for object present. In a basic diffuse installation, a target returning sufficient light can instead make Light-ON active for object present. Always check the exact model’s operating diagram.

NPN and PNP describe the electrical interface

For common DC transistor outputs, PNP sources current toward the load when active; NPN sinks current toward the supply’s 0 V. Neither term determines the optical mode. A sensor can be PNP and Dark-ON, for example. Nor does “output ON” always mean a high measured voltage: an active NPN output is commonly near 0 V.

NO (normally open) and NC (normally closed) labels must also be read against the manufacturer’s stated normal condition. Do not infer the complete truth table from a housing label, wire color or indicator alone.

Can photoelectric sensors detect clear, black or shiny objects?

Yes, suitable models can—but “detects plastic” or “detects metal” is too broad to guarantee the result. What matters is how the particular target changes the chosen light path.

• Clear glass and plastic: light may pass through instead of being blocked. A clear-object sensor is designed to recognize smaller or different optical changes. Test the actual container, including its walls, label, contents and changing orientation.
• Black or dark parts: a plain diffuse sensor may receive too little return at the required distance. An opaque dark part can be easier to detect by interrupting a through-beam path, where reflection from its face is not required.
• Shiny or curved surfaces: a small angle change can send reflected light toward or away from the receiver. In retro-reflective sensing, an unsuitable sensor may mistake a shiny target’s return for the reflector. Polarized mirror-surface-rejection optics can help, but are not a universal clear-object solution.
• A bright background: a diffuse sensor may respond to the conveyor or frame after the target leaves. Raising sensitivity can make that problem worse.

What does background suppression change?

A background-suppression sensor uses distance discrimination to help separate the target from a farther background. In triangulation-based models, the position of the reflected spot on the receiver changes with distance. This is different from simply turning down a brightness threshold.

It still needs adequate separation between target and background, suitable target geometry and operation within the model’s limits. Do not treat background suppression as a promise to ignore every shiny surface or detect every dark object. OMRON explains the distance-setting principle using its triangulation-based models.

How far—and how fast—can a photoelectric sensor detect?

Range is meaningful only with its reference conditions

There is no single range for “a photoelectric sensor.” A through-beam rating describes the emitter-to-receiver spacing; a retro-reflective rating depends on the specified reflector. A diffuse range is measured with a stated reference target, often white paper. A smaller, darker or tilted target can give a different usable result.

Beam spot size and minimum detectable object are also different specifications. A small visible spot helps you aim, but it does not by itself prove that the sensor will detect a thin edge or clear film. Check the spot or beam geometry at the real working distance and the conditions behind any minimum-object claim.

The object and the gap both need enough time

Response time is the delay between an optical change and the corresponding output change. Check both operating and reset behavior. For repeated objects, the target must remain detectable long enough to produce a usable output, and the gap must allow it to reset.

A fast sensor can still feed a controller that misses short pulses because of its input filter, update timing or program. This is why a target that works when moved slowly by hand may fail at production speed. Verify the sensor output and the controller’s recorded event—not only whether an indicator appears to blink.

OMRON’s photoelectric terminology guide distinguishes rated distance, reference targets and response time. Its definitions do not establish specifications for another manufacturer’s model.

What should you check when detection is unstable?

First identify where the expected change disappears. This is more useful than adjusting sensitivity repeatedly.

1. The optical indication is already unstable. Check the target-present and target-absent conditions, alignment, lens cleanliness, moving brackets, background reflections and nearby light sources. Confirm what each indicator actually means in the manual.
2. The sensor’s indication changes, but the controller input does not. Check the output mode, supply, wiring, input compatibility and load limits. An indicator is not proof that the electrical signal reaches the receiving input correctly.
3. The input changes, but the machine count or action is wrong. Check pulse duration, gaps, input filtering and program logic. The carton example above shows why correct presence detection is not automatically correct counting.

Begin with the machine secured against hazardous motion. Mounting, wiring and electrical measurements should follow the equipment instructions and be performed by qualified personnel where required. Keep guards and protective functions in place during any permitted running test.

What should you know before choosing a photoelectric sensor?

Start with a sentence describing the event: “Detect an opaque carton crossing this point,” “confirm a component is in this fixture,” or “distinguish the printed mark from the surrounding film.” These are different optical tasks even if each ends with an ON/OFF signal.

Then bring together the details that determine whether the event is distinguishable:

• The actual target sample, its smallest size, surface and worst position.
• The available mounting sides, working distance and background.
• The fastest movement and shortest gap between successive targets.
• The supply and receiving input, including the required output logic.
• The likely contamination, ambient light, vibration and cleaning conditions.

Use these details to choose the optical arrangement, then verify the exact model with representative samples. For a closer comparison of installation tradeoffs, continue with the three-mode selection guide.

The essential question is simple: what changes at the receiver when the target arrives? Once that is clear, the sensing mode, output logic and checks on the machine become much easier to understand.
