What sensor hysteresis means in practice [with diagrams]

In the world of sensor measurement, hysteresis error describes how a sensor’s output can differ at one particular point depending on the direction you came from, meaning whether you approached that point while the input was going up versus going down. Manufacturers typically describe this as a percentage of the sensor’s full measuring range (Control.com, 2025). To put it in plainer terms, the sensor hysteresis meaning comes down to this: one and the same real-world value can give you two different readings, and which reading you get depends on whether the signal was climbing or dropping just before the measurement was taken. That difference is a repeatable, measurable error, and it isn’t random noise at all.

This article works through the questions that engineers genuinely search for. What does sensor hysteresis actually mean in everyday language? How is it different from repeatability, deadband, and drift? What is really causing it inside the sensor itself? How do you go about calculating and stating it as a percentage of the range? And how can you cut down on its effect within a real control loop?

Quick Takeaways

• Hysteresis is the output gap between rising and falling input at the same point.
• Manufacturers specify hysteresis as a percentage of full-scale range, typically 0.1–approximately 1%^[1].
• Hysteresis is repeatable and directional, unlike random noise or gradual drift.
• Main causes include material elasticity, magnetic memory, and internal mechanical friction.
• Reduce hysteresis impact using software deadband and proper sensor calibration in control loops.

What does sensor hysteresis mean?

Sensor hysteresis means the sensor gives you a different output at the exact same input value, and which output you get depends on whether that input was climbing or dropping. In the world of sensor measurement, hysteresis error is the deviation between the increasing and decreasing directions, and it’s usually written as a percentage of the measuring range (2025). So the same pressure or force can actually read as two slightly different numbers.

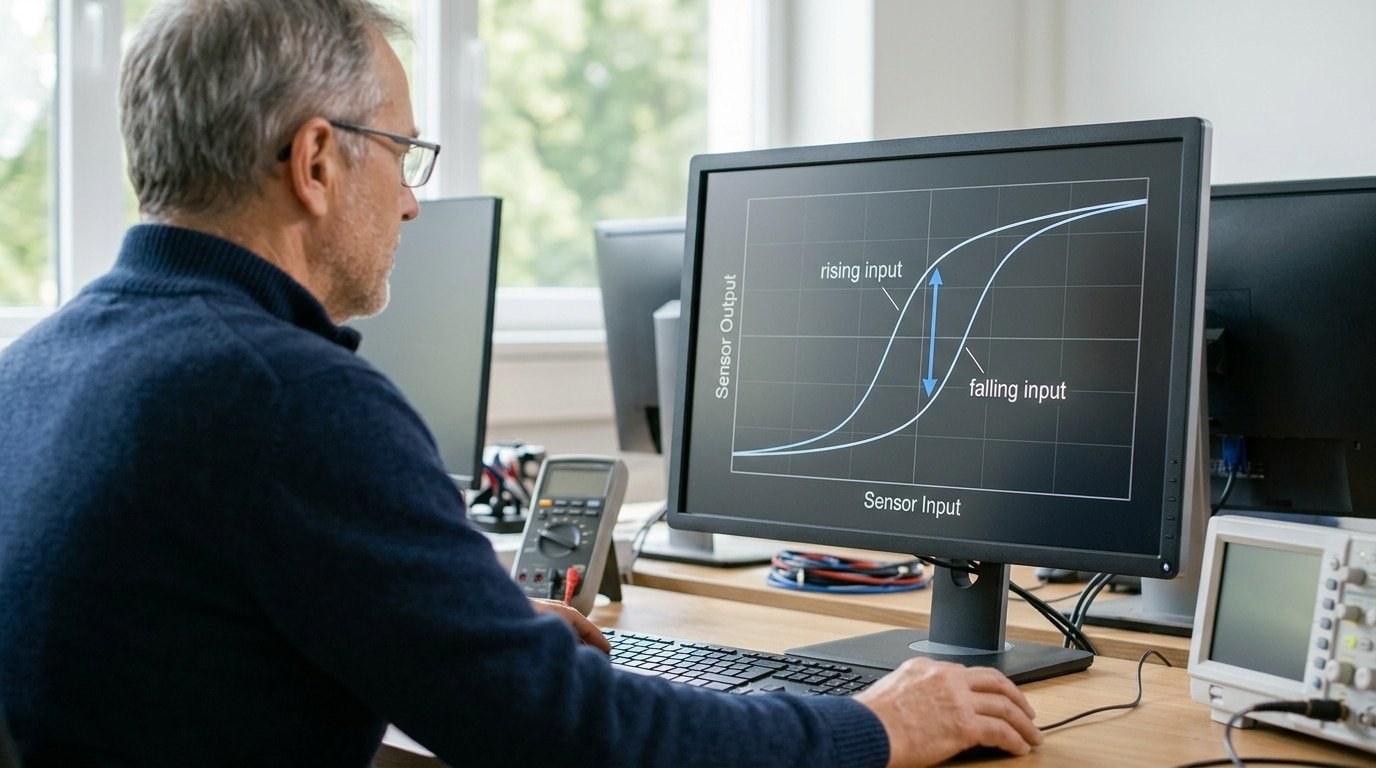

Picture a slow up-and-down input sweep. You push the input from zero all the way up to full scale, and then you bring it back down to zero again. When you plot the output against the input for both trips, the two lines don’t sit on top of each other. That gap between them, measured at the same input point, is the hysteresis.

The gap is there because the sensor essentially “remembers” where it came from, and that memory is rooted in genuine physical effects, like magnetization in magnetic cores, thermal lag in the sensing element, or a bit of slack in a mechanical linkage. This is the sensor hysteresis meaning that engineers really care about, where the output depends on the input history and not just the value right now.

Since history drives the whole effect, the way you test matters just as much as the sensor itself. Here is the field tip that most datasheets tend to bury away: always test with a full sweep up to the maximum, and then bring it all the way back down. A partial sweep, say from zero to 60% and back, shows a smaller loop and undersells the real error, which makes cheap sensors look better than they actually are. For a typical industrial pressure transmitter, the hysteresis runs around 0.5% of full scale, which is small, though it stacks up with linearity and repeatability into the total accuracy.

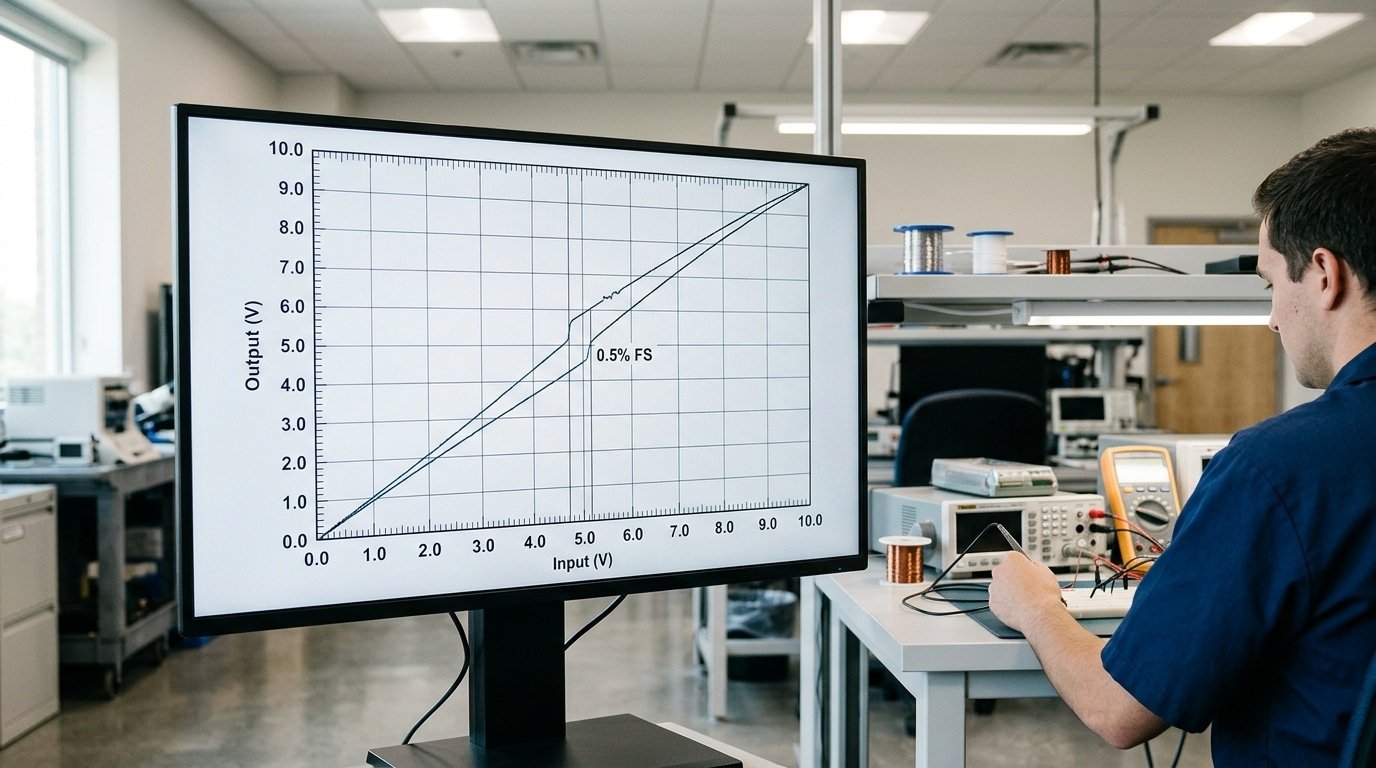

What does a hysteresis loop look like on a real datasheet?

A hysteresis loop on a datasheet appears as two nearly parallel traces: an ascending line (input rising) and a descending line (input falling) that never quite meet. The vertical gap between them is the hysteresis error, defined in 2025 sensor metrology as output deviation at the same point approached from opposite directions, usually given as a percentage of measuring range.

Picture a pressure sensor curve. You push pressure from 0 to full scale, then pull it back to 0. The “up” path sits slightly higher than the “down” path, and the two form a thin oval, the loop. Read the y-axis at any single pressure and you get two output values, not one.

Where is the loop widest, and how do you find the max difference?

The loop is widest at mid-range, roughly 40-60% of full scale, not at the endpoints. At approximately 0% and 100% the two traces pinch together because both directions share the same start and stop point.

To locate the maximum output difference, scan across the loop and find where the vertical gap peaks. On a pressure sensor rated in 2025, that peak might read approximately 0.5%^[2] FS. That single worst-case number, not the average gap, is what the datasheet quotes as the hysteresis spec.

Practical tip: if the datasheet shows the curve but omits a number, measure the widest gap yourself against the y-axis. Understanding sensor hysteresis meaning starts with knowing that spec always reflects the fattest part of the loop.

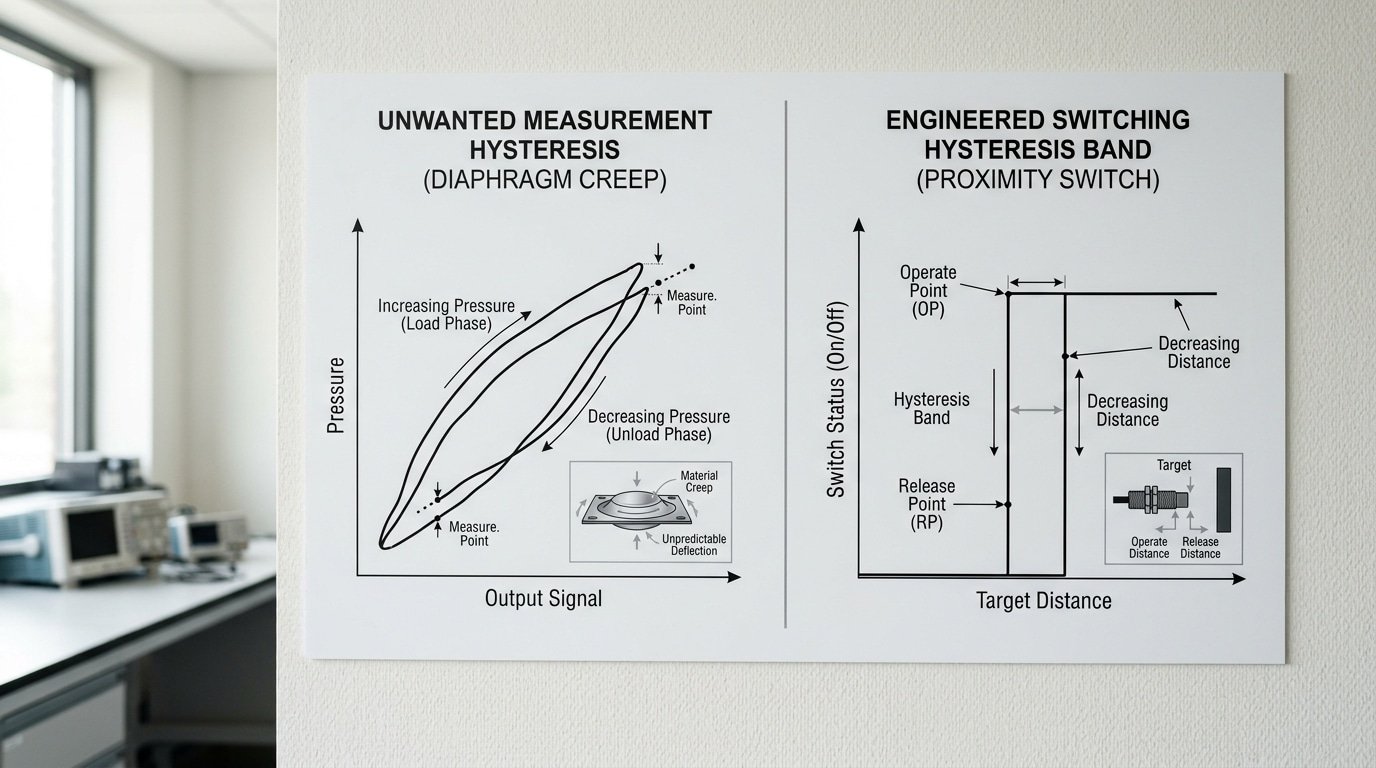

Is hysteresis an error or an engineered feature?

Hysteresis is both, it depends on where it comes from. Measurement hysteresis is an unwanted error from physical flaws, and metrology labs define hysteresis error as the output deviation when a point is approached from increasing versus decreasing input, stated as a percentage of measuring range. Switching hysteresis, by contrast, is deliberately added. Same word, opposite intent.

What causes the unwanted kind?

Unwanted measurement hysteresis comes from the sensing element itself: material creep (the diaphragm slowly relaxing after load), internal friction, or loose mechanical linkages that need slack taken up before motion transfers. Educational sensor engineering texts also blame magnetization and thermal effects. This is the sensor lying about the same physical input, and you can’t switch it off, you can only calibrate around it.

Why do engineers add switching hysteresis on purpose?

Designers add switching hysteresis to stop output chatter near a threshold. Picture a proximity switch: without a gap between the operate point and the release point, a target sitting exactly at the trip distance makes the output flicker on and off thousands of times. In proximity sensors, this hysteresis is the distance difference between switch-on and switch-off points, spec’d as a percentage of range.

Practical rule: if your comparator or proximity input oscillates near the setpoint, widen the hysteresis band rather than filtering the signal. A dead zone of 3,5% of range usually kills chatter without hurting response.

How does hysteresis show up in proximity, pressure and load cell sensors?

Hysteresis shows up in different ways depending on which sensor you’re looking at. With proximity sensors, it appears as a gap between the distance where the device turns on and the distance where it turns off. Pressure sensors reveal it as different readings when the pressure goes up compared to when it comes back down. And load cells show it as leftover output that stays behind after you’ve taken the weight off. All three describe the effect as a percentage of full scale, and the real-world sensor hysteresis meaning becomes pretty clear once you actually cycle the input back and forth.

Why does a proximity sensor turn off at a different distance than it turns on?

A proximity switch lets go at a slightly larger distance than the one where it first operates. This built-in gap is called switching hysteresis, and it’s given as a positive or negative percentage of the sensing range. As an example, an inductive sensor with a 10 mm range might switch on at 8 mm but keep holding on until the target pulls back past 8.8 mm. That’s an 8%^[3] gap, and it exists to stop the output from chattering when a part happens to vibrate right near the edge of the range.

How much do pressure readings differ going up versus coming down?

A pressure sensor tends to read higher while depressurizing than while pressurizing, even at the exact same pressure point. This difference gets measured after a full pressure cycle, and it’s often quoted at around 0.5% FS. So on a 100 bar transmitter, you can generally expect a 0.5 bar spread between the ascending reading and the descending reading when you’re sitting at 50 bar.

Why does a load cell not return to zero after unloading?

A load cell shows residual output even after the weight has been removed. Hysteresis in this case is really the difference between the output when it reaches a load starting from empty and the output when it reaches that same load coming down from maximum. Precision cells keep this held to 0.02,0.05%^[4] FS, so a 10 kg cell might read 2,5 grams too high right after you unload it.

How does hysteresis affect accuracy, repeatability and switching points?

Hysteresis inflates your total error budget as a separate, direction-dependent term that you can’t remove by averaging repeated readings. In sensor metrology, hysteresis error is specified as a percentage of measuring range (2025) and adds directly on top of linearity and offset. So a load cell rated 0.03% linearity plus 0.02% hysteresis carries a worst-case combined error near 0.05% FS.

⚠️ Common mistake: Calibrating a sensor by approaching each test point from only one direction (say, increasing input). This happens because hysteresis is directional, so a one-way sweep hides the 0.1–1%^[5] full-scale gap that appears when the input later drops toward the same value. The fix: calibrate both rising and falling to capture the true error band.

Why is hysteresis not the same as repeatability?

Repeatability measures scatter when you approach a point from the same direction every time. Hysteresis measures the gap when you approach from opposite directions. A sensor can repeat within 0.005% yet still show 0.05% hysteresis, tight scatter, but two different answers depending on load history. That’s why datasheets list them as separate line items.

Averaging kills random repeatability noise; it does nothing to a systematic hysteresis offset.

How does switching deadband change actuation timing?

In proximity and level switches, hysteresis becomes the deadband between the operate point and the release point. Set a pump to start at 80% tank level with 5% hysteresis, and it stops at 75%^[6], not 80%. This gap prevents relay chatter near the threshold, but it also delays actuation and shifts the effective trip point by the deadband width. Undersize it and the output toggles rapidly; oversize it and you lose timing precision.

Understanding the full sensor hysteresis meaning matters here: it’s both an accuracy penalty and a timing offset, and each application weighs those differently.

How do you read hysteresis specs and %FS values on a datasheet?

Read hysteresis as a percentage of full scale (%FS): a “0.5% FS” spec means the ascending and descending readings can differ by 0.5% of the sensor’s full range at the same input. Industry documentation consistently reports hysteresis as a percent of the full measurement range, so always multiply that figure by your span to get real units.

Example: a pressure sensor rated 0 to 100 bar with 0.5%^[7] FS hysteresis can read up to 0.5 bar apart between the up-cycle and down-cycle at the same pressure, regardless of where in the range you measure. That matters because at 10 bar, 0.5 bar is a 5% relative gap, not 0.5%.

What do combined “hysteresis and repeatability” figures hide?

A combined figure lumps two separate errors into one number, so you can’t tell how much is direction-dependent. Some datasheets state “combined hysteresis and non-repeatability: 0.1%^[8] FS.” If your application only cares about one-direction drift, that single number overstates your true hysteresis error. Ask the manufacturer for the split before you budget error.

Which test conditions must you check?

Hysteresis specs are only valid at the stated conditions. Look for the reference temperature (often 25°C), the full pressure or load cycle used, and whether the figure is typical or maximum. A value quoted after “a full pressure cycle” (per pressure sensor conventions) assumes you actually reach full scale, partial cycles behave differently.

Sensor type	Typical hysteresis	Common unit
Industrial pressure	0.1–0.5% FS	%FS or bar
Load cell	0.02–0.05% FS	%FS
Inductive proximity	1–15% of sensing distance	% of range

This is where the practical sensor hysteresis meaning becomes a budgeting number, not just a curve.

How can you test and quantify hysteresis in a real system?

To quantify hysteresis, sweep the input from zero to full scale, then back down to zero, recording output at the same input points in both directions. The hysteresis error is the largest gap between the up and down readings at any matched point, expressed as a percentage of full scale. For pressure instruments, this up-then-down calibration sweep is the standard method.

How many points and how much settling time do you need?

Use at least 5 to 11 evenly spaced points across the range, five is the practical minimum, eleven gives a cleaner loop. Test each point in both directions, so an 11-point run means 22 readings. Wait for the output to settle before recording. A good rule: hold each point for 5 to 10 seconds, or 3 to 5 time constants for slow sensors like load cells. Rush this and creep contaminates your numbers.

How do you compute and plot your own loop?

At each input point, subtract the descending output from the ascending output. The biggest absolute difference is your maximum hysteresis. Divide it by full-scale output and multiply by 100 to get %FS. If your ascending and descending readings differ by 0.02 V^[9] on a 4 V span, that’s 0.5% FS.

Plot input on the X-axis and output on the Y-axis. Two curves appear, the up-sweep and the down-sweep, forming the loop. This hands-on loop reveals the true sensor hysteresis meaning for your specific unit, not the datasheet’s typical value. Run the sweep three times and average to filter random noise.

How do you reduce or compensate for hysteresis?

You cut hysteresis through a mix of hardware fixes and firmware math: directional lookup tables, one-direction approach, mechanical preloading, and modeling. Which one you pick depends on your source. Measurement hysteresis, often caused by loose mechanical linkages or magnetization, needs physical fixes. Switching hysteresis just needs smart approach logic.

How do you compensate for measurement hysteresis?

Build a directional calibration lookup table. Store two correction curves, one for rising input, one for falling, and let firmware pick the right one based on the last motion direction. This can shave a 0.5% FS hysteresis error down to under 0.1% FS in stable temperature conditions.

For mechanical slack, add preloading. A spring-loaded plunger or a preloaded bearing removes the play that lets output lag behind input. On a load cell, this means the strain path stays under tension so it never “catches up” from zero backlash.

How do you handle switching hysteresis instead?

Don’t try to erase it, use it. Always approach your setpoint from one direction. If your process control only trips a valve on rising pressure, calibrate and test only the ascending curve, and ignore the release point.

Firmware modeling closes the gap when hardware can’t. The Preisach model, a standard math tool for mapping the input’s history, lets a microcontroller predict the true value from past readings. This is the core of what sensor hysteresis meaning turns into practice: you either remove the slack or teach the software to expect it.

Frequently asked questions about sensor hysteresis

Quick answers to the questions engineers search most about the sensor hysteresis meaning, the difference from deadband, whether zero is possible, temperature effects, and how to set switching hysteresis on purpose.

What’s the difference between hysteresis and deadband?

Hysteresis is a direction-dependent output difference at the same input; deadband is a range where the output doesn’t change at all. A sensor can have both. General sensor descriptions note that hysteresis creates a lag or deadband where the output lags the input (2025). Deadband is often the intentional slice of hysteresis you build into a switch to stop chattering.

Is zero hysteresis possible?

No, not in a real sensor. Any device with magnetic cores, elastic diaphragms, or mechanical linkages stores some energy on the way up that it releases on the way down. High-end pressure transmitters get close, reaching 0.05%^[10] FS, but never truly zero. Chase repeatability instead.

How does temperature affect hysteresis?

Heat widens it. Thermal expansion loosens mechanical joints and shifts elastic modulus, so a load cell rated 0.03% FS at 20°C may double near its temperature limit. Always check the hysteresis spec against the operating temperature range in the datasheet.

How do you set switching hysteresis on purpose?

Pick a gap wider than your worst-case noise. For a proximity switch, that means separating the operate and release points by 3,5% of the sensing range so vibration near the threshold doesn’t toggle the output rapidly.

Key takeaways for handling sensor hysteresis

Good hysteresis is designed in and predictable; bad hysteresis is unwanted and drifts. The sensor hysteresis meaning splits cleanly along that line: a proximity switch’s deadband between operate and release points keeps the output from chattering, while a load cell’s mechanical slop just steals accuracy. Judge the source, not the number alone.

On a datasheet loop, measure the vertical gap between the ascending and descending traces at mid-range. That gap, divided by full scale, is your hysteresis error as a percentage of measuring range (2025), a 0.5% FS spec on a 100 bar sensor means up to 0.5 bar of direction-dependent uncertainty.

Then decide: compensate or exploit.

• Compensate when the input moves both ways and you need one true value — use a directional lookup table keyed to sweep direction.
• Exploit when you want stable switching — set intentional hysteresis to stop toggling near a threshold, the same trick used in flowmeter alarm settings (2024).

Quick checklist for your next sensor pick:

1. Is hysteresis stated in %FS or physical units? Convert both to real-world error.
2. Was it tested over a full cycle, not a single sweep?
3. Does your app cross thresholds one way or both?
4. If hysteresis exceeds one-third of your error budget, add compensation or change parts.

Match the fix to the cause. That single habit separates engineers who fight their sensors from those who trust them.
