A PNP sensor wiring diagram connects three color-coded wires: brown to +24 VDC, blue to 0 V[1], and black as the switched output feeding the load or PLC input. When triggered, the sensor sources positive voltage through the black wire, so the load connects to 0 V. For example, a healthy PNP output reads approximately 24 VDC when a target is detected. This “sourcing” configuration pairs with sinking PLC input cards, a setup common in European industrial systems.
How do you connect a PNP sensor to a PLC input? Which mistakes end up frying sensors? And how do you check the wiring with a multimeter to confirm it works as it should?
Quick Takeaways
- Wire PNP sensors: brown to +24 VDC, blue to 0 V, black output.
- PNP sources positive voltage; connect the load between black and 0 V.
- Pair PNP sourcing sensors with sinking PLC input cards.
- Never reverse brown and blueโit destroys the sensor instantly.
- Test with a multimeter; expect ~24 VDC output when target detected.
What’s a PNP sensor and how does its output actually switch?
A PNP sensor is what people call a “sourcing” sensor, which basically means that when it gets triggered, it pushes positive voltage out through its black output wire toward the load. It switches theย +V sideย of the circuit rather than the ground side, so it supplies aย positive voltage such as +24 Vย to a sinking input whenever the sensor is ON. What that means in practice is the load sits between the black wire and 0 V. Picture current as water flowing downhill.
In a PNP setup, the sensor opens a tap on theย highย side, so positive voltage flows out the black wire, moves through the load, and drains down to 0 V. The load only sees power when the sensor closes that little switch inside it.
An NPN sensor does the exact opposite. It “sinks” current, which means the load connects to +V, and the black wire pulls theย lowย side down to ground once it gets triggered. It is the same load, though the polarity is completely flipped around.
If you get the polarity backward before you touch a single wire, the sensor either sits there doing nothing or it shorts out. In a correct PNP sensor wiring diagram, the black output toggles between roughly 0 V when it is off and the supply voltage, which is commonly 24 VDC, when it is switching. Confirm your sensor is the sourcing type first, because that one quick check saves you hours of troubleshooting later on a wiring bench.
PNP vs NPN โ how do you know which one you’re wiring?
Test the black output wire with a multimeter before you draw anything. A PNP sensor sources positive voltage: with the sensor active, you measure roughly the supply voltage (commonly 24 VDC) between black and 0 V. An NPN sensor sinks: its output pulls down to near 0 V when active, and the load sits on the positive side. This one reading tells you which PNP sensor wiring diagram to follow.
What multimeter test confirms sourcing vs sinking?
Set your meter to DC volts. Probe black (output) against blue (0 V[2]) while triggering the sensor. If the reading jumps to about 24 V when active, it sources current, that’s PNP. If it drops to near 0 V while the other probe combination stays high, it sinks, that’s NPN. Theย PNP black wire toggles between roughly 0 V and 24 VDCย as it switches. Also check the datasheet symbol: PNP shows the transistor emitter tied to the positive rail.
Which type do you pick for your input module?
Match the sensor to the input’s common. A sinking PLC input needs a sourcing (PNP) sensor. Get this backwards and the input never registers a signal.
| Property | PNP (sourcing) | NPN (sinking) |
|---|---|---|
| Load position | Between output and 0 V | Between +V and output |
| Output when active | ~24 VDC | ~0 V |
| Common region | Europe, North America | Asia (esp. Japan) |
What do the brown, blue, and black wires mean on a PNP sensor?
On a standard 3-wire PNP sensor,ย brown is +24 VDC,ย blue is 0 V (the common return), andย black is the switched outputย that feeds your load or the input on your programmable logic controller. This color scheme follows the IEC 60947 standard, and according toย control.com’s 2025 wiring guidance, it means you never have to guess which wire carries the actual signal, because black always does.
The brown wire connects straight to your positive power supply, the blue wire goes to the negative rail, and the black wire is where the sensor sends out positive voltage when it switches on. That black wire goes to one side of your load, and the other side of that load returns back to blue, which sits at 0 V.
Once you memorize this arrangement, about half of the usual wiring mistakes simply go away.

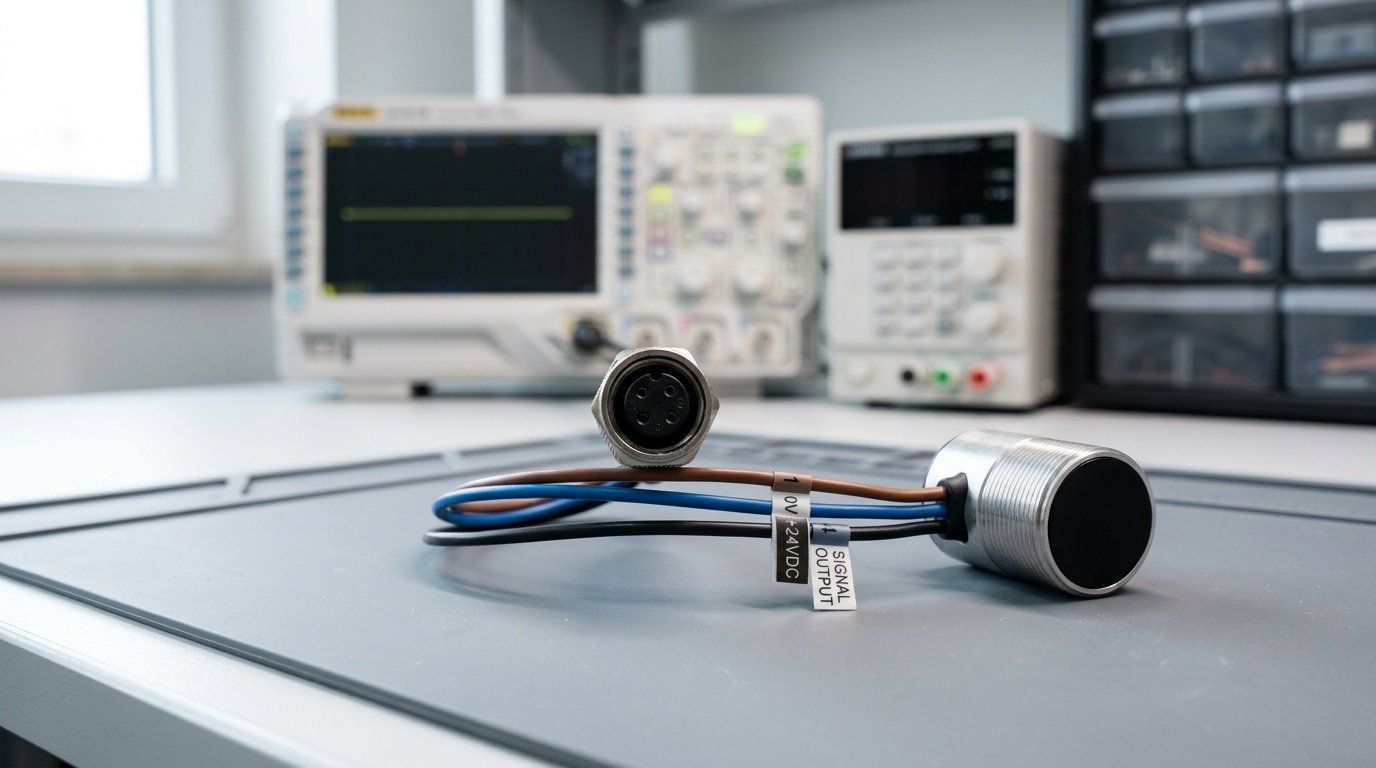

How do the wire colors map to M8 and M12 connector pins?
On both M8 and M12 connectors, the pins follow a fixed rule that pairs each number to a color, so a PNP sensor wiring diagram stays the same whether you are working with loose flying leads or a plug-in connector.
- Pin 1 โ Brown:ย this is the positive supply line, usually running at 24 VDC.
- Pin 3 โ Blue:ย this is 0 V, essentially the common return line that everything comes back to.
- Pin 4 โ Black:ย this is the switched signal output that goes to your load.
Pin 2, which is the white wire, stays unused on a 3-wire sensor. It only carries a second output when you move up to the 4-wire models.
Here is the genuinely useful part that panel builders tend to learn the hard way. A flying-lead sensor and a connector-body sensor from the same product series share the exact same color-to-function layout. So if you crimp your own field-wireable M12 plug, you land brown on pin 1, blue on pin 3, and black on pin 4, and the sensor then behaves exactly like the hardwired version does.
How do you wire a basic PNP sensor to a power supply and load?
Connect the brown wire to +24V, the blue wire to 0V[3], and the black wire to one side of the load, then run the load’s other terminal back to 0V. This arrangement works because a PNP sensorย sources positive voltage to the loadย through the black wire when it activates, so the load has to sit between that output and ground for the circuit to complete itself.
Why does the load end up on the ground side, though? The sensor already delivers +24V to the top terminal of the load once it switches on. And if the bottom terminal isn’t tied back to 0V, the current has nowhere to go, so the load simply stays dead. You can think of it like a garden hose: the sensor acts as the tap pushing water out, and 0V is the open drain that actually lets the water flow through.
Follow this connection order to avoid creating a short circuit:
- Power off first:ย Shut down the 24VDC supply before you touch any terminal at all.
- Blue to 0V:ย Land the common return first, that way the reference point stays stable.
- Brown to +24V:ย Feed the positive rail into the body of the sensor.
- Black to load, load to 0V:ย Wire the output last, and only after you’ve confirmed the load’s return path.
You should never touch the black wire directly to 0V[4]ย without a load sitting in between. Doing that creates a dead short right across the output, and it can burn out the sensor’s driver transistor within milliseconds. A correctย PNP sensor wiring diagramย will always show the voltage on the black wire toggling between 0V and 24V, so measure it if you’re ever unsure about what’s happening.
How do you connect a PNP sensor to a relay coil step by step?
Wire the relay coil between the black output and 0 V. The PNP sensor sources +24 V from its black wire into one side of the coil; the coil’s other terminal ties to 0 V (blue), with brown fed directly to the sensor, perย application guidance placing the relay coil between 0 V and the PNP output. This makes the sensor switch the relay on when triggered.
โ ๏ธย Common mistake:ย Swapping the brown (+24 VDC) and blue (0 V) wires, which reverse-biases the sensor’s internal circuitry and destroys it instantly. This happens because the color code varies between manufacturers and workers rush without confirming pinouts. The fix: verify brown = +24 VDC and blue = 0 V against the datasheet before applying powerโtakes 30 seconds, saves a sensor.
Follow these five steps for a clean PNP sensor wiring diagram to a relay:
- Connect brown to +24 VDC and blue to 0 V.
- Run the black output wire to relay coil terminal A1.
- Wire coil terminal A2 back to 0 V[5].
- Add a flyback diode across A1 and A2, cathode (banded end) to A1 (the +24 V side).
- Test: the coil energizes only when the sensor is active.
The flyback diode matters. When the coil switches off, the collapsing magnetic field creates a voltage spike,often 200 V or more,that can destroy the sensor’s output transistor. A 1N4007 diode clamps that spike to about 0.7 V. Skip it and you’ll cook the sensor over time.
Check the coil current too. A typical 24 VDC relay coil draws 20,40 mA. Most PNP sensors handle 100,200 mA, so a single coil is fine. But driving two coils from one output? Add the currents first and confirm you stay under the sensor’s rated output.

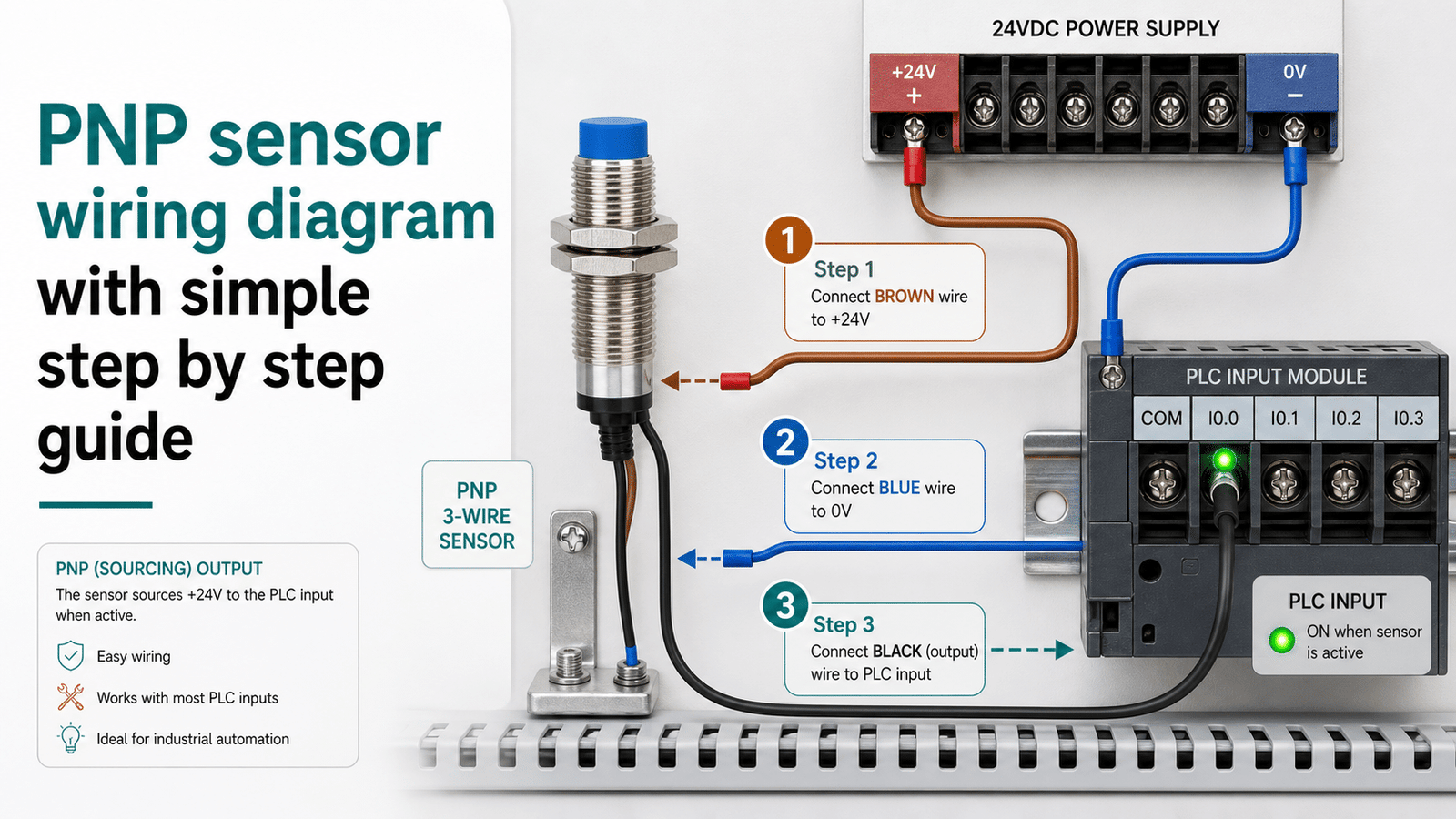

How do you wire a PNP sensor to a PLC input without a polarity mismatch?
A PNP sensor needs a sinking (common-negative) PLC input card, where the input common terminal is tied to 0 V. Wire brown to +24V, blue to 0 V, and the black output to a numbered input terminal. Because the sensor sources +24 V into the card, the shared common must sit at 0 V[6], otherwise the input never sees a valid signal.
Check the card label first. A sinking card marks its shared terminal as “COM to 0V” or “-DC common.” If you see “+V common” or “PNP not supported,” you’ve a sourcing card built for NPN, connecting a PNP black wire there causes a polarity mismatch, and the input reads floating instead of ON.
| Terminal | Connection | Signal when sensor ON |
|---|---|---|
| Brown | +24 VDC supply | Constant +24 V |
| Blue | 0 V + PLC input common | 0 V reference |
| Black | PLC input terminal (I0.0) | ~24 VDC sourced in |
Theย 2025 control-engineering wiring referenceย confirms the PLC common ties to 0 V while each black output feeds a separate input terminal. This same PNP sensor wiring diagram scales to multiple sensors: bond every blue and the card common to one 0 V rail, then run each black to its own numbered input.
Pro tip: most modern digital input cards fromย Schneider Electricย are jumper-selectable between sinking and sourcing. Set the jumper to sink for PNP before you land a single wire.
How do you measure PNP output voltage to confirm correct wiring?
Set your multimeter to DC volts, place the black probe on 0 V[7]ย (blue wire), and the red probe on the sensor’s black output. You should read close to 0 V when the sensor is inactive, and roughly the supply voltage when triggered, the outputย toggles between about 0 V and 24 VDCย in a correct PNP sensor wiring diagram. Expect a small drop under load: a healthy PNP output often reads 23,23.5 V instead of a flat 24 V, because the internal switching transistor loses a fraction of a volt. That drop is normal, and a reading of 22 V or higher when active still confirms the sensor is sourcing correctly.
What does a half-voltage or floating reading mean?
A stable reading near 12 V,half your supply,usually means an open load. The meter’s high input impedance bridges the gap and reads a divided voltage through the disconnected circuit. Check that the load actually connects the black wire to 0 V.
A jumpy, floating value that drifts between random numbers points to a wrong common connection. This happens when the sensor’s blue wire and the load’s return sit on different 0 V references, so no complete loop exists. Bond both grounds to the same power supply negative terminal.
Test both states. Trigger the sensor by hand with a metal target, then remove it. If voltage stays high both ways, the transistor may be shorted,a known failure mode after voltage spikes.
What are the most common PNP wiring mistakes and how do you fix them?
The three mistakes that kill most PNP jobs are feeding a sourcing sensor into a sourcing PLC card, swapping brown and blue, and forgetting the load’s 0 Vย return. Each has a fingerprint you can catch with a multimeter in under a minute. A PNP sensor sources positive voltage, so its output must land on a sinking (common-negative) input, perย Balluff’s PNP = switched positive rule.
- PNP into a sourcing PLC card: Symptom โ the input LED never lights even when the sensor is ON. Meter reads +24 V on the black wire, yet the PLC ignores it. Fix โ move the module common to 0 V, or swap to a sinking input card.
- Brown and blue swapped: Symptom โ dead sensor, no LED at all. Meter shows 0 V between brown and blue at the sensor plug. Fix โ rewire brown to +24 V and blue to 0 V, matching every PNP sensor wiring diagram.
- Missing load ground return: Symptom โ output measures 24 V but the load never energizes. Meter reads no voltage drop across the load. Fix โ run the load’s second wire back to 0 V.
- No flyback diode on a relay coil: Symptom โ the sensor output transistor fails after weeks of switching. Fix โ fit a 1N4007 diode across the coil, cathode to +24 V, to clamp the inductive spike.
Inductive spikes from an unprotected coil can hit several hundred volts, well past the 30,40 V a typical sensor transistor tolerates. That single diode is your cheapest insurance.
Frequently asked questions about PNP sensor wiring
Yes, a PNP sensor connects directly to a PLC input, but only to a sinking input card where the common is tied to 0 V. Theย 2025 control-engineering standardย confirms the black output feeds one input terminal while the PLC common goes to 0 V. Get that wrong and the input never sees the +24 V signal.
What happens if you wire a PNP sensor to an NPN input?
The input stays off no matter what the sensor does. An NPN (sinking) input expects the sensor to pull the terminal down to 0 V, but a PNP sensor pushes +24 V instead. Both fight the same reference, so no current flows through the input’s internal resistor. You will read a dead input on your diagnostics even though the sensor’s LED lights up correctly.
Do you need a pull-down resistor with a PNP sensor?
Usually no. Most PLC sinking cards already have an internal pull-down (often 3.3 kฮฉ) that drains stray voltage. Add an external 4.7 kฮฉ pull-down only when driving a high-impedance load, like a bare logic gate, where leakage current keeps the input floating high.
How do you adapt an M12 connector pinout?
On a standard 4-pin M12 A-coded connector, pin 1 is brown (+24 V), pin 3 is blue (0 V), and pin 4 is black (PNP output). Pin 2 stays unused on a 3-wire sensor. Match these to your PNP sensor wiring diagram before crimping, reversing pin 1 and pin 3 sends reverse polarity through the sensor and can destroy it in seconds.
Wiring a PNP sensor correctly on the first try
Getting a PNP sensor wiring diagram right on the first attempt comes down to a five-step decision path that takes under two minutes to run. Follow the order below and you skip the trial-and-error that causes most rewiring. According toย Balluff’s 2024 wiring guidance, the core rule is simple: PNP means switched positive.
Run these five checks in sequence before you energize anything:
- Confirm PNP, not NPN: probe the black wire โ a sourcing (PNP) output shows +24 V when triggered, not 0 V.
- Match connector colors: brown to +24 VDC, blue to 0 V, black to the switched output. These are the standardized 3-wire colors.
- Place the load correctly: wire the relay coil or input between the black output and 0 V, so the sensor sources positive current into it.
- Verify PLC common polarity: the input card must be sinking, with its common terminal tied to 0 V. A common-positive card will never see the signal.
- Confirm with a voltage read: black probe on 0 V, red on the output. Expect roughly 0 V off and about 24 V on.
Why bother verifying twice? A miswired sourcing sensor feeding a common-positive input reads dead even when the sensor works perfectly, a fault that eats hours of troubleshooting because nothing looks broken. The voltage check catches it in ten seconds.
Bookmark this annotatedย PNP sensor wiring diagramย and keep it on your phone for field reference. Having the brown-blue-black map and the sinking-input rule at hand turns a guessing game into a two-minute job at the panel.
