Fiber Optic Sensor Guide for Small Space Detection.
Learn when to use fiber optic sensors, how to choose the amplifier and fiber head, and what details affect stable detection of small parts, labels, edges, gaps and hard-to-reach targets.

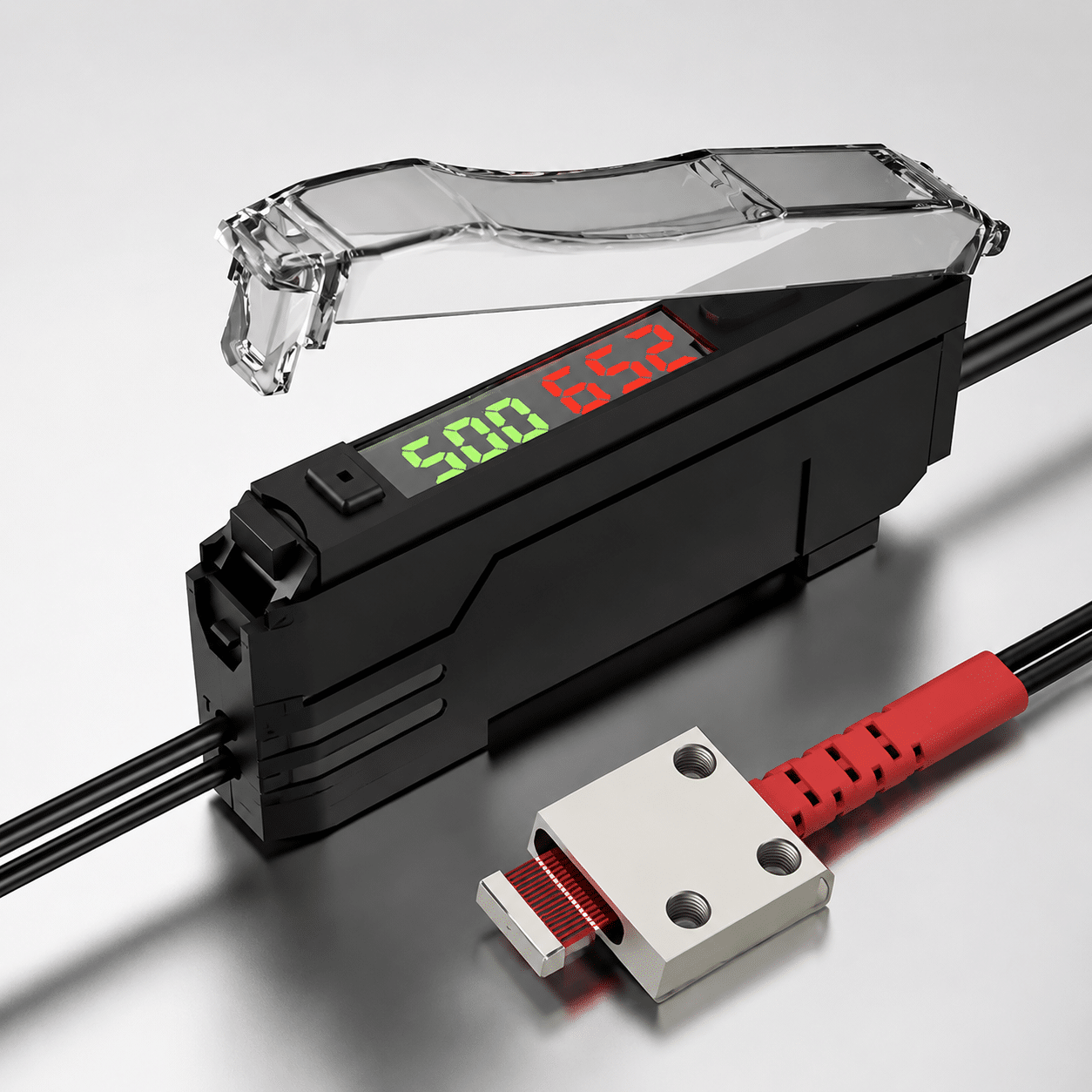

What is a fiber optic sensor?
A fiber optic sensor uses a separate amplifier and fiber cable to bring light to a very small sensing point. This makes it useful when a standard photoelectric sensor body is too large for the machine position.
Small sensing head
The fiber tip can fit into narrow tooling, guide rails, packaging stations and small mechanical spaces.
Remote amplifier
The amplifier stays in an accessible position for teaching, output wiring and signal adjustment.
Optical signal control
The amplifier processes received light intensity and converts it into a switching output for PLCs or machine controllers.
Light travels through the fiber, then the amplifier reads the change.
The amplifier sends light through the fiber. When a target blocks, reflects or changes that light, the amplifier compares the received signal with the set threshold and switches the output.
- The fiber head defines where and how the light reaches the target.
- The amplifier controls sensitivity, response speed and output logic.
- The target material, distance, color and surface decide how much light returns.
- Stable detection depends on correct teaching and enough signal margin.
Emit light
The amplifier provides light through the fiber cable toward the detection point.
Interact with target
The target blocks the beam or reflects light back to the receiving fiber.
Switch output
The amplifier compares the received signal and sends NPN, PNP, NO or NC output.
When fiber optic sensors are the better choice
Fiber optic sensors are not only for precision machines. They are often selected because the sensing point is too small, too hot, too crowded or too fast for a normal sensor body.
Very small parts
Use a narrow beam or small fiber head for pins, caps, labels, edges, holes, tablets and tiny components.
Tight mounting space
Install the fiber tip inside fixtures, rails or compact mechanisms while keeping the amplifier outside.
High-speed counting
Fast amplifier response helps count moving parts or detect passing targets on packaging and assembly lines.
Hard-to-reach points
Flexible cable routing lets the sensing point reach locations where the full sensor cannot be installed.
Heat near the target
Special fiber heads can be used near hotter areas while the electronic amplifier stays away from heat.
Fine position checks
Small beams can verify part seating, alignment, edge position and gap presence more precisely.
A fiber optic system has two key choices
The best result usually comes from matching the amplifier and fiber cable together, not from choosing either part alone.
Fiber optic amplifier
- Sets sensitivity, threshold and teaching mode.
- Provides NPN, PNP, NO or NC output to the controller.
- Controls response speed, display and stability functions by model.
- Should be easy for operators to access and adjust.
Fiber cable or sensing head
- Defines beam size, direction and installation shape.
- Can be through-beam, diffuse, coaxial, side-view or area type.
- Must match distance, target size, bend radius and environment.
- Needs clean end faces and protected routing for stable signals.
Choose the sensing mode by target and installation
The sensing mode decides whether the target blocks a beam, reflects light back or is checked across a small width. This choice affects stability more than most buyers expect.
| Mode | How it detects | Best for | Main risk |
|---|---|---|---|
| Through-beam fiber | Target blocks light between emitter and receiver | Small parts, high reliability, longer distance | Needs alignment and two mounting points |
| Diffuse fiber | Target reflects light back to the same head | Single-side mounting, short distance checks | Affected by color, surface and background |
| Coaxial fiber | Light path is centered for precise reflective detection | Small glossy targets, marks, edges and position checks | Requires careful distance and surface testing |
| Area or matrix fiber | Multiple beams cover a small detection area | Width, edge, blanking and irregular target checks | Wrong beam pitch can miss small objects |
The fiber head should match the space, target and optical angle.
Many unstable fiber optic applications are caused by a head shape that looks convenient but does not match the target or mounting direction.
- Use straight heads when there is enough space along the optical axis.
- Use side-view or bent heads when the machine only allows side mounting.
- Use small spot or lens types when the target is tiny or the distance is longer.
- Check bend radius before routing the fiber through moving or crowded areas.
- Choose heat-resistant or protective types when the sensing point is near harsh conditions.
Straight head
Simple mounting for direct beam paths, fixtures and clear optical access.
Side-view head
Useful when light must exit at an angle because front space is limited.
Small spot head
Improves detection of tiny parts, narrow marks, fine edges and small gaps.
Choose the amplifier by signal control and machine interface
The amplifier is where operators teach the sensor, read signal margin and connect the output. For repeat orders, consistent amplifier settings can reduce commissioning time.
Output type
Confirm NPN or PNP, normally open or normally closed, and the required supply voltage before ordering.
Teach method
Digital display and teach buttons are helpful when targets change or operators need visible signal feedback.
Response time
High-speed counting or short target presence needs a faster response setting and clean signal margin.
Light intensity margin
Choose enough margin for dust, color change, vibration and small target position variation.
Display visibility
Place the amplifier where technicians can adjust sensitivity without opening difficult machine areas.
Standardization
OEM buyers often reduce spare parts by using one amplifier series with several fiber head types.
Before choosing a model, check distance, target and environment
Catalog sensing distance is only a starting point. Real machines add vibration, dust, background reflection, target position variation and cable routing limits.
| Check item | Why it matters | Better selection habit |
|---|---|---|
| Target size | Small targets need a smaller beam or reliable beam interruption | Share width, height and moving direction |
| Target surface | Glossy, black, transparent or uneven parts return different light levels | Test actual samples when possible |
| Detection distance | Too little margin causes unstable switching after dust or alignment drift | Use working distance, not only maximum distance |
| Background | Diffuse fiber can be affected by nearby metal, fixtures or product color changes | Confirm background distance and color |
| Cable route | Sharp bends and moving cable points reduce light transmission over time | Keep bend radius and strain relief in the design |
| Environment | Oil, dust, heat, water and vibration change long-term stability | Choose protective head type and cleaning access |
A simple way to choose fiber optic sensors
Use this order when comparing models. It helps avoid selecting a cable first and discovering later that the amplifier, output or sensing mode does not fit the machine.
Define the target
Size, material, surface, color, movement speed and detection purpose.
Pick sensing mode
Through-beam for blocking, diffuse for one-side mounting, coaxial for precise reflective checks.
Match electronics
Confirm amplifier type, NPN/PNP output, voltage, response speed and teaching method.
Common fiber optic sensor mistakes that cause unstable detection
Most problems are not caused by the sensor being bad. They come from missing application details before model selection.
Risky approach
- Selecting only by catalog maximum sensing distance.
- Using diffuse fiber for glossy or changing-color targets without testing.
- Routing fiber cables through sharp bends or moving points.
- Ignoring NPN/PNP output and PLC input requirements.
- Mounting the amplifier where it is hard to teach or read.
Better approach
- Choose by real working distance and signal margin.
- Match sensing mode to target, background and installation side.
- Confirm bend radius, cable protection and cleaning access.
- Check wiring, voltage, output logic and response speed early.
- Send samples or application photos when the target is difficult.
Where fiber optic sensors solve real production problems
Fiber optic sensing is often chosen when detection must happen at the exact point, but electronics cannot be placed there.
Packaging machines
Detect labels, caps, film edges, bags, bottles, gaps and high-speed passing products.
Electronics assembly
Check connectors, pins, small components, tray slots, carrier pockets and precise seating.
Medical and plastic parts
Detect tubes, transparent parts, tiny molded components and parts with limited mounting space.
Printing and labeling
Track marks, labels, edges, registration positions and material presence in narrow paths.
Machine tools and fixtures
Verify part presence, chuck position, insertion depth and small workpiece alignment.
Automation inspection
Use multiple fiber points for counting, sorting, presence checks and compact inspection stations.
If the signal is unstable, check the optical path before replacing parts.
Fiber optic sensors are sensitive to signal margin. Small installation changes can create intermittent faults that look like wiring or controller problems.
- Clean the fiber tip and remove oil, dust or packaging film residue.
- Check whether the fiber cable is bent too sharply or damaged.
- Re-teach the amplifier with the real target and real background.
- Confirm the target always crosses the beam at the same position.
- Increase signal margin by changing head type, distance or sensing mode.
Missed small parts
Likely cause: Beam too large or target path varies.
First check: Use a smaller spot head or through-beam mode.
False signal
Likely cause: Reflection from the background or nearby fixture.
First check: Change the angle, distance or sensing mode.
Weak signal
Likely cause: Dirty fiber tip, long distance or sharp cable bend.
First check: Clean the end face and inspect cable routing.
Wrong PLC input
Likely cause: NPN/PNP or NO/NC output mismatch.
First check: Confirm the wiring diagram and output logic.
Send these details for faster fiber optic sensor selection.
If the application is new or the target is difficult, a few practical details help XSZ recommend the amplifier, fiber cable and installation method more accurately.
