Limit Switch vs Proximity Sensor: Choose by the Failure You Must Prevent
A limit switch confirms position through physical actuation and mechanical contacts. A proximity sensor detects a target without touching it. Choose the limit switch when deliberate contact, actuator geometry, or a contact output solves the task; choose proximity sensing when wear, cycle rate, contamination of the mechanism, or contact with the target is the larger risk.
Quick decision
Neither device is universally better. The position-detection risk decides.
Use these three outcomes as a first filter. The final choice still has to match the exact target, travel, switching load, environment, output and required protective function.
Start with a limit switch
The target can make controlled contact, the cam or dog can provide enough travel and force, and the application benefits from a defined mechanical operating point or contact circuit.
Typical fit: slow end-of-travel, door position, valve or slide position, rugged cam-operated machinery.Start with a proximity sensor
The target must not be touched, cycles are frequent, the available movement cannot operate a lever or plunger, or a sealed sensing face is easier to maintain than an actuator mechanism.
Typical fit: indexing, robotic tooling, counting, metal-part confirmation and repetitive automation.Stop and define the safety function
A standard limit switch or standard proximity sensor is not automatically a safety device. Guard monitoring and hazardous-motion stopping require a risk assessment, suitable safety-rated device, architecture and validation.
Do not select a safety function from contact style, NO/NC notation or enclosure rating alone.Limit switch vs proximity sensor
Compare the operating requirement, not a generic speed or lifespan claim.
Response, operating frequency, durability, load current and sensing distance are catalog values for a specific device under stated conditions. This table shows the structural differences that remain useful before a model is selected.
| Decision factor | Mechanical limit switch | Proximity sensor | What the buyer must verify |
|---|---|---|---|
| Detection method | A cam, dog, door, slide or machine part physically moves a plunger, lever, roller or flexible actuator. | An inductive, capacitive, magnetic, optical or other sensing principle responds without mechanical contact with the target. | Can the target be touched, and will contact change, damage or slow it? |
| Output element | Mechanically operated contacts; available contact arrangements, ratings and minimum loads are model-specific. | Often a semiconductor output, but DC 2-wire, DC 3-wire, AC, AC/DC and other configurations exist. | Supply, PLC input, PNP/NPN, NO/NC, leakage current, voltage drop and load compatibility. |
| Wear mechanism | Actuator, seals, bearings, springs and contacts can wear, deform, contaminate or lose alignment. | No target-contact wear at the sensing face, but electronics, cable, connector, mounting and sensing margin can still fail. | Actual mechanical and electrical durability at the real load and operating frequency. |
| Operating point | Defined by actuator geometry, pretravel, operating position, overtravel, differential movement and return movement. | Defined by sensing distance, target material and size, approach direction, hysteresis, temperature and mounting environment. | Repeatability under vibration, target tolerance, temperature and wear. |
| Target requirement | Any target that can deliver the specified force and motion without damaging either component. | Depends on the principle: inductive for metal; capacitive can include resin, liquid and powder; magnetic types require a magnet; optical types require suitable optical contrast and geometry. | Material, size, shape, speed, surface, gap and whether the target can carry a flag or magnet. |
| Speed and frequency | Limited by actuator travel, mechanism, contact behavior and catalog operating frequency. | Frequently suited to higher-cycle detection, but response frequency varies widely by family and model. | Minimum target dwell time, maximum pass frequency and PLC input filter. |
| Environment | Enclosed industrial models can resist water, oil, dirt and force, but the moving interface and actuator still need application checks. | A sealed face can simplify washdown or high-cycle use, while chips, buildup, nearby metal, noise, impact and chemicals may still cause trouble. | Exact enclosure rating, material compatibility, mounting torque and contamination pattern. |
| Safety use | A general limit switch is not the same as a safety limit switch with a specified direct-opening mechanism. | A standard proximity sensor is not automatically suitable for a safety-related control function. | Risk assessment, device certification, diagnostic coverage, architecture and validation. |
How a limit switch works
Physical travel is converted into a repeatable electrical state.
A machine part or a separate cam contacts the actuator. That movement is transferred into the enclosed switching mechanism, where contacts change state. Many industrial devices use a snap-action mechanism so contact movement is only weakly dependent on the actuator's travel speed.
The actuator is part of the measurement system. A roller lever can accept a passing cam and reduce sliding friction. A plunger suits controlled linear motion. A flexible rod or whisker can accept approach variation, but its operating position and repeatability differ from a precision plunger.
What must be engineered around the switch?
- Approach direction, cam angle and target speed.
- Operating force, pretravel, overtravel and return travel.
- Mechanical stop so the switch is not used as the load-bearing hard stop unless designed for it.
- Contact rating for the real load, including inrush and inductive energy.
- Seal, actuator head and housing suitability for chips, oil, water, chemicals and temperature.
Target moves
The cam, door or machine part reaches the planned operating region.
Actuator travels
The lever, roller or plunger transfers force and movement into the housing.
Contacts change
The internal mechanism opens or closes the selected contact circuit.
Controller evaluates
The PLC or control circuit interprets position, while diagnostics must cover realistic faults.
How proximity sensing works
Non-contact does not mean target-independent.
A proximity sensor creates or receives a field and changes its output when the target alters the expected condition. The word “proximity” describes the job, not one universal sensing principle. An inductive model responds to electromagnetic loss produced by conductive metal. A capacitive model responds to a capacitance change. A magnetic model requires a magnet or magnetic target arrangement. Optical proximity sensing depends on emitted and received light.
Because the target does not press the sensor, there is no actuator wear from each detection event. Reliability still depends on maintaining enough sensing margin after temperature change, vibration, target tolerance, contamination, cable movement, nearby metal and electrical noise are included.
Inductive
Detects metallic targets through eddy-current effects. Range changes with target size, shape, material and sensor design.
Check: steel versus non-ferrous metal, flush mounting, surrounding metal and set distance.Capacitive
Can detect metal, resin, liquid, powder and other materials when the dielectric change is large and stable enough.
Check: buildup, humidity, grounding, container wall, adjustment margin and nearby material.Magnetic
Uses a magnet or magnetic field to report the position of a moving component, cylinder piston or door.
Check: magnet orientation, sensing gap, nearby magnetic material and field strength.Photoelectric
Uses light to detect a target or beam interruption and can cover gaps beyond typical inductive switching distances.
Check: object color, reflectivity, background, lens contamination, alignment and ambient light.Application selector
Which position sensor should you start with?
Select the condition that controls the decision. The result is a starting architecture and a list of evidence to verify, not a substitute for the exact product data sheet or machine risk assessment.
What is the hardest requirement?
Recommended starting point
Compare an enclosed limit switch with the correct actuator
A limit switch can be effective when the machine provides controlled travel and force, the target may be touched, and the contact circuit matches the controller and load.
Target and distance
A proximity sensor's printed range is not the same as your guaranteed machine gap.
Rated sensing distance is established with a defined standard target and test method. The usable set distance must include material, size, approach, voltage, temperature, vibration, surrounding metal and production tolerance.
Start with the exact target
Record alloy, dimensions, thickness, curvature, orientation and approach direction. A small target can reduce operating distance even when it is made from the expected metal.
Use the catalog's set-distance rule
The maker may publish a stable set-distance region that is lower than the nominal sensing distance. Follow the selected model's rule rather than applying a universal percentage to every technology.
Preserve operating margin
Measure the worst-case farthest target and nearest background, then include bracket movement, bearing play, thermal growth, vibration and accumulated tolerance.
| Target situation | What changes | Design response |
|---|---|---|
| Mild-steel standard target | Often the reference condition for a conventional inductive sensor's published operating distance. | Confirm the specified target dimensions and the model's rated and assured operating distances. |
| Stainless steel, aluminum, brass or copper | Conventional inductive sensors can have a lower reduction factor than for construction steel; the value varies by sensor design. | Use the model-specific reduction-factor data or select a factor-1/all-metal sensor when equalized distance is required. |
| Small or curved metal flag | The effective target area may be below the standard target, reducing signal and changing the operating point. | Increase target area, reduce gap, change orientation or prove the selected sensor with the real part. |
| Plastic guard or glass container | An inductive sensor will not detect the non-metal material itself. | Add a metal flag or magnet, or evaluate capacitive or photoelectric sensing based on the required contrast. |
| Nearby machine metal | Mounting metal can affect the field and mutual interference can occur between nearby sensors. | Follow flush/non-flush mounting clearances, sensor spacing and tightening-torque instructions. |
Cycle and lifecycle planning
Calculate the machine demand before comparing catalog durability.
A mechanical switch can have separate mechanical and electrical durability figures. Electrical durability depends on the switched load and stated conditions, while mechanical durability excludes contact-load effects. A solid-state sensor removes contact wear but still has model-specific switching frequency, target dwell time and environmental limits.
- Use electrical durability when contacts switch a real load; do not plan only from the larger mechanical figure.
- Include start-up, homing, cleaning, test cycles and changeover movements, not only saleable production.
- Confirm whether the target remains in the sensing zone long enough for the sensor and PLC input filter.
- Compare planned replacement access and downtime as well as component cost.
Annual actuation estimate
Environment and contamination
“Dusty” or “wet” does not automatically select one technology.
An enclosed limit switch may be specifically designed for mechanical strength, oil, water or dirt, but its actuator path and moving seal still need protection from the actual contaminant. A proximity sensor has no external moving actuator, yet metal chips can create a continuous target, buildup can change a capacitive signal, optical faces can become obscured, and impact can damage the sensing face.
Choose from the contamination behavior
- Loose dry dust: confirm whether it enters a moving interface, coats an optical lens or changes capacitance.
- Metal chips: evaluate whether chips bridge the inductive sensing zone or physically jam an actuator.
- Coolant and oil: verify housing, seal, cable jacket and connector compatibility, not only an IP code.
- Washdown: check the exact cleaning pressure, temperature, chemistry, spray direction and mounting interface.
- Vibration and shock: preserve sensing margin, secure fasteners to specified torque and prevent cable fatigue.
Wiring and PLC integration
A proximity sensor is not always “three-wire,” and a limit switch is not a load-independent dry contact.
Wiring errors are one of the main reasons a mechanically successful retrofit fails at commissioning. Record the existing circuit before selecting the replacement.
Mechanical contacts still need electrical matching.
A limit switch does not require a separate supply to create a sensing field, but its contacts operate inside an energized control circuit. The switched voltage, current, load category, inrush, inductive energy, minimum applicable load and protective components all affect contact life and reliability.
- Confirm NO, NC or changeover contact arrangement.
- Compare AC and DC ratings at the actual voltage.
- Check the minimum load for PLC input or low-energy circuits.
- Provide suppression where the load and manufacturer instructions require it.
- Do not assume a published carry current equals the permissible switching duty.
Supply and output topology must match the controller.
Industrial proximity sensors are available in several electrical configurations, including DC 2-wire, DC 3-wire, AC and AC/DC models. A DC 3-wire sensor may use a PNP or NPN transistor output, while 2-wire devices require attention to off-state leakage and on-state voltage drop.
- Match supply voltage and polarity requirements.
- Match NPN or PNP output to the PLC input common.
- Confirm NO or NC sensor logic for the control sequence.
- Check maximum load current, residual voltage, leakage current and protection circuits.
- Verify connector pinout and cable shielding/segregation where noise is a concern.
Critical safety boundary
Machine position detection is not automatically a safety function.
A general limit switch can keep conducting if contacts weld. A safety limit switch may include a specified direct-opening mechanism that mechanically forces the relevant contact open under defined force and travel. Similarly, a standard proximity sensor does not become safety-rated because it is non-contact, sealed or wired NC.
For guard interlocking, hazardous end-of-travel or personnel protection: define the safety function through a machine risk assessment, then select the certified device, contact/output behavior, logic architecture, diagnostics, reset and validation required by the applicable standards and local regulations.
Do not use this comparison page as a safety-system design or validation document.
Replacement and retrofit
Can you replace a limit switch with a proximity sensor?
Often yes, but not as a direct one-for-one swap. The retrofit changes the mechanical target, mounting, electrical interface, operating point and failure behavior. Work through these six checks before ordering production quantity.
Document the original function
Is it home position, process confirmation, overtravel protection, guard status or a safety-related function? Record what the controller does when the signal is missing, late or stuck.
Measure the real target window
Measure minimum and maximum gap, target size, alloy, approach direction, speed, dwell time, bearing play and thermal movement. Do not design from a nominal CAD position alone.
Create a stable target if needed
An existing cam that operated a roller may be too narrow, too curved or made from the wrong material. Add a suitable metal flag, magnet or optical target when required.
Rebuild the electrical interface
Confirm sensor supply, output type, PLC common, current, leakage, voltage drop, connector pinout and logic. Add an interface device only when its ratings and failure behavior are acceptable.
Protect the mounting and cable
Use a rigid adjustable bracket, correct mounting clearances and tightening torque. Route the cable away from abrasion, repeated flexing, welding current and high-power conductors.
Validate faults, not only normal travel
Test farthest gap, slowest/fastest speed, cold/hot state, contamination, vibration, power cycle, disconnected cable, shorted output and stuck-target behavior before release.
Application decisions
Four machines can need four different answers.
Slow pallet stop with a robust cam
A roller-lever limit switch can be practical when contact is acceptable, cycles are moderate, the cam provides controlled overtravel and the environment suits the actuator and enclosure.
High-cycle indexing table with metal flags
An inductive proximity sensor removes repeated mechanical actuation. Check switching frequency, flag size and alloy, worst-case gap, bracket stiffness and chip accumulation.
Plastic guard or transparent container
An inductive sensor cannot detect the non-metal target itself. Use a metal flag or magnet, or evaluate capacitive/photoelectric sensing according to material contrast and environmental contamination.
Hazardous guard position
The decision leaves the ordinary limit-switch-versus-proximity comparison. Use the risk assessment to select a suitable safety interlock or safety sensor and validate the complete safety function.
Failure modes and diagnosis
Troubleshooting is faster when the test follows the sensing physics.
Start by separating a mechanical target problem, a sensor/switch problem and a controller input problem. Never assume an illuminated indicator proves that the PLC receives the intended state.
Limit switch symptoms
Proximity sensor symptoms
Purchase specification
Send application evidence, not only “limit switch or proximity sensor?”
A useful quotation starts with the machine conditions that control sensing margin, lifecycle and integration.
Target and motion
- Target material, dimensions, shape and surface
- Minimum/maximum gap or actuator travel
- Approach direction, speed and dwell time
- Cycles per minute and operating schedule
- Vibration, play and thermal movement
Electrical interface
- Supply voltage and PLC input module
- PNP/NPN or contact circuit requirement
- NO/NC logic and required fault state
- Load type, current, inrush and suppression
- Cable length, connector and pinout
Environment and construction
- Temperature and humidity range
- Water, coolant, oil, chemicals and cleaning
- Dust, chips, impact and abrasion
- Housing size, thread and mounting space
- Required enclosure and material compatibility
Function and validation
- Normal control or safety-related function
- Required repeatability and response
- Failure consequence and diagnostics
- Replacement access and downtime target
- Samples, test fixture and acceptance criteria
Sample validation
Prove the operating margin before volume production.
A bench test with one clean target at room temperature is not enough. Recreate the geometry and the states most likely to create a miss, false trip or early failure.
| Validation stage | Limit-switch evidence | Proximity-sensor evidence | Pass criteria to define |
|---|---|---|---|
| Geometry test | Operating point, pretravel, overtravel, return, cam tracking and actuator force. | Operate/reset distance, hysteresis, smallest target, farthest gap and nearest background. | No miss or unintended actuation across tolerance and wear allowance. |
| Speed test | Slowest and fastest approach, bounce/filter behavior and maximum operating rate. | Minimum target dwell, maximum pass frequency and PLC input response. | Correct controller state for every valid machine cycle. |
| Environment test | Contamination of actuator, seals and mechanism; cold/hot reset and mounting stability. | Temperature shift, vibration margin, buildup, nearby metal, noise and cable movement. | Required signal margin and no unacceptable false trip. |
| Electrical test | Actual load, inrush, suppression, minimum load and contact-state diagnostics. | Supply range, load, leakage, voltage drop, short-circuit behavior and output topology. | Inputs remain inside controller thresholds in every state. |
| Fault test | Broken actuator, welded/stuck contact assumptions, loose mounting and open cable. | Open cable, shorted output, lost supply, stuck target and damaged sensing face. | Machine reaches the specified fault response and diagnostic state. |
XSZ application support
Need to replace a mechanical switch with non-contact sensing?
Send the target material, minimum/maximum gap, target speed, cycles per minute, supply/output requirement, environment and mounting photo. XSZ can help narrow the proximity-sensor family and identify the tests required before model approval.
- Target material and dimensions
- Worst-case sensing gap
- Motion speed and cycle rate
- Voltage, PNP/NPN and NO/NC
- Temperature and contamination
- Mounting drawing or clear photo
Frequently asked questions
Limit switch vs proximity sensor FAQ
What is the main difference between a limit switch and a proximity sensor?
A limit switch requires a machine part or cam to physically move an actuator such as a lever, roller or plunger, which changes mechanical contacts. A proximity sensor detects a target without mechanical contact by using an inductive, capacitive, magnetic, optical or other sensing principle. The practical decision is whether controlled physical actuation is acceptable and beneficial, or whether non-contact detection provides better lifecycle and process performance.
Which is more accurate: a limit switch or a proximity sensor?
Neither family is automatically more accurate. A precision plunger switch may provide a tightly specified operating position when actuator travel is controlled. A proximity sensor's repeatability depends on its sensing principle, target, gap, approach, temperature, voltage, mounting and environment. Compare the exact model's repeatability, hysteresis and operating-point tolerances against the complete machine tolerance stack.
Can an inductive proximity sensor detect aluminum or stainless steel?
Yes, many inductive sensors detect aluminum and stainless steel, but a conventional model may have a shorter operating distance than it has on its standard steel target. The reduction factor varies by sensor construction and alloy. Use the selected model's data, or consider an all-metal/factor-1 design when consistent distance across several metals is required. Validate the actual target size, thickness and gap.
Can I replace a two-wire limit switch with a three-wire proximity sensor?
Not as a direct wiring substitution. A three-wire proximity sensor needs a compatible supply and a PNP or NPN output matched to the PLC input. You must also check NO/NC logic, load current, voltage drop, connector pinout, cable and failure response. A DC 2-wire or other sensor configuration may be available, but leakage current and residual voltage still need to be compatible with the controller.
Which sensor lasts longer in a high-cycle machine?
A solid-state proximity sensor avoids contact and actuator wear from every detection event, so it is often the stronger starting point for repetitive high-cycle detection. That does not create an unlimited life: electronics, cable, connector, impact, contamination, heat and marginal sensing distance can still cause failure. Calculate annual cycles and compare them with the exact model's switching frequency and the limit switch's electrical and mechanical durability under the real load.
Is a limit switch better in dust and metal chips?
Sometimes, but not universally. A suitable enclosed switch and roller actuator may tolerate a contamination pattern that would cover an optical sensor or create a continuous metal target near an inductive face. Fine debris can also enter or jam a moving plunger, and hot chips can damage seals. Review where the contaminant travels, whether it can bridge the sensing zone or actuator, and the exact enclosure, materials and mounting protection.
Does a limit switch work when control power is lost?
The mechanical contacts do not need a separate sensor supply to change position, but the circuit reading those contacts still needs energy to create or evaluate an electrical signal. Loss of control power can therefore remove the controller's ability to act. Power-loss behavior must be designed at the circuit and machine level, not inferred only from the fact that the switch is mechanical.
Can a normal limit switch or proximity sensor be used for machine safety?
Do not assume so. A general limit switch may lack the specified direct-opening mechanism required for certain safety applications, and a standard proximity sensor is not automatically safety-rated. Personnel-protection functions require a risk assessment and a suitable certified device, architecture, diagnostics, reset strategy and validation under the applicable standards and regulations.
Technical references and image credits
Sources used to verify the selection boundaries
- OMRON Limit Switches Technical Guide — enclosed switch construction, actuator mechanisms, environmental considerations and operating characteristics.
- OMRON Proximity Sensors Technical Guide — inductive and capacitive principles, electrical configurations, sensing distance and mounting factors.
- OMRON Proximity Sensor Terms — standard target, sensing distance, set distance and hysteresis definitions.
- Pepperl+Fuchs Inductive Sensor Operating Distance — target size, material and model-dependent reduction-factor behavior.
- OMRON Safety Limit Switch FAQ — distinction between general and safety limit switches and direct positive opening.
- OMRON D4N Specifications — example showing why durability, operating frequency, load, environment and protection are model-specific.

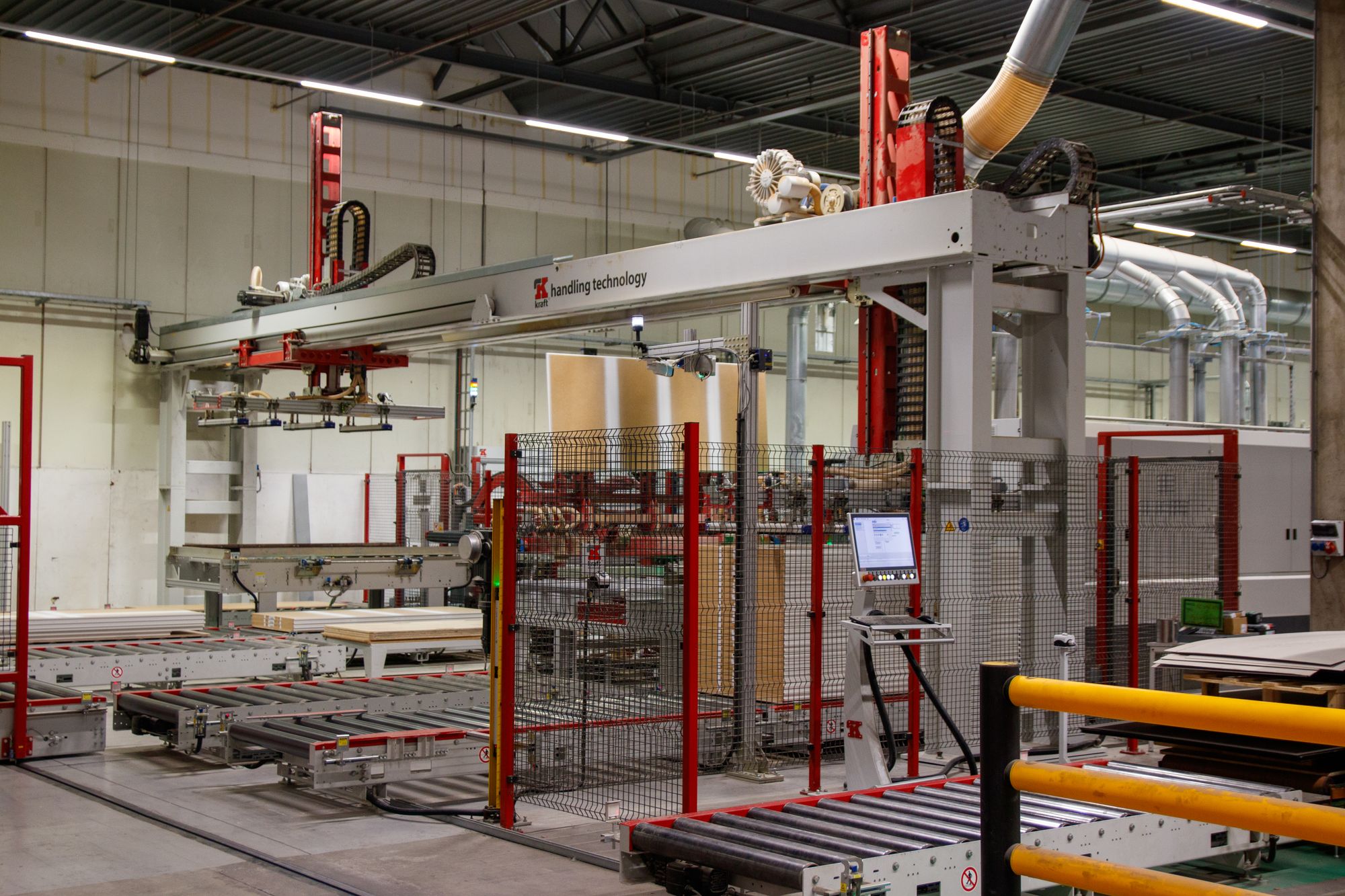

- Hero and automation photography by Freek Wolsink, Pexels; conveyor photography by Frans van Heerden, Pexels.
- Roller-lever limit-switch photograph by S.J. de Waard, Wikimedia Commons, available under CC BY 2.5 / CC BY-SA 3.0 and GFDL.
Published values are examples for the cited products or principles, not universal specifications. Final selection should use the exact model data sheet, machine risk assessment, compatibility review and test under representative target, load, motion and environmental conditions.
