The key difference in a type 2 vs type 4 light curtain is safety capability: Type 2 devices cover safety functions up to SIL 1 / PL c, while Type 4 devices reach SIL 3 / PL e under IEC 61496-1/-2 (2024). Type 4 curtains use dual-channel monitoring and detect beam faults faster, making them suitable for presses, robots, and cutting machines. Type 2 relies on single-beam self-checking and fits only low-risk tasks. Choosing Type 2 for high-risk cells can void CE compliance and insurance coverage.
How do Type 2 and Type 4 differ from each other in practice? Which internal parts make each of them work? What specifications end up deciding your choice? And when is each type the right fit, or the wrong one, for a given job?
Quick Takeaways
- Type 4 supports SIL 3 / PL e; Type 2 caps at SIL 1 / PL c.
- Use dual-channel monitoring (Type 4) for presses, robots, and cutting machines.
- Reserve single-beam Type 2 curtains for low-risk applications only.
- Never install Type 2 in[1]ย high-risk cellsโit voids CE compliance and insurance.
- Verify OSSD outputs cut machine power within milliseconds of beam interruption.

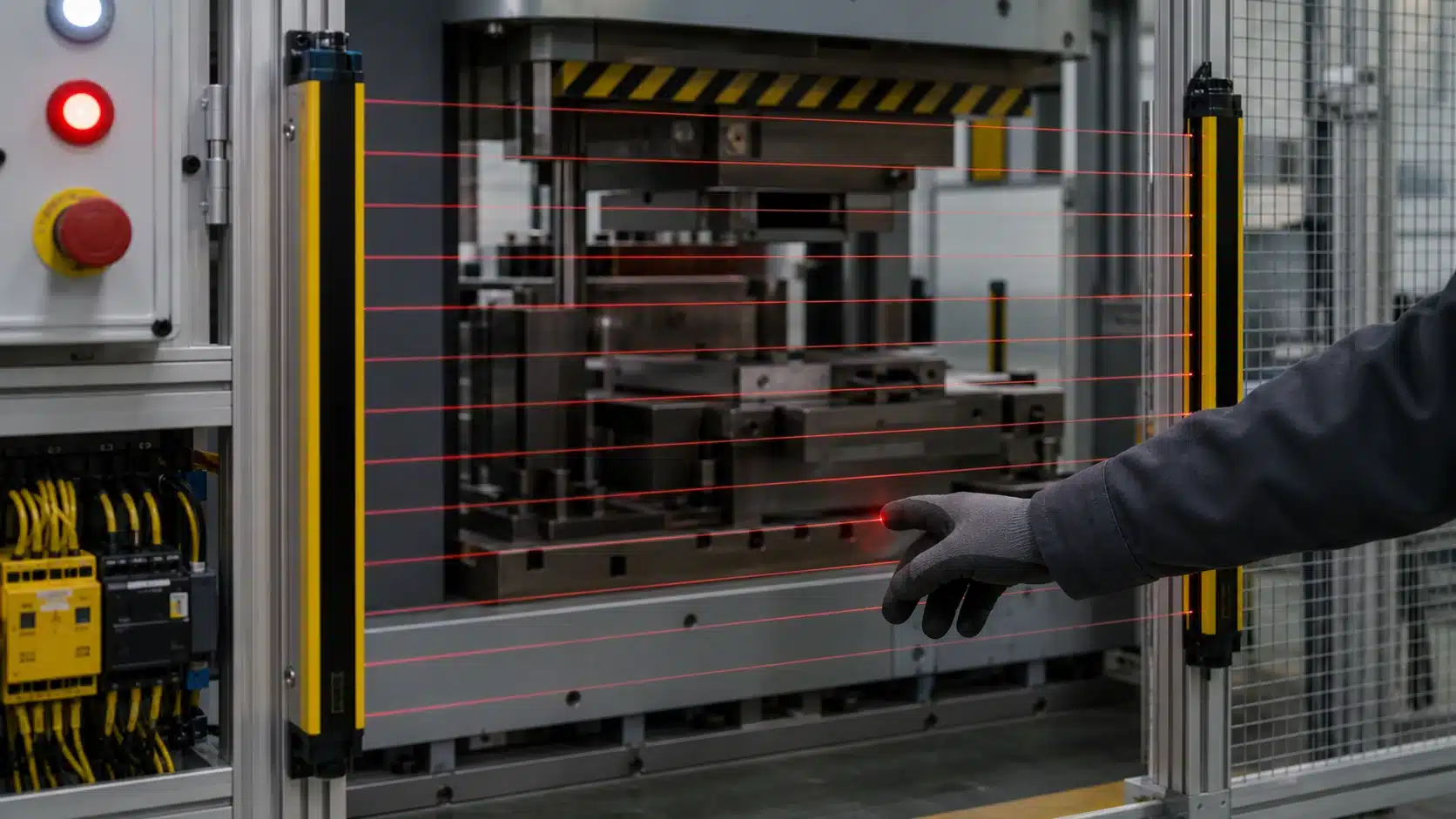

What’s a safety light curtain and how does it work?
A safety light curtain is a light-based protective device that sends invisible infrared beams across a machine opening to spot people or objects. The transmitter sends out timed pulses of infrared light and the receiver waits for each one to arrive. Break a single beam with a finger, a hand, or your body, and the receiver notices that a pulse went missing, then sends a stop signal within milliseconds. Because it senses light rather than touch, the grid of beams essentially creates a protective field that guards the dangerous area without any physical barrier being in place.
What happens the moment a beam is broken?
The receiver fires its OSSD outputs, which is short for Output Signal Switching Devices, the safety-rated signal lines that tell the machine to stop. Both OSSD channels flip to the OFF state, which cuts power to the dangerous motion. This dual-channel switching is really the reasonย light curtainsย get trusted for guarding machines instead of a simple photo eye, where one failed contact could leave the power running.
Resolution decides what the field is able to detect. Finger detection needs roughly 14 mm[2]ย beam spacing, hand detection needs about 30 mm, and body detection needs 40 to 70 mm[3], according toย 2026 industrial safety data. Tighter spacing catches smaller intrusions, though it costs more, since it takes more beam pairs across the same height to pull that off.
This detection reliability is what separates devices in the type 2 vs type 4 light curtain debate, which the next sections break down under the IEC 61496 standard.
What do Type 2 and Type 4 actually mean under IEC 61496?
Type 2 and Type 4 are device construction ratings defined by IEC 61496-1, the international standard for electro-sensitive protective equipment. Type 2 covers safety functions up toย Performance Level PL c or SIL 1, while Type 4 handles the highest demand up to SIL 3 / PL e. The Type number tells you how much risk the device can safely control, not how far it reaches or how small an object it detects.
This is the single most misread part of the comparison. Buyers often assume a higher Type means longer range or finer resolution. It doesn’t. Resolution (like 14 mm finger detection) and reach are separate specs you choose independently; Type is purely about the internal safety architecture.
Why does Type mean “how it’s built” and not “what it detects”?
Type defines the fault-handling design inside the curtain, set by IEC 61496-1. A Type 4 unit uses redundant circuits so that a single component failure can’t disable the safety function, whereas a Type 2 unit relies on periodic self-tests to catch faults after the fact. That architectural difference is exactly what caps each one at a givenย Safety Integrity Level.
Practical tip: never spec a curtain by Type alone. Run your risk assessment per EN ISO 13849-1 first, get the required PL, then pick the Type that meets it. A machine needing PL e can never legally use a Type 2 device, no matter how good the resolution looks on paper.
How do Type 2 and Type 4 map to PL and SIL safety levels?
Type 2 reaches no higher than Performance Level PL c and Safety Integrity Level SIL 1, while Type 4 climbs all the way to PL e and SIL 3, according toย IEC 61496-1/-2 (2024). That upper limit is really what decides things for you. Your risk assessment, which is the process of figuring out how dangerous a machine is, sets a required PL, and the device Type you pick has to meet or exceed that number.
PL, which stands for Performance Level, and SIL, which stands for Safety Integrity Level, both measure how dependably a safety function does its job. PL comes from the standard EN ISO 13849-1 and runs from a at the lowest end up to e at the highest. SIL comes from IEC 62061 and runs from 1 up to 3. The two scales line up with each other, so PL e is roughly the same as SIL 3, and PL c is roughly the same as SIL 1.
The difference really becomes clear when you look at the failure numbers. PFHd, which is the probability of a dangerous failure happening in any given hour, sits around 1ร10โปโธ to 1ร10โปโท for Type 4, while Type 2 lands closer to 1ร10โปโถ to 3ร10โปโถ per hour, according toย 2026 industrial safety data. That works out to as much as a 100-fold difference in how often a dangerous failure can occur.
Here is the common mistake engineers make, which is buying a Type 2 curtain when the machine’s risk assessment actually calls for PL e. The device simply isn’t certified to reach that output, so the entire safety function ends up failing the audit. You want to match the curtain Type to your calculated PL before you specify anything else in the type 2 vs type 4 light curtain decision.
What are the core technical differences between Type 2 and Type 4?

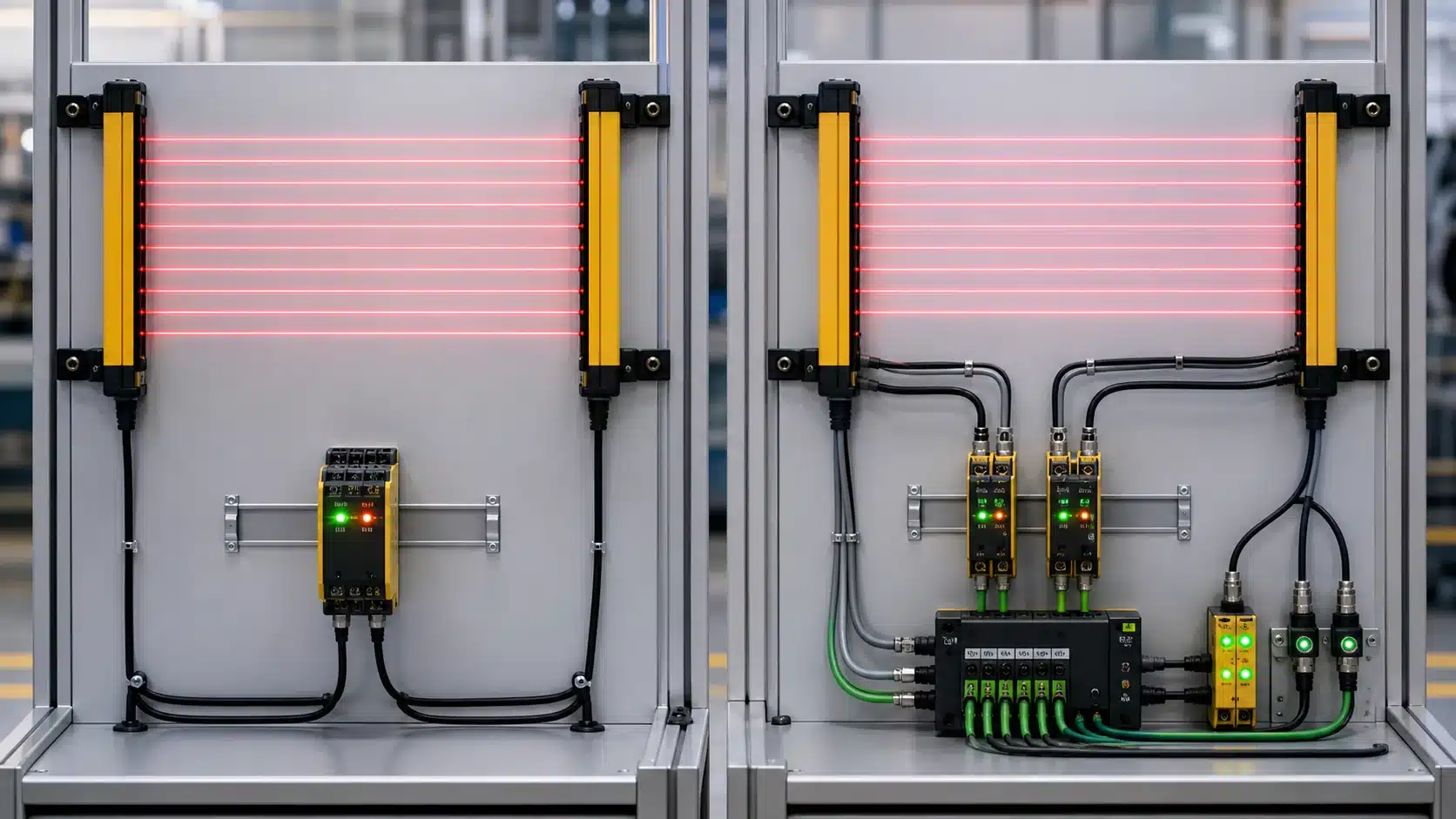

The main difference in a type 2 vs type 4 light curtain really comes down to redundancy, meaning how many backups the system keeps running. Type 4 uses two separate internal channels that continuously monitor themselves, while Type 2 relies on just a single channel that gets checked by periodic self-tests, typically every 500 ms[4]ย according toย Schmersal safety literature. And that 500 ms gap is exactly the moment where a Type 2 device can miss a fault as it happens.
Beam-coding matters more than the simple label might suggest. Type 4 curtains modulate each beam with a unique signal, so the receiver ignores ambient light and reflections around it. Type 2 uses simpler coding, which leaves it more open to optical crosstalk, meaning a stray beam that bounces off a shiny surface and tricks the receiver into thinking the path is actually clear.
The aperture angle, which is essentially the effective field of view, proves this point well. Type 2 devices have a wider field of view around ยฑ5ยฐ, while Type 4 tightens that down to roughly ยฑ2.5ยฐ perย ifm technical data. A narrower angle means the beam won’t lock onto a reflection coming off a nearby steel guard or a polished floor.
| Spec | Type 2 | Type 4 |
|---|---|---|
| Internal channels | Single | Dual redundant |
| Self-monitoring | Periodic (~500 ms[5]) | Continuous |
| Aperture angle | ยฑ5ยฐ | ยฑ2.5ยฐ |
| Finger resolution | Not standard | ~14 mm |
Response time also stays more consistent on Type 4, because the redundant circuits cross-check their timing continuously rather than depending on a single test cycle to catch problems. That consistency is basically what lets Type 4 reach finger detection at roughly 14 mm[6].
How do self-test and fault detection differ during a single-component failure?
When a single component fails, Type 4 detects it and forces a safe stop immediately, while Type 2 may not catch the fault until its next scheduled self-test, oftenย every 500 ms. Type 4 instead uses continuous self-monitoring with redundant circuits, so that timing gap is the real safety divide. Here is the failure-timing walkthrough that most comparisons skip.
What happens in a Type 2 curtain when one channel fails?
A fault can stay hidden until the next test cycle. Say a photodiode drifts right after a self-test finishes: the device keeps signaling “safe” for up to 500 ms[7], and if a worker reaches through during that window, the machine may not stop. Type 2 relies on the test interval, not the moment of failure.
Why does Type 4’s dual-channel design catch it instantly?
Two independent channels cross-check each other in real time. If one channel’s output disagrees with the other, the controller reads a mismatch and triggers a stop within milliseconds. This is why the type 2 vs type 4 light curtain choice matters most on high-speed hazards, where 500 ms equals real travel distance on a moving press or robot arm.
- Redundancy:ย Type 4 runs two parallel circuits; a single fault can’t disable protection.
- Diagnostic coverage:ย Type 4 monitors continuously; Type 2 samples on a fixed interval.
- Fail-safe response:ย Both aim to fail to a stop, but only Type 4 guarantees it during the fault, not after.
Practical tip: never place Type 2 on a point-of-operation guard where the stop time plus the test interval exceeds your safety distance calculation.
When is Type 2 legally sufficient and when is Type 4 mandatory?
Type 2 is legally sufficient only when your risk assessment lands on PL c / SIL 1 or lower; Type 4 becomes mandatory the moment you need PL d, PL e, SIL 2, or SIL 3. Perย IEC 61496-1, Type 2 caps out at PL c, so a machine requiring PL e can’t legally use it, regardless of budget.
Under EN ISO 13849-1, you rate three factors: severity (S1 minor vs S2 serious/irreversible), frequency of exposure (F1 rare vs F2 frequent), and possibility of avoidance (P1 possible vs P2 impossible). Those inputs point you to a required PL, which then dictates the Type.
How do I read my machine onto the decision tree?
Match your three factors to the required level, then to the device:
| Severity | Frequency | Avoidance | Required PL | Type |
|---|---|---|---|---|
| S1 first-aid injury | F1 rare | P1 possible | PL bโc | Type 2 |
| S1 first-aid injury | F2 frequent | P1 possible | PL c | Type 2 |
| S2 amputation/death | F1 rare | P2 impossible | PL d | Type 4 |
| S2 amputation/death | F2 frequent | P2 impossible | PL e | Type 4 |
Two concrete examples. If a hand can reach a slow conveyor pinch point causing a bruise (S1, F2, P1), Type 2 satisfies PL c. But if fingers can enter a power press die where the injury is amputation and escape is impossible (S2, P2), you need PL e, only a Type 4 curtain qualifies. This is the practical line in the type 2 vs type 4 light curtain choice.
What are the cost, downtime, and false-trip trade-offs of choosing Type 2?
Choosing Type 2 saves roughly 15,approximately 30%[8]ย on the unit price versus a comparable Type 4 model of the same height, according toย 2026 industry pricing comparisons. But that saving vanishes fast if your risk assessment later demands PL e, forcing a full re-spec and re-wire. The real trade-off is upfront cost against nuisance trips, rework, and liability.
Does Type 2 really trip more often?
Yes, and the cause is optical. Type 2 devices have a wider effective aperture angle, typically ยฑ5ยฐ versus about ยฑ2.5ยฐ for Type 4 (ifm data). Aperture angle is the field of view the receiver accepts, and a wider angle near shiny machine guards causes “optical short-circuits,” where reflected beams either fake a clear path or trigger false stops. On a line running 200 cycles an hour, even a handful of nuisance trips per shift bleeds real output.
What’s the hidden re-engineering and liability cost?
If an accident occurs and your Type 2 selection can’t support the required safety level, the device rating becomes evidence against you. Swapping to Type 4 after installation means new cabling, revalidation, and downtime, often several times the original hardware saving.
| Factor | Type 2 | Type 4 |
|---|---|---|
| Unit cost | Baseline | +15โapproximately 30% |
| Aperture angle | ยฑ5ยฐ | ยฑ2.5ยฐ |
| Nuisance-trip risk | Higher near reflectors | Lower |
| Re-spec risk if PL rises | Full replacement | None |
In a type 2 vs type 4 light curtain decision, the cheaper device only wins when the risk assessment truly stays at PL c for the machine’s life.

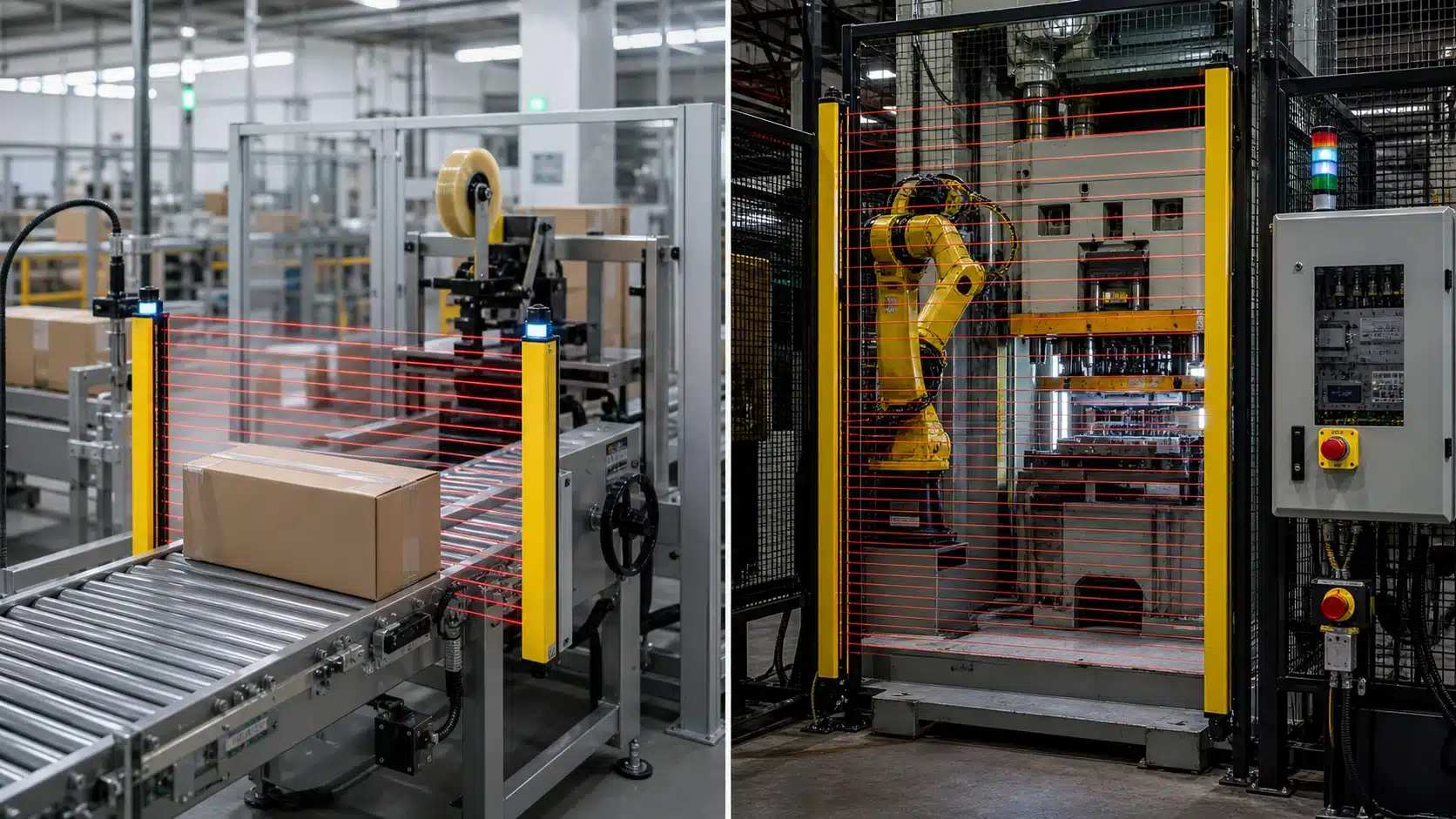

Which real-world applications suit Type 2 versus Type 4?
Type 2 fits low-risk perimeter and secondary guarding where a worst-case injury is minor and treatable with first aid, while Type 4 goes on point-of-operation hazards where an undetected fault could cost a finger or worse. Inย current machine-safety practice (2026), Type 4 serves as the primary guard on robot cells and power presses; Type 2 handles the softer stuff. Match the device to the injury, not the machine’s size.
Where does Type 2 make sense?
Type 2 belongs on slow, low-energy tasks where the body part at risk is a hand and stopping is quick, manual assembly benches, carton-sealing lines, cosmetic packaging, and label applicators. A worker leaning into a light-duty conveyor triggers a stop long before the machine can bruise anything. Because these jobs rarely reach past PL c, the 500 ms[9]ย self-test cycle is fast enough to keep people safe without paying for full redundancy.
Where is Type 4 non-negotiable?
Type 4 is mandatory anywhere stored energy can crush or amputate before a person reacts: hydraulic and mechanical presses, robot welding cells, metal stamping, and injection molding gates. These machines demand finger detection near 14 mm resolution and continuous fault monitoring, because a single blinded beam must force a safe stop instantly. OSHA and ANSI expect this highest performance tier on such equipment, so skip Type 2 here entirely.
The right answer in any type 2 vs type 4 light curtain decision starts with your risk assessment, not the price tag.
Frequently asked questions about Type 2 and Type 4 light curtains
Yes, a Type 4 curtain can replace a Type 2 in[10]ย almost any application, but a Type 2 can never replace a Type 4 where your risk assessment demands PL e. Type 4 meets every requirement Type 2 does, plus continuous self-monitoring; the reverse fails legally and physically. When comparing a type 2 vs type 4 light curtain, over-specifying is safe; under-specifying isn’t.
Does Type matter more than resolution?
They answer different questions, so you need both. Type sets the fault-tolerance ceiling (Type 2 caps at PL c, Type 4 reaches PL e perย IEC 61496-1), while resolution decides what body part you detect. A Type 4 device with 40 mm resolution stops hands but lets fingers through. Pick Type from your risk level, then resolution from your minimum body part.
How does muting affect each Type?
Muting temporarily disables detection to let material pass, and it demands the same integrity as the main safety function. On a Type 4 setup rated PL e, your muting sensors and logic must also hold PL e. Bypassing that logic on a Type 2 system is a common audit failure during machine inspections.
Is a risk assessment legally required first?
Yes. Under the EU Machinery Regulation and ISO 12100, you can’t legally select a Type without documenting risk severity, exposure, and avoidance. The assessment output is what proves your Type choice is defensible if an accident triggers an investigation.
Choosing the right light curtain with confidence
Start with a risk assessment, derive your required PL or SIL, then pick the Type, never the reverse. Underย IEC 61496-1, Type 2 covers safety functions up to PL c / SIL 1, while Type 4 reaches PL e / SIL 3. Your risk score decides the device; the datasheet doesn’t.
The decision flow is short and rigid. Follow it in order:
- Assess the hazardย using EN ISO 12100 โ score severity, exposure frequency, and how easily an operator can avoid the harm.
- Derive the required Performance Levelย with the EN ISO 13849-1 risk graph. A crush or amputation point almost always lands on PL d or PL e.
- Match the Type: PL c or below allows Type 2; PL d or PL e demands Type 4 with its redundant, continuous self-checking.
Here is the part most engineers skip. Deciding between a type 2 vs type 4 light curtain isn’t the end, you mustย document the reasoning. Record the hazard, the PLr, the chosen device, and the validation of the full safety function (curtain, logic, and final switching element combined). An unlogged assessment fails audits fast.
Then validate the choice. Have a qualified safety engineer or a functional-safety competent person review the calculation and verify the achieved PL meets or exceeds the required PL. This second set of eyes catches the mistake of matching only the curtain while ignoring the weak link in the rest of the chain, the muting logic or output relay that quietly drags the whole function below its rating.
One rule of thumb: when the assessment sits on the border between PL c and PL d, choose Type 4. The extra diagnostics cost less than a single reportable injury.
