Sensor Protection Rating Explained: IP, Temperature and Housing Material
A sensor's IP rating describes enclosure protection against solids and water. It does not by itself prove suitability for heat, cleaning chemicals or the complete installation. Choose by matching the IP code, operating temperature, exposed materials and connection conditions to the job—then verify that the sensor still detects reliably.
What does a sensor protection rating actually tell you?
An IP code describes enclosure protection against access, solid objects and water under defined test conditions. It is one part of environmental suitability—not a combined rating for temperature, chemicals, mechanical damage or sensing reliability.
For example, in IP67, the first digit, 6, means dust-tight protection; the second digit, 7, refers to temporary immersion. The digits describe different exposures. They do not add up to a general durability score.
| Marking | What it identifies | What still needs checking |
|---|---|---|
| IP65 / IP66 | Dust-tight enclosure; water-jet / powerful-water-jet protection. | Whether the actual cleaning method, temperature and chemicals are covered. |
| IP67 | Dust-tight enclosure and temporary-immersion protection. | Separate jet exposure and any immersion beyond the stated conditions. |
| IP68 | Dust-tight enclosure and continuous-immersion protection under specified conditions. | The manufacturer's depth, duration and other operating limits. |
| IP69 / IP69K | High-pressure, high-temperature water-jet claims under their respective standards. | The exact standard, model, test conditions and separate chemical resistance. |
An X is not a zero. In a code such as IPX7, the first characteristic is not specified by that marking. Do not infer either dust-tight protection or a failed dust test from the X alone.
Use the code to shortlist candidates. Then check whether the rest of the datasheet describes your installation—not just a laboratory exposure that sounds similar.
Is a higher IP number always the better choice?
No. Match the kind of water exposure before comparing the number. A submerged sensor faces a different load from one hit by a cleaning jet. Immersion and high-pressure jet ratings do not automatically demonstrate every other water-protection category.
Does the machine see splashes, jets or immersion?
Write down what actually reaches the sensor: an occasional splash, a hose jet, pooled liquid, temporary flooding or continuous submersion. A cleaning specification should also identify the nozzle, pressure, distance, water temperature and exposure duration. “Washdown area” alone leaves too much undefined.
If both jets and immersion can occur, look for evidence covering both. Multiple markings can be meaningful: they identify different tested exposures rather than simply repeating the largest number. For immersion details, use the separate IP67 vs IP68 depth-and-time guide.
Does hot-water protection include detergent resistance?
Not by itself. Water-ingress testing is not blanket evidence of resistance to alkaline cleaners, acids, coolant or salt water. A sensor may have a suitable water rating while a seal, window or cable jacket remains unsuitable for the process fluid.
Also keep the standard names straight: IEC 60529 uses IPX9 for its high-pressure, high-temperature water-jet category; ISO 20653 uses the IPX9K designation in its road-vehicle scope. Similar-looking supplier labels are a reason to ask for the referenced standard and test conditions, not to assume identical procedures.
Buying decision: if the supplier answers a detergent question only with “IP69K,” chemical compatibility is still unresolved. Ask for evidence for the actual cleaner, concentration, temperature and contact time.
Can a sensor meet its IP rating and still be unsuitable for the temperature?
Yes. The IP code and the operating-temperature specification answer different questions. Read both, including the footnotes. A storage range does not authorize powered operation across that range, and a hot-water jet test does not establish the sensor's continuous ambient-temperature limit.
Check the local exposure, not only the room temperature
A sensor near a heater, hot workpiece or heated bracket can experience conditions that differ from a room thermometer. Record normal operation, startup, shutdown and cleaning. Check the sensor, connector and cable limits separately; a suitable sensing head does not make its accessories equally temperature-resistant.
Humidity conditions matter too. “No icing or condensation” is a real restriction. A cold-to-warm transition needs assessment even when the measured temperatures are inside the listed range.
Documented comparison: the same IP67 claim, different temperature limits
OMRON's published E2ER/E2ERZ specification separates two product groups:
- E2ER standard models: operating ambient −25 to +70°C; storage −40 to +85°C.
- E2ERZ chip-immune models: operating and storage ambient 0 to +50°C.
Both groups list IP67 under IEC 60529, and both temperature entries exclude icing or condensation. These are documented product-group examples—not specifications for every proximity sensor or for xsz sensor products.
What this changes: for a hypothetical −10°C operating location, an IP67-only filter would miss the E2ERZ temperature mismatch. The E2ER range clears that one check, but does not alone approve the target, connection or condensation conditions. See the manufacturer's specification tables.
For position-sensitive work, also read the stated temperature influence on sensing distance or measurement output. Staying within the operating range is not the same as guaranteeing an unchanged switching position.
Which materials need to resist the environment?
Check every exposed material, not just the housing name. A stainless-steel body can still have a polymer sensing face, an elastomer seal, a different connector material and a cable jacket. Each meets the environment at a different place.
Read the material list as an assembly
- Housing and mounting hardware: identify the metal grade, plating or polymer. “Stainless” and “plastic” are not complete material specifications.
- Sensing face or optical window: check resistance to the fluid and the permitted cleaning method. Protect it from abrasion and impact as required by the manual.
- Seals and connector overmould: obtain the material and compatibility conditions where chemical exposure is important.
- Cable jacket: confirm the actual jacket material, fluid resistance and any flexing limits for the installed cable—not a different accessory in the same catalogue.
Match chemical evidence to the cleaning recipe
Give the supplier the fluid or cleaner identity, concentration, temperature, contact time and cleaning frequency. Include rinsing and drying conditions. A statement about “oil resistance” or a material compatibility chart can help screening, but it is not automatically evidence for every formulation or the complete sensor assembly.
Compare stainless steel, plated brass and engineered polymers against those conditions rather than ranking them universally. Where material information or exposure limits are missing, keep the candidate unapproved for that exposure until the gap is resolved.

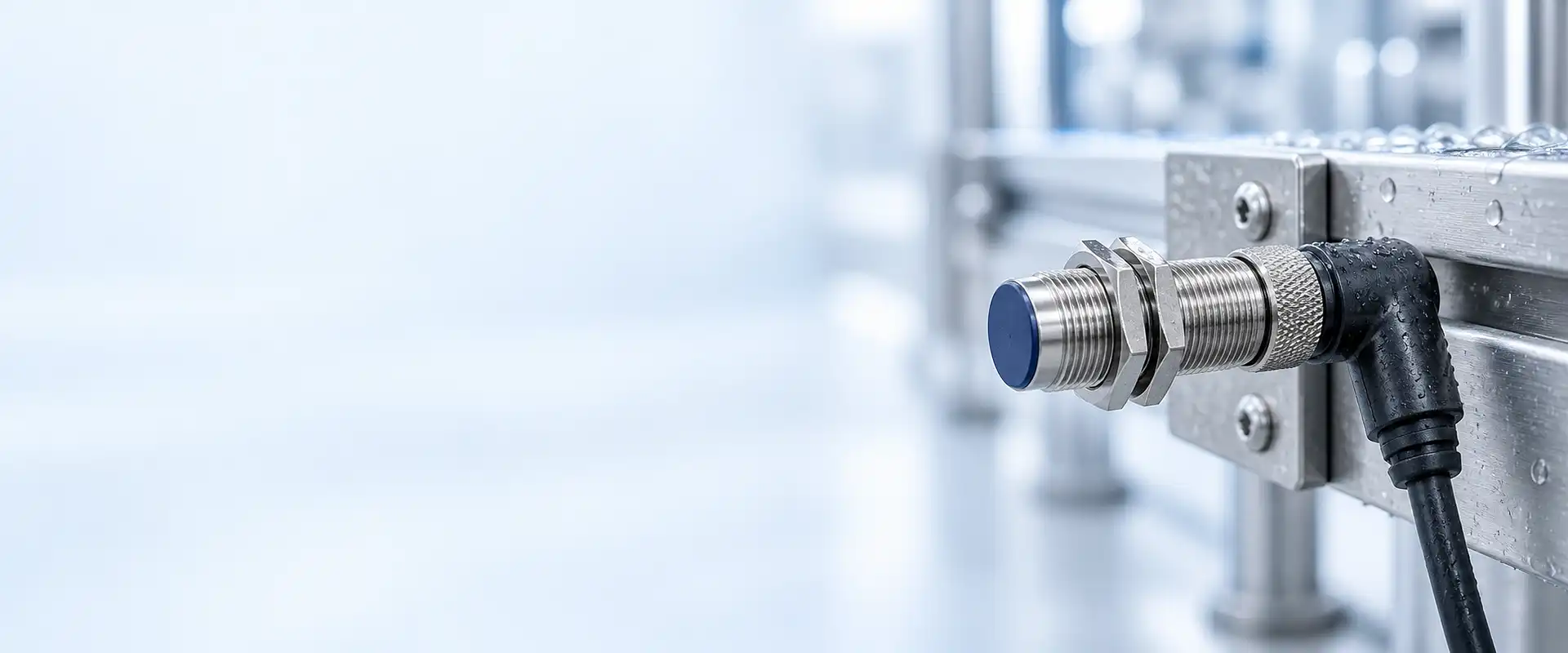

Does the rating cover the connector and cable you will install?
A sensor's rating may depend on a specified, correctly mated connection. The body rating alone does not establish protection for an open port, a different cordset or the cabinet entry.
Surface contamination
Seals and damage
Seal and tightening
Protected termination
For example, ifm's ecolink M12 L-coded product information lists its protection degrees with the condition that the connection is locked using the matching counterpart. It also provides tightening limits and tells users to observe the counterpart's maximum torque. Those conditions belong to that connector system; do not reuse its torque values for an unrelated sensor.
Check what changes during maintenance
Confirm the exact sensor and cordset part numbers, connector coding, sealing arrangement, assembly instructions and cable termination. Follow the manufacturer's procedure after replacement; a connector that fits mechanically is not proof that the intended sealed assembly has been restored.
For prewired sensors, inspect the cable-entry arrangement and protect the free-wire termination separately. For connector versions, establish how disconnected ends are protected during cleaning or maintenance. Neither connection style removes the need to assess the complete installation.
Why can a sealed sensor still miss or falsely detect a target?
Ingress protection and detection performance are separate checks. Contamination outside an intact enclosure can change the sensing conditions. OMRON's E3AS product information, for example, identifies water droplets, dust and fogging on the sensing surface as causes of photoelectric false detection.
Before treating an intermittent signal as proof of a leaking enclosure, separate the optical condition, sensor output and controller input. An illuminated power indicator alone does not establish that the target signal is correct.
Illustrative example: detection becomes unstable after cleaning
A photoelectric sensor works when dry but becomes intermittent after a rinse. Its housing shows no visible damage. That observation does not prove either water ingress or adequate sealing.
- Make the machine safe. Follow the site's isolation procedure before inspecting the sensor or connection.
- Inspect the external light path. Check the lens, reflector if used, alignment and remaining film. Clean only by the approved method; do not open a sealed housing to investigate.
- Compare dry and wet detection conditions. In a controlled test, record the sensor output and PLC input separately, with the same target and settings.
- Interpret the result cautiously. Recovery after removing an external film points toward an optical problem, but does not certify enclosure integrity. Persistent faults need further electrical and ingress investigation.
A higher IP code alone may not solve this fault. The production trial must demonstrate reliable detection through the relevant cleaning and drying cycle, as well as suitable environmental protection.
What should you verify before choosing the sensor?
Build one short requirements record around the actual location. Then match each requirement to the supplied model and assembly. The useful question is not “What is your highest IP rating?” but “What evidence covers this exposure and this installation?”
- Describe the exposure. Record dust, liquid, cleaning method, temperature transitions, chemicals and mechanical conditions. Use measured or specified limits where available.
- Identify the complete configuration. Record the sensor suffix, cable or cordset, seals, accessories and any required installation conditions.
- Match the documents. Check the declared IP code and referenced standard, immersion or jet conditions, operating temperature, humidity restrictions and material evidence. A family brochure must clearly cover the chosen variant.
- Validate the sensing task. Use the real target, operating distance, speed and controller interface under representative environmental conditions. Define acceptable missed or false detections before the trial.
- Control substitutions. Reassess relevant evidence when the cable, connector, material, cleaner or installation changes. Keeping the same IP label does not make those changes equivalent.
An IP code also does not establish explosion protection, impact resistance or a machine safety performance level. If those requirements apply, specify and verify their separate evidence.
Choose the suitable combination, not the largest number: the right water and dust protection, an appropriate temperature range, compatible exposed materials, a correctly assembled connection and reliable detection in the actual process.
Sources and method references
- IEC 60529 — Degrees of protection provided by enclosures: official scope and publication information for the IP Code.
- Intertek — Ingress Protection / IP Code FAQ: interpretation of X, water-category relationships and IPX9/IPX9K differences.
- ISO 20653:2023: the road-vehicle scope of this enclosure-protection standard.
- SICK — IP protection and chemical exposure FAQ: limits of inferring chemical resistance from water-ingress claims.
- OMRON — E2ER / E2ERZ specifications: the documented temperature comparison and its operating restrictions.
- ifm — ecolink M12 L-coded connections: matching-counterpart and tightening conditions for the stated connector system.
- OMRON — E3AS sensing-surface contamination examples: external droplets, dust and fogging as detection concerns.
The product comparison uses published manufacturer data. The −10°C application and cleaning-fault scenario are illustrative, not customer test results. Application approval still requires the exact product documentation and a suitable installation trial.
