A retro reflective photoelectric sensor houses both the light emitter and receiver in a single unit, detecting objects when they interrupt a beam reflected back from an opposing reflector. Sensing ranges typically span 0.1 m to 8 m with a standard reflector, according to Banner Engineering (2024). Because only one side requires wiring, this design cuts installation time roughly in half versus through-beam systems, making it a dependable choice for conveyors, packaging lines, and door safety setups.
This guide answers the questions buyers actually tend to ask. How does it differ from the through-beam and diffuse types? What parts inside it make the whole thing work? Which specifications matter most when you go to pick one out? And where does it fail, along with how you go about fixing that?
Quick Takeaways
- Combine emitter and receiver in one housing to halve wiring time.
- Expect 0.1 m to 8 m sensing range with standard reflectors.
- Choose polarized models to block false triggers from shiny metal or glass.
- Save on installation costs by aligning only one unit, not two.
- Detect clear or reflective objects with a dedicated clear-object sensor model.
What Is a Retro-Reflective Photoelectric Sensor?
A retro reflective photoelectric sensor is basically a single-housing device that puts both the light emitter and the receiver together in one unit, and then it bounces its beam off a dedicated reflector that gets mounted on the opposite side. It spots an object the very moment that object breaks the returning beam, so you only have to wire and mount one side, which is really the main install advantage here. Picture a little mirror trick: the sensor fires light across a gap, the reflector kicks that light straight back, and the receiver keeps watching for it to come home. Block the path with a box, a bottle, or a robot arm, and the light stops making it back.
That interruption is what triggers the output.
Out of the three main sensing modes, this one sits right in the middle. Through-beam sensors split the emitter and receiver into two separate housings, which gives them the longest and most reliable range, though they need power and wiring on both ends. Diffuse sensors need no reflector at all, since they bounce light off the target itself, but they give up a lot of range in the process.
How does its range compare to a diffuse sensor?
Retro-reflective comes out ahead when it comes to reach. Retro-reflective models are commonlyย rated at 1,7 meters, while a lot of diffuse models in the same product family only manage somewhere around 0.1,1.5 meters. That extra distance, along with the one-sided mounting, is why factory lines tend to favor them for conveyor gates and pallet detection. The trade-off, though, is the reflector itself, which is essentially one more part you have to buy, align, and keep clean.
How Does a Retro-Reflective Sensor Work Internally?
A retro reflective photoelectric sensor fires a light beam from its emitter, bounces it off a corner-cube reflector, and reads the returning intensity at the receiver. When an object blocks the beam, the returned light drops and the output switches. Thisย single-housing designย needs wiring on only one side of the machine.
What are the core parts and how does light travel?
Four components do the work, and the light path runs emitter โ reflector โ receiver, all on one axis.
- LED or laser emitter: sends a modulated beam, usually red (660 nm) or infrared (880 nm), pulsed so ambient light can’t fool it.
- Photodiode receiver: converts returned light into a small current, sitting beside the emitter behind the same lens.
- Lens optics: focus the outgoing beam and gather the return, setting the effective range.
- Corner-cube reflector: a grid of prisms that sends light straight back toward the source, tolerating slight misalignment.
How does it decide to switch, and how fast?
The receiver compares returned intensity against a threshold. Signal above threshold means “clear”; a drop means “blocked.” You pick the logic:ย light-operateย switches ON when light returns,ย dark-operateย switches ON when the beam breaks. Response times run 0.5,2 ms[1]ย on fast industrial models, letting a packaging line count bottles moving past at high speed.
When Does Retro-Reflective Win vs Lose Against Shiny, Transparent, and Dark Objects?
A retro reflective photoelectric sensor does very well with clear or dark items, but it struggles with shiny ones unless it has a polarization filter built in. Since the light beam travels all the way to the reflector and then bounces back, it passes through clear glass twice, which means the amount of light lost gets doubled. That larger drop in light is exactly what lets the sensor pick up the small change thatย beam attenuation industry dataย confirms a single pass would completely miss.
Shiny objects, the trap.ย A polished steel plate or a foil pouch behaves like a mirror that you never meant to have there. It sends the light straight back, so a basic sensor assumes the reflector is still in view and skips right over the part. In a case like this you want to switch to a polarized model, because the filter rejects those mirror-like reflections while still letting through the special twisted light that comes off the proper reflector.
Transparent objects, the sweet spot.ย Glass bottles and clear PET film only dim the beam by a small amount, though the double pass through the material makes that dip big enough to trip the sensor. Where a diffuse sensor would see nothing at all, the retro-reflective type flags the target dependably.
Dark objects, usually fine.ย A matte black rubber part soaks up the light when you use a diffuse sensor, but in this setup the object only has to interrupt the reflected beam rather than send any light back on its own. That keeps detection working solidly.
| Target type | Standard retro-reflective | Better choice |
|---|---|---|
| Shiny / mirrored | Fails (false reflection) | Polarized model |
| Transparent glass/PET | Wins (double pass) | Keep it |
| Matte dark | Wins (beam block) | Keep it |

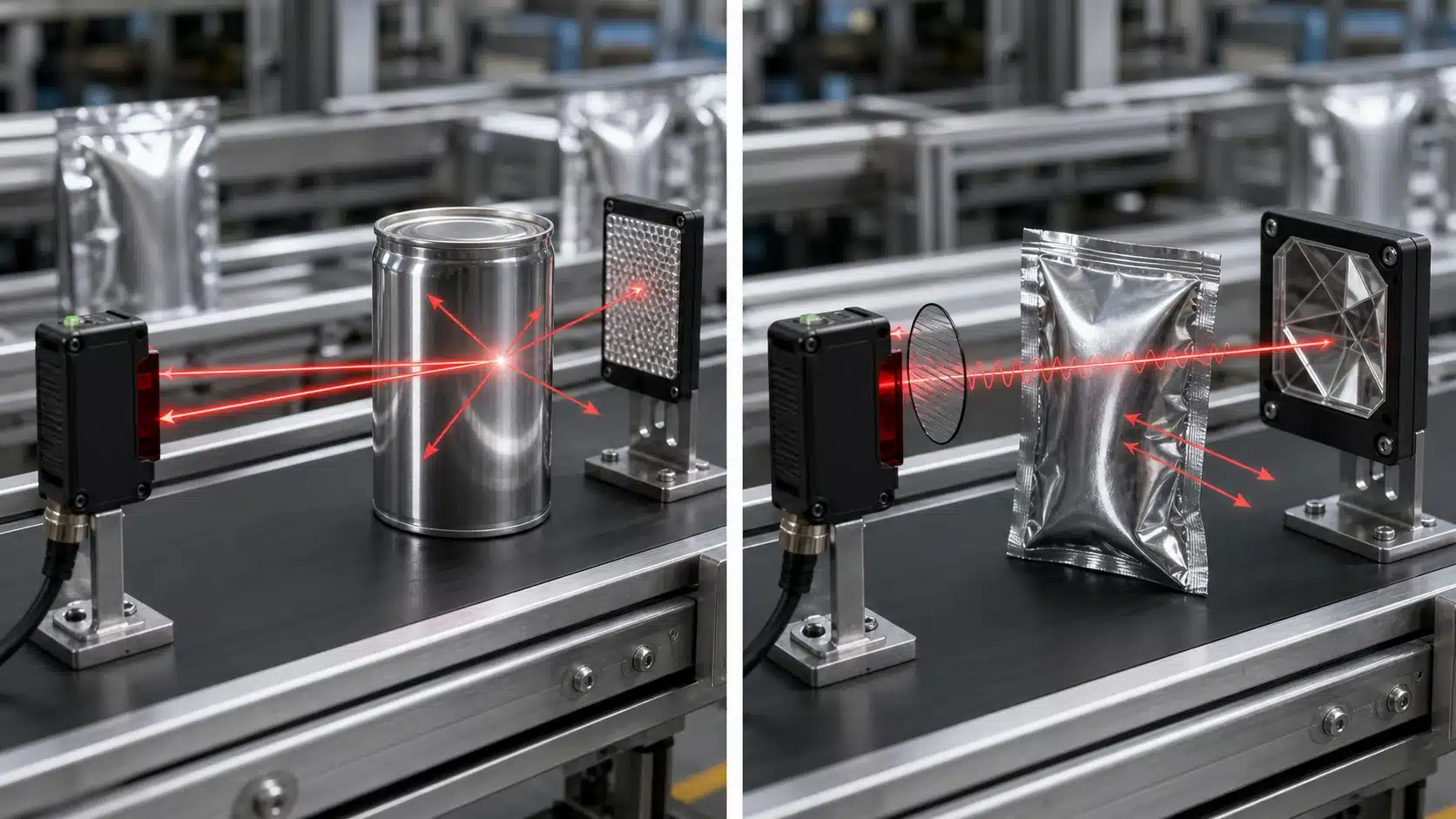

How Do Polarized Filters Detect Shiny and Transparent Objects?
Polarized filters give a retro reflective photoelectric sensor the ability to tell a genuine reflector apart from a shiny target. The light from the emitter passes through a horizontal filter, and the receiver reads only light that has been rotated vertically. Only a special corner-cube reflector twists the polarization plane by 90 degrees. A mirror or a piece of foil simply cannot do this, so it never fools the sensor. That is whyย polarized (P-type) models reliably detect glossy targetsย that tend to trip up the standard versions.
Why does a mirror fool a non-polarized sensor?
A non-polarized retro reflective photoelectric sensor treats any bright reflection coming back as a signal that the beam is present. A chrome part, a shrink-wrapped pallet, or a foil label reflects enough light to imitate the reflector, so the sensor concludes that nothing is actually there. Polarization corrects this problem, because only the crossed-filter reflector returns the beam rotated in the correct way.
How do you tune sensitivity for clear glass and film?
You want to set the excess gain high enough to catch even a tiny loss of the beam. Transparent objects such as glass or PET film only reduce the beam by a small amount, even with the light passing through the target twice, so aim for an excess gain of 3,10 at your working range so that a 10%[2]ย drop still produces a clean switch. Use a small light-off delay to reject bottle threads and seams that make the beam flicker. And for thin film, mount the polarizing reflector square within ยฑ2 degrees so the return signal stays stable.
Retro-Reflective vs Through-Beam vs Diffuse โ Which Should You Choose?
Pick aย retro reflective photoelectric sensorย when you need long range with wiring on one side only. Through-beam wins for the longest range and hardest targets. Diffuse wins for tight spaces and lowest cost. In one Panasonic EX-20 housing, theย retro model reaches about 200 mm, thru-beam hits 2 m, and diffuse manages 160 mm, same body, very different reach.
โ ๏ธย Common mistake:ย Using a standard (non-polarized) retro-reflective sensor to detect shiny metal cans or glass bottles, causing false “no-object” readings. This happens because the object’s reflective surface bounces light back like the reflector, tricking the receiver into thinking the beam is clear. The fix: specify a polarized model, which filters light to accept only the reflector’s rotated return signal.
| Factor | Retro-Reflective | Through-Beam | Diffuse |
|---|---|---|---|
| Sensing range | 1โ7 m | Up to 60 m | 0.1โ1.5 m |
| Wiring | One side | Two sides | One side |
| Alignment effort | Low | High | Lowest |
| Transparent objects | Reliable | Best | Weak |
| Relative price | Medium | Highest | Lowest |
Use these rules.ย Ifย your target is clear glass or plastic bottles and you want single-side wiring, choose polarized retro-reflective, the beam crosses the object twice, doubling attenuation.ย Ifย the object is dusty, dark, or you need range past 8 m, pick through-beam.ย Ifย budget is tight and the target sits under 1.5 m, diffuse is fine.
Retro-reflective range depends heavily on reflector size. A 3-inch reflector pushes some heads to roughlyย 4.6 m, versus 0.1,1.5 m for many diffuse models. Bigger reflector, longer reach.
How Do You Select a Reflector and Calculate Mounting Distance?
Pick your reflector first, then set mounting distance below the sensor’s rated range. Larger reflectors return more light, so a 3-inch prismatic disc can push a polarized retro reflective photoelectric sensor to roughly 4.6 m of sensing distance. Always leave headroom, never mount at the maximum rating.
Which reflector type fits your job?
Two families dominate. Both use “corner-cube” geometry, three tiny mirrored faces at right angles that bounce light straight back to its source.
- Prismatic disc/plate:ย molded acrylic prisms, rugged, best for long range and outdoor use. A 3-inch disc gives the strongest return.
- Corner-cube tape:ย flexible adhesive film, cheap and easy to trim, but returns less light โ good for short-range spots where a rigid disc won’t fit.
How do you calculate mounting distance?
Use excess gain, the ratio of received light to the minimum needed to switch. Aim for an excess gain of at least 5ร in clean air, higher in dusty plants. Halving the reflector size roughly halves your usable range, so scale the reflector to the distance, not the other way around.
Worked example:ย a sensor rated 4.6 m with a 3-inch reflector, mounted at 3 m, gives you a 65%[3]ย safety margin. Drop to a 1-inch disc and effective range falls near 1.5 m, that 3 m gap now fails. Match reflector diameter to the actual distance, then verify the signal strength LED shows stable margin before locking the bracket.
What Are the Most Common Installation and Alignment Mistakes?
The most common installation mistakes with a retro reflective photoelectric sensor are mounting it on a vibrating frame, exceeding the angular alignment tolerance, letting dust cut the excess gain, and pairing an undersized reflector with a long range. Any one of these drops your signal margin and triggers false switching. Fix alignment using the sensor’s signal-strength LED. Vibration is the silent killer: bolt the sensor to a conveyor rail that shakes, and the beam drifts off the reflector center just enough to false-trip. Mount on a rigid, separately braced bracket instead.
How much angular misalignment can a retro-reflective sensor tolerate?
Most models tolerate roughly ยฑ2ยฐ of tilt before signal loss becomes noticeable. Push past that and the returned beam misses the receiver aperture. Reflector size matters here too: an undersized reflector at long range starves the return. A polarized head rated around 4.6 m needs a 3-inch reflector to hit that distance, per Eaton’s E51DP5 datasheet. Shrink the reflector and your usable range collapses.

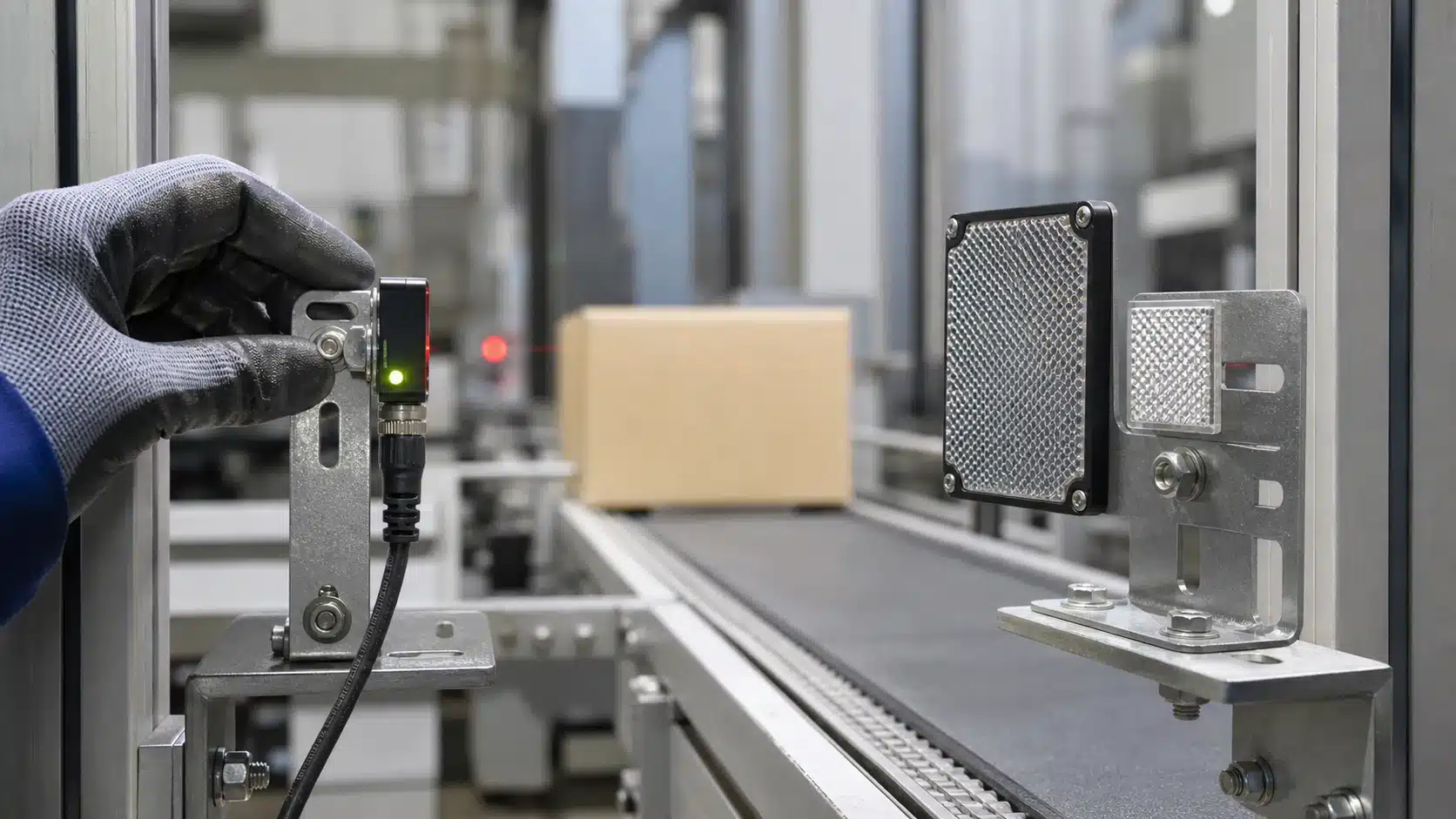

How do you use the signal-strength LED and excess gain?
Aim for excess gain of at least 3ร, meaning the received light is three times the switching threshold. Dust films the lens over weeks and eats that margin, so a clean install at 1.5ร will fail within a month.
- Signal-strength LED: sweep the sensor slowly until the stability LED glows solid, not flickering โ that’s your alignment center.
- Hysteresis margin: keep the beam gap wide enough that normal drift never crosses back through the switch point.
Where Are Retro-Reflective Sensors Used in Real Applications?
Retro-reflective sensors dominate jobs where you can only mount hardware on one side and need a few meters of range. They power pallet detection, conveyor gaps, garage-door safety edges, and automatic door openers. According toย market analyses (2024), one-sided mounting convenience is a specific growth driver for this sensing mode across packaging and robot-guarding lines.

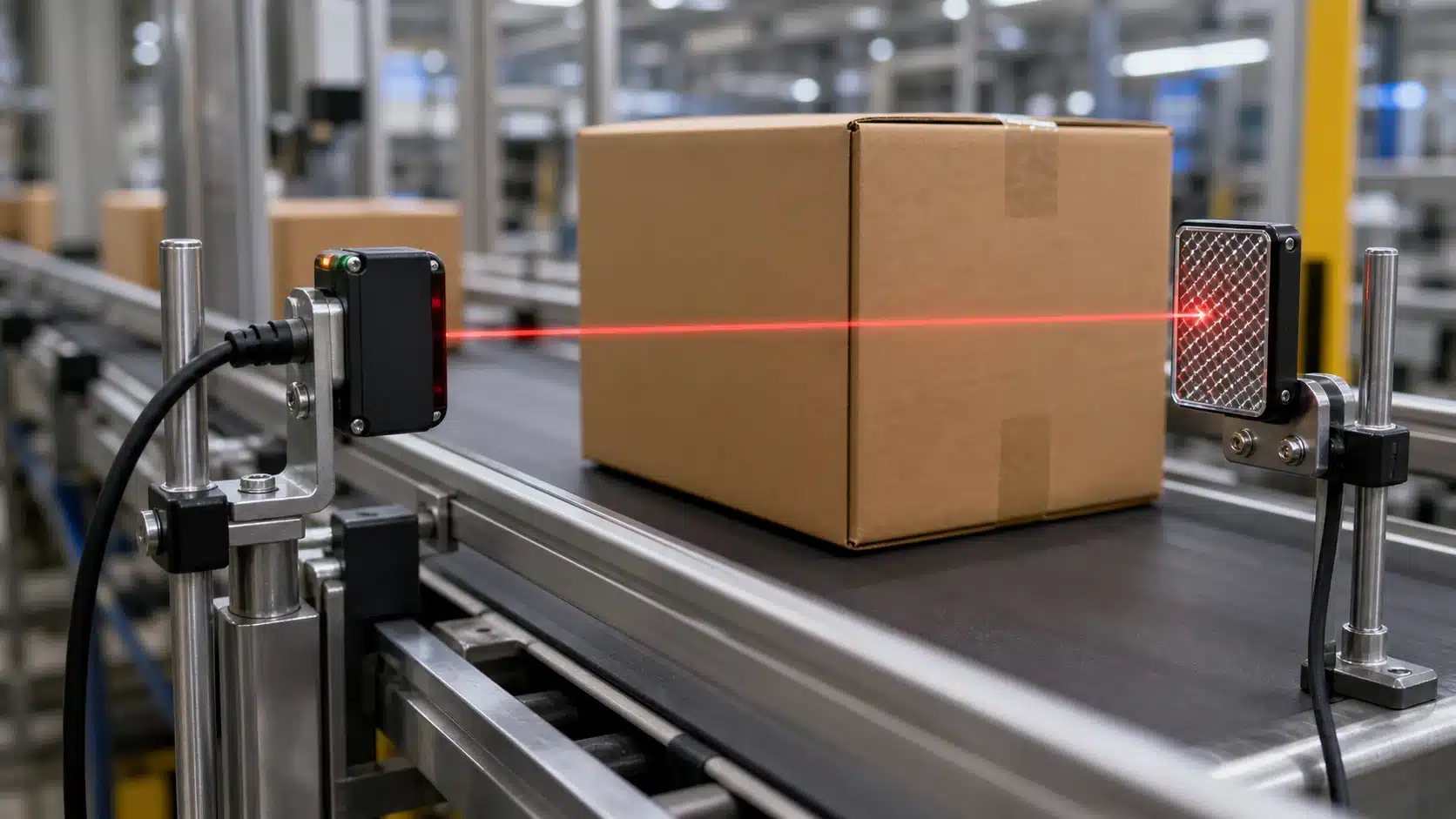

Why do pallet and conveyor lines prefer retro-reflective?
Conveyor gaps often span 2 to 4 meters, and a through-beam setup would need power wiring on both sides of the belt, a headache in a wet, greasy plant. A retro-reflective photoelectric sensor mounts once and drops a cheap plastic reflector across the gap. When a wooden pallet or cardboard box breaks the beam, the output flips in milliseconds, triggering the next actuator.
What makes it the choice for garage doors and door automation?
Safety edges on garage doors reverse the motor if something blocks the closing path. The dark, matte materials, a person’s dark coat, a car bumper, reflect poorly, so diffuse mode fails. The retro-reflective beam ignores target color entirely; it only cares whether the reflector still returns light. That reliability is why door-opening automation trusts it for pedestrian detection.
Which target materials dictate polarized versions?
Shiny targets force a polarized filter. Packaging lines running foil pouches or clear PET bottles would fool a plain sensor. Rugged industrial versions, such as heads rated from โ40 ยฐC to +70 ยฐC, hold up in cold-storage packaging plants where standard optics fog or crack.
Frequently Asked Questions
Short answers to the questions engineers ask most before wiring a retro reflective photoelectric sensor. Each one covers a real spec limit or wiring rule you can act on today.
What’s the maximum sensing range?
Most industrial retro reflective models reach several centimeters up to about 7 meters, though some polarized versions runย from 0.1 m to 15 m depending on reflector size. Bigger reflectors extend range; a tiny tape reflector cuts it hard. Always derate 20,approximately 30%[4]ย for dust or misalignment.
Can it work without a reflector?
No. The sensor needs the corner-cube reflector to bounce light back to its receiver. Without one, the beam scatters and the output never latches. That reflector dependence is the whole point of the mode, it enables one-sided mounting.
P-type vs standard โ what changes?
“P-type” means polarized. It adds crossed filters so a shiny target can’t fake the reflector signal. Standard non-polarized units are cheaper but misfire on glossy metal or wrapped packages.
NPN vs PNP wiring?
NPN sinks current to ground (common in Asian PLCs); PNP sources current to the load (standard in European systems). Match the output type to your PLC input card, or the signal reads inverted.
Do fog and ambient light hurt reliability?
Yes. Dense fog scatters infrared and drops the return signal; strong sunlight can saturate the receiver. Use modulated LED sensors with excess-gain margin above 3x to stay stable.
Choosing the Right Retro-Reflective Sensor With Confidence
Buying the right retro reflective photoelectric sensor comes down to three checks: target material, working distance, and reflector match. Confirm each against the datasheet before you order. Skip this and you risk a sensor that reads a mirrored can as empty space, or one that runs out of range at 4 meters when your gap is 6.
Start with the win-vs-lose rule. Clear glass and shiny metal? Choose a polarized model. Matte cardboard at 200mm[5]? A basic version works fine and costs less.
Then run the reflector and alignment checklist:
- Reflector size vs range: A 3-inch corner-cube reflector reaches roughly 4.6m on polarized heads; smaller tape reflectors cut that sharply.
- Distance margin: Mount below rated range, never at the edge. Leave approximately 30%[6]ย headroom for dust buildup.
- Beam angle: Aim the reflector square to the lens within a few degrees, or return light drops.
- Voltage match: Verify your PLC input โ most runย 12โ24 V DC, some 90โ250 V[7]ย AC.
Your decision path: identify the target, pick polarized or standard, choose a reflector that delivers your gap with margin, then confirm output type and supply voltage. Four steps, no guesswork.
Before you buy, put your target material and required range side by side with the manufacturer spec sheet. If the numbers don’t line up with room to spare, choose a longer-range head. That one comparison prevents most field failures.
