Waterproof Light Curtain Selection for Wet Industrial Areas

What should you check before choosing a waterproof light curtain?

Start with the machine hazard and the cleaning process, not the highest IP number. For personnel protection, you need a safety light curtain whose safety performance, complete installed enclosure and permitted cleaning conditions all fit the application. An ordinary waterproof measuring or object-detection curtain is not a substitute.

Keep three decisions separate. The risk assessment determines the required safety function. Ingress evidence addresses water entering the enclosure. Chemical and temperature evidence addresses whether the materials and optics can withstand the actual cleaning cycle. A product can meet one of these needs and still be unsuitable for the other two.

Water protection does not establish safety performance

For a conventional active opto-electronic protective device, IEC 61496-1 covers general requirements and IEC 61496-2 adds technology-specific requirements. Verify the declared Type for the exact model; neither an IP rating nor a reference to Part 2 automatically means Type 4. The required and achieved PL or SIL concern the safety function, not just the light curtain.

A light curtain also does not contain an ejected part, hot liquid or a chemical spray. If the hazard requires a physical barrier, making the optical device waterproof does not remove that requirement. These product and application boundaries are reflected in the IEC 61496-1 scope.

Specify the required detection capability and field dimensions before comparing housings. Resolution describes the object size the device is designed to detect under its stated conditions; protective height describes the monitored area, not the overall tube length. The assembly must fit the opening without leaving an unprotected access route.

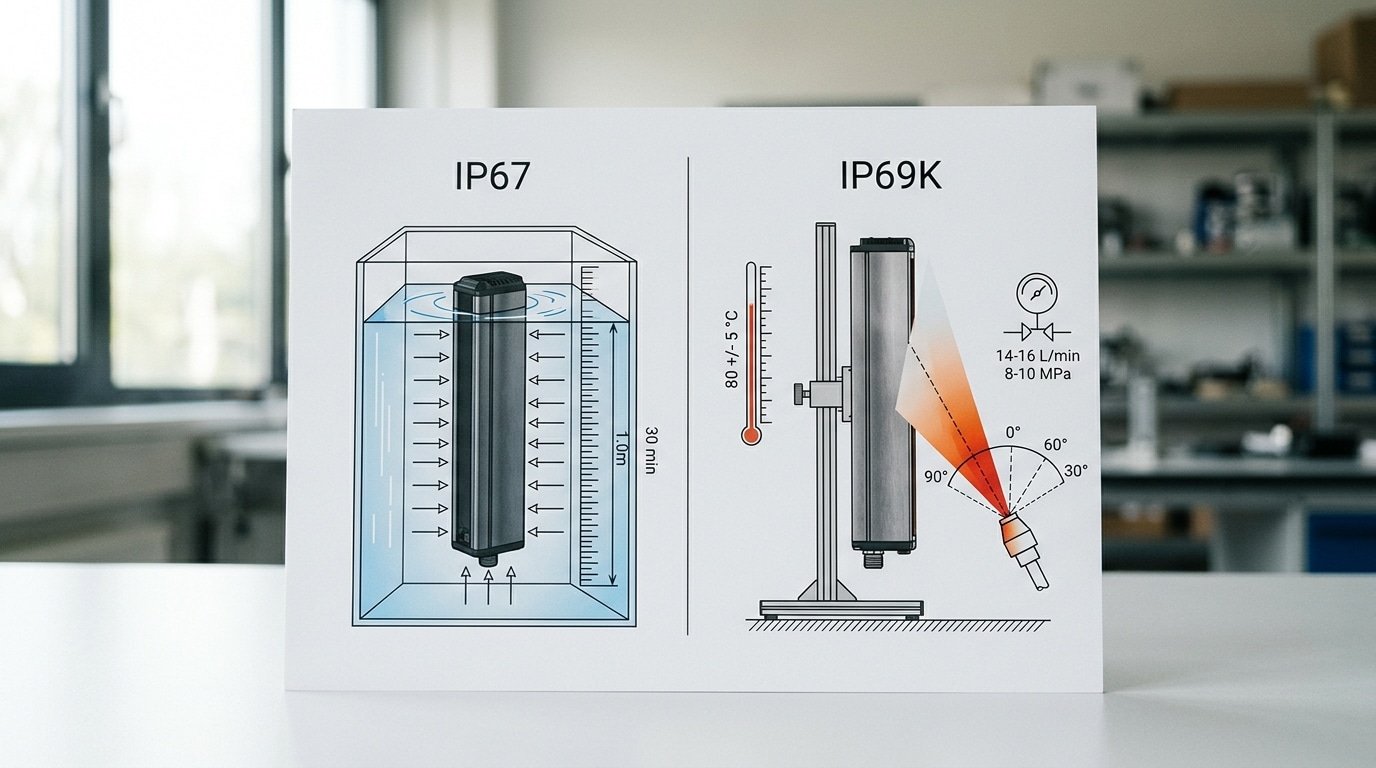

Do you need IP67, IP69 or IP69K for the actual cleaning process?

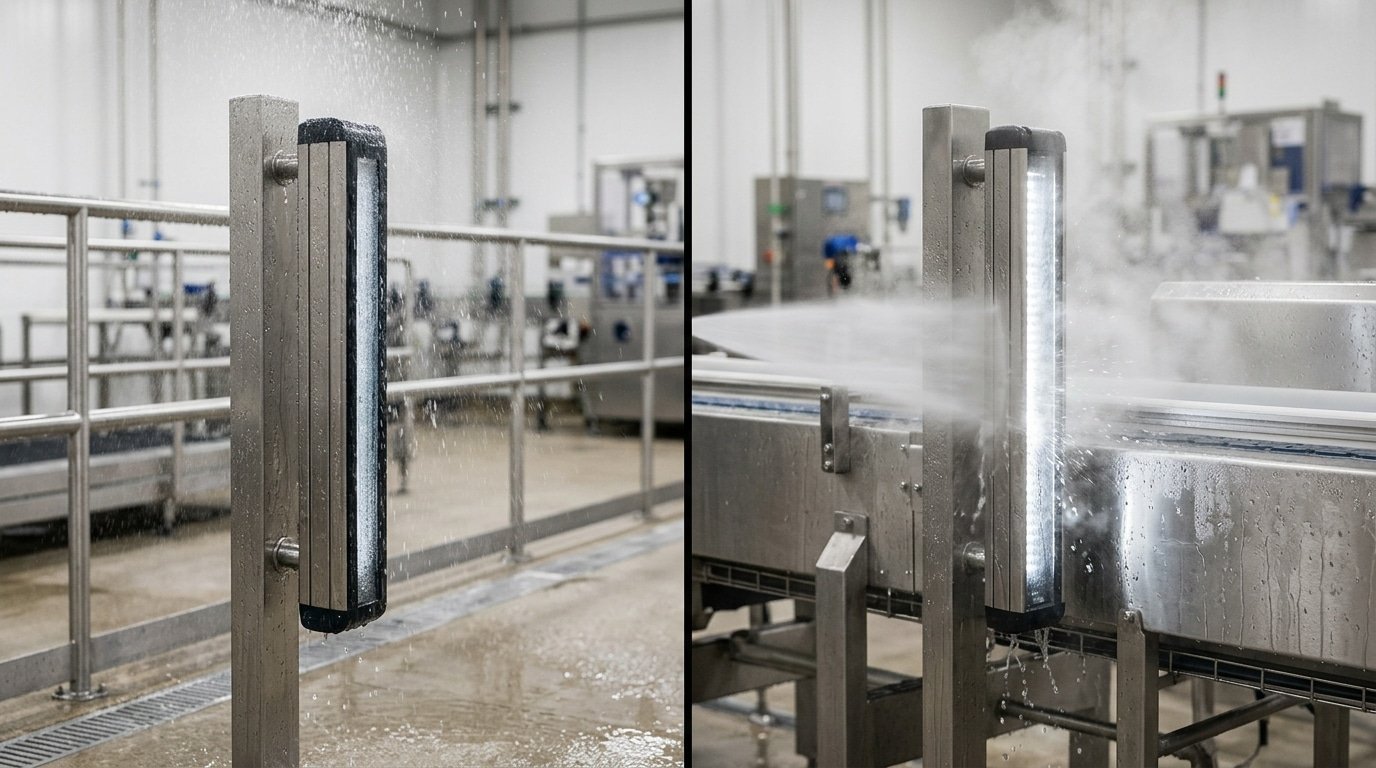

Specify what reaches the installed device. Occasional splashing, a directed hose jet and immersion are different exposures. Cleaning pressure alone is incomplete: nozzle type, distance, direction, water temperature and exposure time affect what the assembly experiences.

Ask which standard is behind “IP69K”

IEC 60529 includes the IPX9 water test; IP69 also declares dust-tight protection. K-coded ratings are associated with road-vehicle protection standards, including ISO 20653, while some industrial datasheets cite DIN 40050-9 for IP69K. Do not silently replace one designation with another. Keep the supplier’s exact rating, standard and edition in the approval record.

Where both immersion and jet exposure are possible, ask for evidence covering both. Also distinguish a brief hot-water test from the device’s permissible operating temperature. A cleaning-test temperature is not permission to operate continuously at that temperature.

Dry inside does not mean optically clear outside. Water droplets or a film on the optical surface can disturb the received light and cause a protective stop even without ingress. Enclosure integrity and reliable detection after cleaning are separate checks.

For a full explanation of the code rather than wet-area light-curtain selection, see IP ratings for industrial sensors.

Will the housing survive your detergent and temperature cycle?

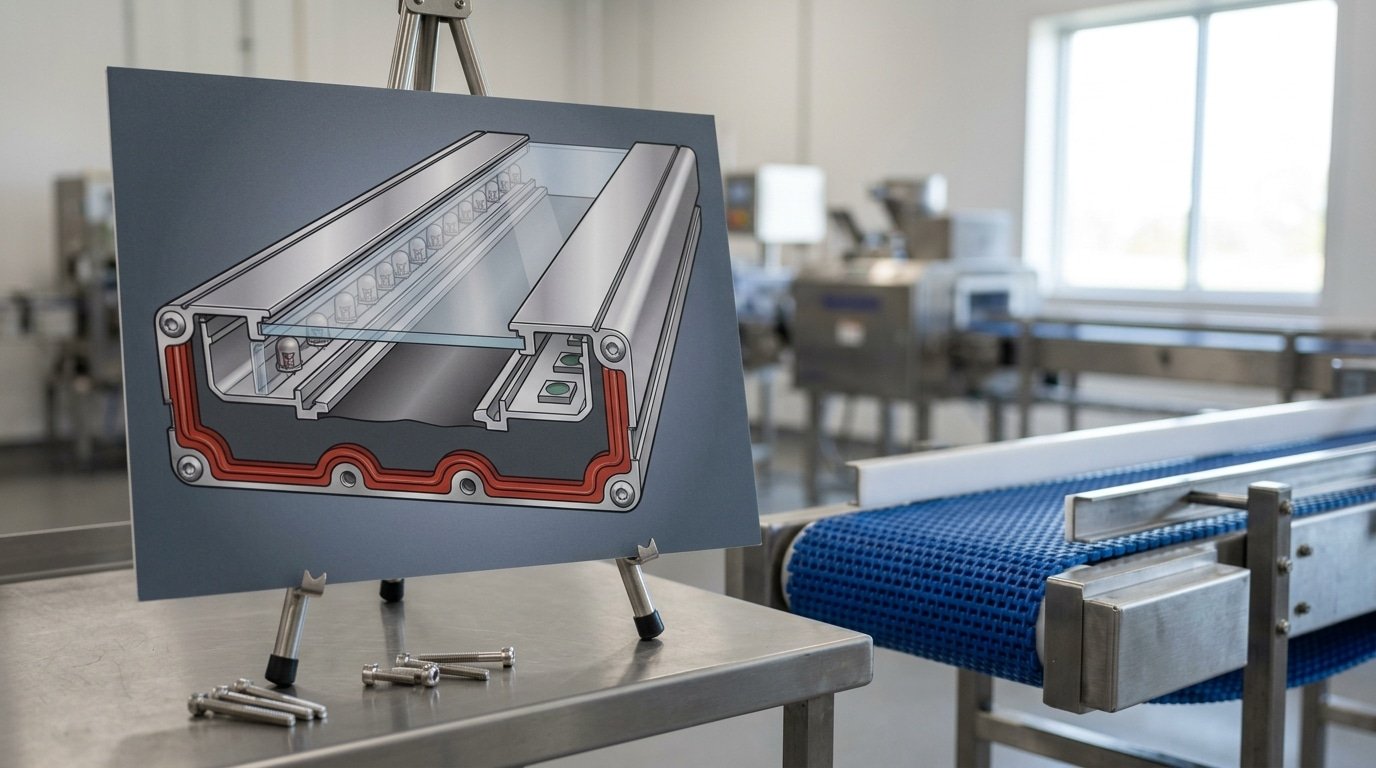

“Stainless steel” and “IP69K” do not answer the chemical-compatibility question. The exposed assembly may also contain a transparent window or tube, elastomer seals, cable jackets, glands and connector inserts. A compatibility statement for one material does not qualify every component.

Send the actual cleaning recipe, not just “food industry”

Give the supplier the detergent and sanitizer product names, working concentrations, contact times, temperatures, rinse procedure and cleaning frequency. Include any alternating acid and alkaline steps, foam dwell, cooling or freezer cycle. Ask for written compatibility or test evidence tied to those conditions and the proposed assembly.

Material charts are useful for screening, but their limits matter. OMRON’s chemical-resistance guidance, for example, cautions that results depend on concentration and additives. For a food-processing installation, cleanability and any relevant food-contact requirements also need their own review; an ingress rating does not settle them.

Read the restrictions as carefully as the rating

The SICK deTec4 Core IP69K manual illustrates why this matters: it gives cleaning restrictions and excludes underwater use despite the product’s IP69K designation. Its instructions also require an intact, correctly closed protective housing and cable gland. A headline rating cannot replace the conditions in the manual.

Should you choose an integrated unit or an approved protective enclosure?

An integrated wet-area model can simplify assembly identification and servicing. A manufacturer-approved protective enclosure may let a specified safety curtain operate in a harsher environment. Choose by the documented combination and maintenance needs—not by appearance or by whether the bare curtain fits inside the tube.

For an enclosure, verify which curtain models and heights it covers, who assembles it, how seals are serviced, and which cable exits and brackets are permitted. A separately purchased transparent sleeve or improvised cover is not equivalent to a manufacturer-qualified combination.

Check the assembled optical range, not the bare-unit range

Do not confuse two distances. Operating range is the sender-to-receiver span. Safety separation distance is the distance from the protective field to the hazard. Moving the field closer to the hazard to solve an optical-range problem can invalidate the safeguarding design; the separation calculation must remain satisfied.

What should the supplier prove for the delivered assembly?

Make the quotation auditable before ordering. Record the sender, receiver, protective housing, cables and connectors as one defined configuration, with full part numbers and suffixes. If an accessory or revision changes, determine which evidence must be reviewed again.

• Identity and safety evidenceExact models; declared Type; referenced IEC 61496 parts and editions; applicable declaration, certificate or report scope; and the relevant manual revisions.
• Detection and interface dataResolution, protective height, assembled operating range, response time and permitted connection of the dual OSSD safety outputs to the safety controller. Record any configuration that affects these values.
• Wet-area qualificationIngress ratings and standards, the tested assembly, connector conditions, permitted cleaning process, chemical compatibility and operating/storage temperature limits.
• Installation and service limitsMounting drawings, reflective-surface requirements, seal and cable instructions, cleaning methods, replacement parts and change notification.

A family-level document can be useful, but it needs a traceable scope showing how the ordered variant is covered. Buyers may receive a declaration and scoped supporting evidence rather than an unrestricted copy of every technical file; the important point is that the relevant claims can be verified.

Example: why a complete-looking quotation may still need a hold

Illustrative document review; all identifiers below are invented, not xsz sensor product numbers or a customer case. The quotation offers “LC-600-W5 + HG-600 washdown housing,” claims Type 4 and IP69K, and includes a datasheet, certificate and cleaning email.

Decision: do not approve yet. The documents do not currently support the offered configuration. Ask the supplier to close the specific gaps; this is not, by itself, proof that the product is defective. Once the configuration is accepted for purchase, machine-level installation and validation still remain.

For a useful first enquiry, send the opening width and height, required detection resolution and safety specification, machine layout, washdown recipe, environmental limits and intended safety controller. These inputs are more actionable than asking only for “a waterproof light curtain.”

How should it be installed and checked after washdown?

Have a qualified machine-safety specialist establish the protective field, integration and validation plan. Product compliance does not prove that a person cannot reach over, under or around the field, that the machine stops in time, or that the complete safety function reaches the required performance.

Validate the machine with the final components

The separation assessment should use the applicable positioning method, the actual stopping performance and the response times of the configured safety system. ISO 13855 addresses safeguard positioning; ISO 13849-1 addresses safety-related control-system design. Neither is replaced by an enclosure rating.

Check the final brackets, housings, nearby reflective surfaces, cables and safety-controller connections against the manuals. Confirm detection coverage, stopping behavior and reset/restart behavior. Do not assume that clearing the beam should automatically restart hazardous movement, especially where a person can remain behind the field.

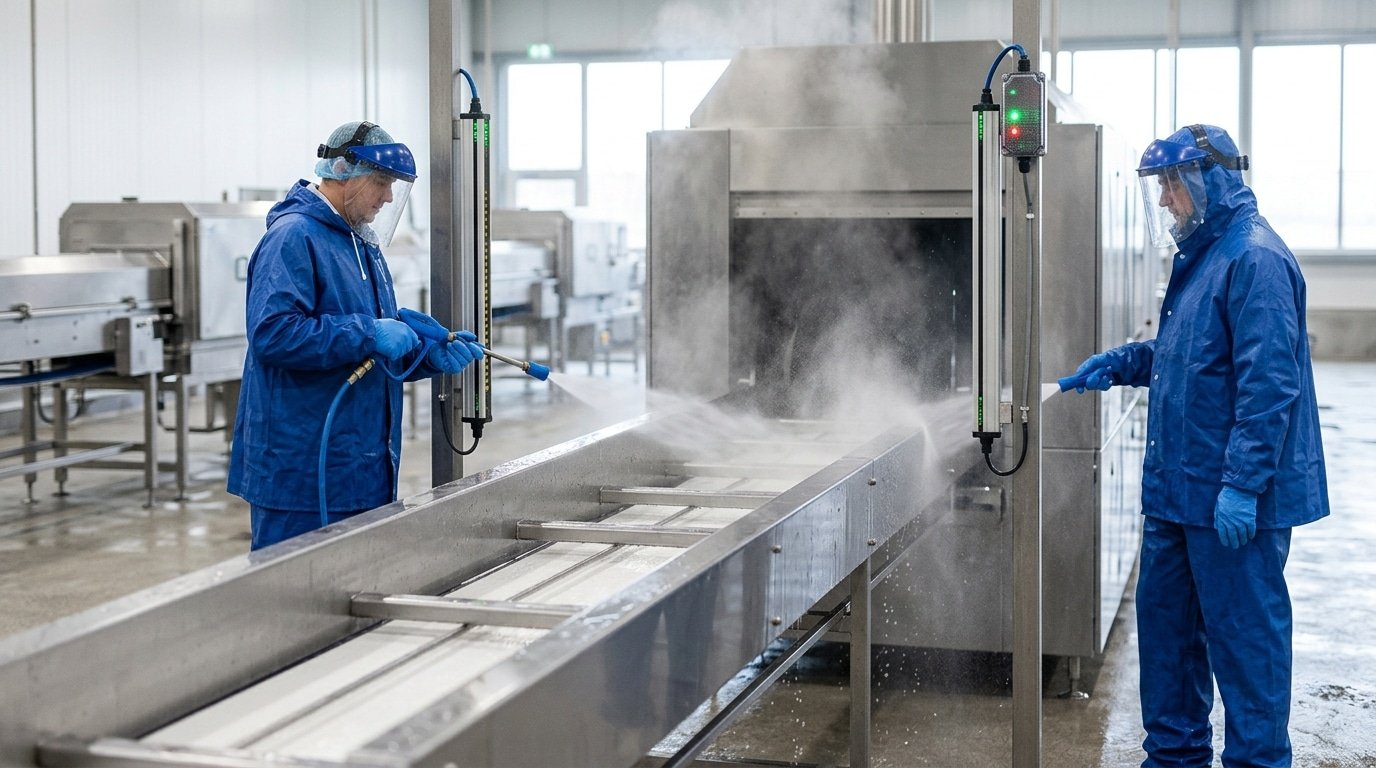

Include a check after the specified cleaning cycle

With hazardous movement prevented, inspect the assembly for damage, residue, trapped water, internal fogging, loose mounting and compromised cable entries. Complete the manufacturer’s prescribed functional checks before returning the machine to service. Record the cleaning conditions and findings so later changes have a baseline.

Use only permitted cleaning and replacement methods. For example, SICK’s manual warns against aggressive or abrasive cleaners and describes optical contamination that can affect detection. Do not polish a damaged window, add sealant or alter the housing unless the manufacturer permits that procedure.

The inspection and test schedule should follow the machine risk assessment, operating conditions and applicable manuals. There is no universal “once a month” interval that makes every washdown installation acceptable.

What should you do if it trips after cleaning?

Treat the timing as a diagnostic clue, not a diagnosis. A stop immediately after a rinse could involve an obscured optical path, misalignment or a connection problem. A stop during cool-down makes temperature change and condensation worth investigating, but the fault codes and physical evidence must decide the next step.

• Residue on the outside: follow the approved cleaning method, then repeat the prescribed alignment and functional checks.
• Fog or water inside the housing: keep the machine in a safe state and investigate the seal, assembly and temperature conditions with the supplier. Do not keep returning it to production simply because it dries out.
• Changed alignment or a damaged cable entry: document the condition and restore the approved mechanical or electrical arrangement before revalidation.

Do not use muting, blanking, bypass wiring or reduced protective coverage as a cure for unexplained wet-area faults. Those changes can alter the safety function; they are not maintenance shortcuts.

A sound selection ends with two records: an exact assembly supported for the documented environment, and a validated safeguarding installation on the machine. The first makes a defensible purchase possible. The second establishes whether that purchase has been integrated correctly.
