How to Choose an Industrial Sensor Supplier for Automation Projects
Choose the supplier that can prove exact application fit, controlled production, model-specific compliance, repeatable sample performance, and dependable change management. A low unit price or a large catalog is useful only after those risks are controlled.
- Application-first supplier qualification
- Document and factory evidence checks
- Sample, continuity, and lifecycle controls
The best supplier is the one whose claims can become your acceptance criteria.
Start with the machine requirement, not the vendor list. Ask each candidate to map an exact sensor model to your target, geometry, environment, PLC interface, mechanical constraints, destination market, and production volume. Then compare the evidence behind that recommendation.
Practical verdict: shortlist suppliers only after they provide a model-specific answer, controlled documents, a realistic sample plan, and written commitments for production changes and supply continuity.
-
01
Application fit
The recommended model is tied to real targets, distances, backgrounds, speeds, and environmental limits.
-
02
Process control
Incoming material, assembly, final test, nonconformance, traceability, and changes are controlled.
-
03
Market evidence
Declarations, reports, certificates, markings, and model scope match the countries and application.
-
04
Validation support
The supplier helps define a representative sample and machine test instead of promising universal performance.
-
05
Lifecycle control
Lead time, forecasts, product changes, end-of-life handling, corrective action, and replacement paths are documented.
Give every supplier the same application brief.
A supplier cannot select a dependable sensor from a phrase such as "detect a metal part" or "replace an M12 sensor." The same target may behave differently when it is smaller, farther away, moving faster, approached from the side, surrounded by metal, wet, hot, transparent, reflective, or seen against a changing background.
Create one controlled RFQ input and require every candidate to state assumptions. This makes quotations comparable and exposes candidates that recommend a model before understanding the job.
- Target and backgroundMaterial, color, finish, size, temperature, transparency, reflectivity, and nearby objects.
- Sensing geometryRequired distance, available space, approach direction, beam path, alignment access, and tolerance stack.
- Machine behaviorCycle rate, target speed, response requirement, startup state, failure state, and cleaning routine.
- Electrical interfaceSupply voltage, NPN or PNP, NO or NC, analog range, load, PLC input, pinout, and connector.
- EnvironmentTemperature, vibration, shock, oils, chemicals, dust, washdown, ambient light, EMC sources, and hazardous zones.
- Commercial scopeDestination markets, expected lot and annual volume, sample timing, customization, packing, labeling, and forecast.
Do not hide uncertainty. When a tolerance, contaminant, cleaning chemical, or background is unknown, mark it as an open validation item. A good supplier will help close that gap instead of turning it into an unqualified promise.
Manufacturer, distributor, or custom development partner?
The right route depends on urgency, volume, modification needs, local support, and how much engineering work remains. Select a scenario to see the strongest fit and the evidence to request.
Use an authorized or technically capable stocking channel.
For downtime recovery or small standard quantities, local inventory and verified model identity may matter more than factory-direct pricing. The channel still needs to preserve traceability and provide current documents.
Confirm before ordering
- Exact model suffix, connector, output, cable length, and sensing mode
- Authorized status or documented source of supply
- Current datasheet, declaration, marking, and production date or lot
- Return conditions when form, fit, or function is not as quoted
Risk to resolve
- "Equivalent" offered without electrical and mechanical comparison
- Mixed revisions or unclear storage history
- No access to manufacturer engineering when the application is uncertain
Qualify a direct manufacturer for repeatable production.
Direct sourcing is strongest when annual demand justifies supplier qualification and you need stable revisions, controlled options, engineering access, and a defined response to quality or supply events.
Confirm before ordering
- Factory site, process ownership, test capability, and quality-system scope
- Quoted lead time assumptions, capacity constraints, lot policy, and forecast process
- Lot traceability, nonconformance control, corrective action, and change notice
- Sample-to-production equivalence and approved model revision
Risk to resolve
- Sales office presented as the production site
- Custom terms discussed but not recorded in drawings or order codes
- Capacity claims without bottleneck, component, or seasonal context
Choose a manufacturer with controlled option management.
Private labels, cable lengths, connectors, packaging, and mounting accessories look simple but can change electrical behavior, sealing, strain relief, declarations, markings, and traceability. Treat each approved option as a controlled configuration.
Confirm before ordering
- Customer drawing, revision, label artwork, connector pinout, and cable specification
- Which tests repeat after the option is introduced
- Model naming, serialization or lot coding, packing, and approval sample
- Ownership of tooling, artwork, special stock, and obsolete material
Risk to resolve
- A verbal customization with no controlled part number
- Standard-model declarations reused without checking the modified configuration
- Substituted cable or connector material without written approval
Use a development partner with stage-gated validation.
When the sensing principle, optics, electronics, housing, firmware, or interface is new, the project is product development rather than ordinary sourcing. Technical feasibility, ownership, qualification, and change control need milestones.
Confirm before ordering
- Requirements baseline, feasibility phase, prototypes, design verification, and production validation
- NRE, tooling, intellectual-property rights, source control, and maintenance responsibilities
- Reliability, environmental, EMC, regulatory, and manufacturing test plans
- Exit criteria for each phase and ownership of failed or changed requirements
Risk to resolve
- Production quotation issued before technical feasibility is closed
- No distinction between prototype behavior and qualified production performance
- Unclear ownership of test fixtures, firmware, drawings, or tooling

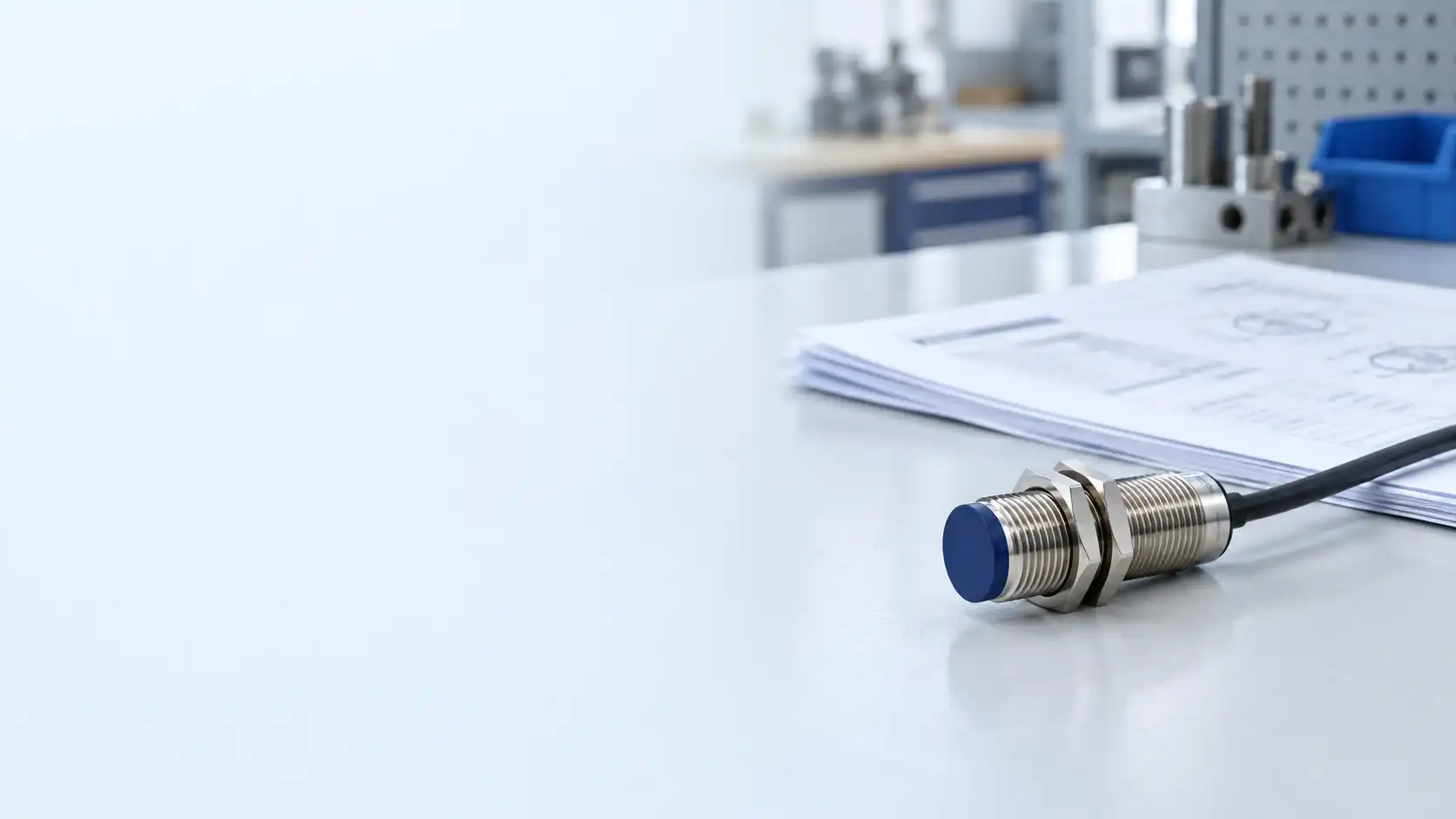

Ask for evidence tied to the exact sensor model.
A category claim such as "IP67 proximity sensor" or "long-distance photoelectric sensor" is not enough. The supplier should identify the full order code and explain how each published limit relates to your target, installation, cable, connector, output circuit, temperature, contamination, and machine timing.
Separate three questions: what the datasheet publishes, what a standard or report covers, and what your application test proves. None of them automatically replaces the others.
Good answer: "Model X with connector Y is recommended for this target and geometry, subject to these assumptions. Here is the datasheet revision, wiring diagram, applicable declaration, and a test plan for the unresolved background and washdown conditions."
Controlled product definition
Full order code, datasheet revision, dimensions, mounting, sensing conditions, output circuit, pinout, environmental limits, and accessories.
Applicable reports and declarations
Documents that name the model family, configuration, production entity, applicable legislation or standard, test method, and issue date.
Application validation record
Agreed target set, worst-case setup, machine test, acceptance criteria, sample identity, result, deviations, and final sign-off.
| Claim being evaluated | Evidence to request | Question the buyer still must answer |
|---|---|---|
| Sensing distance | Rated or specified distance, reference target, hysteresis or repeatability information where applicable, installation restrictions, and temperature conditions. | What reliable margin remains with the smallest, hottest, fastest, least reflective, or most offset production target? |
| Environmental protection | Exact model's enclosure rating, test basis, connector or cable condition, and any installation instructions. | Are the real chemicals, pressure, temperature, cleaning duration, seals, connectors, and mounting interfaces compatible? |
| Electrical compatibility | Output circuit, load limits, leakage or residual behavior where relevant, protection features, response time, pinout, and wiring diagram. | Does the complete PLC input circuit behave correctly during normal operation, startup, fault, and cable-disconnect conditions? |
| Life or reliability | Defined test method, sample size, operating conditions, failure criteria, and any field-return data the supplier is prepared to disclose. | Does the evidence represent the actual load, switching rate, vibration, temperature, cable motion, contamination, and maintenance regime? |
A strong factory can show how variation is detected and contained.
A quality-system certificate is useful context, but the purchasing decision should also examine the controls that keep the approved sensor consistent from incoming material to shipment.
Incoming control
Critical electronic, optical, cable, connector, housing, seal, and label materials have defined acceptance and supplier controls.
Process control
Assembly, soldering, potting, optics, torque, sealing, curing, and software steps use controlled instructions and parameters.
Test equipment
Fixtures, reference targets, electrical testers, environmental equipment, and measuring tools are suitable and controlled.
Final verification
Required electrical, functional, optical or sensing, visual, labeling, and packing checks are linked to the model or family.
Traceability
Lot or serial records connect shipped units to material, process, inspection, test, date, and responsible production records.
Corrective action
Nonconforming product is contained, causes are investigated, actions are verified, and relevant customers receive clear updates.
Ask to see records, not only presentation slides.
For a high-impact or repeat-volume program, select a recent model and ask the supplier to demonstrate how its records connect. Sensitive details can be redacted while still showing that the system works.
- Certificate scope and factory address
- Controlled work instruction or control plan
- Incoming and final inspection examples
- Test-equipment control or calibration status
- Lot-trace exercise from shipment to records
- Nonconformance and corrective-action example
- Engineering change and customer notice flow
- Production sample identity and revision history
Do not treat every standard, marking, declaration, and certificate as the same thing.
The required evidence depends on the product, destination market, end use, and applicable law. Ask the supplier to explain which requirements apply to the exact model and why.
They define technical requirements or test methods.
For example, IEC 60947-5-2 applies to specified types of proximity switches. A supplier should state the edition and model scope instead of presenting "IEC certified" as a universal badge.
Ask forApplicable standard and edition, model list, test report or declaration basis, laboratory identity, deviations, and the configuration tested.
It is the manufacturer's statement of conformity where EU rules require it.
The manufacturer is responsible for conformity assessment, technical documentation, the EU Declaration of Conformity, and affixing the mark. Third-party involvement is required only where applicable legislation specifies it.
Ask forEU Declaration of Conformity, legal manufacturer, product identification, applicable legislation and standards, signatory, marking and traceability details.
They concern chemical and substance obligations, not general product quality.
RoHS restricts specified hazardous substances in electrical and electronic equipment. REACH duties can change as the Candidate List changes, so fixed substance counts quickly become outdated.
Ask forCurrent dated declaration, exact model or material scope, supplier material controls, evidence basis, and a process for communicating future substance changes.
It specifies requirements for a quality management system.
Certification can support confidence in the management system, but it does not prove that one sensor fits your application. Check the certificate's organization, site, scope, validity, and issuing body, then examine real process controls.
Ask forCertificate and verification details, scope covering the relevant factory activity, audit status where shared, and evidence that product controls operate in practice.
It addresses laboratory competence, impartiality, and consistent operation.
Use accredited laboratory results when required by your test, customer, regulation, or measurement system. It is not a reason to demand annual calibration of every discrete switching sensor.
Ask forLaboratory accreditation scope for the actual method or quantity, report identity, uncertainty where relevant, and metrological traceability appropriate to the result.
They matter when equipment is intended for potentially explosive atmospheres.
Do not accept a generic hazardous-area claim. The equipment marking, protection concept, gas or dust group, temperature class, zone or equipment protection level, ambient range, and certificate must match the application.
Ask forExact certificate and schedule, marking, instructions and special conditions, quality assurance status, and an IECEx online database entry when IECEx is claimed.
They classify enclosure protection under a defined test basis.
IEC 60529 covers the IP code for enclosures; ISO 20653 addresses protection degrees for road-vehicle electrical equipment. An IP code alone does not establish chemical compatibility, long-term sealing, or suitability for every cleaning process.
Ask forExact rating and test basis, cable or connector condition, mounting restrictions, temperature limits, cleaning media compatibility, and installation instructions.
This guide supports supplier qualification but does not replace legal review, machinery risk assessment, functional-safety validation, or the requirements of the destination market.

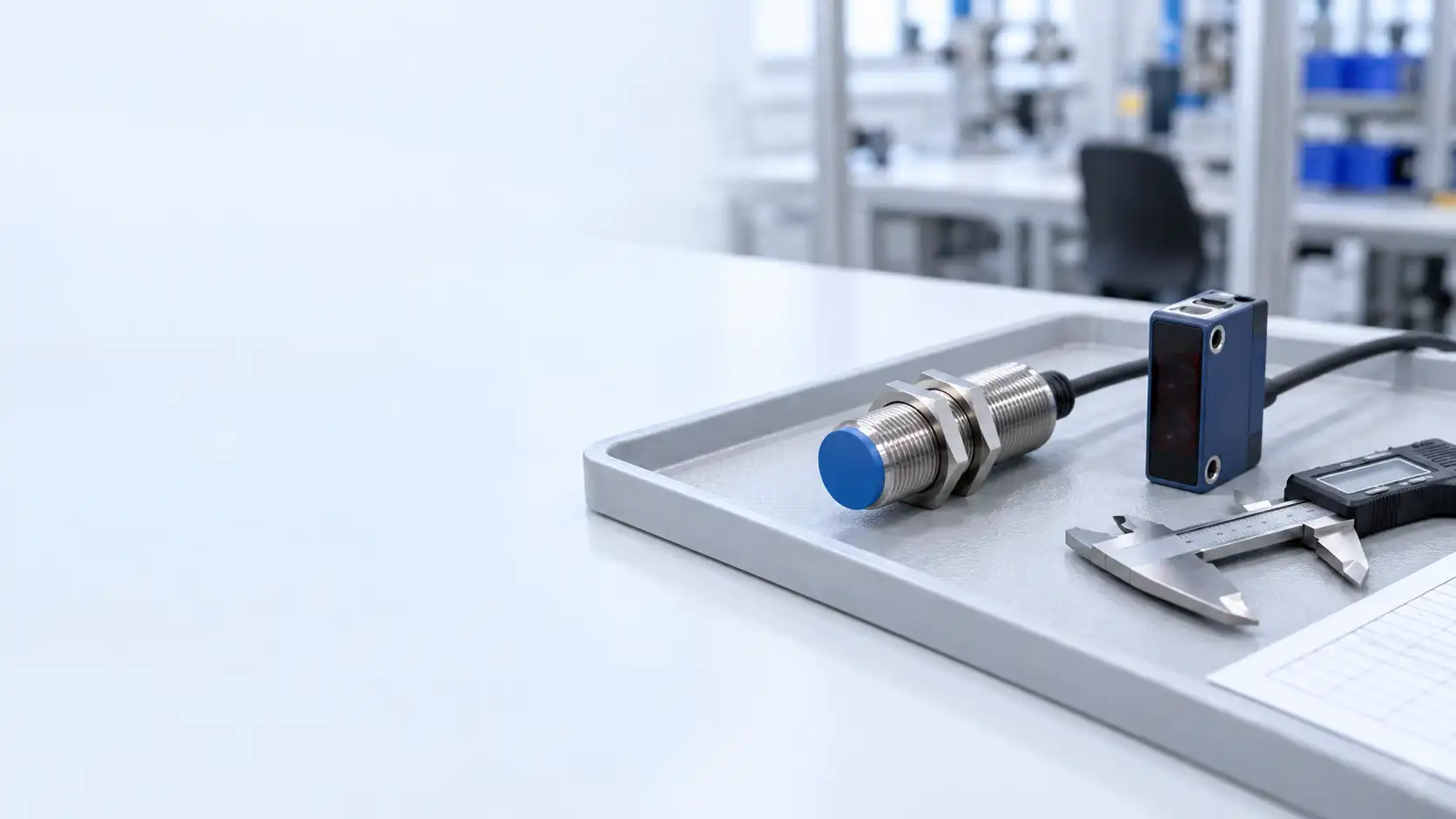

Use a representative sample plan before approving production.
There is no universal sample quantity for every sensor project. Choose enough units, lots, targets, and operating cycles to address the consequence of failure and the variation you need to understand.
Close the paper review
Confirm the exact model, revision, assumptions, datasheet, drawing, wiring, declarations, and unresolved application risks.
Identify every sample
Record model, suffix, lot, date code, firmware where relevant, cable or connector, settings, packaging, and supplier source.
Bench-test the interface
Verify power, output, pinout, load, PLC behavior, adjustment, indicators, response, and failure-state expectations.
Challenge the sensing margin
Use worst-case targets, backgrounds, distances, offsets, speeds, contamination, ambient light, side metal, and temperature.
Run on the real machine
Test installation access, vibration, cable routing, cleaning, changeover, maintenance, startup, stops, faults, and operator handling.
Approve a controlled baseline
Sign the acceptance criteria, model and revision, permitted settings, installation drawing, open issues, and production change rules.
Build the test around the detection problem.
| Application area | Variables worth challenging | What to record |
|---|---|---|
| Inductive or capacitive proximity sensing | Target material and size, flush or non-flush mounting, surrounding metal, approach direction, distance margin, buildup, moisture, and container wall. | Switch points, hysteresis or stability, false transitions, mounting, target set, settings, temperature, and final operating margin. |
| Photoelectric or fiber optic sensing | Target color and finish, transparent or reflective surfaces, background, beam position, alignment, ambient light, contamination, vibration, and speed. | Signal or stability indication where available, switching result, target path, setup method, lens condition, alignment, and false detections. |
| Electrical and connector integration | NPN or PNP, NO or NC, analog scaling, supply variation, load, PLC input, leakage or residual behavior, pinout, cable bend, and connector sealing. | Complete circuit, measured behavior where relevant, wiring revision, connector part, cable route, startup state, and fault response. |
| Safety-related sensing | Required safety function, protective field, resolution, reach-over and reach-under access, stopping performance, reset, muting, diagnostics, and faults. | Risk assessment inputs, validated calculations, certified configuration, installation, test procedure, safety logic, and verification result. |
An informal sample trial must not replace a required machinery risk assessment or validation of a safety function.
Score evidence, not sales confidence.
Use this planning aid to compare three candidates. Adjust each weight to suit the project, then score each supplier from 1 (weak or missing evidence) to 5 (strong, verified evidence).
Default weights suit a repeat automation project. Results are normalized if your edited weights do not total 100%.
Weight total: 100%| Decision criterion | Weight % | |||
|---|---|---|---|---|
| Technical and application fit | ||||
| Factory quality and process control | ||||
| Compliance and document evidence | ||||
| Engineering and corrective-action support | ||||
| Supply continuity and change control | ||||
| Total landed and lifecycle cost |
A high total does not override a failed mandatory requirement. Keep legal, safety, and technical gates separate from weighted preferences.
A quoted lead time is not a continuity plan.
Understand what controls the lead time, which demand assumptions it uses, and how both parties will handle shortages, product changes, and end-of-life events.
Separate forecast from commitment
Define forecast horizon, frozen window, order release, expedite rules, and what capacity or material the supplier commits.
Find the real bottleneck
Ask which components, processes, test equipment, tooling, or seasons drive lead time and recovery.
Define who owns inventory
Agree model, quantity, location, replenishment, shelf-life review, release conditions, and ownership of obsolete stock.
Control substitutions and revisions
Require written review before changes that can affect form, fit, function, performance, compliance, or approved materials.
Put notice terms in writing
Set a practical product-change and end-of-life process, including affected models, reason, comparison, validation, and last-time-buy handling.
Validate, do not assume equivalence
A replacement needs form, fit, function, output, pinout, installation, performance, and regulatory review before release.
Unit price is one line in the sensor's lifecycle cost.
Compare candidates using the same delivery terms, configuration, evidence, support scope, spare strategy, and expected validation effort. A lower quotation can become expensive when it creates engineering rework or machine downtime.
Total lifecycle cost = purchase and logistics + engineering and validation + installation and commissioning + maintenance and spares + downtime exposure + future change or requalification cost.
Landed purchase cost
Unit price, tooling or NRE, samples, freight, duties, payment terms, packaging, minimum order policy, and unused special stock.
Qualification effort
Application review, drawings, documentation gaps, PLC changes, fixtures, machine trials, approvals, and repeated testing.
Installation and downtime
Mounting, alignment, setup, cable work, maintenance access, false trips, missed detections, diagnostics, and replacement time.
Change and continuity exposure
PCNs, obsolete products, unapproved substitutions, emergency freight, safety stock, second-source validation, and field retrofits.
Eight supplier red flags that need a documented answer.
A red flag is not automatically a rejection. It is a reason to stop the approval process until the supplier provides evidence, corrects the gap, or accepts a clear risk-control action.
Selection before discovery
A model is recommended without target, geometry, environment, circuit, speed, and destination-market questions.
Generic document bundle
Certificates or declarations do not identify the legal manufacturer, factory, exact model scope, standard, or validity.
Sample-production gap
The supplier cannot explain how the sample's materials, process, firmware, test, and revision match production.
Uncontrolled substitutions
Cable, connector, electronics, optics, housing, sealing, or sub-suppliers may change without customer review.
No trace exercise
A shipped lot cannot be connected efficiently to production, material, inspection, and test records.
Absolute performance claims
Phrases such as "detects every material" or "works in any environment" replace defined conditions and test evidence.
Incomplete commercial scope
The quotation omits order code, revision, Incoterm, lead-time basis, MOQ policy, warranty, packing, or custom-option ownership.
Weak corrective-action path
There is no clear containment, return analysis, root-cause, corrective-action, verification, or communication process.
Do not release the production order while a critical answer is still verbal.
Tick each item when the evidence is approved and stored with your supplier or project record. Adapt the list to your quality system and the consequence of sensor failure.
Start with the controlled model and application requirements.
Send enough information for a model-specific answer.
Good supplier support begins with a clear input. Include photos or a simple sketch when geometry, target path, background, mounting, or cable routing is difficult to describe.
- Detection taskWhat must be detected, measured, counted, positioned, or protected?
- Target setMaterial, color, finish, size, variation, temperature, and minimum detectable condition.
- GeometryDistance, approach, speed, available space, background, and mounting constraints.
- ElectricalSupply, output, PLC, load, pinout, connector, cable, analog range, or communication.
- EnvironmentTemperature, vibration, dust, water, chemicals, washdown, light, EMC, and hazardous area.
- MarketsDestination countries, industry or customer rules, declarations, approvals, and language needs.
- DemandPrototype timing, order lot, annual estimate, forecast pattern, ramp, and service-spare horizon.
- CustomizationCable length, connector, label, housing, accessories, packaging, drawings, or private label.
- ValidationAvailable samples, machine access, worst cases, acceptance criteria, and required records.
- Supply controlsTraceability, PCN, EOL, corrective action, warranty, stock, and second-source expectations.
Use these guides to specify the sensor before requesting a quote.
Supplier qualification works best when the detection principle, output, and connector requirements are already clear.
Industrial sensor supplier selection FAQ
Short answers to common questions from automation buyers, machine builders, controls engineers, and supplier-quality teams.
Should I buy industrial sensors from a manufacturer or a distributor?
Use a distributor when verified local stock, small quantities, consolidation, or fast replacement is the main need. A direct manufacturer is often stronger for repeat volume, engineering access, controlled OEM options, revision management, and long-term commercial planning. The route matters less than verified source, exact model identity, technical competence, traceability, and clear responsibilities.
Is ISO 9001 certification enough to approve a sensor supplier?
No. ISO 9001 provides a framework for a quality management system, and certification can be useful evidence. It does not prove that a specific sensor fits your application or that every relevant production control is effective. Verify the certificate scope and site, then review model-specific documents, process controls, testing, traceability, corrective action, sample results, and change management.
How many sensor samples should I test before production?
There is no universal number. Base the sample plan on failure consequence, expected variation, target and environmental extremes, lot-to-lot risk, novelty, production volume, and required confidence. A few units can confirm basic fit, but they may not characterize variation or reliability. Record sample identity and test acceptance criteria, then decide whether bench, machine, pilot-lot, environmental, or longer-duration testing is needed.
Does a CE mark mean the sensor was independently certified?
Not necessarily. For products subject to applicable EU rules, CE marking is the manufacturer's statement that the product meets the relevant requirements. The manufacturer performs the required conformity assessment, prepares technical documentation and an EU Declaration of Conformity, and affixes the mark. A notified or other third party is involved only where the applicable legislation requires it.
Which documents should I receive before placing a sensor order?
At minimum, secure the controlled quotation and order code, current datasheet and drawing, wiring or pinout, installation instructions, agreed sample or validation result, applicable declarations and certificates, factory and quality details appropriate to risk, traceability expectations, warranty and corrective-action path, lead-time and forecast assumptions, and written product-change or end-of-life terms.
How can I evaluate a supplier's technical support?
Give each candidate the same incomplete but realistic application case. Evaluate the questions asked, assumptions stated, model reasoning, limitations identified, document quality, speed and accuracy of follow-up, sample plan, and escalation path. A useful engineer explains risk and evidence; a weak response jumps from one keyword to a part number or promises success without test conditions.
Must every industrial sensor be calibrated every year?
No universal annual rule applies to every sensor. A discrete proximity switch used for presence detection is not managed the same way as a measurement sensor in a controlled measurement system. Define verification or calibration requirements from the measurement function, risk, drift evidence, manufacturer guidance, customer or regulatory requirements, and your quality system.
Can two sensors with the same size and output be treated as drop-in replacements?
Not without validation. Compare full form, fit, and function: sensing principle, target behavior, distance and margin, response, hysteresis or repeatability where relevant, output circuit, pinout, startup and fault behavior, dimensions, mounting, connector, cable, environmental ratings, instructions, markings, declarations, accessories, and machine performance. Release the alternative only after the required application and compliance checks pass.
Technical references
- IEC 60947-5-2: Low-voltage switchgear and controlgear, proximity switches
- European Commission: CE marking responsibilities for manufacturers
- European Commission: Restriction of Hazardous Substances Directive
- ECHA: REACH Candidate List of substances of very high concern
- ISO 9001:2015 quality management systems requirements
- ISO/IEC 17025:2017 testing and calibration laboratory competence
- IECEx Certified Equipment Scheme overview
- European Commission: ATEX equipment for potentially explosive atmospheres
- IEC 60529: Degrees of protection provided by enclosures
- ISO 20653:2023 road vehicles, degrees of protection
- ILAC P10: Metrological traceability of measurement results
Photography: Sergey Sergeev, ThisIsEngineering, Bulat843, and EqualStock IN via Pexels under the Pexels license. Product image: XSZ Sensor.
