Sensing distance is the gap between a sensor’s reference surface and the point where it reliably switches when a standard target enters range, measured under standardized test conditions. Understanding what is sensing distance matters because the datasheet figure (Sn) is a lab value, not real-world reach. Real usable range (Sa) is often just 81%[1]ย of Sn or less, and stainless steel targets can cut inductive sensor reach by up to 70%.
This article answers the questions buyers actually ask: What does the datasheet number really mean? How does it differ from operating distance? Which factors shrink real reach? And which specs should you check before you buy?
Quick Takeaways
- Nominal sensing distance (Sn) is a lab value using standard mild steel targets.
- Real usable range (Sa) drops to approximately 81% of Sn or less.
- Stainless steel targets cut inductive sensor reach by up to 70%.
- Temperature drift shifts sensing distance ยฑ10% across the rated range.
- Always spec flush versus non-flush mountingโit dramatically changes reach.
What Is Sensing Distance and Why Does the Nominal Rating Mislead Buyers?
Sensing distance is the gap between a sensor’s reference surface and the point where it reliably switches on when a standard target moves into range. Datasheets call this the rated value, and they often write it as Sn, and they measure it underย fixed lab conditionsย in 2025 spec sheets. That means a perfect mild steel target, room temperature somewhere near 20ยฐC, and a steady supply voltage. The nominal rating actually misleads buyers because your factory floor has none of those neat conditions. Heat drifts around, the supply voltage sags, and your real target is often aluminum or a thin sheet rather than the standardized test block. So that number is really a ceiling, not a promise.
So when someone asks what is sensing distance, the honest answer has two parts. There is the printed number, and then there is the smaller number you actually end up with. Industry practice sets the guaranteed operating distance at roughly 0.9 ร Sn to cover manufacturing tolerance, voltage swings, and temperature shifts. If you buy a sensor rated at 10 mm, you should plan around 9 mm before you even factor in your target material.
Order a proximity switch by its nominal spec, mount it at that exact gap, and you will get intermittent misses on the line. Those missed detections stop conveyors and trigger service calls, and that cost completely dwarfs the small price difference of picking a longer-range model up front. Considering all of that, treat the nominal rating as a starting point, then reduce it with the real correction factors we cover next.

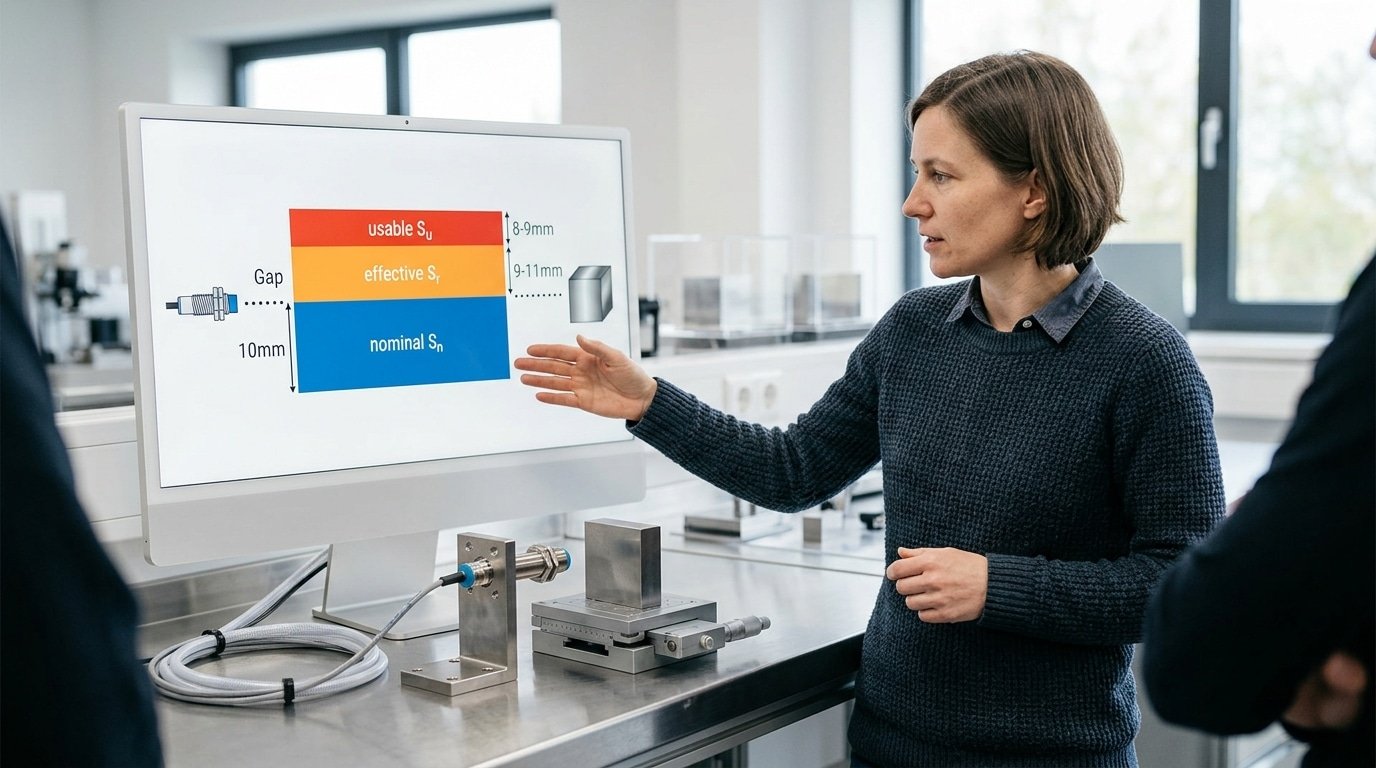

What Is the Difference Between Nominal, Effective, and Usable Sensing Distance?
Nominal, effective, and usable sensing distance are three shrinking tiers of the same measurement. Nominal (Sn) is the ideal-target lab value. Effective (Sr) trims that by manufacturing tolerance to roughly ยฑ10% of Sn. Usable (Su) is what you actually get after temperature and voltage swings, often near 0.9 ร Sn. Design to Su, not Sn.
The datasheet headline shows Sn, the biggest number, but each tier below it eats into that figure for a specific reason:
- Nominal (Sn):ย the rated value measured against a standard target under fixed lab conditions. This is the marketing number. A sensor labeled “Sn = 10 mm” means 10 mm only in that ideal test.
- Effective (Sr):ย Sn adjusted for unit-to-unit variation, since two sensors off the same line differ. The tolerance band is typically ยฑ10%[3], so an Sn of 10 mm gives an Sr window of 9โ11 mm.
- Usable (Su):ย the range you can trust once installed, factoring in supply voltage drift and ambient temperature. This can drop Su to approximately 90% of Sn or lower โ that 10 mm sensor may reliably switch at only 9 mm.
Stack the shrinkage. Start at 10 mm nominal, lose up to 1 mm to tolerance, lose more to heat and voltage, and your dependable range lands near 8 mm. That’s a 20%[4]ย gap between the spec sheet and the factory floor. Understanding what is sensing distance at each tier stops you from mounting a target right at the edge where it drops out.

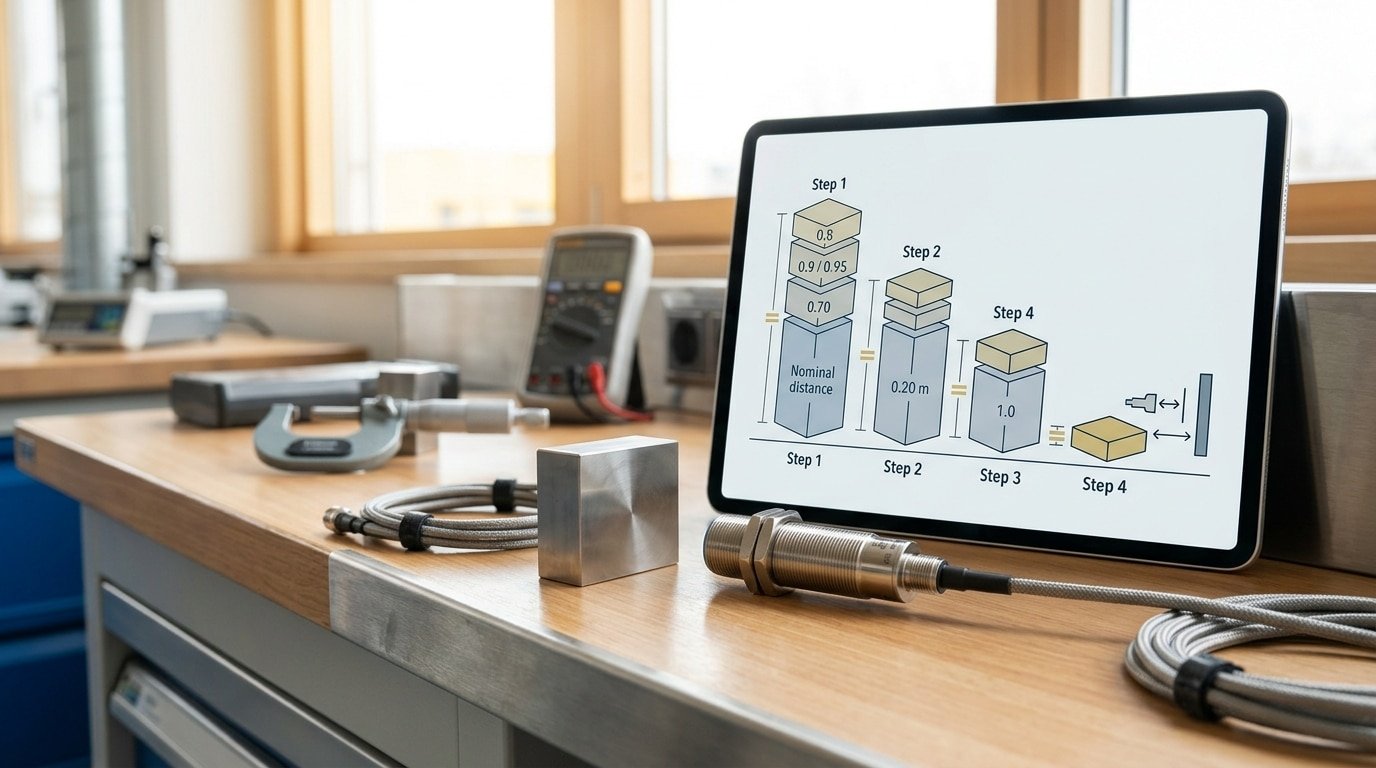

How Do You Calculate Real Usable Distance With the Derating Formula?
To find the usable sensing distance, you take the nominal rating (Sn) and multiply it by three correction factors, then you subtract a hysteresis margin:ย Usable = Sn ร correction factor ร material factor ร temperature factor โ hysteresis margin. In everyday use, a 10mm inductive sensor often falls to about 5,6mm of range you can actually count on. Industry guidance sets the guaranteed operating distance, meaning the distance the sensor will reliably detect at, at roughly 0.9 ร Sn before any material or heat penalty even comes into play.
What does each factor in the formula represent?
Each multiplier shaves the nominal number down for a real-world reason. If you skip even one of them, your calculation ends up telling you something that isn’t true.
- Correction factor (0.9):ย this accounts for manufacturing tolerance, meaning small differences between units, along with swings in the supply voltage and the natural variation you find across datasheets.
- Material factor:ย mild steel equals 1.0, though stainless steel drops to about 0.7 and aluminum sits near 0.4, considering that non-ferrous metals disturb the electromagnetic field less than plain steel does.
- Temperature factor:ย coil resistance shifts as things heat up, which cuts the range by roughly 10% at the upper end of a โ25ยฐC to +70ยฐC spec.
- Hysteresis margin:ย this is the gap between the switch-on point and the switch-off point, usually 3โapproximately 15% of Sn, which gets subtracted so the output doesn’t rapidly flicker on and off.
How does a 10mm sensor collapse to 6mm?
Consider Sn = 10mm[5]ย sensing a stainless target at 60ยฐC. When you apply the numbers, 10 ร 0.9 ร 0.7 ร 0.9 = 5.67mm. Subtract a 0.5mm hysteresis margin and your true usable reach lands at about 5.2mm, which is nearly half of the printed spec. You should design your mounting gap around that number rather than the value on the label.
This is exactly why grasping what is sensing distance really means makes the difference between a stable installation and one that throws intermittent faults on the line.

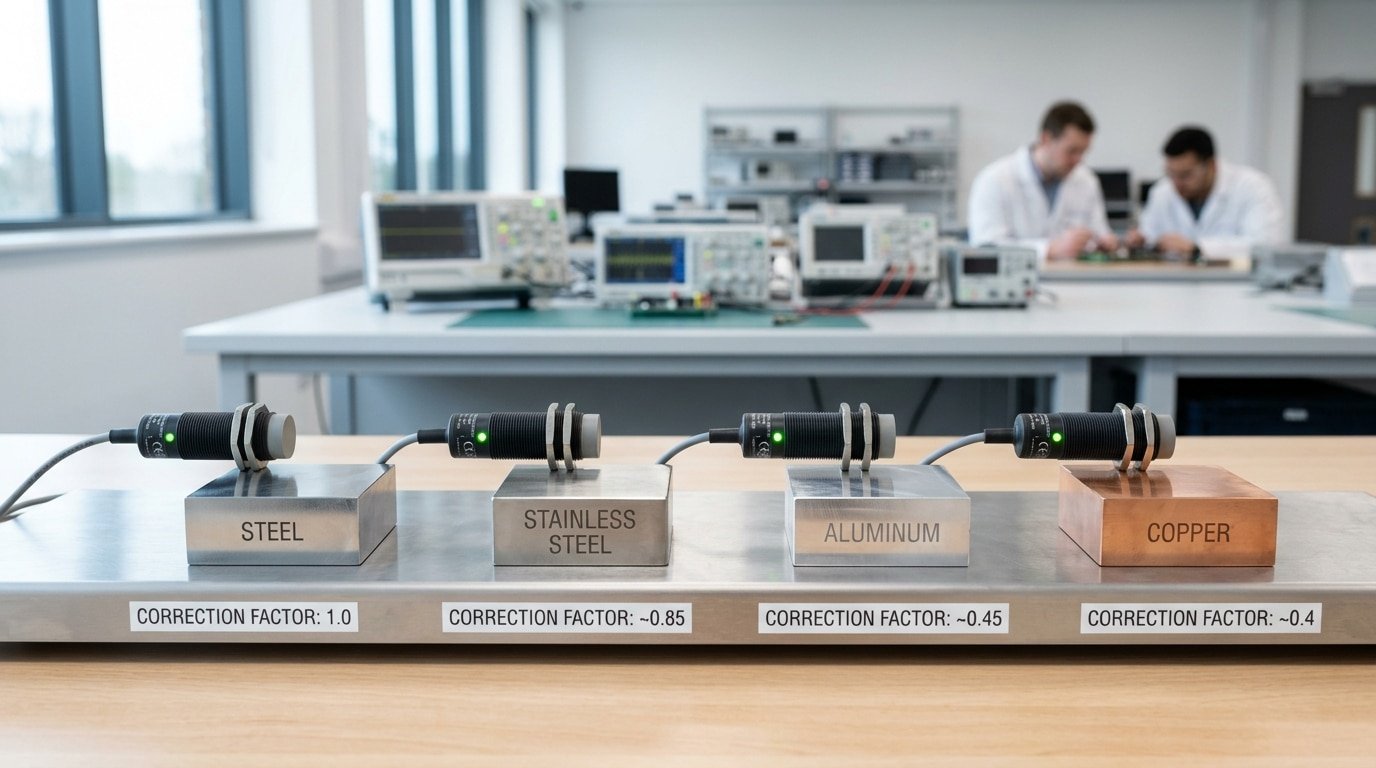

How Does Target Material Affect Sensing Range?
The material you’re trying to detect is the single biggest reason a sensor won’t hit the number printed on its datasheet. Inductive sensors get their rating using mild steel as the reference target. If you swap that steel out for aluminum, the range falls to roughly 40% of the printed value. That’s exactly why answering “what is sensing distance” always means asking one thing first: which metal are you actually detecting?
Inductive proximity sensors work by inducing eddy currents in metal, and materials that resist those currents cut the range down hard. Here are the standard correction factors that get used across the industry:
| Target Material | Correction Factor | Effect on Range |
|---|---|---|
| Mild steel (Fe 360) | 1.0 | Full rated distance |
| Stainless steel | 0.70 | 30% loss |
| Aluminum | 0.40 | 60% loss |
| Brass / copper | 0.35 | 65%[6]ย loss |
You just multiply your nominal rating by the factor. A 10 mm sensor pointed at copper gives you roughly 3.5 mm of real reach. And if you miss this, you end up mounting the sensor too far away, and it never trips at all.
Capacitive and photoelectric sensors follow a different set of physics, though. Capacitive types react to the target’s dielectric constant, so water (dielectric ~80) triggers far more easily than dry plastic (~2) does. Photoelectric sensors depend instead on surface reflectivity: a matte black object reflects very little light and shrinks the range, while a white or shiny surface reflects a lot more. Manufacturers generally rate optical models against a standard white card, as noted in theย Omron sensor guidance.
How Do Correction Factors Differ Across Inductive, Capacitive, Photoelectric, and Ultrasonic Sensors?
Each sensor type derates for a different reason, so the same nominal number means very different real reach depending on the technology. Inductive sensors lose range to non-ferrous metals, capacitive to low dielectric materials, photoelectric to dark or glossy surfaces, and ultrasonic to angled or sound-absorbing targets. For most proximity and photoelectric models, engineers design around 0.9 ร Sn to cover tolerance and temperature drift.
Pick the technology whose weak spot you can avoid. Detecting soft foam? Skip ultrasonic, it absorbs echoes. Detecting a shiny metal fitting at an angle? Photoelectric will struggle with the reflection.
| Sensor Type | Dominant Derating Variable | Practical Impact |
|---|---|---|
| Inductive | Metal type, target size | Aluminum can cut range to ~40% of steel value |
| Capacitive | Dielectric constant, humidity | Water (high dielectric) detects far; dry plastic detects close |
| Photoelectric | Color, gloss, incidence angle | Black matte reflects far less light than white matte |
| Ultrasonic | Surface angle, sound absorption, temperature | Foam absorbs echoes; a 3ยฐC shift alters speed of sound |
One field trick: mount ultrasonic sensors square to flat targets. Once the surface tilts past 3 degrees, the echo bounces away from the receiver and readings drop out. This is why understanding what’s sensing distance for your exact target beats trusting a single datasheet figure.
How Do Temperature, Mounting, and Hysteresis Erode Your Margin?
Temperature drift, mounting style, and hysteresis together can strip approximately 40% or more off the sensing distance you thought you bought. Guaranteed operating distance is already set to about 0.9 ร Sn to absorb temperature and voltage effects, so these three factors eat into an already reduced number. Budget for them before you set your mounting gap.
How much does mounting style cut inductive range?
Flush mounting (the sensor sits level with metal, like a screw driven into a block) shrinks inductive range sharply. A flush model rated 2mm may only reach that value with careful spacing, while its non-flush cousin (mounted proud, with clear space around the head) can sense up to 60%[7]ย farther. Pick the wrong body and you lose that margin before installation.
How does temperature shift the switch point?
Heat and cold move the exact point where the sensor flips on. Datasheets list this as temperature drift, often ยฑ10% of Sn across the full operating range. A sensor near a furnace or in a freezer can switch early or late by tenths of a millimeter, and on a fast conveyor that shift means missed parts.
What’s hysteresis and why does it create a dead band?
Hysteresis is the gap between the switch-on distance and the switch-off distance, usually 3% to 15% of the effective range. A target moving in triggers at one point; moving out, it releases farther away. This dead band stops chatter (rapid on-off flicker) but shrinks the usable window. When you ask what’s sensing distance in practice, subtract hysteresis from your budget.
What Are the Most Common Mistakes When Buyers Trust the Nominal Number?
The most common mistake is treating the nominal rating as a guaranteed working distance. Because guaranteed operating range is typically set to about 0.9 ร Sn before any material or mounting correction, a datasheet number spent at face value leaves zero safety margin. That single habit causes most field failures below.
Specifying a 10mm sensor for a 9mm gap.ย On paper it fits. In reality, a 10mm Sn sensor guarantees only 9mm, and once tolerance and voltage droop shave that further, the target sits right at the edge. You get intermittent detection,the output flickers as the machine vibrates.ย Fix:ย pick a sensor whose usable distance is at least 20%[8]ย beyond your gap, so a 9mm gap wants a 15mm or 18mm model.
Using the steel-rated distance for an aluminum target.ย Inductive ranges are quoted for mild steel. Aluminum can cut that to roughly 40% of the printed number, so a 12mm sensor sees aluminum at about 4.8mm.ย Fix:ย apply the material correction factor before you compare it to your gap.
Ignoring flush-mount derating.ย Embedding a sensor in metal shrinks its field. What you understood as sensing distance drops as much as 30% versus non-flush.ย Fix:ย read the flush spec, not the headline number.
Skipping the temperature check on outdoor installs.ย A sensor calibrated at 20ยฐC[9]ย drifts when a summer enclosure hits 60ยฐC.ย Fix:ย verify the rated temperature range and derate accordingly.
How Do You Measure and Verify Sensing Distance in Your Own Setup?
Verify sensing distance by mounting your real target on a graduated slide, then moving it toward the sensor slowly while you record the exact switch-on and switch-off points. The gap between those two points is your true hysteresis. Design engineers typically build in a 20,30% safety margin before locking the design, because the datasheet number is measured with a standard steel target, not yours. Answering “what’s sensing distance” forย yourย line means testing with your actual object, mounting, and ambient temperature, a lab figure taken at 23ยฐC tells you little about a machine running at 55ยฐC.
What Steps Should You Follow to Measure It Correctly?
Do it in five moves. Skip any one and your data lies.
- Mount the real targetย on a micrometer slide or graduated linear stage (0.1 mm resolution).
- Approach slowlyย โ under 5 mm per second, so you catch the exact trip point.
- Record switch-on distanceย as the target nears the face.
- Record switch-off distanceย as you retract it.
- Calculate hysteresisย = switch-off minus switch-on.
Repeat the cycle at least five times and average the results. Industry practice sets the guaranteed operating distance at about 0.9 ร the nominal rating (Sn) to absorb manufacturing tolerance and voltage swing. Confirm your averaged switch-on point sits well inside that value.
How Big a Safety Margin Should You Lock In?
Keep your working gap at 70,80%[10]ย of the verified switch-on distance. If your sensor trips at 4.0 mm and your target sits at 3.0 mm, that 25% cushion covers thermal drift and vibration. Anything tighter risks dropouts once the machine heats up.
Frequently Asked Questions About Sensing Distance
Sensing distance is the gap from a sensor’s face to where it reliably detects a standard target under test conditions, as defined inย industrial sensor documentation (2025). These quick answers settle the questions buyers ask most before ordering.
How Much Safety Margin Should I Allow?
Design to about 0.9 ร Sn as your guaranteed operating distance. That 10% buffer covers manufacturing tolerance, voltage swing, and temperature drift. For harsh plants with heat or vibration, drop to 0.6-0.7 ร Sn instead.
Does a Larger Target Increase Range?
Only up to a point. Once your target matches the standard test size (usually a square equal to the sensor diameter), extra area gives no more range. A smaller target shrinks it. Undersized flags are a common reason a sensor misses.
Why Does Stainless Steel Cut Inductive Distance?
Stainless steel is non-ferrous with low magnetic permeability, and inductive sensors rely on eddy currents in ferrous metal. Austenitic 304 stainless can drop range to roughly 0.7 ร the mild-steel figure, so always apply the material correction factor.
How Do I Convert Nominal to Usable Fast?
Multiply Sn by three factors: material, temperature, and mounting. Skip the guesswork and use the derating formula from the calculation section.
Turning Sensing Distance Into a Reliable Design Decision
Treat the nominal rating as a starting point, not a spec you can build on. So what is sensing distance in practical terms? It’s the number you getย afterย you multiply the datasheet Sn by every correction factor for your target, temperature, and mounting. Industry convention already bakes in a first cut: the guaranteed operating distance is typically set to about 0.9 ร Sn to cover manufacturing tolerance, voltage swing, and temperature drift.
Run this checklist before you click “buy”:
- Start with 0.9 ร Sn: Never design against the raw catalog number. Drop 10% immediately.
- Apply the material factor: Multiply by your target’s correction value (stainless steel often lands near 0.7 for inductive types).
- Subtract the environment: Account for temperature drift and mounting (flush vs. non-flush) โ these can strip 40% together.
- Reserve hysteresis margin: Set your working gap at 70โ80% of the calculated usable distance, not at the edge.
- Verify on the bench: Confirm the switch point with your real target on a graduated slide before committing to volume.
A sensor picked on nominal specs alone may pass on a test rig and then miss targets on the line, triggering false stops that cost far more than the part. Sensing distance is a decision variable, not a marketing figure. Run the correction formula once, and you convert a guess into a repeatable engineering choice, one that holds up across production runs, seasons, and material batches.
