Types of Sensors Used in Industrial Automation: A Practical Overview

The main types of sensors in automation fall into eight core families: proximity, temperature, pressure, flow, level, vibration, humidity, and optical/vision (Breval Consulting, 2025). Each solves a distinct measurement problem a machine can’t handle alone—proximity sensors detect objects in under 1 ms^[1], while RTD temperature sensors reach ±0.1°C accuracy for process control. Together, these families form the input layer that converts physical conditions like heat, distance, and pressure into electrical signals a PLC can read.

Quick Takeaways

• Match each sensor family to a machine decision, not a memorized list.
• Proximity and photoelectric sensors answer presence questions in under 1 ms.
• Use encoders and LVDTs for precise position feedback in motion control.
• Deploy RTD temperature sensors when process control needs ±0.1°C^[2] accuracy.
• Add vision sensors to automate inspection tasks once done by humans.

What are sensors in industrial automation and what job do they actually do?

Sensors in industrial automation are basically the input layer that turns physical conditions, things like light, heat, distance, and pressure, into electrical signals that a programmable logic controller (PLC) can read. Back in 2025, industry references sorted them into eight core families, which were proximity, temperature, pressure, flow, level, vibration, humidity, and optical or vision. Without that data coming in, a PLC is essentially blind, and it cannot decide anything at all.

Here is the mental shift that really matters. Don’t try to memorize a type list. Instead, ask what decision the machine actually needs to make. Every sensor sitting on a line exists to answer one of four questions.

• Detect presence: Is a part here or not, like a bottle on a conveyor or a tool in a fixture? That question gets answered by proximity and photoelectric sensors.
• Measure position: Where exactly is this part or actuator right now? That one gets answered by encoders and LVDTs feeding into motion control.
• Monitor process: What is the temperature, pressure, level, or flow at this moment? That gets answered by process sensors that keep a reaction inside its allowed range.
• Ensure safety: Is a person standing in the danger zone? That gets answered by safety-rated light curtains and area scanners.

Pick the sensor after you name the decision, and not before. A common beginner mistake is buying a pricey vision system to confirm that a part is present, when a $30 inductive proximity sensor answers the same yes or no question faster, with none of the lighting headaches. This decision-first way of thinking anchors every sensor type covered down below.

Which sensors detect presence and proximity, and when do you use each?

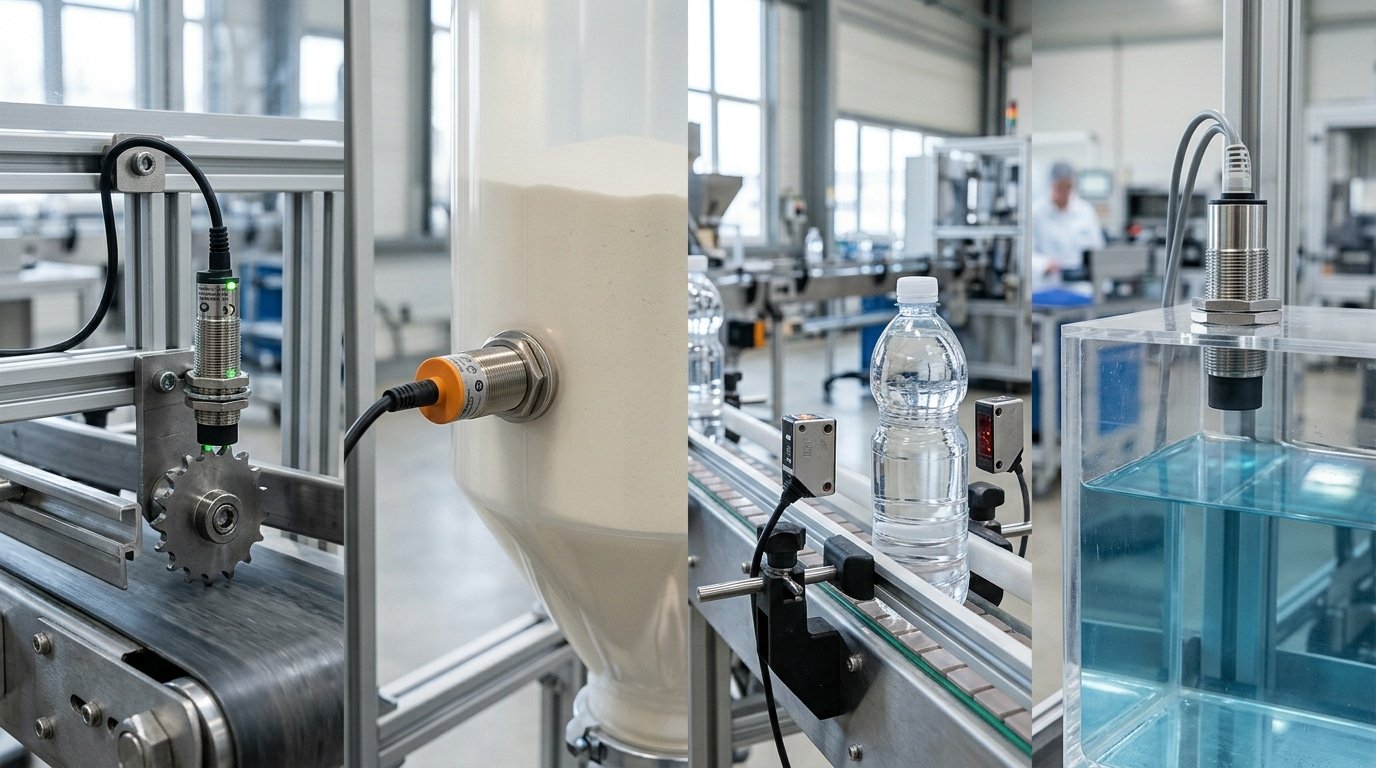

Four proximity sensor families dominate presence detection in automation: inductive, capacitive, photoelectric, and ultrasonic. Per 2025 industrial guides, these are the standard four types of sensors in automation for spotting objects without touching them. Match the sensor to your target material, and you avoid the most common cause of false triggers.

Pick by the job. A steel bracket on a conveyor? Use an Inductive sensor, it only reacts to metal and ignores dust or oil. Sensing range is short, usually 1,15 mm^[3], so mount it close.

• Inductive: detects metal only; 1–15 mm range; immune to non-metal debris.
• Capacitive: detects almost anything — powder, liquid, plastic, wood; ideal for level sensing in a silo through a tank wall.
• Photoelectric: uses a light beam; reaches meters, but a clear glass bottle may pass the beam through and fool it — use a retro-reflective or clear-object model instead.
• Ultrasonic: uses sound echoes; sees transparent, shiny, or dark targets that trip up light-based units; great for powder level where dust blinds optics.

That clear-bottle problem is why sensor choice isn’t interchangeable. A standard diffuse photoelectric sensor sees glass poorly, so filler lines often switch to ultrasonic or specialized clear-object optics.

One wiring detail trips up beginners: PNP vs NPN output. PNP switches the positive line (sourcing); NPN switches ground (sinking). Your PLC input card expects one type. Order the wrong polarity and the sensor works but the controller never reads it. Confirm the input spec first, see proximity sensor basics.

How do position and motion sensors measure where a part or actuator is?

Position and motion sensors keep track of where a part or an actuator is sitting by turning physical movement into electrical signals, either as digital pulse counts or as an analog voltage that varies with position. In 2025, the main technologies used for motion feedback are encoders, linear potentiometers, and LVDTs. You would choose digital encoders when you have rotary servo axes to control, and you would reach for analog LVDTs when you need linear precision measured down to the micron level.

What’s the difference between incremental and absolute encoders?

An incremental encoder sends out a steady stream of pulses as its shaft rotates, so the controller simply counts those pulses to follow relative movement. The catch is that if you lose power, you also lose the position, and the axis has to “home” itself back to a reference switch when it starts up again. An absolute encoder is different because it stores a unique digital code for every single shaft angle, which means it knows exactly where it is the instant power comes back on. You would use incremental encoders for high-speed spindle feedback, while absolute encoders are the better fit for multi-axis robot joints where stopping to re-home would waste valuable cycle time.

When do you use LVDTs, potentiometers, or Hall-effect sensors?

Each of these linear sensors lands in a different tier when it comes to precision and cost, so the right pick really depends on the job:

• LVDT (Linear Variable Differential Transformer): this gives contactless, frictionless linear measurement down to sub-micron resolution, which makes it a good match for material testing rigs and for tracking the position of a valve stem.
• Linear potentiometer: here a wiper slides along a resistive track and produces an inexpensive analog voltage signal, which works well for measuring the stroke length of a hydraulic cylinder.
• Hall-effect sensor: this one picks up changes in a magnetic field without any physical contact, so there is no wear over time, and it gets used both for spotting when a cylinder reaches the end of its stroke and for brushless servo commutation.

Among these types of sensors in automation, the digital pulse outputs allow PLCs to count exact steps as they happen, while the analog 0 to 10V or 4 to 20mA outputs are better suited to continuous monitoring of a stroke as it moves.

What are the core process sensors for temperature, pressure, level, and flow?

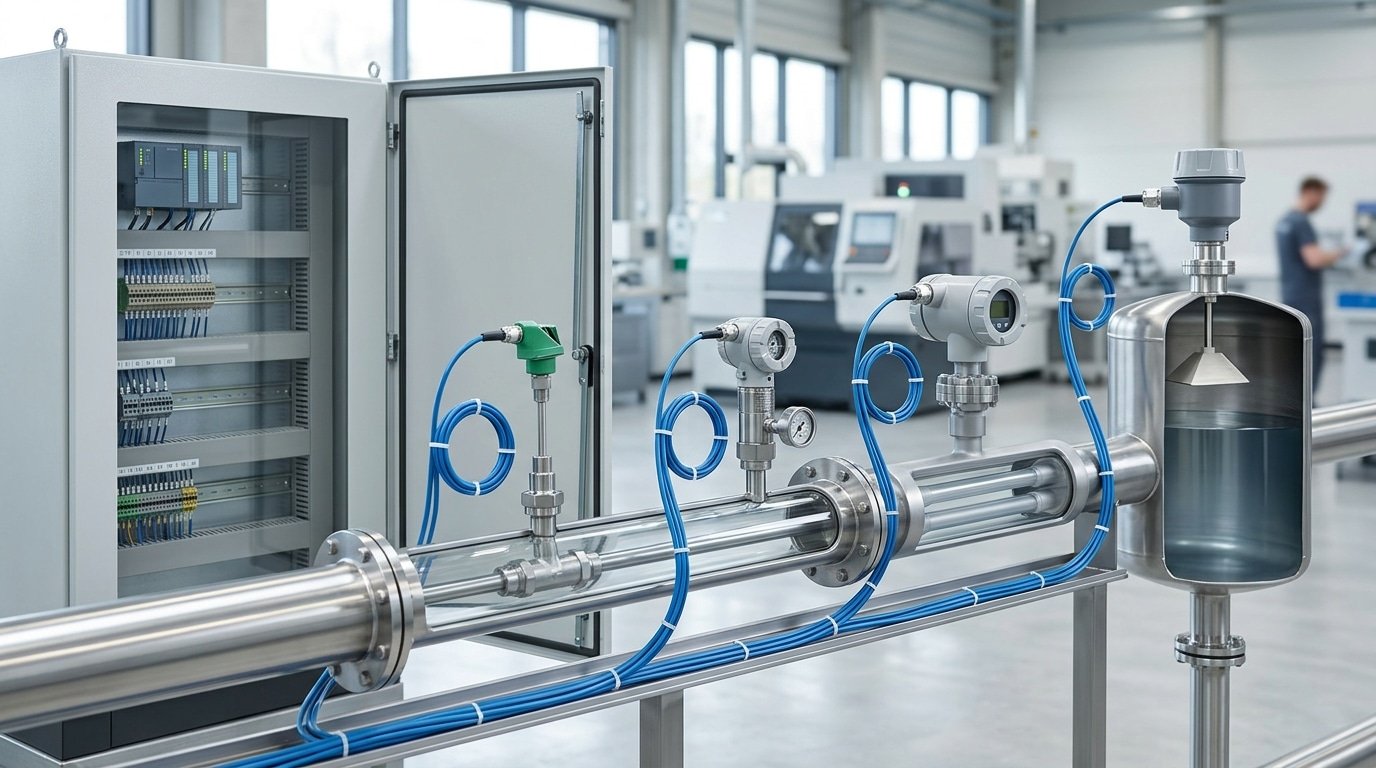

Process sensors measure the four variables that define nearly every fluid or thermal process, which are temperature, pressure, level, and flow. In 2025 industry mappings of the eight core sensor families, these really make up the backbone of continuous control. Most of them output a 4-20 mA analog signal, so if a wire breaks it reads 0 mA, and that gets caught instantly as a fault.

Thermocouples vs RTDs — which temperature sensor should you pick?

Thermocouples handle extreme heat, while RTDs win when it comes to accuracy. A Type K thermocouple, which uses two dissimilar metals that generate voltage when heated, covers roughly −200°C^[4] to 1350°C but does drift a few degrees over time. A Pt100 RTD, where the resistance changes with heat, reaches about 850°C with ±0.1°C accuracy. And so you would generally use RTDs for lab-grade control, and thermocouples for furnaces.

How do pressure, level, and flow meters differ?

Each one measures a different physical property, so the underlying technology changes quite a bit:

• Pressure transducers: these use strain-gauge or capacitive elements, they span 0-600 bar^[5], and the typical accuracy is ±0.25% of full scale.
• Radar/ultrasonic/float level sensors: radar reads through foam and vapor, while float switches simply give you high and low points in tanks and silos.
• Magnetic/vortex/Coriolis flow meters: Coriolis measures true mass flow to ±0.1%, magnetic meters need a conductive liquid to work, and vortex meters generally work well for steam.

So why does the 4-20 mA loop dominate these types of sensors in automation? The current stays constant all along the wire, which means the voltage drop over 100+ meters doesn’t corrupt the reading at all. That immunity is basically why the standard has outlived newer options in harsh plants.

Which optical, photoelectric, and vision sensors handle quality control and inspection?

Photoelectric sensors handle simple presence and edge checks, while vision cameras handle anything needing pattern, measurement, or defect judgment. Among the eight core sensor families in automation identified by 2025 industrial research, optical and vision types cover the widest inspection range. The rule of thumb: if you can describe the fault in one sentence, a photoelectric sensor works; if it needs “does this look right?”, use a camera.

⚠️ Common mistake: Choosing sensors by memorizing an eight-family type list instead of the decision the machine must make. This happens because spec sheets emphasize categories, not use cases—so engineers buy a ±0.1°C RTD for a simple presence check that a sub-1 ms^[6] proximity sensor handles better and cheaper. The fix: start from the machine decision, then match the sensor family to it.

How do through-beam, retroreflective, and diffuse modes differ?

The three photoelectric modes differ by where the emitter and receiver sit and how they read the target.

Mode	Range	Best inspection use
Through-beam	Up to 60 m	Fast fill-level or bottle counting
Retroreflective	Up to 10 m	Clear-object or gap detection
Diffuse	Under 2 m	Contrast marks, label edges

When does a smart camera beat a simple sensor?

A smart camera wins the moment inspection needs judgment, not just a yes/no beam break. Verifying a printed label’s text, checking a fill level against a target line, and rejecting scratched parts all require reading pixels. A contrast or color sensor spots a wrong cap color at line speed. But confirming the label says the right batch code needs machine vision with optical character recognition (OCR, reading printed text). Defect rejection on castings, where cracks vary in shape, only a trained vision system catches reliably.

How do condition-monitoring sensors detect machine health with vibration, humidity, and electrical data?

Condition-monitoring sensors watch a machine’s health instead of controlling its process. In 2025, industrial automation commonly uses accelerometers, displacement, and velocity sensors to spot problems early and feed predictive maintenance. They flag a failing bearing before it stops the line, not while a part moves through a station.

Here is the key difference. Process sensors close a control loop right now. Condition-monitoring sensors trend data over days and weeks to predict future failure. That gap between “control” and “predict” defines this class among the types of sensors in automation.

How do vibration sensors catch bearing faults?

Vibration sensors detect bearing faults by reading tiny frequency spikes long before a human hears grinding. A piezoelectric accelerometer (a crystal that outputs voltage when shaken) captures signals up to 10 kHz or higher. Analysts run FFT (Fast Fourier Transform, which splits vibration into its frequencies) to match a spike to a specific defect,inner race, outer race, or rolling element. Mount the sensor rigidly on the bearing housing; a loose magnetic mount hides high-frequency faults.

Why track humidity and electrical load?

Humidity and current sensors protect the parts vibration misses. Moisture sensors inside enclosures catch condensation that corrodes boards. Current and voltage sensors read motor load,a rising current draw signals a jammed bearing or misalignment. Together, these types of sensors in automation cut unplanned downtime, which is why predictive maintenance keeps growing across factories.

Digital vs analog, PNP vs NPN, and IO-Link — how do you wire and read sensor outputs?

Sensor outputs split into three camps: discrete (on/off), analog (a variable signal), and IO-Link (digital serial). Discrete sensors send a simple high or low voltage. Analog sensors send 4-20 mA or 0-10 V that scales with the measured value. IO-Link layers digital data on top, carrying diagnostics and settings over the same three wires. Your PLC input card must match the signal type, or the reading fails.

What’s the difference between digital and analog outputs?

Digital (discrete) outputs answer yes/no questions, is the part there or not. Analog outputs report a measured value across a range. The 4-20 mA current loop dominates factory floors because a broken wire reads 0 mA, which sits below the 4 mA floor. That gap gives you free fault detection. A 0-10 V^[7] signal can’t do this, 0 V could mean “empty tank” or “cut cable,” and you’d never know.

PNP vs NPN — which wiring do you need?

PNP (sourcing) switches the positive supply to the load; NPN (sinking) switches the ground path. Most European automation runs PNP, and most modern PLCs expect sinking input cards to match. Wire an NPN sensor into a PNP-configured card and it simply won’t register. Check the sensor datasheet before ordering, this mismatch causes a large share of first-day initial startup failures.

What does IO-Link add?

IO-Link (IEC 61131-9) turns a dumb sensor into a talking one. It sends process data plus temperature, cycle counts, and error codes over a standard 3-wire cable. Swap a failed device and the master reloads its parameters automatically, no manual reprogramming. For fleets of types of sensors in automation, this cuts changeover time dramatically.

Output type	Typical use	PLC input card needed
Discrete PNP	Presence, limit switch	Sinking digital input
Discrete NPN	Presence (Asian OEMs)	Sourcing digital input
4-20 mA analog	Pressure, level, flow	Analog current input
0-10 V analog	Short-run position	Analog voltage input
IO-Link	Smart sensors, diagnostics	IO-Link master port

Rule of thumb: pick 4-20 mA over long cable runs, and reserve IO-Link for devices you’ll replace often.

How do you choose the right sensor — a selection decision framework

Choosing the right sensor from the types of sensors in automation comes down to five ranked criteria: environment first, then sensing range, target material, output signal, and cost last. Get the environment wrong and nothing else matters, a sensor that survives a washdown but reads 5mm short is still cheaper to fix than one that dies in a month.

Work through the criteria in this order. Skipping ahead to price is the most common selection mistake.

• Environment: Match IP rating, temperature range, and EMI tolerance to the site. Food washdown needs IP69K (survives 80°C^[8], 100-bar spray). Welding cells need weld-immune inductive sensors.
• Sensing range: Add a 20% safety margin over your worst-case gap so vibration and buildup don’t cause dropouts.
• Target material: Metal favors inductive; clear plastic and liquid favor capacitive or ultrasonic; distance-varying targets need analog.
• Output signal: Confirm PNP/NPN and voltage match your PLC input card before buying.
• Cost trade-off: A $180 stainless IP69K sensor beats a $40^[9] unit replaced quarterly.

Worked example: a wet, washdown food conveyor

You need to detect stainless cans on a dairy line sprayed with hot caustic every shift. Rank the criteria: environment demands IP69K and 316L stainless housing with FDA-compliant seals. Range is 4mm to the can, so pick an inductive sensor rated 8mm to hold the 20% margin. Target is metal, so inductive fits, skip capacitive, which false-triggers on water film. Output must be PNP to match your sinking PLC card. Result: one stainless flush inductive sensor, roughly $150^[10], that outlasts cheaper alternatives across thousands of washdowns.

What are the most common sensor failure modes and how do you troubleshoot them?

Most sensor failures in automation trace back to four culprits: metal debris false-triggering inductive sensors, dust drifting photoelectric thresholds, RTD lead-wire resistance errors, and electrical noise corrupting analog signals. Fix them with shielding, hysteresis tuning, three-wire RTD compensation, and signal isolation, cheap corrections that prevent nuisance stops on the eight core sensor families.

Metal chips near an Inductive proximity sensor (which senses metal without touching it) cause phantom detections. The chip enters the sense field and mimics a target. The fix: increase the sensor’s mounting gap, add a shielded flush-mount type, or bump the switching hysteresis so tiny signal swings get ignored.

Photoelectric drift comes from dust on the lens weakening the light beam. As gain slowly falls, the threshold slips and the output chatters. Wipe lenses on a schedule, switch to a reflective type with a polarizing filter, and set a wider margin between light and dark states.

RTDs (resistance temperature detectors) read wrong when long lead wires add their own resistance. A 2-wire hookup can add several degrees of error. Use a 3-wire or 4-wire connection to cancel lead resistance, per Wikipedia’s RTD reference.

Analog signal noise? Route sensor cables away from motor and VFD wiring, use twisted shielded pairs grounded at one end only, and add a signal isolator. These habits keep the types of sensors in automation reliable across shifts.

Frequently asked questions about sensors in industrial automation

These four questions come up most often when engineers specify sensors. Short answers first, then the reasoning.

What’s the difference between a sensor and a transducer?

A sensor detects a physical change; a transducer converts one form of energy into another. Every sensor contains a transducer, but not the reverse. A thermocouple, for example, is a transducer that turns a temperature difference into a tiny voltage. Packaged with signal conditioning and a housing, that same element becomes a temperature sensor you bolt onto a pipe. In practice, “sensor” describes the finished device on your bill of materials.

Should you pick a PNP or NPN sensor?

Choose PNP for most modern setups. PNP sources positive voltage to the PLC input, which matches the sinking input cards dominant across European and North American controllers. NPN still appears in older Asian-built machines. Mixing them causes phantom signals, so match the sensor output to your input module before ordering.

How many sensor types does one machine use?

A mid-size packaging line typically runs 30 to 80 discrete sensors spanning four or five of the eight core families. Breval Consulting’s 2025 breakdown lists those eight families among the common types of sensors in automation, and most cells combine proximity, position, and process sensing.

Are analog sensors being replaced by IO-Link?

No. IO-Link is growing fast for smart sensors, but 4,20 mA analog loops still dominate long-cable process runs where noise immunity matters. Expect both to coexist for years.

Choosing sensors with confidence — key takeaways and next steps

Specifying sensors well comes down to three habits: pick by measured variable first, match the output signal to your controller, and design for failure before it happens. Across the eight core sensor families identified in 2025,proximity, temperature, pressure, flow, level, vibration, humidity, and optical/vision,the same logic applies every time.

Start from the physics, not the catalog. Ask what you measure, in what range, at what accuracy, in what environment. Only then compare the types of sensors in automation that fit those numbers. A capacitive level sensor and a radar unit both watch a tank, but foam, dust, and dielectric changes decide which one survives.

Signal choice is where projects stall. Confirm PNP vs NPN, discrete vs analog (4,20 mA or 0,10 V), and whether IO-Link buys you diagnostics worth the wiring. Do this before purchase,swapping a mis-specified output after install can add days to a initial startup schedule.

What belongs on your sensor spec checklist?

• Measured variable + range + accuracy: the non-negotiable trio; write real numbers (0–10 bar, ±1°C).
• Environment rating: IP grade, temperature limits, chemical and washdown exposure.
• Output signal: discrete, analog, or IO-Link—matched to a specific PLC input card.
• Failure mode plan: how the sensor fails safe and what diagnostic flags it raises.

Map every sensor to its PLC input requirement on day one. Count your digital inputs, analog channels, and IO-Link ports against your sensor list. Catch the mismatch on paper,not on the factory floor at startup.
