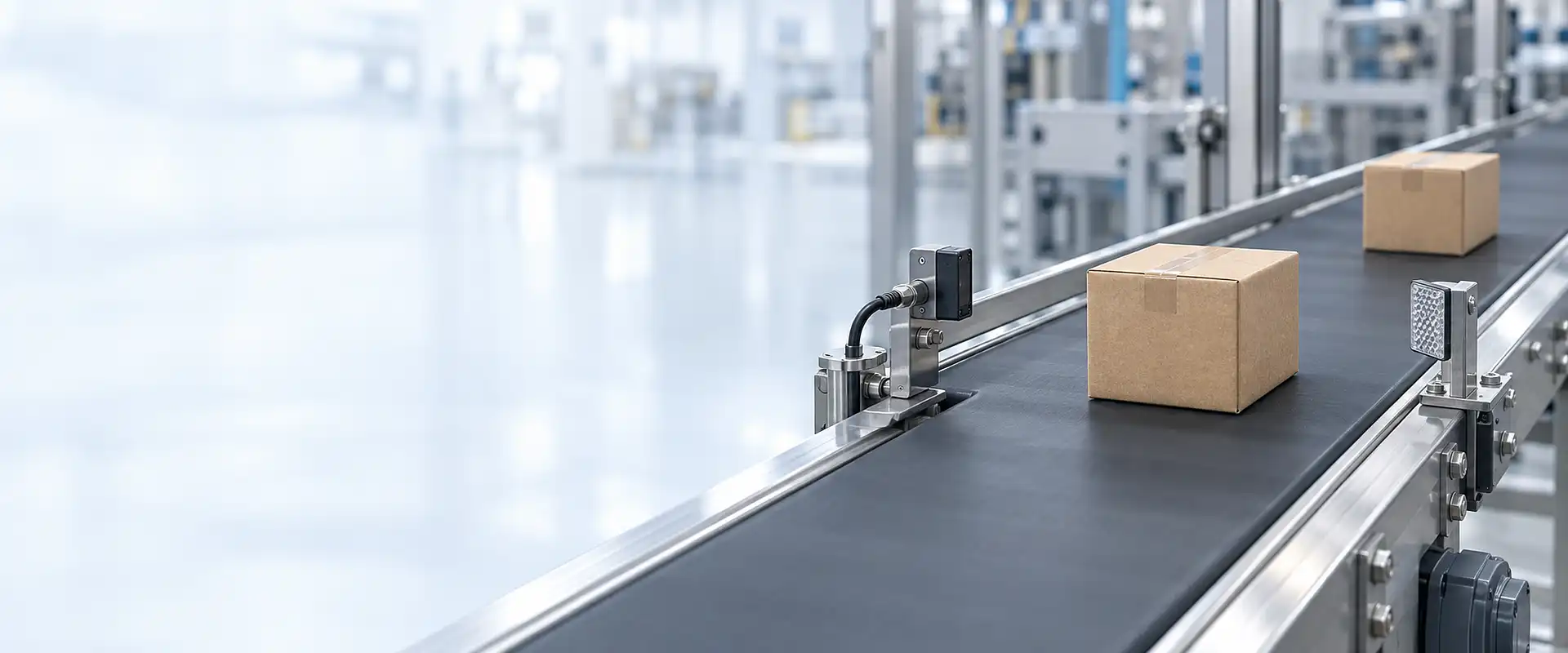

Sensor for Conveyor Belt Applications: Counting, Presence and Position Checks
Choose the sensor from the event you must detect, the target that creates it, the time available and the environment around the belt. For separated opaque products, through-beam photoelectric sensing is a strong starting point; clear containers, close metal parts, variable backgrounds and belt-motion monitoring need different evidence.
- Counting, presence, position and backup checks
- Target and gap timing estimator
- Installation, PLC integration and validation
A conveyor sensor is reliable only when the target creates a repeatable physical contrast, the complete signal path is fast enough, the mounting keeps that contrast stable and the controller interprets the correct output state. Start with the job and worst approved product, not a generic sensing-distance number.
Four decisions before a model number
Define the event, target, time window and operating conditions.
These four inputs narrow the sensing principle and expose the tests that must be completed on the real conveyor.
What must change?
Count one item, confirm presence, register an edge, detect a queue, verify metal or measure belt motion.
What is the hardest target?
Use the smallest, darkest, clearest, shiniest or most misaligned approved sample as selection evidence.
How much time exists?
Calculate both the target-present interval and the clear gap, then include every sensor and controller delay.
What can disturb it?
Include guides, belt background, dust, water, vibration, ambient light, cable routing and cleaning access.
Do not mix three different system jobs
Product detection, belt monitoring and machine safety are separate design domains.
They may share the same conveyor, but they do not use interchangeable sensors or acceptance criteria.
Detect what the conveyor carries
Use industrial object sensors to create repeatable process signals.
- Count products and batches
- Confirm presence or absence
- Register leading or trailing edges
- Detect backup, spacing or a possible jam
Measure what the belt or drive is doing
Use motion, speed or condition-monitoring devices tied to the machine mechanics.
- Encoder-based speed and position
- Zero-speed or underspeed supervision
- Belt tracking and alignment
- Vibration, temperature or bearing condition
Protect people with a safety function
Use safety-rated devices, control architecture and validation selected from the risk assessment.
- Emergency-stop and pull-cord functions
- Guarding and interlocking
- Safety light curtains or scanners
- Safe stopping and reset behavior
A standard photoelectric or proximity sensor can report a product or process condition, but it is not automatically a safety device. OMRON explicitly warns that ordinary photoelectric sensors are not intended for human-life protective safety functions.[8]
Application starting point
What must the sensor detect on the conveyor?
Select the hardest task below. The result identifies a sensing route to investigate first; the final model still requires sample, geometry, timing, environment and controller validation.
Select the primary task
Starting route
Start with through-beam photoelectric sensing
Each separated opaque product interrupts a direct emitter-to-receiver path. This reduces dependence on target color and surface return, provided the smallest item blocks the effective beam and a clear gap appears before the next item.
Compare sensing principles
Which sensor is best for conveyor belt applications?
No sensor category has one universal range, object size or count rate. OMRON's photoelectric guidance treats target size, transparency, speed, distance, background and environment as application variables, while minimum-object performance also depends on the exact optics and setup.[1][2]
| Sensor method | Strong starting use | Main advantage | Typical limit | Evidence to request |
|---|---|---|---|---|
| Through-beam photoelectric | Counting or presence of separated opaque products when both sides of the conveyor are accessible. | Direct beam interruption depends less on target color and surface return than diffuse sensing. | Emitter and receiver need alignment and wiring; tiny targets can pass through a large effective beam. | Beam, minimum object, response in both directions, alignment tolerance, crosstalk control and environment. |
| Retro-reflective photoelectric | One-side wiring where a reflector can be mounted opposite the sensor. | Creates a beam-interruption arrangement with one powered housing. | Clear, mirror-like or highly reflective objects can return unexpected light. | Specified reflector, minimum distance, polarization or clear-object mode, target samples and contamination test. |
| Diffuse with background suppression | One-sided presence or position checks with a known target zone in front of the belt or machine background. | A distance-based cutoff can reject a background beyond the set point.[1] | The cutoff transition, target color, gloss, angle and foreground can still affect the margin. | Worst target and background samples, set distance, spot size, hysteresis, teach repeatability and vibration. |
| Inductive proximity | Close-range metal-part presence in oily, dusty or visually difficult machine areas. | Metal detection does not depend on target color or an optical path. | Short range; target metal and size, flush mounting and surrounding metal change usable distance. | Exact alloy and size, set distance, mounting style, switching frequency, temperature and ingress rating. |
| Capacitive proximity | Specific non-metal material, level or through-wall checks when the surrounding geometry is controlled. | Can respond to materials that an inductive sensor cannot detect. | Moisture, residue, mounting, wall thickness and nearby material can shift the threshold. | Real container and product samples, empty/full states, buildup, temperature and sensitivity margin. |
| Fiber optic / slot / fork | Small guided parts, labels, pins, edges and restricted mounting spaces. | A compact head or fixed opposed slot can create a narrow, repeatable sensing point. | The target must pass through the usable field; fiber routing and contamination affect performance. | Minimum object, aperture or spot, fiber head and amplifier pair, response, bend limits and mounting route. |
| Light grid / area sensor | Variable height, irregular position, wider zones or more than one possible product path. | Multiple beams provide spatial coverage that a single point cannot. | Resolution, evaluation logic, crosstalk and installation width must fit the task. | Beam pitch, active height, response, blanking/evaluation behavior and exact object geometry. |
| Encoder / speed monitor | Belt speed, travel registration, zero-speed or underspeed supervision. | Measures machine motion rather than inferring it from occasional products. | Mechanical coupling, slip, vibration and mounting location determine whether it represents belt travel. | Pulses per travel, coupling or measuring wheel, allowable slip, speed range, response and controller function. |
| Vision / profile sensing | Overlapping, touching, multi-lane or feature-based inspection where one point signal is insufficient. | Uses spatial and feature information rather than one threshold crossing. | Lighting, occlusion, processing latency, recipe control and validation dataset add engineering work. | Field of view, smallest feature, lighting, trigger, algorithm latency, product mix and acceptance dataset. |
The table identifies a first route, not a replacement for the exact data sheet and production test. Published ranges and response times are model-specific.
Build a usable application brief
“Sensor for a box conveyor” is not enough information.
Two conveyors carrying the same carton may need different sensors because the product path, guide height, physical gap, belt background, mounting access and controller input are different.
Use the industrial sensor selection guide when the sensing principle is still open.
Counting and edge-capture planning
Calculate the shortest product and gap event before choosing response time.
For a fixed sensing point, the product travel length estimates how long the target state exists. The physical gap estimates how long the sensor can return to the clear state. Counting needs both intervals; presence-only checks may use different timing logic.
target interval (ms) ≈ 60 × target travel length (mm) ÷ belt speed (m/min)
clear interval (ms) ≈ 60 × physical gap (mm) ÷ belt speed (m/min)
The complete path can include sensor operate and release time, output delay, input filter, network update, PLC scan or task timing and program logic. Beam width, target angle, holes, belt slip, acceleration and reflective geometry can change the real waveform.
This estimator is an engineering screen, not a guaranteed count rate. Confirm the actual sensor output and controller input at maximum production speed.
Conveyor event-window estimator
The entered delay is shorter than the calculated event window. Add design reserve and validate the complete waveform on the running conveyor.
Mechanical setup decides signal quality
Mount the sensor where one valid product creates one stable transition.
Install the sensor, receiver or reflector on a rigid machine reference. Aim through a continuous feature that every approved product occupies, not through handle holes, open tops, bottle necks, label gaps or flexible flaps unless that feature is the intended trigger.
Do not rely on a universal mounting angle to fix reflections. Change geometry only from a real sample test, then verify all target positions and finishes. Protect the sensor from impact, cable strain, bracket vibration and accidental movement during cleaning.
- Install final guides, guards, belt and background before the last teach or sensitivity adjustment.
- Keep the beam or field away from vibrating guide rails, fasteners and product supports.
- Provide access to align, clean and inspect without shifting the sensing plane.
- Mark the approved bracket position and save teach values or parameters where supported.
- Run adjacent sensors and machine lighting during the interference test.
Choose a stable feature
Use the section of the target with the least shape, height and surface variation.
Control the background
Verify the belt, frame, guides and downstream equipment in every operating position.
Protect the geometry
Use a rigid bracket, locking hardware and cable strain relief without creating impact traps.
Design for maintenance
Allow cleaning and alignment checks while preserving the approved sensing plane.
Transparent, glossy and low-contrast products
Clear bottles need a specialized test, not simply more sensitivity.
A transparent container may attenuate only part of a conventional beam, while curved walls can redirect light. Start with a dedicated clear-object retro-reflective sensor and its specified reflector, or a through-beam arrangement if both sides are available and the smallest valid target creates enough beam change. Banner's application guidance likewise treats clear and reflective targets as a distinct sensing challenge.[3]
Test empty and full containers, seams, labels, caps, droplets, condensation, transparent film, all approved colors, product spacing and normal contamination. A sensor that works on one dry sample at the bench is not yet a conveyor solution.
Design for the real plant
Dust, washdown, vibration and temperature change the usable margin.
There is no universal percentage by which every sensor should be derated. Select the exact housing and sensing method, then validate the installed signal under the actual operating and cleaning conditions.
Preserve optical margin
Provide lens and reflector access, monitor contamination if supported and keep the sensing path away from predictable product discharge.
Separate enclosure from hygiene
Verify the IP rating, connector sealing, chemical compatibility, hygienic geometry and cleaning method as separate requirements.
Keep the sensing plane fixed
Use rigid brackets, locking hardware, strain relief and impact protection, then repeat alignment checks after production runs.
Check every rating
Confirm sensor, cable and connector temperature limits plus target/background changes and direct or reflected ambient light.
IEC 60529 classifies enclosure protection against access, solids and water.[5] Food and beverage applications can also require hygienic design, cleanability, material and chemical-compatibility evidence; EHEDG treats those as dedicated design and certification concerns.[6]
Bulk and dirty conveyor areas
Move the sensing method or the sensing point when contamination cannot be controlled.
On a dusty or material-handling conveyor, repeated sensitivity increases can hide a degrading optical path rather than solve it. First remove avoidable contamination, stabilize the bracket and confirm that the lens or reflector remains accessible.
If the process continually coats the optical path, investigate a different beam location, physical protection, an engineered purge arrangement or a sensing principle that responds to the target without relying on that exposed optical surface. The alternative still needs its own limits checked for target size, range, vibration and response.
Specify an inspection point, clean-state reference and acceptance test so maintenance can restore the approved setup instead of guessing at sensitivity.
Electrical and controller integration
The sensor output is only one link in the conveyor signal path.
Confirm the wiring architecture, output state, input behavior and required diagnostics before ordering. A correct sensor on an incompatible or over-filtered input still produces a failed application.
PNP or NPN
Match the sensor output to the PLC or counter input and its common. Do not infer compatibility from wire color alone.
NO or NC behavior
Define the electrical state for target present, target absent, blocked beam and power loss, then program the intended event.
Input capture
Compare the shortest ON and OFF windows with sensor response, input filter and hardware or software counter behavior.
IO-Link
Use an IO-Link master and IODD-supported integration for identification, parameters and diagnostics where the selected device supports them.
IO-Link is a standardized point-to-point technology under IEC 61131-9, and an IODD describes device identity, parameters, process and diagnostic data.[4] The master, controller mapping, parameter management and machine logic still need configuration and validation.
For electrical details, compare NPN vs PNP sensor outputs and NO vs NC sensor output behavior.
Machine safety boundary
Do not use a standard product sensor as the conveyor's protective device.
An emergency stop, pull cord, guard interlock, safety light curtain or other protective function must be selected from the machinery risk assessment and implemented with suitable safety-related devices and control architecture.
ISO 13850 addresses emergency-stop design principles, while ISO 13849-1 provides a methodology for safety-related control system design; the required performance level comes from the application risk, not from this article.[7]
Diagnose from the error pattern
Trace the target, sensor output and controller input before changing sensitivity.
One symptom can come from several layers. Observe what the product did, what the sensor output did and what the PLC input captured, then change one variable at a time.
| Observed problem | Likely cause | Check first | Controlled correction |
|---|---|---|---|
| One product creates two counts | Hole, seam, reflection change, vibration or logic counting more than one edge. | Sensor waveform and PLC edge sequence while one product passes. | Move to a continuous target feature, stabilize the path and count one defined edge. |
| Products are missed only at top speed | Target or gap pulse shorter than the sensor/input path can capture. | Actual ON/OFF widths, sensor response, input filter and counter method. | Use a suitable faster path or change geometry to lengthen the event, then retest dynamically. |
| Clear bottles switch intermittently | Insufficient optical contrast, uncontrolled reflection, labels, droplets or moving background. | Empty/full samples, seam orientation, reflector, alignment and contamination. | Use a dedicated clear-object or verified through-beam route and reteach with the final setup. |
| Dark or angled products are missed | Diffuse return falls below threshold or the spot leaves the target. | Darkest sample at all approved angles, distances and positions. | Use beam interruption, improve guidance or verify a different optical mode with samples. |
| The belt or guide triggers the sensor | Background is inside the field, cutoff is unstable or the bracket moves. | Final belt, guide and frame positions during vibration and stop/start. | Reposition the sensing plane, stabilize mounting or use verified background suppression. |
| The jam alarm changes with line speed | Fixed timer does not reflect normal product spacing or variable-speed operation. | Expected occupancy or edge timing over the full speed range. | Base the logic on measured process timing, speed compensation or machine-state context. |
| LED changes but the PLC input does not | PNP/NPN mismatch, wiring, connector pinout, input common or excessive filtering. | Voltage at the input terminal, channel state and input configuration. | Correct the interface layer and confirm the edge at each point in the signal chain. |
| Performance degrades after dust or washdown | Contamination, liquid film, connector ingress, bracket movement or chemical attack. | Lens/reflector, seals, cable entry, alignment marks and clean-state baseline. | Restore the baseline and improve protection, maintenance or sensing method before retuning. |
For a full diagnostic sequence, use the industrial sensor troubleshooting guide.
Commissioning and acceptance
Validate the process result, not only the sensor indicator.
Run the complete machine with representative products and known reference conditions. The acceptance criterion belongs to the process and risk; it should not be copied from a generic percentage.
Freeze the setup
Record the exact sensor, reflector or fiber, bracket, teach values, output and input configuration.
Challenge target extremes
Include the smallest, darkest, clearest, shiniest and most mispositioned approved samples.
Run production limits
Test maximum speed, minimum gap, stops, starts, accumulation, vibration and machine lighting.
Observe every layer
Compare the physical event, sensor output, controller input and final process result.
Introduce disturbances
Apply normal dust, droplets, adjacent sensors, background motion and approved product variation.
Save the baseline
Keep the accepted waveform, totals, settings, cleaning state and inspection method for maintenance.
Preserve repeatable evidence
A useful acceptance record lets maintenance reproduce the approved signal.
Keep photos of the sensing plane and bracket, the complete model numbers, cable and connector details, supply voltage, output logic, PLC channel, filter settings, counter or timer logic and any teach values.
For counting, retain a known physical batch and compare the sensor edges, controller input and final total. For presence or jam detection, record the normal and fault-state timing at minimum and maximum conveyor speed. For clear-object applications, include all accepted containers and normal contamination states.
Before requesting a conveyor sensor
Prepare the information that changes the recommendation.
Check each item you can provide. The goal is not paperwork; it is to prevent a model being selected from one incomplete distance or speed value.
Application brief
A complete set gives XSZ enough context to compare the sensing route, output and proof test.
0/10XSZ application review
Send the target, belt speed, minimum gap and mounting layout.
XSZ can help narrow the sensing principle and configuration before the bracket, reflector position or PLC input is fixed. Include a short production video and representative samples when product behavior is difficult to describe.
Conveyor sensing questions
Sensor for conveyor belt applications FAQ
What is the best sensor for conveyor belt applications?
For separated opaque products, a through-beam photoelectric sensor is a strong starting point for counting or presence because each product interrupts a direct beam. Retro-reflective sensing reduces one-side wiring, background suppression supports one-sided checks in front of a belt, inductive sensors suit close metal targets, and clear, small or irregular products need a route verified for their specific geometry.
How do I calculate whether a conveyor sensor is fast enough?
With belt speed in meters per minute, estimate the target interval in milliseconds as 60 times the target travel length in millimeters divided by belt speed. Calculate the clear interval from the minimum physical gap in the same way. Compare the shorter interval with sensor operate and release time, output delay, controller input filter and capture logic, then verify the real waveform at maximum speed.
What is the difference between presence and position sensing on a conveyor?
Presence sensing answers whether a product occupies a zone. Position sensing usually needs a defined edge or feature to cross a repeatable sensing point at the correct time. A broad sensor may be acceptable for presence but unsuitable for accurate registration, where spot size, edge repeatability, product guidance and controller timing matter more.
Which conveyor sensor should detect clear bottles?
Start by testing a dedicated clear-object retro-reflective sensor with its specified reflector, or a through-beam arrangement when both sides are accessible. Validate empty and full bottles, seams, labels, caps, liquid, droplets, wall thickness, speed, spacing, background and contamination. A standard high-gain optical sensor is not automatically reliable for transparent containers.
Can an inductive sensor detect products on a conveyor?
Yes, when the product or intentional target is metal and passes within the exact sensor's usable range. Confirm the metal alloy, target size, set distance, flush or non-flush mounting, surrounding metal, switching frequency and environment. Inductive sensors do not directly detect plastic, glass, paper or liquid without a metal target.
How should a sensor detect a conveyor jam or backup?
Place a presence sensor where abnormal continuous occupancy or a missing expected edge represents the process fault, then base the timer or sequence on measured normal behavior across the full speed range. A fixed delay copied from another conveyor can create nuisance trips or late detection. Validate startup, stopping, accumulation and intentional product gaps.
Does IO-Link eliminate PLC programming for conveyor sensors?
No. IO-Link standardizes point-to-point communication and can provide device identity, parameters, process data and diagnostics through an IO-Link master. The master connection, controller mapping, parameter policy, machine logic and fault response still require engineering and validation.
Does an IP69-rated sensor automatically meet food conveyor requirements?
No. An IP code describes enclosure protection under defined tests. A food or beverage conveyor may also require chemical compatibility, hygienic shape, cleanability, suitable materials, connector sealing and compliance evidence for the intended zone and cleaning method. Review those requirements separately.
Can a standard photoelectric sensor protect people around a conveyor?
No. A standard workpiece-detection sensor is not automatically a safety-rated protective device. Personnel protection must come from the machine risk assessment and use appropriate safety devices, control architecture, stopping behavior, reset design and validation according to the applicable standards and regulations.
Evidence and media
Technical references
- OMRON Industrial Automation, Overview of Photoelectric Sensors — operating modes and selection variables including target, speed, distance, background and environment.
- OMRON Industrial Automation, Further Information of Photoelectric Sensors — optics, sensitivity, target position and minimum detectable object considerations.
- Banner Engineering, Clear and Reflective Targets — why transparent and shiny targets require dedicated optical application work.
- IO-Link Community, IO-Link Technology and IODD — standardized point-to-point communication and device description data.
- IEC 60529, Degrees of Protection Provided by Enclosures — scope of the IP Code.
- EHEDG, Why Certification Is Important — hygienic design and cleanability evaluation for food-processing equipment.
- ISO 13850:2015 and ISO 13849-1:2023 — emergency-stop principles and safety-related control system design methodology.
- OMRON, Photoelectric Sensor Safety Precautions — ordinary photoelectric sensors are not intended as human-life protective safety devices.
Image credits
- Automated factory hero: Freek Wolsink / Pexels.
- Photoelectric sensor: XSZ Sensor.
- Conveyor structure: Malcolm Hill / Pexels.
- Bottle conveyor: Vladimir Srajber / Pexels.
- Bulk conveyor: marcin studio / Pexels.
- Factory production line: Frans van Heerden / Pexels.
