Through-Beam vs Retro-Reflective vs Diffuse Photoelectric Sensors

Which photoelectric sensing mode should you try first?

Start with the available mounting positions, then check how the target changes the light signal. Through-beam sensing uses a separate emitter and receiver. Retro-reflective sensing uses one sensor and an opposite reflector. Diffuse sensing receives light reflected directly from the target.

For an opaque object, the following comparison is a useful starting point. Clear objects, mirror-like surfaces and very small parts need additional checks before a mode can be shortlisted.

“One-sided wiring” and “one-sided mounting” are different constraints. A reflector needs no power, but it still needs a stable mounting point and cleaning access. That distinction often decides whether retro-reflective sensing is practical.

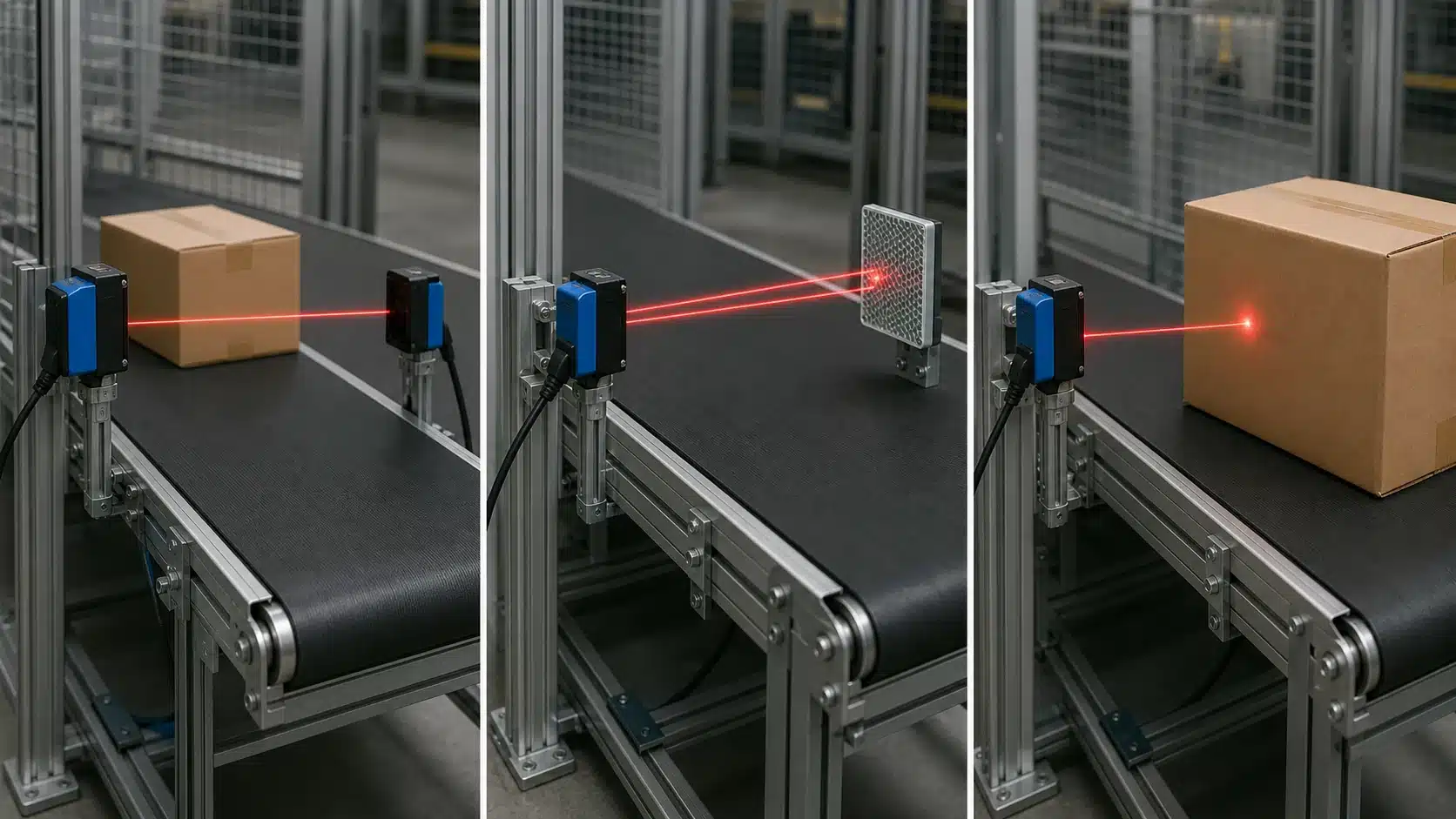

How does each mode detect an object?

The key difference is where the receiver gets its light. Two modes look for an interruption of an established path; the third looks for a return from the object itself.

Through-beam: detect a break in the direct light path

The emitter sends light toward a separate receiver. With the path clear, the receiver sees a strong signal. An object is detected when it blocks enough of that signal to cross the sensor’s switching threshold.

This makes through-beam sensing a useful starting point for opaque products with changing colors or finishes. It does not need light reflected from the product. However, the target must intersect enough of the effective beam, and both devices must stay aligned.

Retro-reflective: detect a break in the reflector return

The emitter and receiver share one housing. A compatible reflector sends light back toward that housing. An object normally reduces the returned light as it moves between the sensor and reflector.

Unlike an ordinary mirror, a retro-reflector is designed to return light toward its source within its specified operating conditions. Do not substitute an arbitrary reflective surface. The reflector type, size and spacing are part of the sensing arrangement.

Diffuse: detect light returned by the target

A diffuse sensor also contains an emitter and receiver, but needs no separate reflector. The target returns some of the emitted light to the receiver. In basic intensity-based diffuse sensing, a sufficiently strong return changes the detection state.

Its simple installation is valuable when the far side is inaccessible. The tradeoff is that the target becomes part of the optical system: color, surface finish, size and angle can change the available return. A bright background can also return light when the intended target is absent.

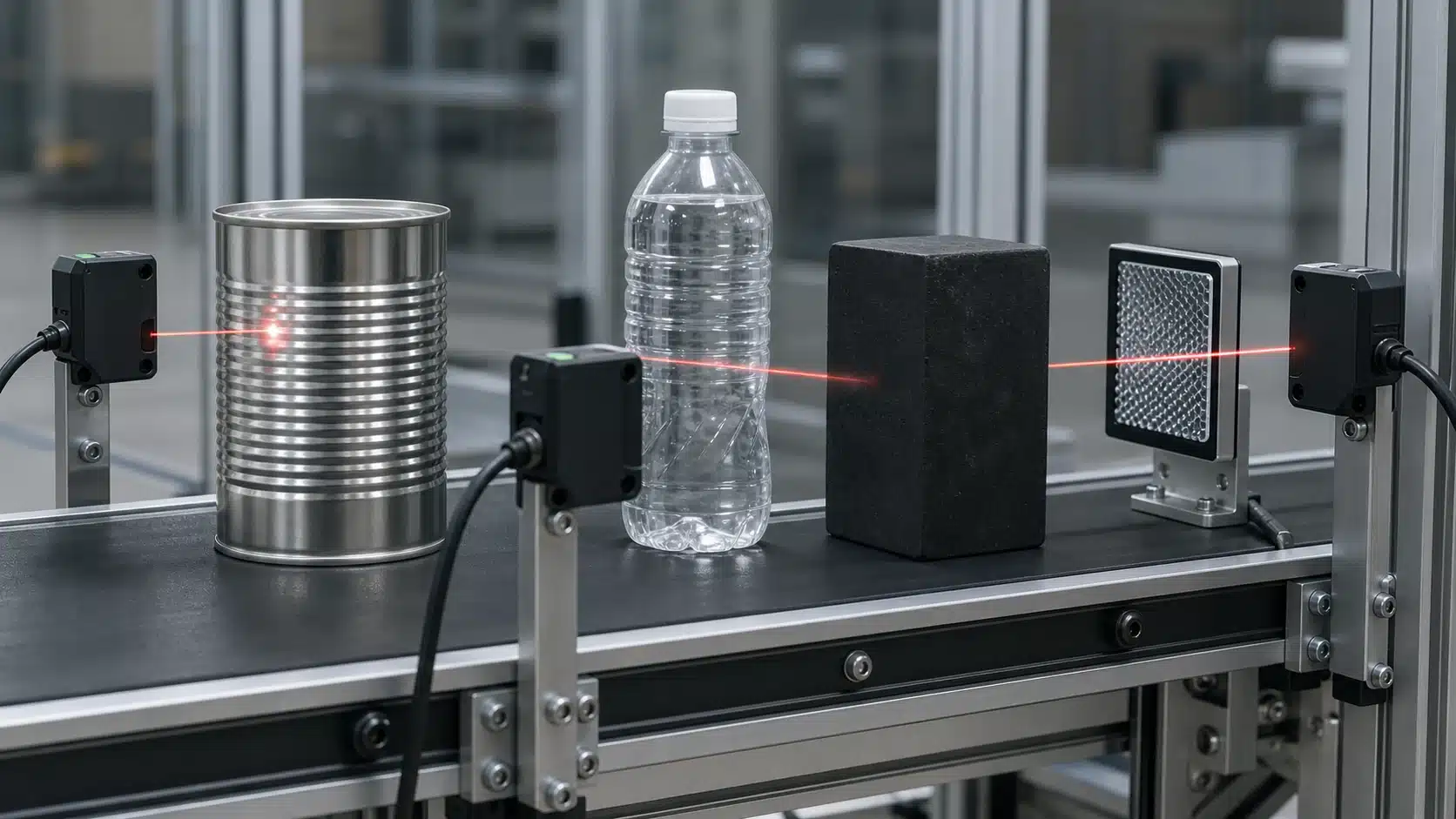

What changes for clear, shiny, dark or small targets?

Choose for the hardest production sample, not the easiest demonstration sample. A mode that works on one matte carton may behave differently on clear film, foil packaging or a small dark component.

Clear targets: look for sensitivity to a small light change

A transparent object may transmit enough light that a general-purpose beam-break sensor still sees a clear path. More received light is not automatically better here: the object must cause a distinguishable change, while dirt and gradual alignment changes must not be mistaken for that object.

A dedicated clear-object retro-reflective sensor is one candidate when a reflector can be fitted. Check its specified reflector, teach procedure and target limitations. Test empty and filled containers, seams, curved walls and different orientations where applicable. A standard polarized retro-reflective sensor is not automatically a clear-object sensor.

Shiny targets: prevent the target from imitating the reflector

In a non-polarized retro-reflective arrangement, a shiny target can send light directly back to the receiver. The sensor may then fail to recognize that the intended reflector path has been interrupted. Polarized retro-reflective designs help separate the reflector’s return from unwanted reflections.

Check the actual finish and orientation, especially on foil, metallized packaging and curved surfaces. In diffuse sensing, a shiny surface may direct light away from the receiver at one angle and produce a strong return at another. Do not specify one universal tilt angle for every sensor and target.

Dark or small targets: check the return and the effective beam

A dark target can give a weak diffuse return, particularly at a distance selected using a white sample. For an opaque target, through-beam or retro-reflective sensing can avoid depending on that surface return—provided the target sufficiently interrupts the beam.

For a small part, compare the manufacturer’s minimum detectable object and beam data at the working distance. A visible aiming spot is not necessarily the effective detection area. Check the smallest target in its worst allowed position; do not assume that a smaller spot alone guarantees a reliable result.

When is background suppression worth using?

Consider background suppression when a one-sided installation must separate a nearby target from a background farther away. In a triangulation-based BGS sensor, the position of the returned light helps determine whether the object is before or beyond a distance cutoff. This is different from simply turning down the sensitivity of a basic diffuse sensor.

BGS still needs usable light from the target. Check the near limit, color-related distance variation and the required separation from the background. A reflective rail close behind a moving, angled target is a more demanding test than a flat sample held well in front of a distant wall.

Which range and signal-margin specifications matter?

Compare usable performance at your working distance, not just the largest number in the catalog. Through-beam designs often offer substantial optical margin because the receiver sees the emitter directly. That is a selection advantage, not a guarantee that every through-beam model outperforms every retro-reflective or diffuse model.

Read the distance together with its test conditions

• Through-beam: identify the matched emitter/receiver, rated separation and any aperture needed for the specified small object.
• Retro-reflective: identify the rated sensor-to-reflector spacing, reflector part number and any near limit. Do not double the stated installation distance just because light travels out and back.
• Diffuse: identify the reference target’s dimensions and surface, then check curves or test evidence for your actual target. A white-card range is not a universal object range.

Check both optical states—not only a strong clear-path signal

Excess gain expresses the received signal relative to the switching threshold under the stated conditions. A higher value can provide room for optical losses, but it is not a percentage reliability rating. The target-present and target-absent signals must remain distinguishable.

For an opaque beam-break application, check adequate clear-path return and enough attenuation when the object arrives. For diffuse sensing, check adequate return from the weakest target and rejection of the strongest unwanted background. Clear-object applications need a sensor designed to resolve their smaller signal change.

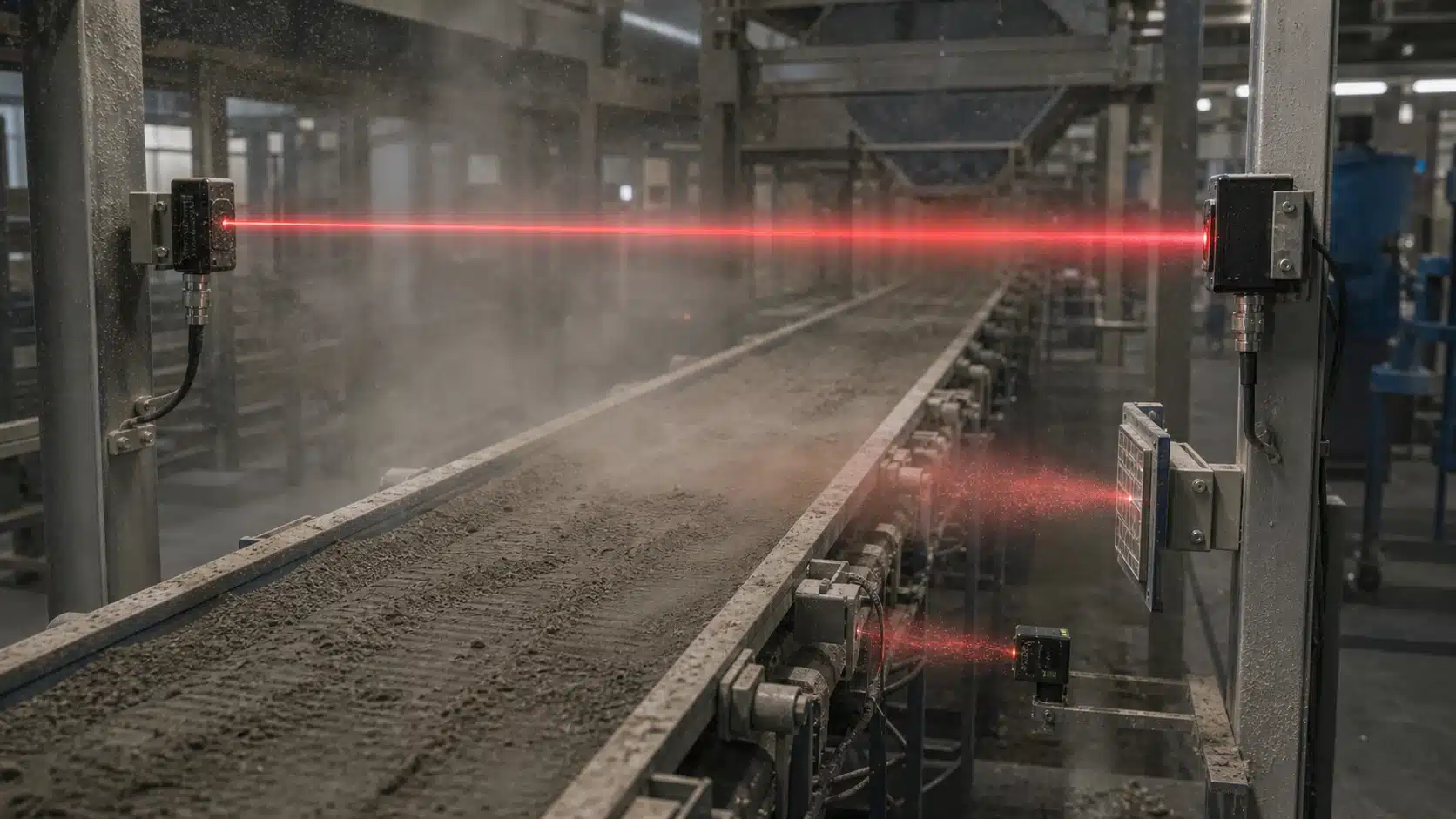

Dust can weaken a direct beam or a reflector return; buildup on a diffuse sensor can also change its response. Include both optical surfaces, reflector access, vibration and nearby active sensors in the installation review. A higher IP rating does not demonstrate that dirty optics will keep detecting correctly.

Will changing the sensing mode change the PLC signal?

It can reverse the optical event that means “object present,” but it does not define PNP or NPN. Light-ON means the output is ON in the received-light state; Dark-ON means it is ON in the low-light state. PNP/NPN describes the electrical output arrangement and must match the controller input.

A sensor LED changing state is not proof that the PLC received a usable pulse. Check the sensor’s operate/reset response, target dwell time, input filter and acquisition method. Do not rank switching speed by optical mode alone; compare exact models and verify the signal at production speed.

When replacing a sensor, preserve the required machine logic deliberately. Check the pinout, supply, output load and configured logic before reconnecting; similar housings do not establish electrical interchangeability.

What must an application trial prove before ordering?

The trial must demonstrate reliable detection and reliable rejection across the intended production conditions. Agree on the acceptable misses, false triggers and timing error before the trial. A few hand-held samples do not establish performance over a production shift.

1. Use the final geometry. Fit the intended brackets, emitter/receiver or reflector, working distance and nearby guards. Record alignment and the actual target travel path.
2. Challenge both states. Test the smallest, darkest, clearest or most reflective relevant samples in their worst allowed positions. Also test no target, exposed background and the gaps between targets.
3. Run the full signal chain. Check the sensor output and the PLC’s recorded events at the required speed and spacing. Separate an optical miss from a pulse the controller failed to capture.
4. Include realistic variation. Evaluate permitted target movement, ambient light, neighboring sensors and contamination up to the agreed cleaning point. Change one condition at a time when diagnosing a failure.
5. Make the result reproducible. Record exact sensor part numbers, reflector or aperture, output mode, teach/settings, samples and test results. A supplier substitution or configuration change must be reviewed against that record.

Arrange tests under the machine’s safe test procedure; isolate hazardous motion before changing mounts or wiring. These ordinary photoelectric sensing modes are not a substitute for a safety-rated protective device or validation of a machine safety function.

The best choice is the arrangement that passes the application test with acceptable installation and maintenance effort. Count brackets, wiring, reflector access and cleaning—not only the sensor’s purchase price.
