A safety light curtain is a presence-sensing safety device that projects an invisible screen of infrared beams between an emitter and receiver to guard hazardous machine areas. Breaking any beam with a hand, arm, or tool triggers a machine stop in under 20 milliseconds. Resolution ratings determine what it detects: 14 mm[1]ย senses fingers, while 30 mm senses hands. Built to IEC 61496 and rated up to Type 4, these systems protect presses, robots, and packaging lines where physical fences would block workflow.
Quick Takeaways
- Light curtains stop machines in under 20 ms when beams break.
- Choose 14 mm resolution for finger detection, 30 mm[2]ย for hand protection.
- Verify IEC 61496 compliance and Type 4 rating for maximum safety.
- Pair an emitter and receiver to create an invisible protective beam screen.
- Use light curtains on presses, robots, and packaging lines instead of fences.

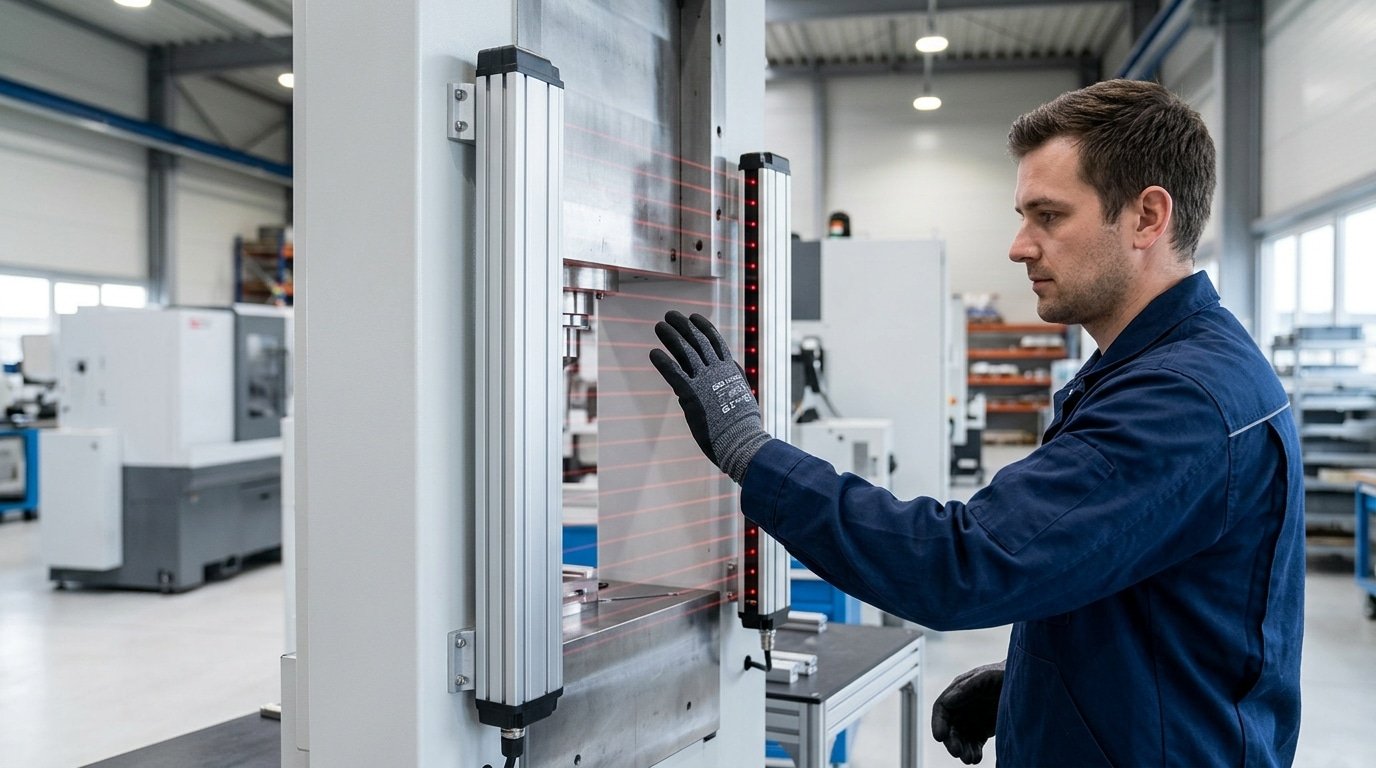

What Is a Safety Light Curtain?
A safety light curtain is a light-sensing device that spots when something is present, and it throws an invisible screen of infrared beams across the way into a dangerous machine. Break any one of those beams with a hand, an arm, or a tool, and the device instantlyย removes power or stops motionย before the moving parts can hurt anyone. Think of it as a wall made of light that you can walk right through, though the machine cannot ignore it. The system pairs up an emitter, which sends out parallel infrared beams, with a receiver that keeps watch for each one.
As long as every beam lands exactly where it should, the machine keeps running. Interrupt even a single beam, and the receiver fires off a stop signal within milliseconds.
How is it different from an ordinary photo eye?
An ordinary photo eye uses just one beam, and it was built to spot parts moving along a conveyor, not to protect people. It has no backup built inside, so if the sensor fails, nothing at all catches that fault. A safety light curtain, on the other hand, gets classified asย Electro-Sensitive Protective Equipment (ESPE)ย under IEC/EN 61496, so it checks itself over and over and always fails into a safe state.
The everyday difference really matters here. A non-safety sensor might weld its output contact shut and keep on signaling “clear” even when it has gone completely blind. Safety light curtains use dual outputs, called OSSD1 and OSSD2, that cross-check each other constantly, so a single broken component forces a stop instead of quietly hiding the problem. You should never swap a standard photo eye in for a rated curtain on a press or a winder. The wiring may look identical, but only one of them was actually designed to save a finger.

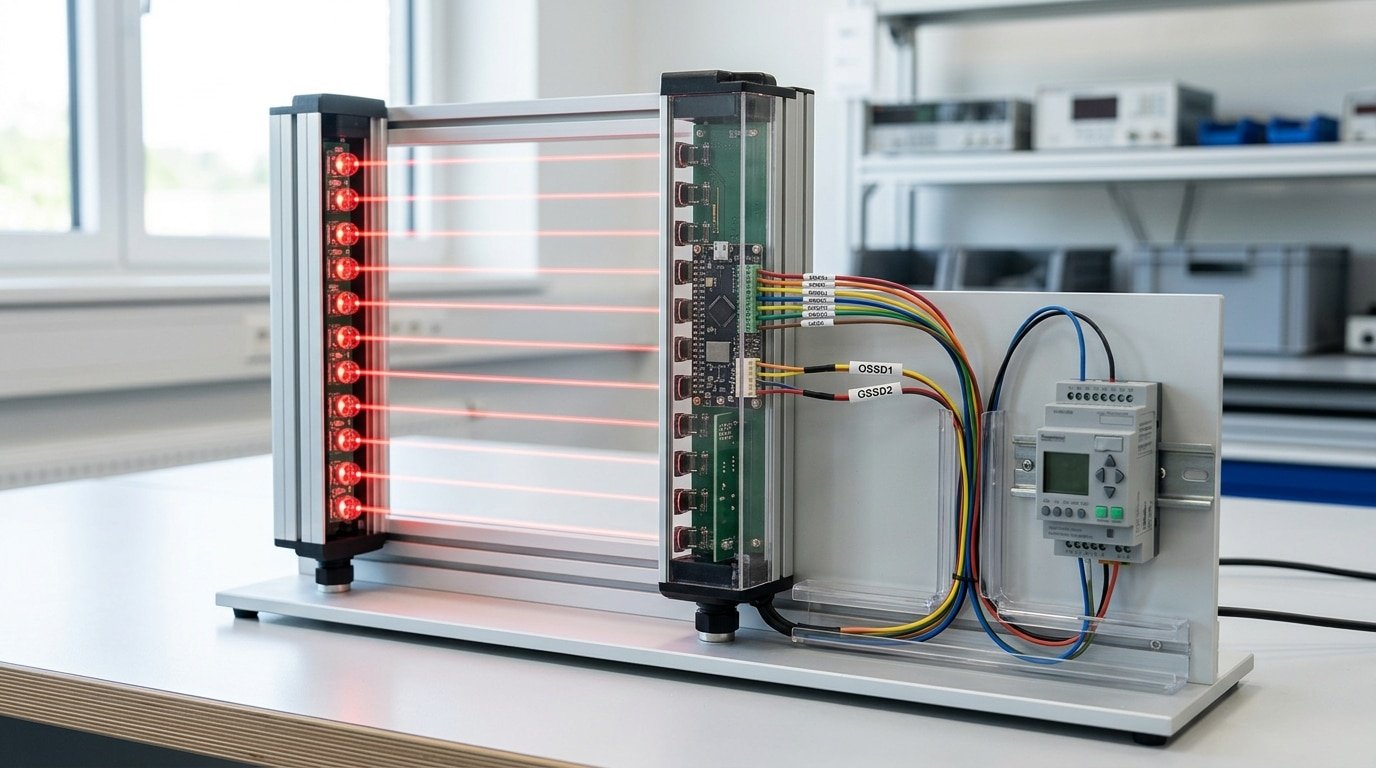

How Does a Safety Light Curtain Work with Emitters and Receivers?
A safety light curtain works by pairing an emitter that fires parallel infrared beams with a receiver that watches for all of them. When a hand or body breaks even one beam, the receiver triggers a stop signal in roughly 10,30 milliseconds, cutting power or halting motion before injury occurs. The two units sync in sequence: the emitter pulses each beam one at a time, top to bottom, and the receiver confirms each pulse arrives on schedule. This time-coded scan stops mirrors, ambient light, or a neighboring curtain from fooling the system, miss one pulse and the output trips.
What are OSSDs and why are there two?
OSSDs (Output Signal Switching Devices) are the two safety outputs that carry the stop command. Systems use dual channels,ย OSSD1 and OSSD2, so a short circuit or failure in one channel is caught by the other. The pair sends brief test pulses constantly, letting the curtain self-diagnose without a person present.
How do muting and blanking let material pass?
Muting temporarily suspends the safety function so a pallet can enter a machine, using extra sensors to confirm it’s cargo, not a worker. Fixed blanking tells the curtain to ignore beams blocked by a permanent fixture like a conveyor rail. Both keep production moving without a shutdown, and these self-checking diagnostics are core to how any electro-sensitive protective equipment earns its safety rating, the constant monitoring is what separates a rated curtain from an ordinary sensor.

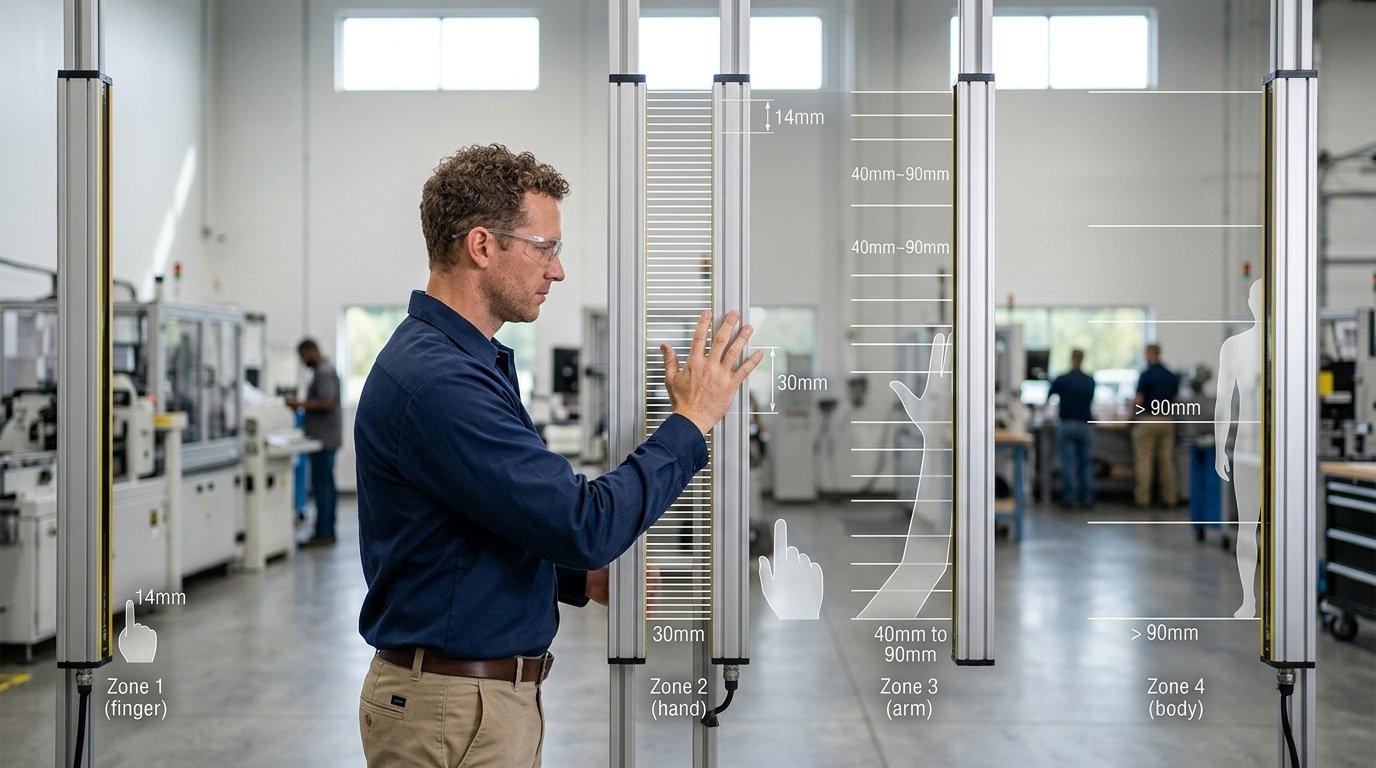

What Do Resolution Classes Detect โ Finger, Hand, or Body?
Resolution is the smallest object a light curtain can reliably notice, and it is set by the gap between each beam of light. A 14 mm[3]ย resolution can catch something as small as a finger, while a 30 mm setting catches a hand. A spacing of 40 to 90 mm picks up an arm or a leg, and anything 90 mm or wider will only sense a whole body passing through or someone getting access. Manufacturers change the spacing between the beams so it matches whatever level of protection the job needs.
A smaller resolution means the beams sit closer together, so the wall of light has fewer gaps where something could slip past unseen. Finer detection does come at a cost though, because a 14 mm[4]ย unit needs many more beams, which pushes the price up and makes it more likely to trip by mistake when dust or metal chips drift into the beams.
Picking the right class really comes down to how close a worker actually gets to the hazard. Here is the practical breakdown:
- Finger protection (14 mm):ย mounted right at the pinch point, and used on press brakes and small assembly cells where hands come within 100 mm of the blade.
- Hand protection (30 mm):ย the most common class for guarding machines, sitting a short reach away from the danger zone.
- Arm/leg protection (40โ90 mm[5]):ย for larger openings where a limb, rather than a finger, is the realistic thing that might reach in.
- Body/access detection (90+ mm):ย guards the way into robot cells or palletizers, since it senses a person walking through instead of a reaching hand.
Here is the catch that most guides skip over. A coarser resolution needs a longer safe mounting distance away from the hazard. A 40 mm curtain has to sit farther back than a 14 mm one, because the machine needs more warning time to stop before someone reaches the moving parts. That connection between resolution and distance is essentially what decides what a safety light curtain actually protects, a detail we cover next under ISO 13855.
How Do You Calculate the Safe Mounting Distance Using ISO 13855?
You work out the safe mounting distance using the formulaย S = (K ร T) + C, where S is the smallest gap in millimeters between the light beams and the hazard itself. This spacing has to exist so that the machine comes to a complete stop before a hand or body can reach the dangerous point after one of the beams gets broken. And if you get this wrong, understanding what is a safety light curtain hardly matters at all, because the guard ends up failing at the one job it was meant to do.
What Do K, T, and C Actually Mean?
Each of these terms connects to something physical and real. Here is how they generally break down:
- K (hand-speed constant):ย this is the assumed speed at which a person approaches. You useย 2000 mm/sย for detection points that sit under 500 mm from the hazard, andย 1600 mm/sย for calculated distances that go above 500 mm[6].
- T (total stopping time):ย this is the machine’s stop time added to the light curtain’s response time, and it gets measured in seconds. A press that has a 180 ms machine stop along with a 20 ms curtain response works out to T = 0.20 s.
- C (intrusion penetration factor):ย this one is tied to resolution. For detecting fingers and hands, C = 8 ร (d โ 14) mm, where d stands for the resolution. So a curtain with 30 mm resolution gives you C = 8 ร 16 = 128 mm[7].
Can You Show a Worked Example?
Take K = 1600 mm/s, T = 0.20 s, and C = 128 mm. Then S = (1600 ร 0.20) + 128 = 320 + 128 =ย 448 mm. So you would mount the curtain no closer than 448 mm[8]ย from the pinch point. Getting the installation distance right is really what allows the machine to stop in time, following ISO 13855:2010.
Three standards govern safety light curtains: IEC 61496 rates the device itself asย Electro-Sensitive Protective Equipment (ESPE), ISO 13849 sets the Performance Level (PL) for the whole safety function, and IEC 62061 assigns a Safety Integrity Level (SIL). Your risk assessment decides which combination you legally need.
โ ๏ธย Common mistake:ย Mounting a light curtain too close to the hazard, so the 20 ms stop can’t finish before a hand reaches the moving parts. This happens because installers ignore the safety distance formula, which factors stop time plus intrusion depth (12 mm added for 14 mm resolution). The fix: calculate minimum distance per ISO 13855 before mounting.
IEC 61496 splits ESPE into Types by fault tolerance. A Type 2 curtain uses periodic self-testing and suits lower-risk tasks where an injury would be minor and rare. A Type 4 curtain uses internal redundancy and continuous monitoring, so a single hidden fault can’t leave the machine unguarded. That is why Type 4 (Category 4) devices protect presses, robot cells, and other machinery that can crush or amputate.
How Does a Risk Assessment Pick the Right Category?
The risk assessment drives the category, not the budget or the guessed setup. Under ISO 13849, you score severity, exposure frequency, and how easily a worker can avoid the hazard. A minor bruise risk might land at PLc. A hand near a 200-ton press lands at PLe, which demands a Type 4 curtain wired through dual OSSD outputs.
| Device Type (IEC 61496) | Required PL (ISO 13849) | Equivalent SIL (IEC 62061) | Typical Use |
|---|---|---|---|
| Type 2 | PLc | SIL 1 | Low-risk assembly access |
| Type 4 | PLd | SIL 2 | Palletizers, winders |
| Type 4 | PLe | SIL 3 | Power presses, robot cells |
Practical tip: buying a Type 4 device doesn’t give you PLe by itself. The PL applies to the full chain, curtain, safety relay, and contactors. A worn contactor can drop a Type 4 system to PLd. So validate the whole circuit, not just the sensor label.
Where Are Safety Light Curtains Used Around Machinery?
Safety light curtains guard three zones: point-of-operation (right at the tool or die), perimeter (around a large cell), and access (at entry gaps in a fenced area). They protect operators atย presses, palletizers, and windersย where workers need frequent, fast access without opening a physical door every cycle.
What’s the difference between point-of-operation, perimeter, and access guarding?
Point-of-operation guarding sits directly in front of the hazard, like the ram of a press brake or the die of a stamping press. It stops motion the instant a hand crosses the beam. Perimeter guarding wraps a robotic cell or palletizer, catching anyone who steps toward the machine. Access guarding covers a single opening in a hard guard fence, such as where parts feed into a packaging line.
Why does mounting orientation change per application?
Mount the curtainย verticallyย for finger or hand detection at the point of operation, where the danger is a downward-moving tool. Mount itย horizontallyย for whole-body detection on the floor of a robotic cell, so it senses a person standing inside the guarded zone. The two setups protect against different motions.
- Press brakes:ย vertical, finger-resolution curtain at the bend line
- Robotic cells:ย horizontal floor plane plus vertical perimeter screen
- Packaging lines:ย access guarding at conveyor infeed openings
Matching the zone to the right resolution and orientation is the step before installation, a vertical 14 mm[9]ย curtain at a press brake and a horizontal body-detection plane in a robot cell solve entirely different intrusion paths.
Light Curtain vs Safety Mats, Scanners, and Physical Guards โ Which Should You Choose?
Choose a light curtain when workers need frequent, fast access to a machine’s point-of-operation; choose fixed fences when no access is ever required. The right pick depends on how often people enter the zone and its shape. Light curtains shine for high-cycle loading because they let workers reach in freely while keeping automatic presence detection, unlike a door that must open and close.
Each guard solves a different problem. A safety mat senses feet on the floor and suits perimeter areas where people walk in. A laser scanner maps large or oddly shaped zones, think warehouse robot cells, because you draw the protected field in software. A fixed fence costs the least but blocks all access, which kills productivity on machines needing regular feeding.
| Guard type | Detection area | Cost range (USD) | Maintenance |
|---|---|---|---|
| Light curtain | Vertical beam plane | $400โ$3,000 | Clean lenses; check alignment |
| Safety mat | Floor pressure zone | $300โ$1,500 | Inspect for wear, punctures |
| Laser scanner | Shaped 2D field | $1,500โ$5,000 | Clean optics; reverify field map |
| Fixed fence | Physical barrier | $100[10]โapproximately $800 | Minimal; visual checks |
For severe-injury hazards like presses, pair a light curtain with Type 4 Category 4 architecture, which uses redundancy for the highest safety integrity. Matching the guard against these alternatives comes down to the real access pattern, how often and how a worker enters the zone, not the cheapest sticker price.
What Are the Most Common Light Curtain Mistakes That Compromise Safety?
The most common light curtain mistakes are mounting too close to the hazard, ignoring reflective surfaces, misusing blanking, leaving reach-over gaps, and installing a Type 2 device where a Type 4 is required. Each error silently defeats protection, letting a machine keep running while a hand is inside the danger zone.
Mounting too closeย is the deadliest error. If you skip the C factor in the ISO 13855 formula, the machine can’t stop before the operator reaches the tool. Manufacturers stress thatย correct installation distanceย is what lets the stop signal beat the reaching hand.
Reflective surfacesย cause false passes. A shiny machine panel or polished floor can bounce an infrared beam around a blocked spot, so the receiver still “sees” light. The result: a body enters the field, but no stop signal fires. Keep reflective objects at least the minimum distance the maker specifies, or add matte shielding.
Incorrect blankingย creates blind spots. Blanking lets a fixed object (like a conveyor) sit in the beam without tripping the curtain. Set the blanked zone too wide, and a finger slips through unseen.
- Reach-over / reach-around paths: A short curtain lets workers reach above or around it. Extend the field or add horizontal beams.
- Wrong type selection: A Type 4 device uses redundancy and continuous monitoring for severe-injury risks. A Type 2 unit lacks that fault tolerance and must never guard a press that can amputate.
Even a perfectly rated device fails when installed wrong, and every fix here traces back to the same ISO 13855 mounting math and the C factor covered earlier.
Frequently Asked Questions About Safety Light Curtains
A safety light curtain is a presence-sensing safety device that creates an invisible wall of infrared beams to guard hazardous machine zones. Here are the questions engineers ask most, answered with the specifics that keep installations compliant and workers protected.
How far should a light curtain be from the machine?
Far enough that the machine fully stops before a hand reaches the hazard. The distance comes from the ISO 13855 formula, using the machine’s total stopping time, the standard 2,000 mm/s approach speed, and a resolution-based penetration factor. A press with a 300 ms stop time and finger detection often needs the curtain mounted several hundred millimeters back. Manufacturers stressย correct installation distanceย because mounting too close leaves no time for the stop signal to work.
Can a light curtain replace a physical guard?
Sometimes, not always. Light curtains stop reaching hazards but don’t block flying debris, splashes, or ejected parts. For a press with material spray, you still need a physical barrier. Use the curtain where frequent access matters and no projectiles exist.
What happens if a beam is blocked during operation?
Both safety outputs (OSSD1 and OSSD2) switch off instantly,ย removing power or stopping motion. The machine won’t restart until the beam clears and, in most setups, an operator presses reset.
How often must it be tested?
Run a daily function test with the supplied test rod before each shift. A full inspection by a competent person follows the machine’s risk assessment, typically annually.
Choosing the Right Light Curtain for Worker Protection
Selecting a safety light curtain follows a fixed decision path: run a risk assessment first, then pick the resolution class, then match the Type/PL rating to the risk, and finally set the mounting distance with ISO 13855. Skip any step and the guard may pass a visual check but fail to stop the machine in time. The order matters, risk drives every choice after it.
Your risk assessment sets the required Performance Level (PL). Severe injury risk with frequent exposure usually demands PL e, which pairs with a Type 4 (Category 4) device using internal redundancy and continuous self-monitoring. Lower risk may accept Type 2 / PL c, knowing which rating the hazard demands keeps you from over- or under-specifying hardware.
What should be on your pre-commissioning checklist?
Confirm these before power-up:
- Resolution class: 14 mm finger, 30โ40 mm hand, or 70+ mm body โ matched to how workers reach in.
- Type/PL rating: aligned to the risk assessment output, not the cheapest option.
- ISO 13855 distance: verified with measured machine stop time, not the nameplate estimate.
- Dual OSSD wiring: OSSD1 and OSSD2 both feeding a monitored safety relay.
- No blind spots: correctย installation distanceย so nobody can stand between the beams and the hazard.
Don’t commission on your own judgment alone. Have a qualified machine safety engineer review the calculations, validate the stop-time measurement, and sign off on standard compliance before the line runs. That signature is your legal and safety backstop.
