Sensor for Label Detection: Photoelectric, Fiber Optic, and Clear-Label Options
The correct label sensor depends on where the label is inspected. Detecting a gap on a carrier web, reading a registration mark, checking a label after application, and verifying printed data are different automation tasks.
Label-gap sensing controls dispensing; applied-label inspection checks presence, position, print, or orientation.
Select the physical difference that remains stable across the label, liner, ink, adhesive, splice, and changeover.
Calculate how long the smallest gap is visible, then include response, release, input filter, and control timing.
Use actual label and liner samples with print, varnish, foil, adhesive, splices, flutter, static, and real tension.
Define the signal before choosing the sensor
A label sensor detects a difference, not the word “label.”
On a self-adhesive label web, the machine usually needs one switching edge for every gap between labels. The sensor compares the label-plus-liner area with the liner-only area. Depending on the material, the usable difference may be optical attenuation, dielectric thickness, ultrasonic transmission, a printed registration mark, or another measurable property.
After the label has been applied to a bottle, pouch, carton, vial, or component, the question changes. The system may need to confirm that a label exists, measure its position, determine its orientation, read a barcode, verify text, or reject wrinkles and damage. A label-gap sensor in the dispenser does not prove that the label reached the product correctly.
The strongest specification therefore begins with inspection location, label and liner construction, minimum gap, web speed, mounting geometry, output interface, and pass/fail definition. Price and advertised speed only become meaningful after those conditions are fixed.
Two jobs share one search term
First decide whether the sensor sees the label roll or the labeled product.
The sensor type, mounting position, acceptance test, and control logic change when the label moves from carrier web to finished package.
Detect label edges and gaps for dispensing, printing, cutting, counting, or rewinding.
The sensor compares the label area against bare liner while the web passes through or between sensing elements. The required result is a repeatable trigger at the intended label edge.
Primary candidates: optical fork, capacitive label sensor, ultrasonic fork, hybrid fork, fiber optic through-beam, or registration-mark sensor.Confirm label presence, alignment, orientation, print, code, or appearance after application.
The background is now a bottle, vial, carton, pouch, tray, tube, or component. Product color, curvature, glare, motion, label transparency, and lighting become part of the inspection.
Primary candidates: photoelectric, luminescence, contrast/color, code reader, vision sensor, or full machine-vision system.Six label detection decisions
Match the sensor output to the machine action.
A label edge, printed mark, missing label, misaligned label, unreadable code, and low roll are different events even when they occur on the same labeling machine.
Label-to-gap transition
Generate one repeatable edge as the web moves from label-plus-liner to liner-only.
Start with a fork, slot, capacitive, ultrasonic, or hybrid label sensor.Registration mark
Detect a defined contrast or color mark on film, paper, foil, carton, label stock, or printed web.
Start with a color-mark or contrast sensor.Small optical point
Place a compact fiber head near the web while the amplifier remains accessible outside the tight mechanism.
Start with a fiber optic head and high-speed amplifier if optical contrast is sufficient.Label presence
Confirm that the label transferred from the dispenser to the product instead of remaining on the web or missing the target.
Start with photoelectric or luminescence sensing for one stable feature, then compare vision.Alignment and orientation
Judge whether the label sits inside a position tolerance, faces the correct direction, or carries the expected shape.
Start with vision when the decision depends on geometry rather than one switching point.Text, barcode, and print
Read lot codes, expiration dates, 1D/2D codes, product data, or required print and compare them with the active recipe.
Start with a code reader or vision system designed for the required verification.Application selector
Which sensor should detect your labels?
Select the closest material and inspection task. The recommendation is a starting principle followed by the evidence that should be tested before release.
What must be detected?
Recommended starting point
Optical fork or fixed through-beam label sensor
Use the transmitted-light difference between label-plus-liner and liner-only when the opaque label creates a stable attenuation change. A fork keeps emitter and receiver mechanically aligned around the web.
How label-gap sensing works
Choose the physical difference that survives ink, liner, adhesive, and speed.

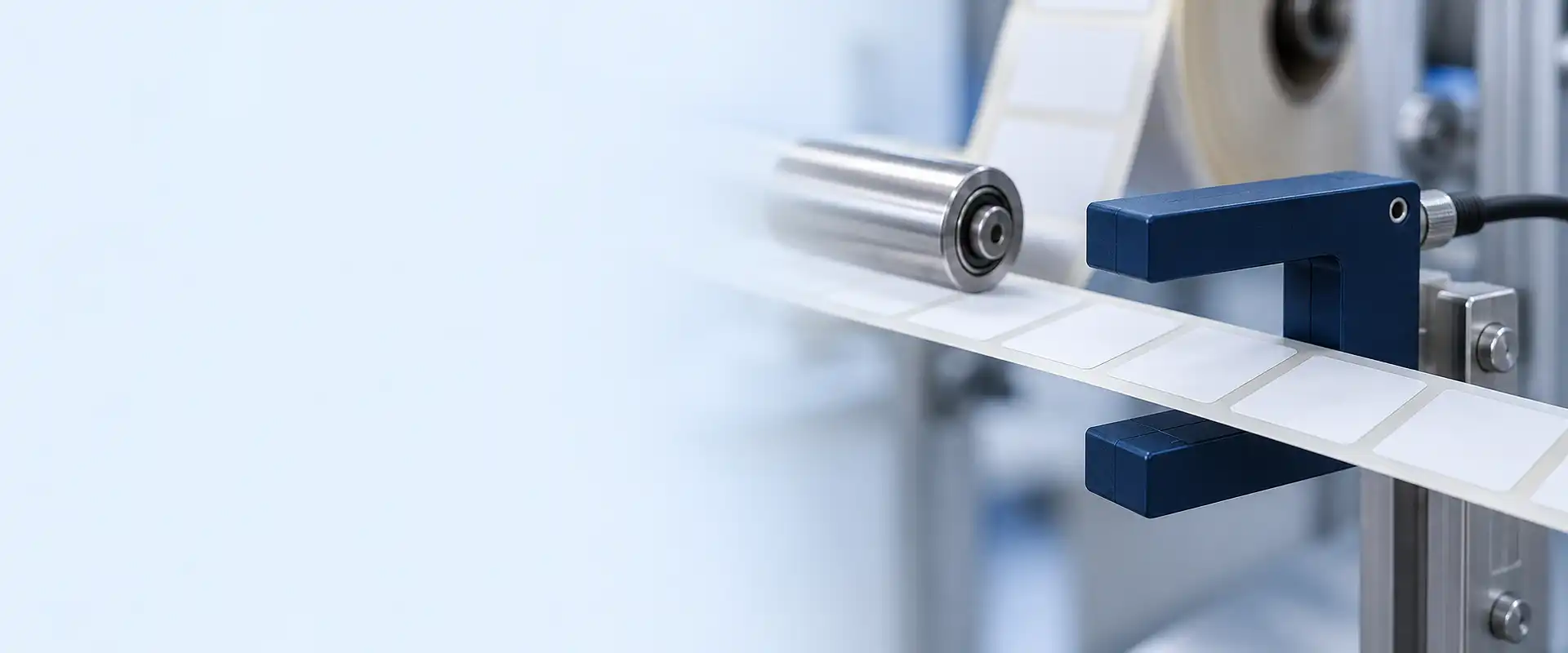

An optical fork sends light across a fixed slot. The receiver sees one level through label-plus-liner and another through liner-only. A capacitive label sensor evaluates a dielectric or thickness-related change. An ultrasonic fork evaluates how the layered material transmits or attenuates sound. A hybrid unit combines principles so different label constructions can be handled in one mounting position.
Fiber optic label sensing remains an optical method: the amplifier emits and evaluates light while the fiber moves the sensing point into a smaller or more difficult location. It can solve space and spot-size problems, but it does not automatically create contrast between a transparent label and a transparent liner.
Technology comparison
Compare label sensors by evidence, not by a universal speed or gap claim.
Datasheet values belong to the exact model and test condition. Use the final column as the application-test plan for your selected sensor.
| Sensor method | Good starting use | Main advantage | Main limitation | Must verify |
|---|---|---|---|---|
| Optical fork / slot | Opaque or sufficiently attenuating labels on a guided carrier web. | Emitter and receiver are fixed in one housing, simplifying optical alignment around the web. | Clear-on-clear material, print, foil, varnish, or low attenuation can leave too little signal difference. | Fork opening and depth, label and gap dimensions, spot, web position, flutter, every material, speed, and teach method. |
| Capacitive label sensor | Many clear labels, clear liners, opaque labels, and low-visual-contrast combinations. | Responds to dielectric/material change rather than visible contrast. | Metallic ink, foil, solid metal layers, static, web thickness, moisture, and construction can affect specific models. | Exact label/liner/adhesive stack, print coverage, splice, overlap, static control, slot, speed, and manufacturer restrictions. |
| Ultrasonic fork | Transparent, semi-transparent, reflective, metallized, coated, or mixed-color label webs. | Does not depend on visible color or optical transparency. | Minimum label and gap, web structure, speed, mouth geometry, tension, and special films can still limit performance. | Material stack, cavitated film, web width, smallest gap, speed, teach, output edge, mounting, and contamination. |
| Hybrid optical + ultrasonic fork | Machines that process several opaque, transparent, metallized, or structurally unusual label families. | Two principles in one mounting position can reduce hardware changes between recipes. | Each mode still has product-specific label width, gap, response, teach, and material limits. | Every recipe in both sensing modes, mode selection, changeover logic, stored parameters, alarms, and worst material lot. |
| Fiber optic photoelectric | Tight mechanisms, small sensing points, remote amplifier access, or heat near the web. | Small fiber heads and flexible routing separate the sensing point from the amplifier electronics. | Optical contrast is still required; fiber bend, contamination, spot, head alignment, and coupling affect margin. | Head mode, spot at distance, bend radius, amplifier response, label/gap contrast, bracket stability, and cleaning. |
| Contrast / color-mark sensor | Registration marks for cutting, sealing, positioning, printing, and packaging control. | A designed mark can provide a distinct trigger on paper, film, foil, or printed packaging. | It detects the mark condition, not necessarily the physical label edge or successful application. | Mark and background colors, gloss, transparency, print tolerance, spot, distance, depth of field, flutter, and speed. |
| Photoelectric / luminescence on product | Simple label presence when one stable label feature differs from the bottle, carton, vial, or component. | Fast discrete decision with simpler integration than a camera when the feature is controlled. | Product color, curvature, glare, label transparency, print variation, and product orientation can change the signal. | Every product and label state, distance, angle, background, fluorescent response if used, trigger, and false-reject margin. |
| Vision or code reader | Label position, orientation, shape, text, barcode, artwork, wrinkles, damage, or several conditions. | Evaluates geometry and content rather than only one switching threshold. | Requires controlled lighting, optics, trigger, field of view, processing time, recipe management, and reject tracking. | Smallest defect, tolerance, motion blur, product rotation, glare, code quality, changeover, false reject, and result storage. |
A label sensor is a machine-control sensor, not a personnel-protection device. Use safety-rated equipment for safeguarding functions.
Material-specific risks
“Paper,” “clear,” and “metallic” are only the beginning of the label specification.
Build the sample matrix around the construction most likely to reduce signal margin or create an extra transition.
Opaque paper
Coating, print density, varnish, embossing, adhesive bleed, liner color, recycled fiber, splice tape, and label shape can change optical attenuation.
Test: lightest print, thinnest stock, smallest label, minimum gap, splice, and last roll in the lot.Clear film
Label and liner may transmit nearly the same light. Adhesive, coating, haze, print, thickness, air bubbles, and static add variation.
Test: clear-on-clear and clear-on-opaque stacks, printed and unprinted zones, actual adhesive, and temperature.Metallic or foil
Solid foil, metallic ink, foil embossing, reflective coating, and isolated decorative areas do not behave as one material.
Test: maximum metal coverage, foil edges, grounding and static, every artwork orientation, and supplier restrictions.Structured and mixed web
Cavitated BOPP, booklet labels, multilayer constructions, RFID inlays, perforations, windows, tabs, and laminate create several thickness and transmission states.
Test: every layer, inlay position, overlap, perforation, booklet edge, carrier lot, and intended sensing lane.
When fiber optic sensing is the better optical layout
Choose fiber for access, head size, routing, or heat, not as a universal clear-label cure.
A fiber optic label sensor is a photoelectric system with separated optical heads and amplifier electronics. Through-beam fiber heads can face each other across a guided web, while reflective heads evaluate returned light from one side. Focused or small-spot heads may resolve narrow features when the exact head, distance, and amplifier mode support the application.
The advantage is mechanical: a small sensing tip can fit between rollers or near a dispensing edge while the amplifier remains accessible for setup and diagnostics. The limitation is equally important: transparent labels still need a measurable optical change. If clear label and liner produce insufficient contrast, compare capacitive, ultrasonic, hybrid, or a deliberate registration mark instead of only increasing optical sensitivity.
Label-gap timing calculator
Convert labels per minute into the time available to see the smallest gap.
Switching frequency alone does not approve the application. Label pitch determines web speed, and the minimum gap determines how long the sensor and control chain can recognize the liner-only state.
Enter web conditions
web speed = label rate × pitch ÷ 60gap window = gap ÷ web speed × 1000
Calculated web window
The entered response and control delay fit inside the geometric gap window. Preserve additional margin for sensing-field width, threshold crossing, web flutter, acceleration, mechanical jitter, label shape, and output-edge repeatability.
Installation and web handling
Keep the web in one repeatable sensing lane.
Many “sensor problems” begin with web flutter, poor threading, changing tension, static charge, adhesive contamination, or a sensing point that crosses variable print instead of a stable lane.
Choose a stable lane
Place the sensing point where every label crosses but variable artwork, foil patches, RFID inlays, perforations, windows, and booklet edges do not create unintended states.
CHECK: artwork and construction across every SKUGuide with controlled tension
Thread the web according to the sensor manual and keep it consistently located in the fork or optical path. Excess flutter changes distance and threshold crossing; excessive pressure can damage or drag the web.
CHECK: start, stop, acceleration, and roll diameterMatch field size to gap
The effective optical, capacitive, or ultrasonic sensing area must resolve the minimum liner-only interval. A fast output cannot recover a gap that the field physically bridges.
CHECK: field geometry at installed web positionControl static and contamination
Static can disturb thin web tracking or affect some sensing methods. Adhesive haze, dust, paper fibers, ink, coating, and cleaning residue can shift the signal or obstruct the slot.
CHECK: static mitigation and cleaning compatibilityFollow the exact teach method
Some sensors use static label/gap teach, some dynamic teach, some adaptive tracking, and some need no user threshold adjustment. Use the selected model manual instead of one universal sequence.
CHECK: teach state, output edge, and recipe storageValidate the full roll
Test first and last labels, roll splice, liner lot change, maximum speed, minimum gap, acceleration, missing label, overlap, adhesive bleed, print variation, and realistic downtime restart.
CHECK: missed, extra, and shifted trigger events
Inspecting labels after application
Choose discrete sensing for one stable feature and vision for geometry or content.
A simple photoelectric, contrast, color, or luminescence sensor may be enough when one label feature produces a stable difference from the product at a known position. The method must be tested across product color, fill, curvature, glare, label print, transparency, rotation, distance, and ambient light.
Vision is the better starting point when the pass/fail decision depends on label position, skew, orientation, shape, wrinkles, damage, text, barcode, date code, artwork, or more than one condition. The camera still needs a product trigger, suitable lighting, field of view, resolution, processing time, recipe control, result tracking, and reject confirmation.
Total installed cost
Compare the cost of stable changeovers, not generic sensor price ranges.
Purchase prices change by supplier, market, interface, housing, performance, and order quantity. A more useful comparison includes integration, setup, scrap, downtime, and maintenance for the hardest label family.
Sensor is only one line item
Include bracket, fork or head geometry, amplifier, reflector or receiver, cable, connector, static control, guard, and required installation changes.
Recipes and teaching time
Compare manual sensitivity, static or dynamic teach, remote teach, automatic tracking, recipe storage, IO-Link functions, and operator access.
Misses and extra triggers
Measure wasted labels, product rework, jam recovery, false rejects, machine stops, and the time needed to find a drifting threshold.
Cleaning and material changes
Include contamination rate, static, adhesive buildup, replacement access, fiber routing, label supplier changes, new artwork, and validation records.
Teach and commissioning workflow
Approve the sensor with a label-and-liner sample matrix.
The goal is to prove repeatable switching at the required edge across material, speed, mechanics, and controller timing, not to obtain one clean LED transition while the web is stopped.
Define the required edge
State leading or trailing label edge, light or dark operate, normally open or closed logic, allowed trigger shift, minimum pulse, and machine response.
Build the sample matrix
Include every label, liner, adhesive, print, varnish, foil, splice, overlap, missing label, carrier lot, and worst clear or structured construction.
Install production mechanics
Use final brackets, web lane, tension, thread path, guards, cable, fiber routing, static mitigation, and cleaning access before teaching.
Teach by the manual
Apply the exact static, dynamic, two-point, automatic, adaptive, or no-adjustment process for the model. Record the taught recipe and output mode.
Run dynamic tests
Test minimum and maximum speed, acceleration, stop/start, smallest gap, first and last roll sections, flutter, static, contamination, splice, and roll change.
Validate the signal chain
Compare sensor LED, electrical output, PLC input, program edge, counter, applicator motion, product result, reject tracking, alarm, and restart behavior.
Label sensor troubleshooting
Diagnose the material, mechanics, sensor, and control chain separately.
Change one condition at a time and record the raw sensor state. A correct LED with a missing PLC pulse points to a different fault than a sensor that cannot separate label and gap values.
| Symptom | Likely causes | Checks to perform | Better correction |
|---|---|---|---|
| Clear label is missed | Optical label/gap difference is too small, wrong sensing principle, poor teach, label construction changed, or sensing lane crosses an unprinted clear zone. | Compare raw label and gap values for every material state; inspect liner, adhesive, print, haze, foil, static, web position, and manufacturer material restrictions. | Use a validated capacitive, ultrasonic, or hybrid label sensor; add a suitable mark where process design allows; or move to a more stable sensing lane. |
| One label creates two triggers | Variable print, foil edge, window, perforation, RFID inlay, overlap, booklet edge, web flutter, or controller edge logic. | Observe the analog value or high-speed output trace across the complete label; rotate or move the sensing lane and inspect the label construction drawing. | Use a uniform lane, correct the physical method, stabilize the web, select the intended edge, or add only enough logic filtering to reject the extra state. |
| Works stopped, fails at speed | Gap window is shorter than the signal chain, sensing field bridges the gap, web flutter moves the material, or acceleration changes tension and edge position. | Use the calculator; verify actual pitch, minimum gap, speed, response and release, input filter, PLC scan, field size, web tracking, and mechanical jitter. | Reduce field size, improve guidance, shorten valid filters, use a faster suitable mode, increase gap, change sensing principle, or move the trigger point. |
| Threshold drifts during the roll | Liner or coating lot variation, temperature, static, adhesive haze, dust, changing tension, sensor contamination, or different label construction. | Record values at roll start/end and warm-up; inspect lens or slot, liner thickness, print, residue, static, temperature, and adaptive tracking status. | Improve cleaning and static control, use supported automatic tracking, store recipes, revalidate supplier lots, or select a principle with better material margin. |
| Metallic label is intermittent | Solid foil and metallic ink behave differently, capacitance saturates a model, reflections change with artwork, grounding or static varies, or ultrasonic transmission changes. | Map metal coverage and sensing lane; test every artwork orientation and exact label/liner stack against the selected model's exclusions. | Move the sensing lane, use an approved ultrasonic or hybrid method, change the mark strategy, or select a model documented for the tested construction. |
| Sensor LED is correct, PLC misses | PNP/NPN mismatch, NO/NC logic, common wiring, voltage drop, cable fault, input filter, scan time, one-shot logic, or pulse shorter than accepted. | Measure output at sensor and PLC terminal; compare LED, input tag, filters, commons, connector pinout, pulse width, program edge, and machine permissives. | Correct the electrical interface or control timing before changing the material-sensing principle. |
| Applied-label inspection rejects good products | Product position, curvature, glare, lighting, focus, recipe, transparent label edge, artwork tolerance, trigger timing, or defect threshold varies. | Save good and rejected images; compare every product orientation, label lot, lighting state, focus, motion blur, field of view, and tolerance boundary. | Improve product guidance and lighting, separate inspection tools, define tolerances numerically, manage recipes, and validate borderline samples. |
For a wider diagnostic sequence, use the XSZ Sensor Troubleshooting Guide.
RFQ and sample-test checklist
Send the complete material stack and timing conditions.
A small roll sample, construction details, and a short machine video are more useful than asking only for “a transparent label sensor” or “the fastest label sensor.”
Label, liner, and inspection task
- Gap, leading edge, trailing edge, count, registration mark, presence, position, print, or code
- Paper, PET, PP, BOPP, clear, semi-clear, coated, foil, metallic, booklet, RFID, or multilayer label
- Liner material, color, transparency, thickness, coating, and lot range
- Adhesive, varnish, print, metal coverage, embossing, windows, perforation, and splice
- Minimum label width and length, minimum gap, label pitch, and sensing lane
- Pass, fail, overlap, missing-label, splice, and worst-case production samples
Machine and web conditions
- Labels per minute, web speed, pitch, minimum gap, acceleration, and stop/start behavior
- Available fork opening/depth, sensing distance, bracket space, and thread path
- Web tension, flutter, lateral movement, roll diameter, and guide arrangement
- Heat, vibration, ambient light, dust, adhesive haze, moisture, and cleaning process
- Static generation and existing grounding, ionization, or antistatic control
- Distance from trigger to peel plate, cutter, printer, applicator, inspection, or reject point
Electrical, changeover, and approval
- Supply voltage, PNP or NPN, NO or NC, connector, cable, and PLC input
- Required output edge, minimum pulse, input filter, control delay, and repeatability tolerance
- Manual, static, dynamic, remote, automatic, or adaptive teach requirement
- Number of recipes, changeover frequency, remote parameter, IO-Link, and diagnostics needs
- Allowed missed trigger, extra trigger, registration shift, false reject, and downtime response
- Sample-test report, maintenance plan, replacement access, and revalidation conditions
Output and machine integration
A precise label edge still needs correct electrical and motion timing.
Confirm the output state at the intended leading or trailing edge, PNP or NPN compatibility, normally open or normally closed logic, supply voltage, load, connector pinout, input common, input filter, scan time, and any one-shot or delay in the controller. The machine should also define what happens when the sensor reports an impossible state, continuous web, missing gap, no roll, or teach fault.
IO-Link can support remote teaching, parameter storage, recipe change, warning states, or process values when the exact sensor and IODD expose those functions. Do not assume every IO-Link label sensor provides the same data or that communication replaces the required discrete timing analysis.
Let XSZ review the label stack, sensing lane, and timing window before model selection.
Send representative roll samples, label and liner construction, minimum gap, speed, thread path, mounting dimensions, output requirements, and a short machine video. We can compare suitable photoelectric, slot, color-mark, and fiber optic approaches and identify when another sensing principle or a dedicated sample test is required.
Frequently asked questions
Questions about sensors for label detection
What is the best sensor for detecting labels on a backing liner?
For an opaque label that creates stable transmitted-light attenuation, start with an optical fork or fixed through-beam label sensor. For many clear-on-clear label webs, compare capacitive and ultrasonic label sensors. For metallic, foil, structured, or frequently changing materials, ultrasonic or hybrid optical/ultrasonic sensing may be a stronger starting point. Test the exact label, liner, adhesive, print, splice, minimum gap, speed, tension, and sensing lane.
Can a photoelectric sensor detect transparent labels?
It can when the complete label-and-liner stack creates enough repeatable optical change, or when a deliberate registration mark is available, but this should not be assumed for clear-on-clear material. Clear label and liner may transmit nearly the same light. Compare a model documented for the actual optical condition with capacitive, ultrasonic, or hybrid label sensing, then test printed and unprinted zones, adhesive, haze, static, gap, and web movement.
When should I use a fiber optic sensor for label detection?
Use fiber optic sensing when a small optical head, restricted mounting space, remote amplifier, narrow sensing point, or heat separation is important and the label/gap still provides usable optical contrast. Match the fiber head mode, spot size, distance, bend radius, amplifier response, and mounting. Fiber optics do not automatically solve clear-on-clear labels because the method still evaluates light.
How do ultrasonic and capacitive sensors detect clear labels?
Capacitive label sensors respond to a dielectric or material-stack change as label-plus-liner moves to liner-only. Ultrasonic forks evaluate how the layered web transmits or attenuates sound, so visible color and optical transparency are not the primary evidence. Each model still has limits for metallic content, label and gap dimensions, web construction, speed, static, fork geometry, and teaching, so sample testing remains necessary.
How fast must a label sensor respond?
Calculate web speed from label rate and pitch, then divide the minimum liner-only gap by that speed to find the geometric gap window. Compare that window with sensor response and release, output delay, input filter, PLC scan and logic, and preserve margin for sensing-field width, web flutter, acceleration, threshold crossing, and mechanical jitter. Labels per minute or switching frequency alone do not approve the application.
What is the minimum label gap a sensor can detect?
There is no universal minimum gap for all label sensors. It depends on the exact model, sensing principle, effective field size, label and liner construction, speed, web position, response and release time, teach method, output timing, and required repeatability. Use the selected datasheet value only under its stated conditions and validate the smallest production gap at maximum web speed.
How should a label sensor be taught or calibrated?
Follow the exact model manual. Depending on the sensor, setup may use separate label and gap teach, static teach, dynamic teach while the web moves, automatic adaptation, fine threshold adjustment, remote teach, or no user adjustment. After setup, test the full sample matrix at production speed and record output edge, signal margin or warning state, recipe, and revalidation conditions.
What sensor checks whether a label was applied correctly to a product?
Use a discrete photoelectric, contrast, color, or luminescence sensor when one stable label feature only needs a presence decision. Use vision when the requirement includes position, skew, orientation, shape, wrinkles, damage, text, barcode, date code, artwork, or multiple conditions. Validate lighting, focus, product position, curvature, glare, motion blur, trigger, recipe, result tracking, and reject confirmation.
Evidence and media
Technical references and image credits
Technical references
- Banner SLC1 Capacitive Label Sensor — clear and opaque label-web detection with model-specific registration performance.
- Banner SLC1 Datasheet — material restrictions, slot installation, web tension, static control, outputs, and application conditions.
- Leuze Label Detection — optical, ultrasonic, and combined fork selection by label and carrier material.
- Leuze GSX14E Product Data — product-specific optical/ultrasonic label width, gap, material, teach, and tracking capabilities.
- Lion Precision LRD Label Sensors — optical, capacitive, ultrasonic, clear-label, metallic, and small-space options.
- Pepperl+Fuchs Ultrasonic Label Detection — transparent, reflective, metallic, colored, and nonmetallic label considerations.
- SICK Contrast Sensor Definition — printed and control mark detection on packaging and print material.
- Leuze Sensor Solutions for Labeling — label-web detection, applied-label presence, alignment, and code reading as separate tasks.
- KEYENCE Label Inspection Vision Systems — presence, alignment, print, code, color, and appearance inspection categories.
Image credits

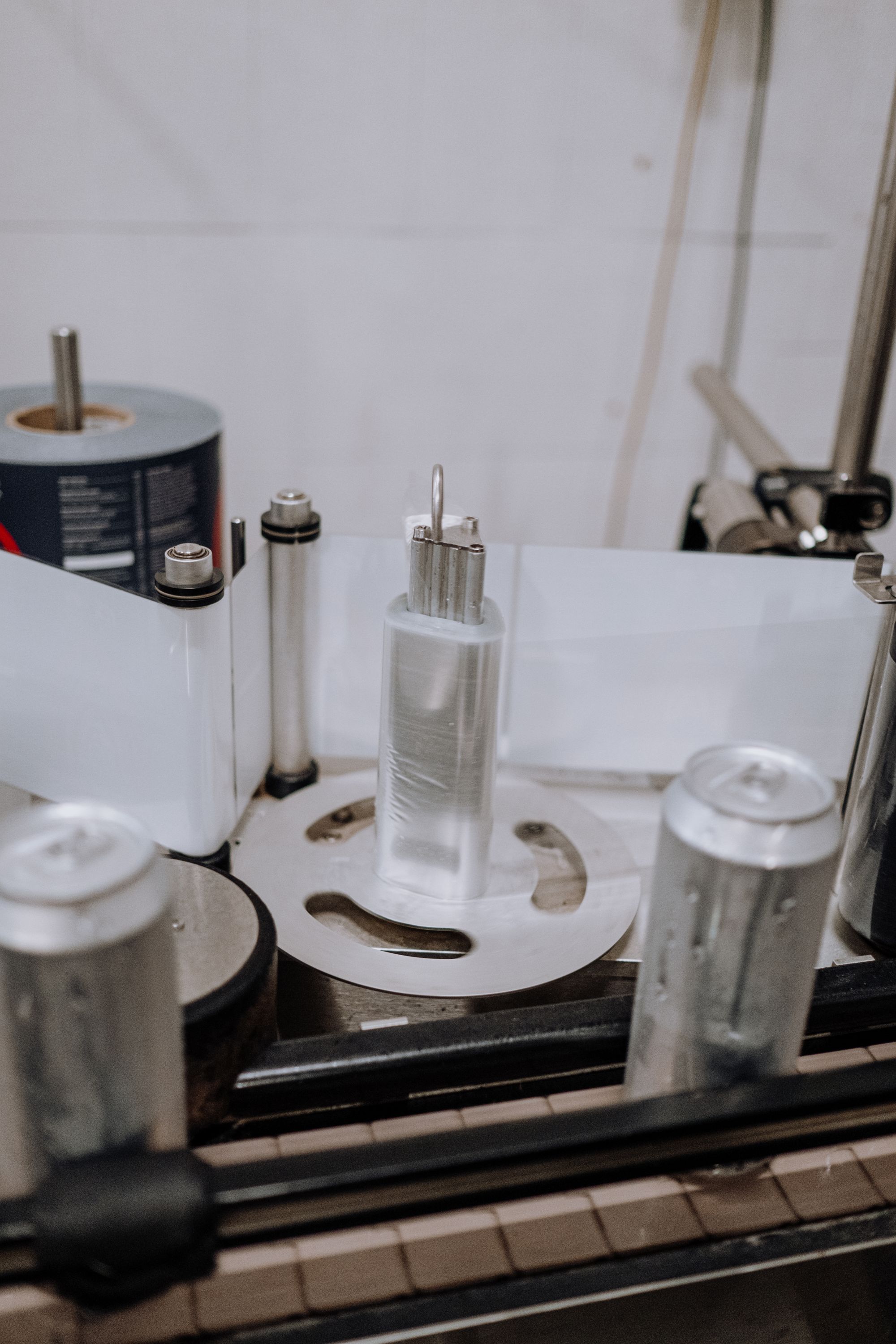

- Automated labeling-line hero and packaging-machine image: cottonbro studio / Pexels.
- Worker feeding label material into production equipment: Anthony Roberts / Unsplash.
- Industrial control panel: Magda Ehlers / Pexels.
- Industrial photoelectric and fiber optic sensor images: XSZ Sensor.
Manufacturer examples demonstrate sensing principles and product-specific capabilities; they are not universal performance claims. Final model selection should follow the exact datasheet, actual label-and-liner sample test, machine timing study, and applicable packaging, electrical, quality, and machine-safety requirements.
