Sensor Cable Shielding for AC and DC Sensors: Ground It by Signal, Not Label
AC or DC power alone does not decide the shield, cable or grounding method. Start with the sensor interface, signal level and bandwidth, then follow the exact sensor and input-module manual for shield termination, routing, functional earth and separation from drives or motor cables.
Quick answer
Four decisions prevent most sensor shielding mistakes.
Identify the interface
Separate discrete 24 V, AC two-wire, 4-20 mA, 0-10 V, thermocouple, bridge, encoder and industrial data signals.
AC/DC is not enough informationRead both manuals
Use the sensor and receiving module diagrams to locate shield, signal common, functional earth and chassis connection points.
Do not invent a universal ground ruleControl the coupling path
Use separation, short routes, twisted pairs, differential inputs, shield continuity and source suppression as a coordinated system.
A shield alone cannot solve every fieldVerify with the machine running
Test during VFD acceleration, contactor switching, braking, radio transmission and the worst production state.
Record before-and-after evidenceThe real job of a shield
A cable shield controls an interference path; it does not make the signal immune.
A conductive foil, braid or combination surrounding the signal conductors can intercept electric-field and radio-frequency coupling and provide a controlled path for interference current. Its performance depends on shield construction, transfer impedance, continuity, termination and where that current returns.
Twisting is a separate measure. A twisted pair reduces loop area and makes induced interference more nearly common to both conductors, allowing a differential receiver to reject part of it. Isolation, filtering, surge suppression, cable separation and correct bonding solve other parts of the problem.
Electric-field coupling
A correctly referenced conductive shield can intercept capacitive coupling from nearby voltage sources.
Magnetic-field coupling
Twisted pairs, small loop area, separation and source-current control are often more important than a thin shield alone.
High-frequency interference
Shield continuity and low-inductance, large-area termination become critical as frequency rises.
Conducted and common-mode noise
Ground architecture, isolation, input configuration and power quality may matter more than adding another shield layer.
Four different tools
Shielding, twisting and isolation are not interchangeable.
A reliable cable design combines the measures that match the coupling mechanism and the receiver circuit.
Intercept and return interference
The conductive layer surrounds a conductor group and routes coupled current toward the intended chassis, functional-earth or signal-reference point defined by the equipment design.
Needs continuity and a deliberate terminationReduce loop pickup and reject common mode
A signal and its return travel together. Repeated twisting reduces loop area, while a differential receiver measures the difference between the two conductors within its common-mode limits.
Needs the correct pair assignment and receiver configurationBreak unwanted current paths and limit bandwidth
Galvanic isolation can interrupt a ground-loop path. Analog or digital filtering can reject frequencies outside the useful signal band, provided response time and safety requirements remain satisfied.
Needs engineering around voltage, bandwidth and diagnosticsAC and DC sensor cable shielding
Classify the output signal before choosing the cable.
Two sensors can both use 24 VDC power while requiring very different cable construction. Likewise, an AC-excited transducer and an AC two-wire proximity switch are not the same interface.
| Interface | Main wiring concern | Typical cable starting point | Shield decision | What to verify |
|---|---|---|---|---|
| 24 VDC discrete PNP/NPN | Input common, switching thresholds, pulse width, leakage current, voltage drop and fast transients. | Sensor cable specified by the manufacturer; twisted or shielded construction where the environment or high-speed signal requires it. | Follow sensor, connector and PLC manual. Many ordinary slow discrete runs do not need the same treatment as low-level analog. | PNP/NPN, NO/NC, supply, load, cable length, connector pinout, short-circuit protection and switching frequency. |
| AC/DC two-wire proximity sensor | Series connection with the load, OFF leakage, ON residual voltage, load current and line transients. | Approved model cable and connector; shield only where the product architecture and EMC environment call for it. | Do not assume AC supply requires both-end bonding or DC supply requires one-end bonding. | Exact circuit, load compatibility, protective earth, surge suppression and installation category. |
| 4-20 mA loop | Loop resistance, power supply, common-mode path, grounding, surge exposure and conversion at the receiver. | Shielded twisted pair is a common starting point for industrial runs, subject to the transmitter and input-module manual. | Termination is system-specific. Avoid creating an unintended second ground path through the shield or signal return. | Loop-powered or externally powered, isolated or non-isolated input, cable resistance, shield point and hazardous-area barriers. |
| 0-10 V or low-level voltage | Source impedance, voltage drop, common-mode voltage, shared returns and capacitive or magnetic pickup. | Shielded twisted pair with a differential input where supported. | Often single-point for low-frequency measurement systems, but the equipment manual and chassis design decide. | Signal reference, input mode, source grounding, cable capacitance, bandwidth and isolation. |
| Thermocouple, RTD or strain bridge | Very small signal, lead resistance, thermal EMF, excitation or sense wiring, common mode and ground loops. | Correct extension wire or shielded twisted-pair/multipair cable specified for the sensor and measurement module. | Use the measurement-system diagram. Do not ground a sensor conductor simply because the cable has a shield. | Sensor type, pair materials, 2/3/4-wire method, excitation, cold-junction compensation, isolation and shield continuity. |
| AC-excited LVDT or bridge | Carrier amplitude and frequency, pair-to-pair coupling, phase, cable capacitance and demodulator compatibility. | Manufacturer-specified shielded pairs with excitation and secondary conductors assigned exactly as documented. | Do not apply a generic “AC sensor” rule. Cable capacitance and shield connection are part of the calibrated system. | Excitation frequency, maximum cable, pair capacitance, shield point, connector and electronics compatibility. |
| Encoder, IO-Link, RS-485 or industrial data | Characteristic impedance, return path, common mode, topology, termination, data rate and connector shield continuity. | Protocol- and device-approved cable, often twisted pairs and sometimes 360-degree connector shielding. | Use the network and device specification; high-frequency shield bonding differs from low-level analog practice. | Cable category, maximum length, baud rate, termination, grounding, equipotential bonding and certified connectors. |
This table is a selection map, not a replacement for product wiring diagrams or local electrical codes.
Cable construction matters
“Shielded cable” is not a complete specification.
An overall shield protects all conductors as one bundle. Individually shielded pairs can reduce pair-to-pair crosstalk and preserve a defined signal grouping. Foil, braid, spiral and combined shields differ in transfer impedance, coverage, flexibility, termination method and resistance to repeated motion.
The conductor insulation, pair capacitance, characteristic impedance, jacket, oil resistance, temperature rating, minimum bend radius and drag-chain classification can matter as much as shield coverage. For moving machinery, select a cable designed and tested for the required flex motion rather than assuming any braided cable is continuous-flex.
One-end or both-end connection
The correct answer depends on frequency, grounding architecture and equipment instructions.
Single-point and both-end bonding solve different problems. The wrong connection can create shield current, leave an RF shield unterminated or connect interference directly to a sensitive signal reference.
| Shield strategy | Why it is used | Typical starting context | Main risk | Acceptance check |
|---|---|---|---|---|
| One-end connection | Prevents the shield from becoming a second low-frequency current path between separated ground points. | Many low-frequency analog measurement systems when prescribed by the sensor or input-module manual. | The open end and long pigtail can reduce high-frequency shielding performance; the chosen point may reference the wrong circuit. | Confirm the exact termination point, isolate the unused end and test common-mode voltage plus noise under operation. |
| Both-end low-impedance bonding | Provides a lower-impedance high-frequency path and preserves enclosure-to-cable shield continuity. | High-frequency data, encoder or EMC systems with suitable equipotential bonding and 360-degree terminations. | Ground-potential difference can drive shield current; poor bonds or pigtails defeat the intended RF path. | Verify equipotential bonding, connector shell continuity, shield current, protocol requirements and EMC behavior. |
| Hybrid or capacitive connection | Provides a high-frequency path while blocking or limiting DC/low-frequency shield current. | Engineered systems where the equipment manufacturer specifies a capacitor, RC network or dedicated shield terminal. | An improvised component may violate insulation, surge, safety or EMC requirements. | Use only an approved design with rated components, documented chassis connection and verified fault behavior. |
Do not merge these conductors
PE, functional earth, chassis, 0 V and shield are not synonyms.
They may be bonded at deliberate points, but each name describes a different function. Use the symbols and terminals in the actual equipment documentation.
Protective earth
A safety conductor intended to limit hazardous touch voltage and carry fault current. Never lift it as an EMC experiment.
Functional earth
A connection used for equipment operation or EMC. It may be bonded to PE within the designed architecture.
DC common or signal reference
The reference conductor for a supply or signal circuit. It is not automatically a low-impedance RF chassis bond.
Cable shield
The conductive enclosure around conductors. It should carry interference current through a planned path, not normal load current.
Drain wire
A wire in contact with a foil shield that makes termination practical. Treat it as part of the shield connection, not a spare signal conductor.
Application selector
What cable and shield strategy should you investigate first?
Select the interface that is closest to the application. The result is a starting checklist, not a substitute for the exact manuals.
Which signal is on the cable?
Recommended starting point
Verify the sensor cable, pulse timing and route before adding a shield
A normal 24 V discrete signal often has more noise margin than a millivolt measurement, but fast pulses, long runs, shared commons and drive transients can still cause false counts.
Foil, braid or combination
Choose construction from the EMC, mechanical and termination requirements.
Coverage percentage alone does not predict installed shielding performance. Transfer impedance, frequency, bond quality and motion are part of the same system.
Foil with drain wire
A thin foil can provide high geometric coverage and compact construction. A drain wire creates a practical termination path.
- Useful for static low-level and multipair instrumentation cables
- Confirm foil overlap, pair or overall shielding and drain placement
- Do not assume ordinary foil survives continuous flexing
Copper braid
A woven braid provides a robust conductive path and can support low-impedance circumferential bonding when correctly terminated.
- Often mechanically stronger than foil in handling
- Coverage and transfer impedance vary with braid design
- Flex life still requires a cable rated for the motion profile
Foil plus braid
Combination construction can provide broader shielding performance and physical robustness, but it adds diameter, cost and termination complexity.
- Useful in demanding broadband interference environments
- Both layers need a documented termination strategy
- Connector and gland must preserve shield continuity
Termination quality
A good cable can fail at the last few centimeters.
High-frequency shield current needs a short, low-inductance path. Low-level analog systems may instead use a designated drain-wire terminal. The required termination follows the interface and equipment design.
Use 360-degree contact where specified
EMC cable glands, shield clamps and metal connector shells can make a large-area circumferential bond to chassis. Keep painted or anodized surfaces from insulating a connection that depends on metal continuity.
Keep pigtails in context
A long drain-wire pigtail adds inductance and can degrade high-frequency performance. A short drain lead may still be the required termination for a low-frequency measurement module, so follow that module's diagram.
Carry shield continuity through junctions
Do not leave a long unshielded section or accidentally bond a floating end to a metal junction box. Use compatible connectors, clamps and insulation to preserve the intended architecture.
Protect the mechanical connection
Strain relief, bend radius, connector sealing, corrosion resistance and flex-rated glands matter. A corroded or moving shield contact changes impedance and can create intermittent faults.
Routing near motors and drives
Reduce the interference before asking the shield to absorb it.
PWM drive output cables, braking circuits, contactors, transformers and large motor-current loops can produce conducted and radiated interference. Route sensor and low-level signal cables away from these sources in separate trays or ducts according to the drive, control and sensor manuals.
There is no universal separation distance for every voltage, cable, enclosure and drive. If signal and power paths must cross, a short right-angle crossing is commonly preferable to a long parallel run. Preserve the required separation at cabinet entries, terminal blocks and flexible machine sections, not only along the main tray.
Separate by circuit class
Keep low-level analog, sensor, digital communication and high-power switching conductors in the routes specified for the system.
Minimize parallel exposure
Shorten shared paths with motor, drive-output, brake and contactor wiring. Cross briefly at right angles where necessary.
Control loop area
Route each signal with its return in the assigned twisted pair. Do not borrow a distant common that creates a large loop.
Preserve entry bonding
Terminate shields at the specified cabinet entry or module point without long unshielded tails or accidental intermediate bonds.
Diagnose before rewiring
A waveform pattern is evidence, not a complete diagnosis.
Line-frequency content can come from ground coupling, but also from nearby magnetic fields or power-supply ripple. Fast bursts can come from drives, contactors, radios or digital circuits. Correlate the noise with machine events and change one variable at a time.
1. Record the baseline
Capture: raw sensor value, PLC value, sensor LED, supply at the sensor, machine state, VFD speed and switching event. Save time-domain data and spectrum only when the measurement setup is valid.
2. Verify the intended topology
Inspect: sensor and module manuals, pair assignment, connector pinout, shield continuity, termination points, 0 V bonds, PE/FE connections, junction boxes and any hidden connector-shell bond.
3. Correlate with the source
Compare: drive disabled versus enabled, motor stationary versus accelerating, contactor open versus switching, radio off versus transmitting, and machine idle versus production.
4. Test a temporary clean route
Isolate: run an approved temporary cable away from the noisy route without bypassing safety guards. If the symptom changes, route coupling is likely involved.
5. Check common mode and isolation
Measure safely: verify that source-to-receiver common-mode voltage stays inside the input rating. Consider an approved isolated input when the architecture creates unavoidable potential differences.
6. Apply one controlled change
Retest: correct routing, termination, pair assignment, source suppression, input configuration or isolation one item at a time. Keep the change only when measured evidence improves without creating another fault.
Cable purchase checklist
Specify more than conductor count and “shielded.”
A cable that fits the connector may still have the wrong capacitance, pair layout, flex rating, jacket or shield termination for the sensor.
Electrical interface
Sensor type, supply, output, signal amplitude, bandwidth or data rate, source impedance, receiver input, pair assignment, maximum cable and isolation.
Shield construction
Overall or individual-pair shield, foil, braid or combination, drain wire, transfer impedance or attenuation data, connector shell and termination method.
Cable electrical data
Conductor resistance, pair capacitance, characteristic impedance where applicable, voltage rating, insulation resistance and propagation characteristics.
Mechanical and environmental data
Static or continuous flex, minimum bend radius, torsion, speed and acceleration, oil and chemical exposure, temperature, washdown, UV and flame requirements.
Installation architecture
Route length, cabinet entries, junction boxes, power-cable proximity, VFDs, equipotential bonding, PE/FE points and whether the shield is bonded at one end, both ends or through a specified network.
Acceptance test
Allowed noise, count errors, measurement stability, response time, common-mode range, operating states, before-and-after waveforms and inspection of shield continuity.
XSZ sensor integration
Start with the sensor output and control input.
XSZ supplies inductive proximity sensors and other industrial detection products for automation equipment, machine builders and distributor projects. Cable and connector decisions should be made together with voltage, NPN or PNP output, NO or NC logic, sensing target and environment.
For an application review, provide the sensor model, PLC or input-module model, cable route, cable length, connector, nearby drives or motors and a description of the observed noise or false signal.
Sensor and cable selection support
Send the complete detection and wiring requirement to XSZ.
We can help narrow the sensor output, cable and connector configuration before sampling, including OEM label, cable-length and packaging requirements where supported.
Frequently asked questions
Sensor cable shielding FAQ
Should a sensor cable shield be grounded at one end or both ends?
Use the sensor, receiver and network manuals first. One-end connection is common in many low-frequency analog measurement systems because it avoids a second low-frequency current path. Both-end, low-impedance 360-degree bonding is often used for high-frequency EMC or data systems when equipotential bonding is suitable. AC or DC supply alone does not decide the method.
Is cable shielding different for AC and DC sensors?
Not as a simple AC-versus-DC rule. The relevant factors are signal interface, amplitude, bandwidth, source and receiver grounding, common-mode range, cable capacitance, data rate and interference environment. A DC-powered thermocouple module, 24 V proximity sensor and IO-Link device need different wiring even though all may use DC power.
Should the shield connect to 0 V, PE or functional earth?
Connect it only to the terminal or chassis point specified by the equipment design. Protective earth is a safety conductor, 0 V is a circuit reference, and functional earth or chassis is commonly used for EMC. They may be bonded at planned points but are not interchangeable. Never disconnect PE to remove measurement noise.
Does a 24 VDC proximity sensor always need shielded cable?
No universal rule applies. Many slow discrete sensors work with the manufacturer's standard cable, while long routes, high-speed counting, strong drives, welding equipment or a specified EMC requirement may call for shielded or twisted construction. Check the sensor and PLC manuals, then test under the real switching conditions.
What is the difference between a shield and a drain wire?
The shield is the conductive foil, braid or combination surrounding the conductors. A drain wire runs in contact with foil and provides a durable conductor for termination. It is part of the shield connection and should not be used as a spare signal return or protective-earth conductor.
Why is twisted pair still needed inside a shield?
Twisting keeps a signal and its return close, reduces loop area and helps interference appear similarly on both conductors so a differential receiver can reject it. The shield primarily controls electric-field and RF coupling. The two measures address different coupling paths and often work together.
How should sensor cables be routed near a VFD?
Follow the drive, sensor and control-system manuals for cable classes and separation. Avoid long parallel runs with drive output and motor cables, use separate trays or ducts where specified, and make a short right-angle crossing when paths must cross. Preserve shield bonding and separation at cabinet entries and terminal blocks as well as in the main tray.
How do I prove that shielding fixed a noisy sensor signal?
Record a baseline under repeatable machine states, change one item, then repeat the same test. Compare raw sensor data, PLC values, count errors, peak-to-peak noise, spectrum and correlation with drive or contactor events. Keep the change only when it improves the required signal without violating grounding, safety, bandwidth or response requirements.
Technical references
- NI: Field Wiring and Noise Considerations for Analog Signals - capacitive and inductive coupling, twisted pairs, differential inputs and separation.
- Analog Devices: Grounding in High-Speed Systems - one-end versus both-end shield connection and 360-degree high-frequency bonding.
- Rockwell Automation 1769-IR6 User Manual - product-specific twisted-pair, routing and shield-grounding guidance.
- Phoenix Contact: Shield Connection in the Field - large-area 360-degree shield and connector continuity.
Image credits

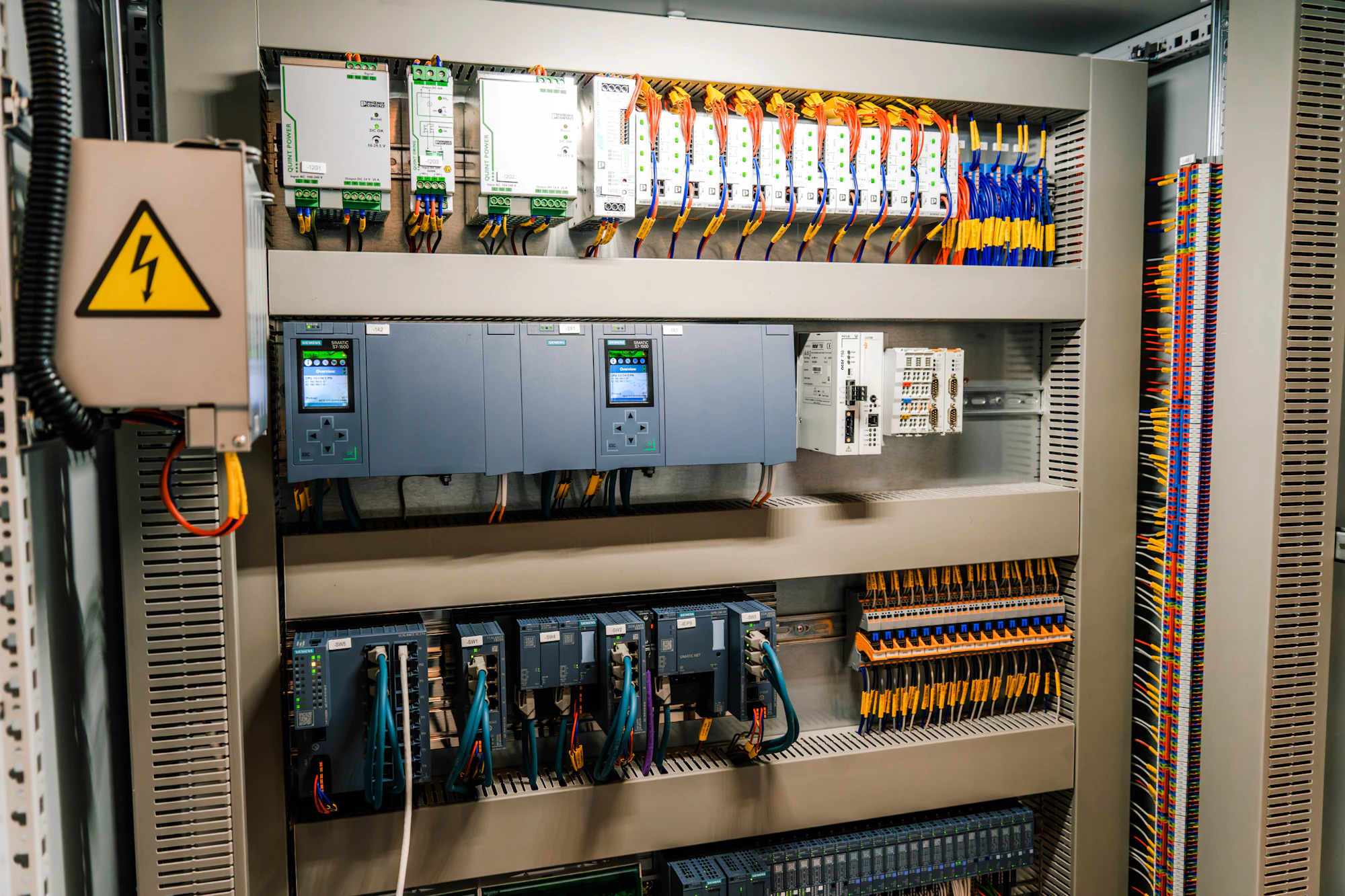

- Industrial control panel, Raymond Sime, Unsplash License.
