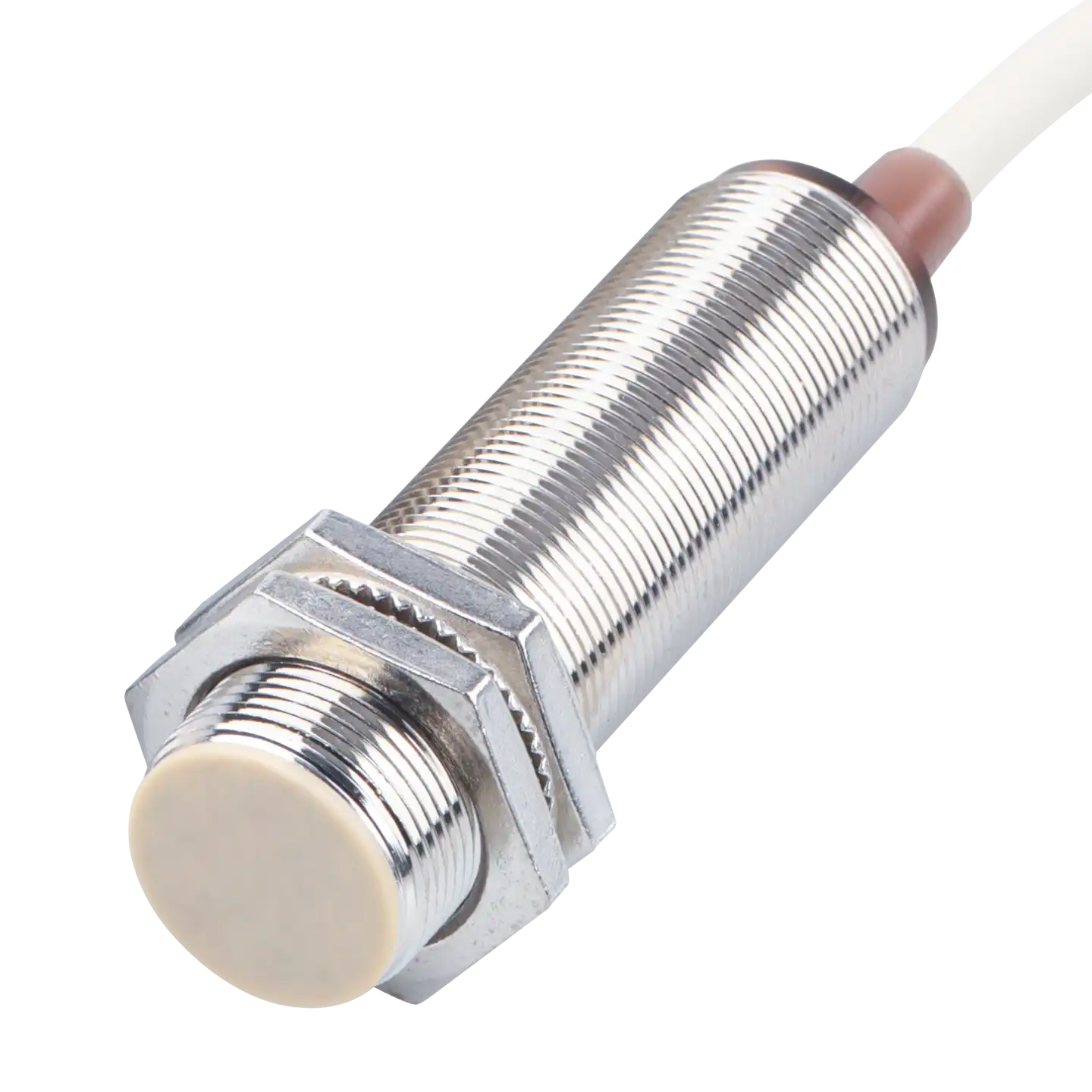

XSZ M18 Ultra-Extended Range Inductive Proximity Sensor
Maximum safety distance for heavy-duty applications. The XSZ M18 Ultra-Extended Range Inductive Proximity Sensor delivers an unparalleled 12mm to 20mm sensing distance, keeping your sensors safe from severe mechanical collisions while ensuring wear-free, ultra-reliable metal detection in harsh industrial environments.
Key Performance Advantages
Unrivaled Sensing Distance
Cutting-edge inductive coil technology pushes the boundaries of the M18 form factor, providing massive 12mm (flush) and 20mm (non-flush) detection ranges to completely prevent accidental impact.
Advanced Circuit Protection
Equipped with a built-in surge suppressor and reversed power supply polarity protection, ensuring rock-solid electrical stability against power spikes in large automated machinery.
Heavy-Duty M18 Integration
Provides extreme reach and ruggedness without requiring you to upgrade to massive M30 sensors. It perfectly drops into any standard 18mm threaded mounting bracket.
Comprehensive Technical Specifications
| Specification | M18 Flush Mount | M18 Non-Flush Mount |
|---|---|---|
| Sensing Distance | 12 mm ± 10% | 20 mm ± 10% |
| Standard Sensing Object | Iron 24 × 24 × 1 mm | Iron 36 × 36 × 1 mm |
| Response Frequency | 300 Hz | 200 Hz |
| Detectable Object | Magnetic metal (Sensing distance reduces for non-magnetic metals) | |
| Operating Voltage Range | DC 10 to 30V (12-24 VDC nominal, Ripple P-P: 10% max) | |
| Load Current (Output) | 150 mA Max. (Residual Voltage: 1.5V Max.) | |
| Current Consumption | 10 mA Max. | |
| Control Output | NPN / PNP | NO (Normally Open) / NC (Normally Closed) available | |
| Protection Circuits | Reversed power supply polarity protection, Surge suppressor | |
| Environmental Specs | Operating Temp: -25 to +70°C | Storage: -40 to 80°C | Connection: Pre-wired cable | |
Wiring & Circuit Diagram
Please consult the wiring diagrams below to securely integrate the NPN/PNP proximity switch into your industrial control panel.
Ideal Industrial Applications
The 20mm non-flush range provides a crucial safety buffer against large, fast-moving metal parts.
Reliable positioning and verification of heavy metal chassis components with robust surge protection.
Highly durable detection of metallic pallets, remaining unaffected by grease and airborne dust.
Upgrade Your Automated Systems
Connect with our XSZ technical experts to integrate our ultra-extended range M18 inductive sensors into your most demanding heavy-duty projects.
