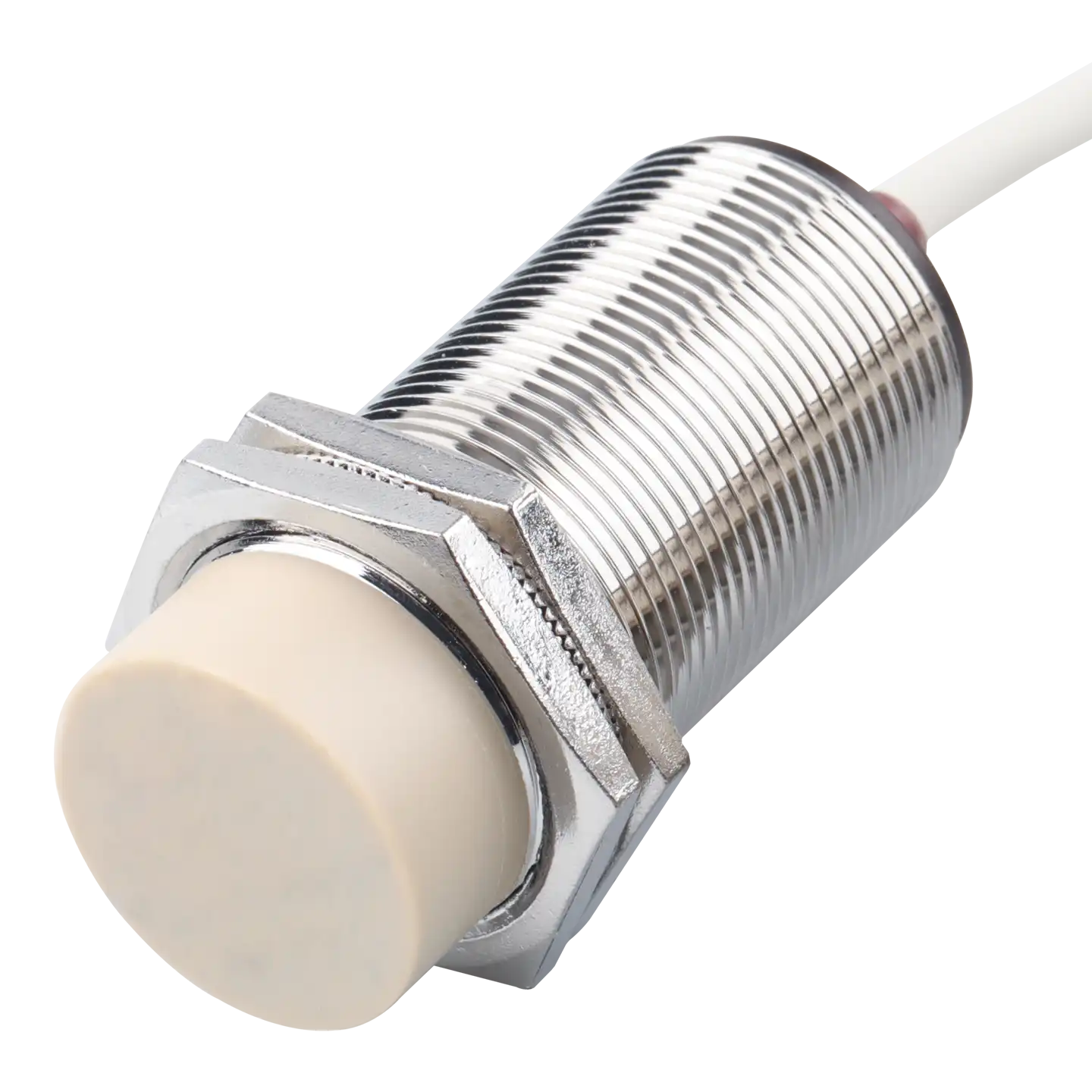

XSZ M30 Ultra-Extended Range Inductive Proximity Sensor
Ultimate safety clearance for massive machinery. The XSZ M30 Ultra-Extended Range Inductive Proximity Sensor delivers an unprecedented 22mm to 40mm sensing distance, keeping your sensors safe from severe mechanical collisions while ensuring wear-free, ultra-reliable metal detection in the harshest heavy-industrial environments.
Key Performance Advantages
Maximum Safety Distance
Cutting-edge inductive coil technology pushes the boundaries of the M30 form factor, providing extreme 22mm (flush) and 40mm (non-flush) detection ranges to completely prevent accidental impact from heavy parts.
Advanced Circuit Protection
Equipped with a built-in surge suppressor and reversed power supply polarity protection, ensuring rock-solid electrical stability against severe power spikes in large automated machinery.
Heavy-Duty M30 Integration
The massive 30mm threaded cylindrical housing provides extreme mechanical strength and stability, perfectly suited for heavy mining, automotive assembly, and rugged port equipment.
Comprehensive Technical Specifications
| Specification | M30 Flush Mount | M30 Non-Flush Mount |
|---|---|---|
| Sensing Distance | 22 mm ± 10% | 40 mm ± 10% |
| Standard Sensing Object | Iron 45 × 45 × 1 mm | Iron 75 × 75 × 1 mm |
| Response Frequency | 200 Hz | 150 Hz |
| Detectable Object | Magnetic metal (Sensing distance reduces for non-magnetic metals) | |
| Operating Voltage Range | DC 10 to 30V (12-24 VDC nominal, Ripple P-P: 10% max) | |
| Load Current (Output) | 150 mA Max. (Residual Voltage: 1.5V Max.) | |
| Current Consumption | 10 mA Max. | |
| Control Output | NPN / PNP | NO (Normally Open) / NC (Normally Closed) available | |
| Protection Circuits | Reversed power supply polarity protection, Surge suppressor | |
| Environmental Specs | Operating Temp: -25 to +70°C | Storage: -40 to 80°C | Connection: Pre-wired cable | |
Wiring & Circuit Diagram
Please consult the wiring diagrams below to securely integrate the NPN/PNP proximity switch into your industrial control panel.
Ideal Industrial Applications
The 40mm non-flush range provides the ultimate safety buffer against massive, fast-moving metal parts.
Reliable positioning and verification of huge metal blocks with robust electrical surge protection.
Highly durable detection for gantry cranes and large cargo handling mechanisms.
Upgrade Your Heavy-Duty Automation
Connect with our XSZ technical experts to integrate our ultra-extended range M30 inductive sensors into your most demanding heavy-industry projects.
Zhejiang Xinsenzheng Automation Co., Ltd. – PRECISION & INNOVATION
