Static Ring Sensor Series

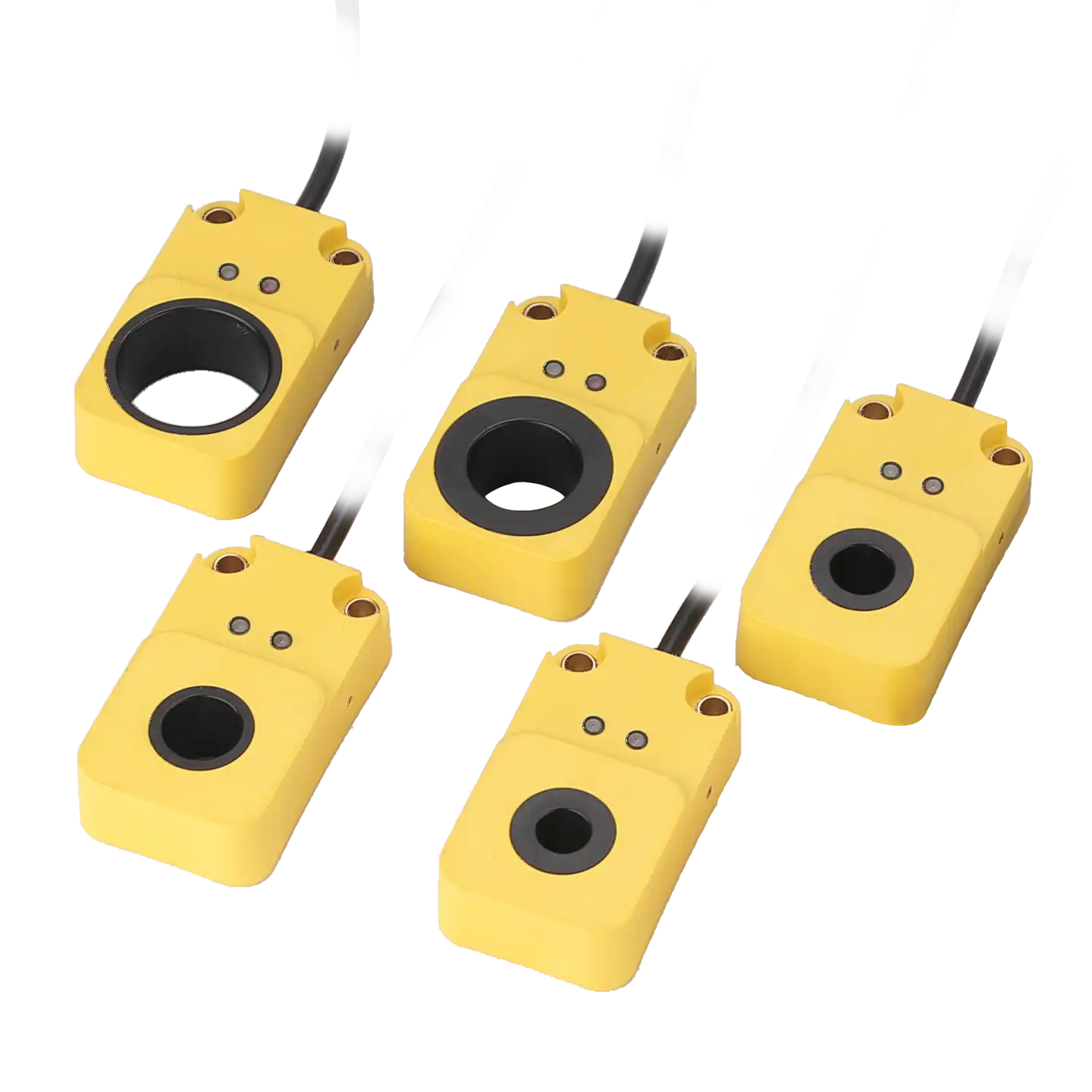

XSZ Inductive Static Ring Sensor
Precision tracking for passing parts. The XSZ Inductive Static Ring Sensor provides continuous, highly reliable metal detection for piece counting, wire break monitoring, and automated jam control. Designed with adjustable sensitivity and robust circuit protection for seamless integration into feeding systems.
Key Performance Advantages
Continuous Static Detection
Unlike dynamic sensors, this static model generates a continuous output signal for as long as the metallic object remains within the detection ring, making it perfect for blockage and jam monitoring.
Precision Tuning & Customization
Equipped with a built-in multi-turn potentiometer for ultra-fine sensitivity adjustment. In addition to standard 3mm and 6mm holes, it supports full customization for specific inner diameter requirements.
High Resolution & Fast Response
With a rapid response time of 35ms Max and robust 200mA load capacity, it captures tiny, fast-moving parts with exceptional accuracy, minimizing missed counts.
Comprehensive Technical Specifications
| Specification | 3mm Ring Sensor | 6mm Ring Sensor |
|---|---|---|
| Hole Diameter (Inner) | 3 mm | 6 mm |
| Customization Options | Wide range of non-standard ring inner diameters available upon request | |
| Detectable Object | Metals (Screws, wires, metallic components) | |
| Sensitivity Adjustment | Multi-turn potentiometer | |
| Operating Voltage Range | DC 10 to 30V (12-24 VDC nominal, Ripple P-P: 10% max) | |
| Load Current (Output) | 200 mA Max. (Residual Voltage: 1.5V Max.) | |
| Current Consumption | 17 mA Max. | |
| Response Time | 35 ms (Max.) | |
| Control Output | NPN / PNP | NO (Normally Open) / NC (Normally Closed) available | |
| Protection Circuits | Reversed power supply polarity protection, Surge suppressor | |
| Housing Material | Durable ABS | |
| Environmental Specs | Operating Temp: -25 to +70°C | Storage: -40 to 80°C | Connection: Pre-wired cable | |
Wiring & Circuit Diagram
Please consult the wiring diagrams below to securely integrate the NPN/PNP ring sensor into your automated feeding control system.
Ideal Industrial Applications
Accurately inspects and counts falling screws, nuts, and bolts during automated assembly.
Provides immediate static detection for wire breakage in continuous drawing or winding machines.
Monitors feed lines for blockages by generating a continuous signal when parts accumulate.
Optimize Your Parts Inspection
Connect with our XSZ technical experts to customize the perfect inductive ring sensor for your specific feeding applications.
