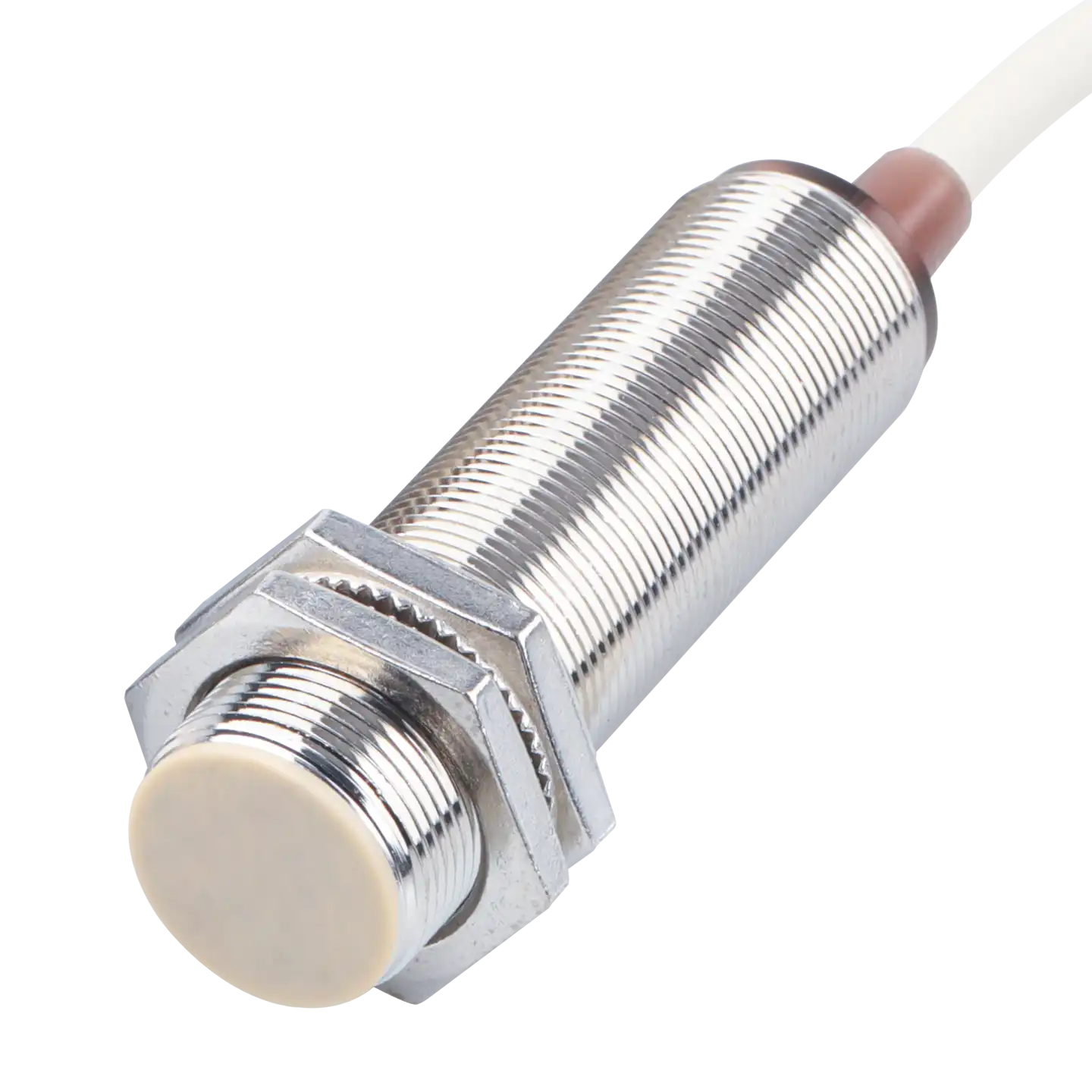

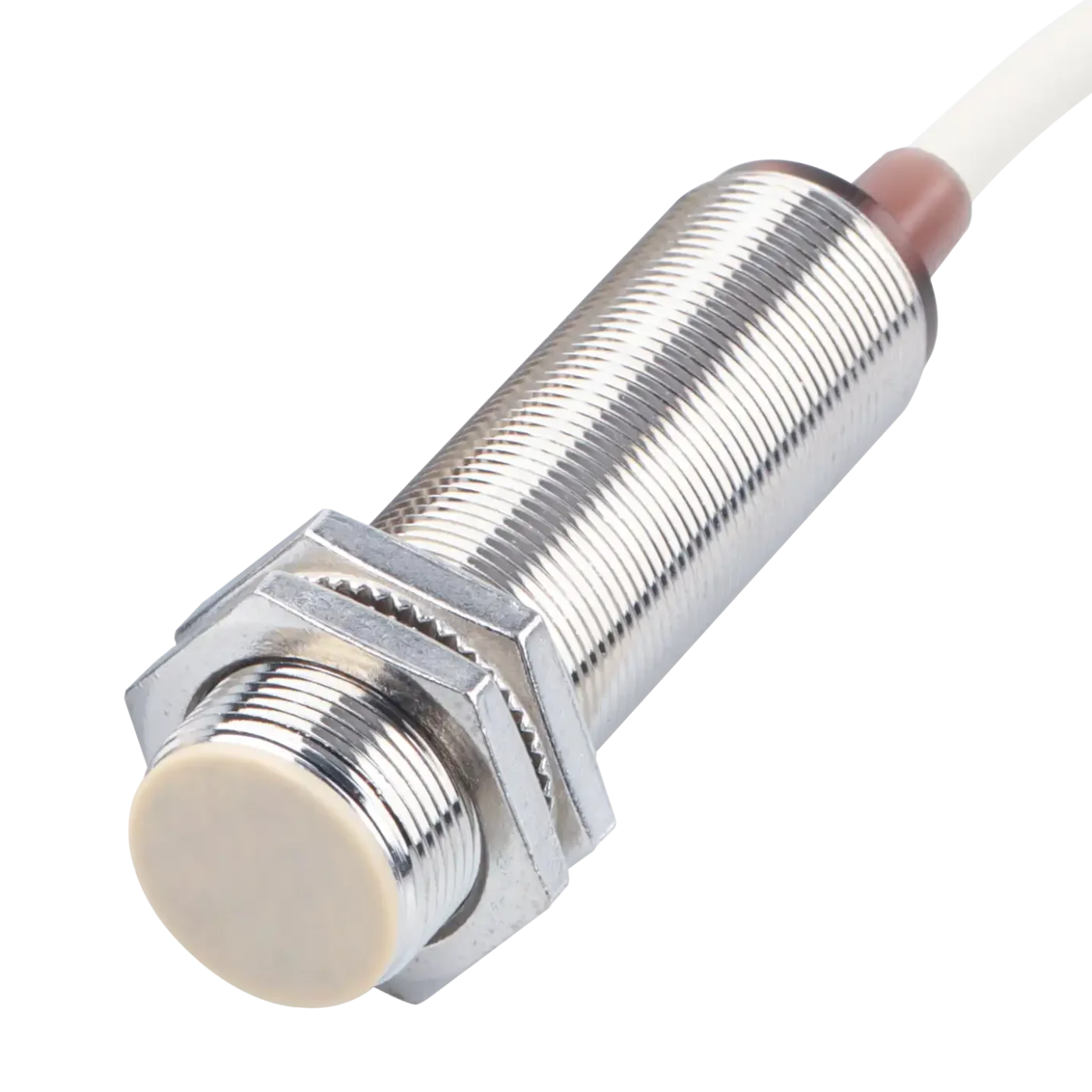

XSZ M12 Ultra-Extended Range Inductive Proximity Sensor
Maximum safety distance in a standard M12 profile. The XSZ M12 Ultra-Extended Range Inductive Proximity Sensor delivers an unparalleled 6mm to 10mm sensing distance, keeping your sensors safe from mechanical collisions while ensuring wear-free, ultra-reliable metal detection in harsh industrial environments.
Key Performance Advantages
Unrivaled Sensing Distance
Cutting-edge inductive coil technology pushes the boundaries of the M12 form factor, providing massive 6mm (flush) and 10mm (non-flush) detection ranges to prevent accidental impact.
Advanced Circuit Protection
Equipped with a built-in surge suppressor and reversed power supply polarity protection, ensuring rock-solid electrical stability against power spikes in automated machinery.
Seamless M12 Integration
Provides extreme reach without requiring you to upgrade to bulky M18 sensors. It perfectly drops into any standard 12mm threaded mounting bracket.
Comprehensive Technical Specifications
| Specification | M12 Flush Mount | M12 Non-Flush Mount |
|---|---|---|
| Sensing Distance | 6 mm ± 10% | 10 mm ± 10% |
| Standard Sensing Object | Iron 12 × 12 × 1 mm | Iron 18 × 18 × 1 mm |
| Response Frequency | 600 Hz | 400 Hz |
| Detectable Object | Magnetic metal (Sensing distance reduces for non-magnetic metals) | |
| Operating Voltage Range | DC 10 to 30V (12-24 VDC nominal, Ripple P-P: 10% max) | |
| Load Current (Output) | 150 mA Max. (Residual Voltage: 1.5V Max.) | |
| Current Consumption | 10 mA Max. | |
| Control Output | NPN / PNP | NO (Normally Open) / NC (Normally Closed) available | |
| Protection Circuits | Reversed power supply polarity protection, Surge suppressor | |
| Environmental Specs | Operating Temp: -25 to +70°C | Storage: -40 to 80°C | Connection: Pre-wired cable | |
Wiring & Circuit Diagram
Please consult the wiring diagrams below to securely integrate the NPN/PNP proximity switch into your industrial control panel.
Ideal Industrial Applications
The 10mm non-flush range provides a crucial safety buffer against large, fast-moving robotic arms.
Reliable positioning and verification of metal chassis components with robust surge protection.
Highly durable detection of metallic pallets, remaining unaffected by grease and dust.
Upgrade Your Automated Systems
Connect with our XSZ technical experts to integrate our ultra-extended range M12 inductive sensors into your most demanding projects.
