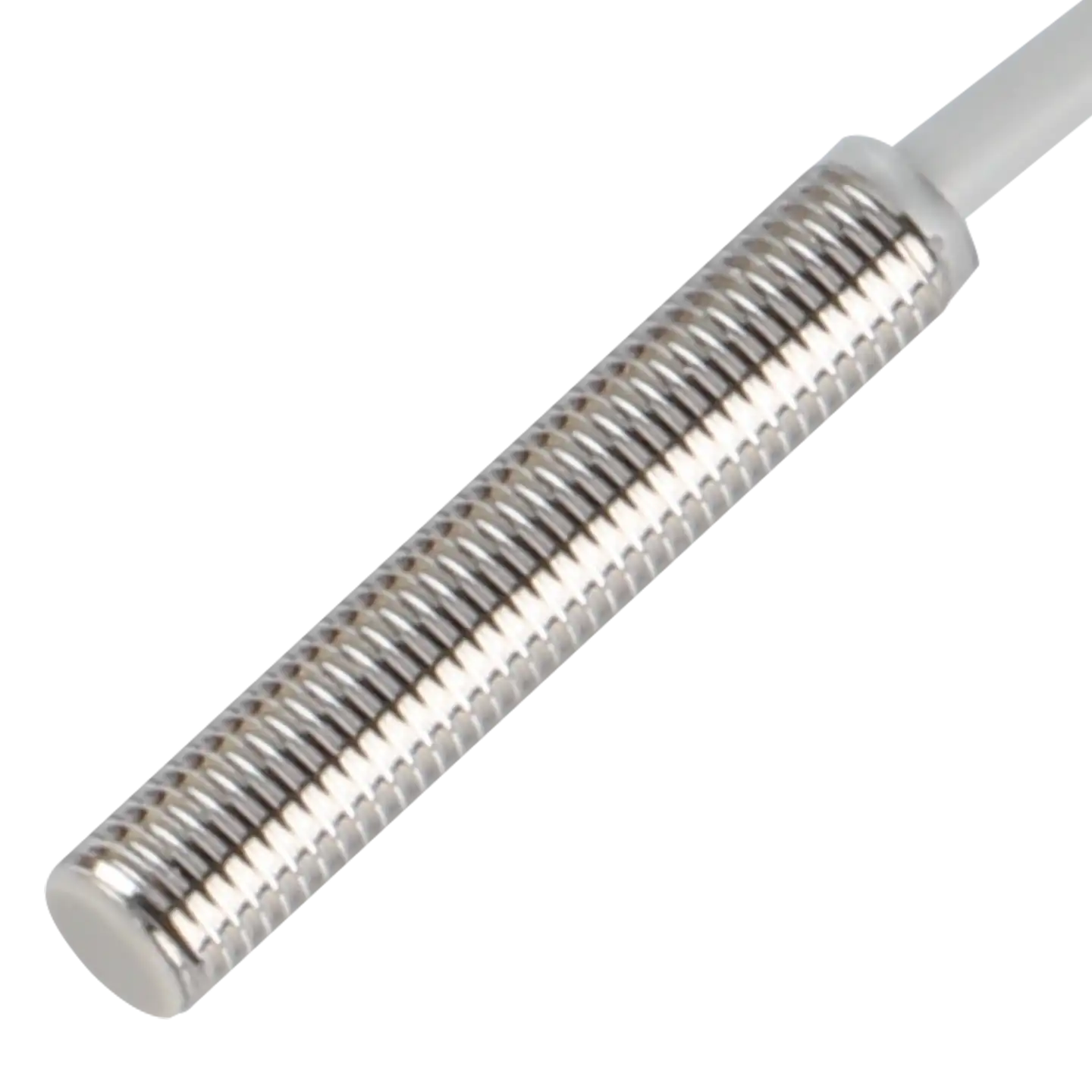

XSZ M8 Extended Range Inductive Proximity Sensor
Maximum reach in a micro form factor. The XSZ M8 Extended Range Inductive Proximity Sensor delivers an impressive 3mm to 6mm sensing distance within a highly compact M8 threaded housing. Experience wear-free, ultra-reliable metal detection even in the most confined and harsh industrial environments.
Key Performance Advantages
Extended Sensing Distance
Upgraded inductive coils provide enhanced detection ranges of 3mm (flush) and 6mm (non-flush) in a compact M8 body, keeping the sensor safely clear of moving metal parts.
Advanced Circuit Protection
Equipped with a built-in surge suppressor and reversed power supply polarity protection, ensuring rock-solid electrical stability even during power fluctuations in factory machinery.
Compact M8 Integration
The slim 8mm threaded cylindrical housing allows for installation in highly constrained spaces while delivering a rapid response frequency of up to 1KHz.
Comprehensive Technical Specifications
| Specification | M8 Flush Mount | M8 Non-Flush Mount |
|---|---|---|
| Sensing Distance | 3 mm ± 10% | 6 mm ± 10% |
| Standard Sensing Object | Iron 9 × 9 × 1 mm | Iron 9 × 9 × 1 mm |
| Response Frequency | 1K Hz | 800 Hz |
| Detectable Object | Magnetic metal (Sensing distance reduces for non-magnetic metals) | |
| Operating Voltage Range | DC 10 to 30V (12-24 VDC nominal, Ripple P-P: 10% max) | |
| Load Current (Output) | 150 mA Max. (Residual Voltage: 1.5V Max.) | |
| Current Consumption | 10 mA Max. | |
| Control Output | NPN / PNP | NO (Normally Open) / NC (Normally Closed) available | |
| Protection Circuits | Reversed power supply polarity protection, Surge suppressor | |
| Environmental Specs | Operating Temp: -25 to +70°C | Storage: -40 to 80°C | Connection: Pre-wired cable | |
Wiring & Circuit Diagram
Please consult the wiring diagrams below to securely integrate the NPN/PNP proximity switch into your industrial control panel.
Ideal Industrial Applications
Compact M8 threads fit perfectly into mechanical grippers while offering safer, extended reach.
Highly resistant to cutting oil, providing accurate tool presence detection with surge protection.
The 1KHz frequency ensures accurate counting of fast-rotating gears and metallic parts.
Upgrade Your Compact Automation
Connect with our XSZ technical experts to integrate our extended-range M8 inductive sensors into your next demanding project.
Zhejiang Xinsenzheng Automation Co., Ltd. – PRECISION & INNOVATION
