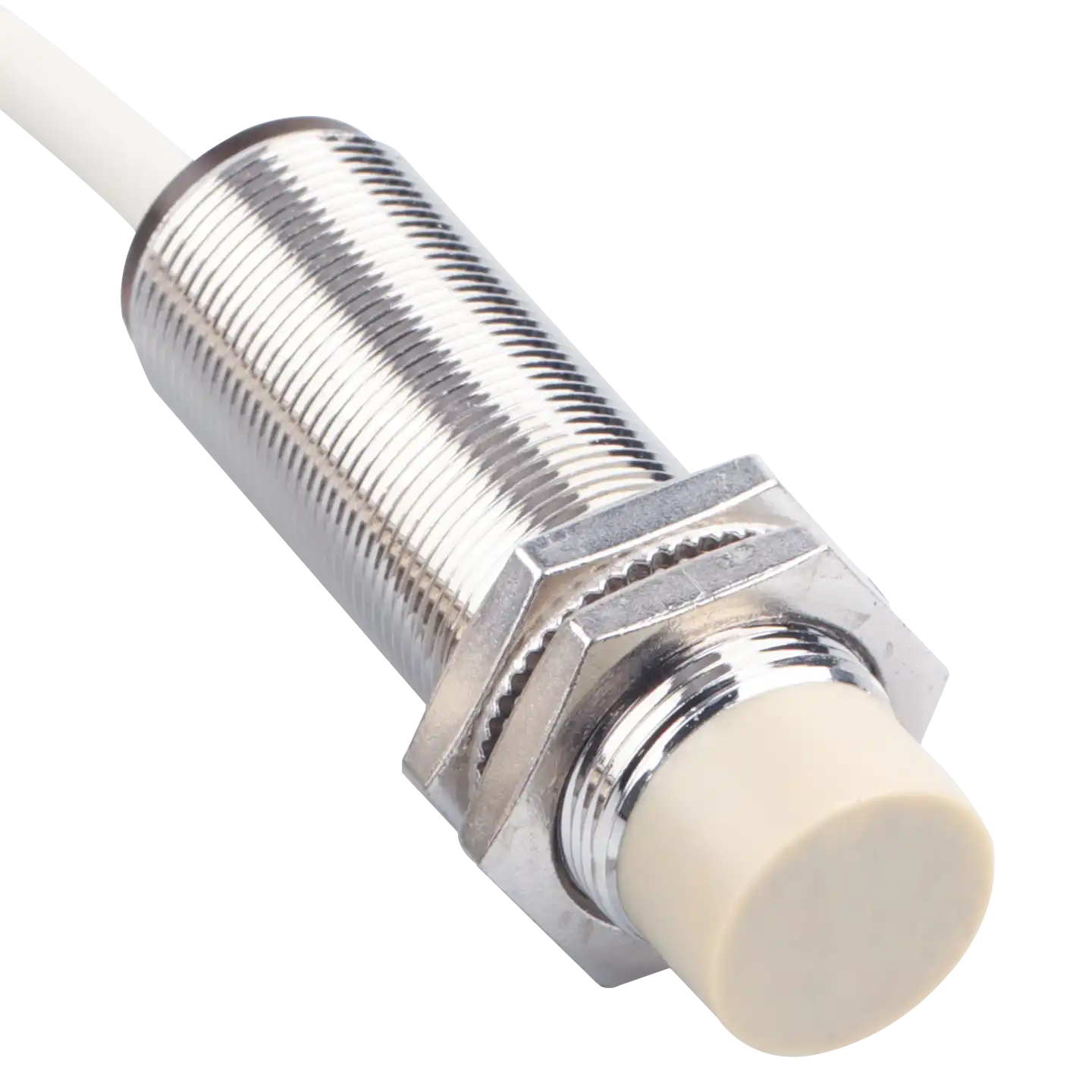

XSZ M30 Extended Range Inductive Proximity Sensor
Maximum reach for heavy-duty metal detection. The XSZ M30 Extended Range Inductive Proximity Sensor delivers a massive 16mm to 25mm sensing distance within a rugged M30 threaded housing. Experience wear-free, highly reliable performance in harsh industrial environments plagued by oil, dirt, and severe mechanical shock.
Key Performance Advantages
Maximum Sensing Distance
Upgraded inductive coils provide extreme detection ranges of 16mm (flush) and 25mm (non-flush), significantly reducing the risk of physical impact from large, fast-moving metal parts.
Advanced Circuit Protection
Equipped with a built-in surge suppressor and reversed power supply polarity protection, ensuring rock-solid electrical stability even during power fluctuations in heavy machinery.
Heavy-Duty M30 Integration
The massive 30mm threaded cylindrical housing allows for secure installation and high mechanical stability, making it an ideal drop-in replacement for standard factory equipment.
Comprehensive Technical Specifications
| Specification | M30 Flush Mount | M30 Non-Flush Mount |
|---|---|---|
| Sensing Distance | 16 mm ± 10% | 25 mm ± 10% |
| Standard Sensing Object | Iron 45 × 45 × 1 mm | Iron 75 × 75 × 1 mm |
| Response Frequency | 200 Hz | 150 Hz |
| Detectable Object | Magnetic metal (Sensing distance reduces for non-magnetic metals) | |
| Operating Voltage Range | DC 10 to 30V (12-24 VDC nominal, Ripple P-P: 10% max) | |
| Load Current (Output) | 100 mA Max. (Residual Voltage: 1.5V Max.) | |
| Current Consumption | 17 mA Max. | |
| Control Output | NPN / PNP | NO (Normally Open) / NC (Normally Closed) available | |
| Protection Circuits | Reversed power supply polarity protection, Surge suppressor | |
| Environmental Specs | Operating Temp: -25 to +70°C | Storage: -40 to 80°C | Connection: Pre-wired cable | |
Wiring & Circuit Diagram
Please consult the wiring diagrams below to securely integrate the NPN/PNP proximity switch into your industrial control panel.
Ideal Industrial Applications
Extended sensing distance prevents physical impact from massive rotating metal components.
Reliable positioning and verification of large metal chassis and engine blocks with surge protection.
Robust long-range detection for automated gantry cranes and large metallic pallets.
Upgrade Your Heavy-Duty Automation
Connect with our XSZ technical experts to integrate our extended-range M30 inductive sensors into your next demanding project.
