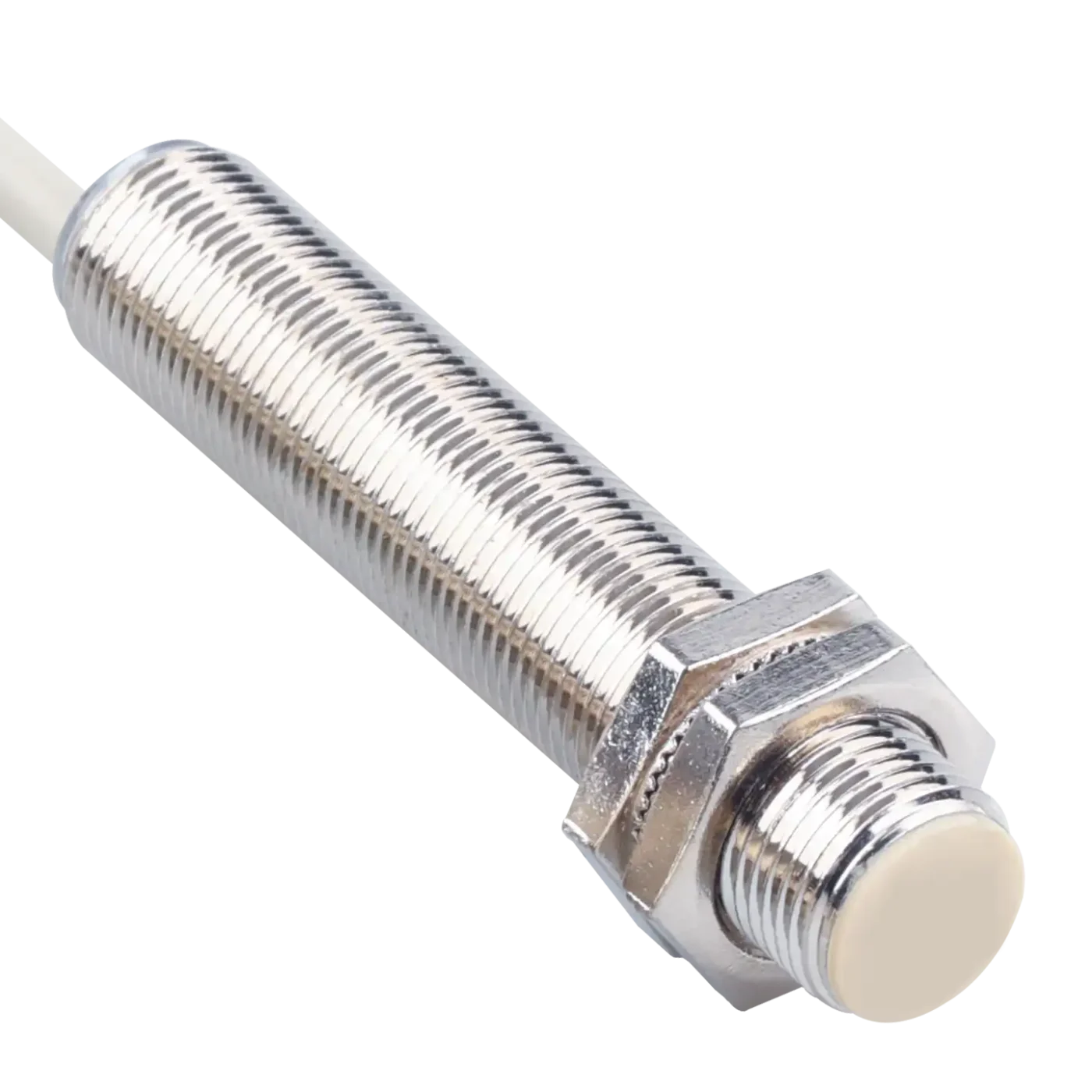

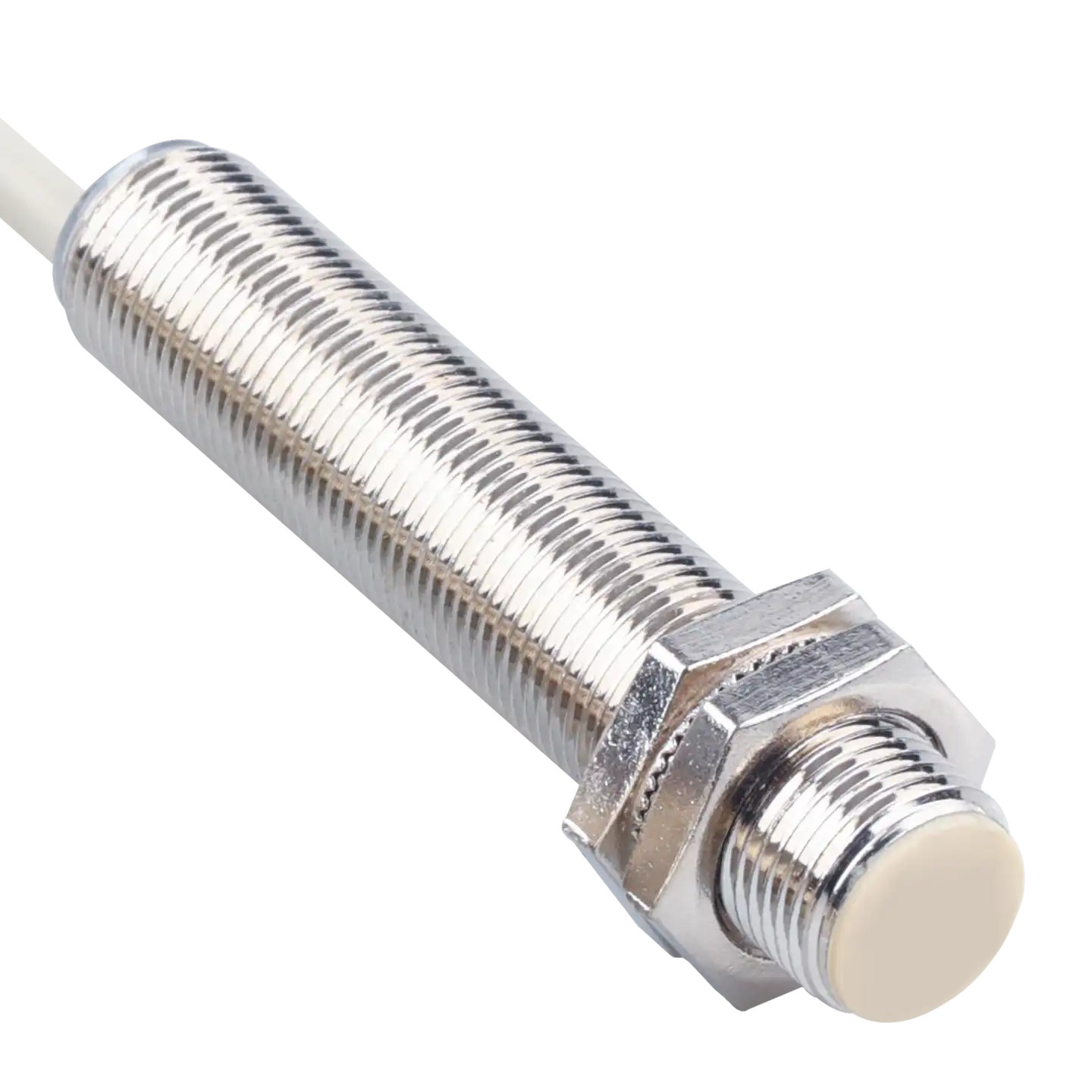

XSZ M18 Extended Range Inductive Proximity Sensor
Heavy-duty metal detection with superior reach. The XSZ M18 Extended Range Inductive Proximity Sensor delivers an impressive 8mm to 16mm sensing distance within a rugged M18 threaded housing. Experience wear-free, highly reliable performance in harsh industrial environments plagued by oil, dirt, and mechanical shock.
Key Performance Advantages
Extended Sensing Distance
Upgraded inductive coils provide enhanced detection ranges of 8mm (flush) and 16mm (non-flush), significantly reducing the risk of physical impact from large moving metal parts.
Advanced Circuit Protection
Equipped with a built-in surge suppressor and reversed power supply polarity protection, ensuring rock-solid electrical stability even during power fluctuations in heavy machinery.
Heavy-Duty M18 Integration
The robust 18mm threaded cylindrical housing allows for secure installation and high mechanical stability, making it an ideal drop-in replacement for standard factory equipment.
Comprehensive Technical Specifications
| Specification | M18 Flush Mount | M18 Non-Flush Mount |
|---|---|---|
| Sensing Distance | 8 mm ± 10% | 16 mm ± 10% |
| Standard Sensing Object | Iron 24 × 24 × 1 mm | Iron 36 × 36 × 1 mm |
| Response Frequency | 300 Hz | 200 Hz |
| Detectable Object | Magnetic metal (Sensing distance reduces for non-magnetic metals) | |
| Operating Voltage Range | DC 10 to 30V (12-24 VDC nominal, Ripple P-P: 10% max) | |
| Load Current (Output) | 100 mA Max. (Residual Voltage: 1.5V Max.) | |
| Current Consumption | 17 mA Max. | |
| Control Output | NPN / PNP | NO (Normally Open) / NC (Normally Closed) available | |
| Protection Circuits | Reversed power supply polarity protection, Surge suppressor | |
| Environmental Specs | Operating Temp: -25 to +70°C | Storage: -40 to 80°C | Connection: Pre-wired cable | |
Wiring & Circuit Diagram
Please consult the wiring diagrams below to securely integrate the NPN/PNP proximity switch into your industrial control panel.
Ideal Industrial Applications
Extended sensing distance prevents physical impact from large moving metal components.
Reliable positioning and verification of metal chassis with enhanced surge protection.
Robust detection of metallic pallets and parts in highly dynamic automated sorting mechanisms.
Upgrade Your Heavy-Duty Automation
Connect with our XSZ technical experts to integrate our extended-range M18 inductive sensors into your next demanding project.
Zhejiang Xinsenzheng Automation Co., Ltd. – PRECISION & INNOVATION
