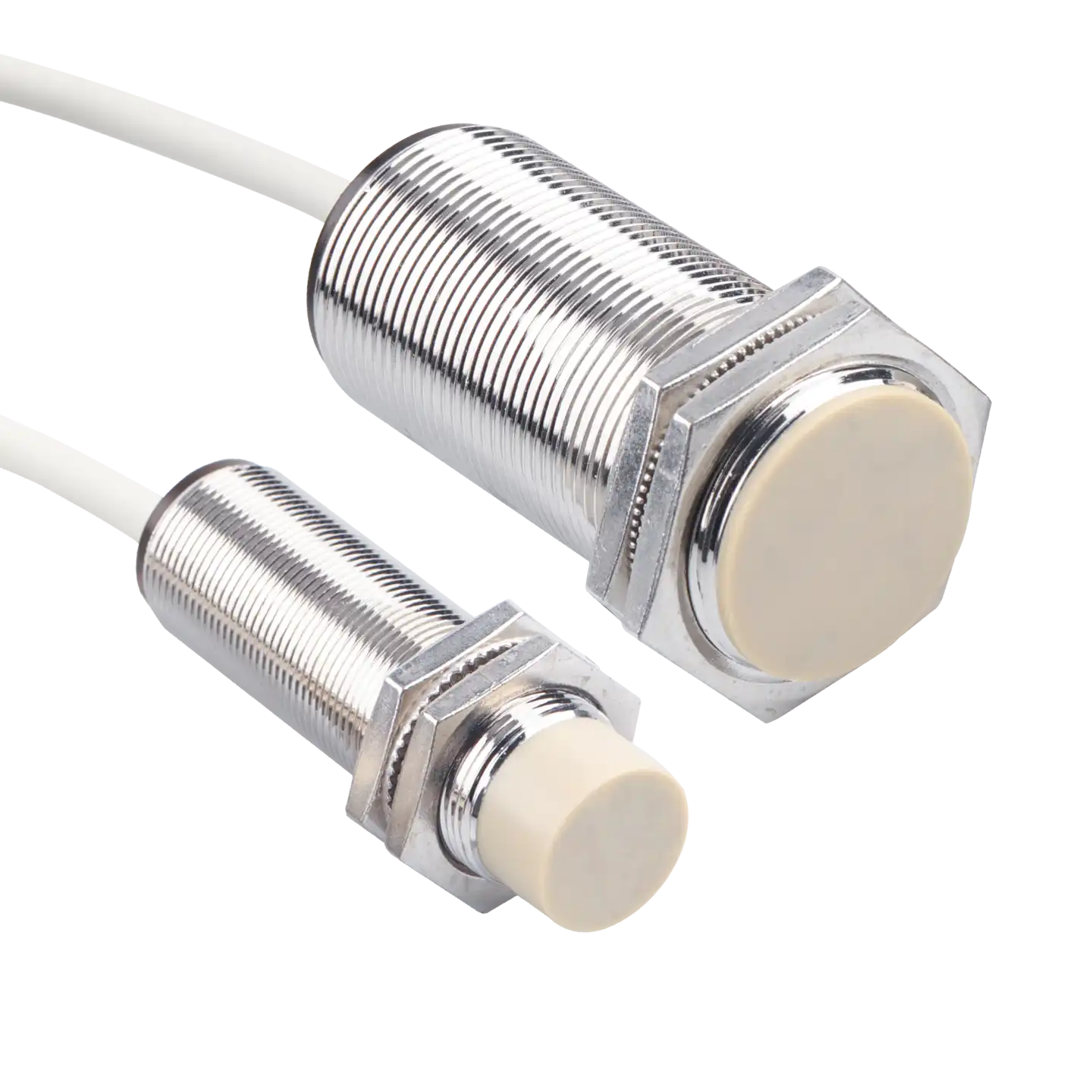

XSZ M30 Capacitive Proximity Sensor
Cost-effective, long-range material detection. The XSZ M30 Capacitive Proximity Sensor reliably detects metallic and non-metallic objects, including plastics, wood, and bulk liquids. Featuring a massive adjustable sensing distance of up to 20mm and robust metal or plastic housing options, it delivers unmatched performance for heavy-duty industrial tracking.
Key Performance Advantages
Universal Material Detection
Easily identifies conductors and dielectrics alike. Detect massive plastic components, stone, wood, and monitor bulk liquid levels through thick non-metallic container walls with absolute reliability.
Extended Adjustable Range
Equipped with a built-in single direction potentiometer, allowing you to easily fine-tune the sensing distance (up to an impressive 20mm) to precisely match the target material’s dielectric constant.
Heavy-Duty M30 Housing
Available in both plastic and metal 30mm threaded cylindrical housings to suit your budget and harsh environmental needs. Includes a bright red indicator light for easy operational status checks.
Comprehensive Technical Specifications
| Specification | M30 Flush Mount | M30 Non-Flush Mount |
|---|---|---|
| Sensing Distance | 0 – 10 mm (Adjustable) | 0 – 20 mm (Adjustable) |
| Standard Sensing Object | Grounded metal plate 50 × 50 × 1 mm | |
| Detectable Object | Conductors and dielectrics (Metal, plastic, liquid, stone, wood, glass, etc.) | |
| Sensitivity Adjustment | Single direction knob (Potentiometer) | |
| Response Frequency | 100 Hz | |
| Operating Voltage Range | DC 12 to 24 VDC ±10%, ripple (p-p) Max. | |
| Load Current (Output) | 200 mA Max. (Residual Voltage: 1.5V Max.) | |
| Current Consumption | 15 mA Max. | |
| Control Output | NPN / PNP | NO / NC available | |
| Protection Circuits | Reversed power supply polarity protection, Instantaneous overvoltage protection | |
| Housing Material | Plastic or Metal housing options available | |
| Environmental Specs | Degree of protection: IP65 | Temp: -25 to +70°C | Humidity: 35 to 85% RH | |
Wiring & Circuit Diagram
Please consult the wiring diagrams below to securely integrate the NPN/PNP capacitive proximity switch into your heavy industrial control panel.
Ideal Industrial Applications
Perfect for detecting the fill level of powders, grains, or wooden pellets in massive storage hoppers and silos.
Accurately detect liquid levels (water, oil, chemicals) through thick glass or heavy-duty plastic container walls.
Reliably count or verify the presence of large plastic parts, heavy cardboard boxes, and bulky non-metallic packages.
Versatile Detection for Any Heavy Material
Connect with our XSZ technical experts to integrate our highly flexible M30 capacitive proximity sensors into your automated systems.
