Compact Adjustable Detection

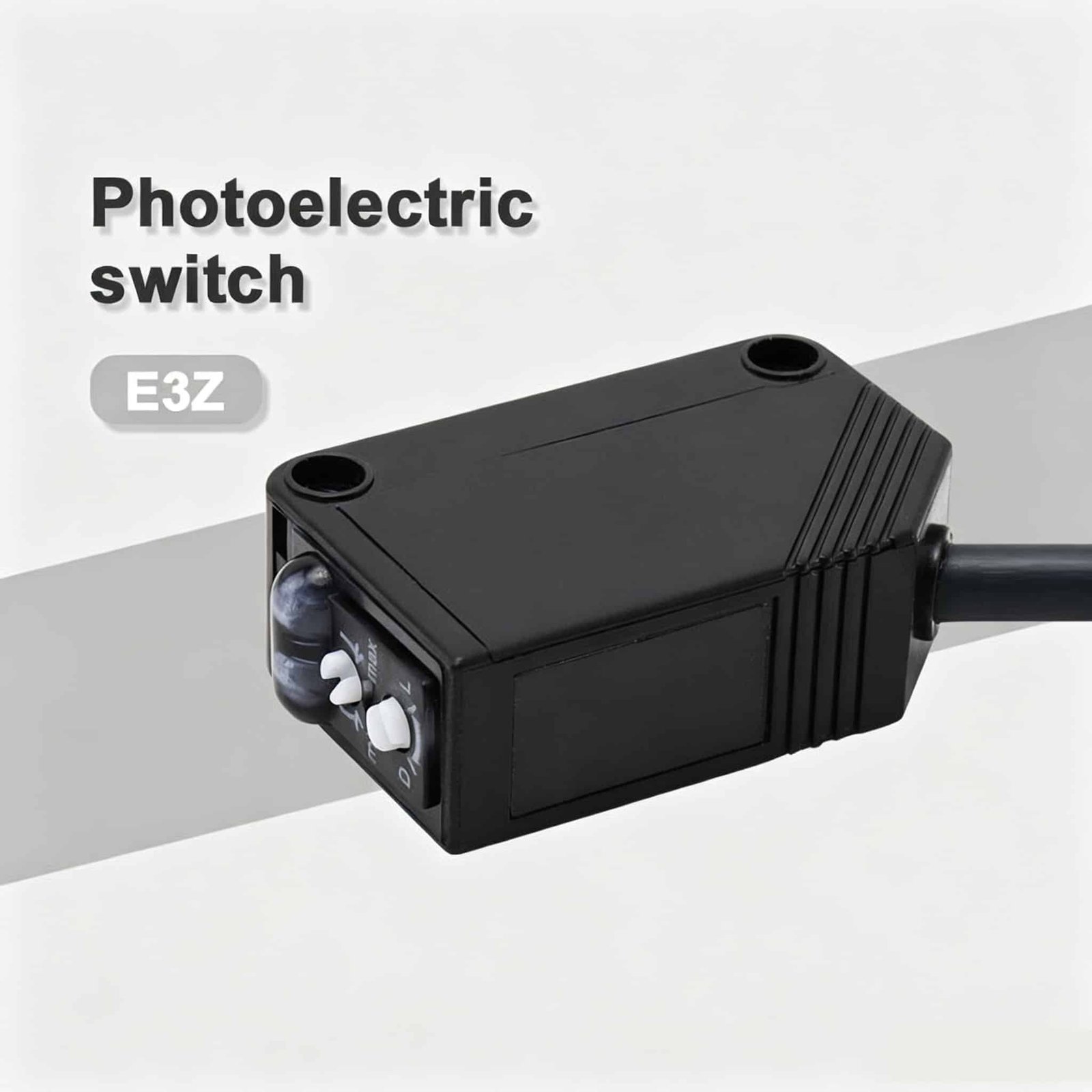

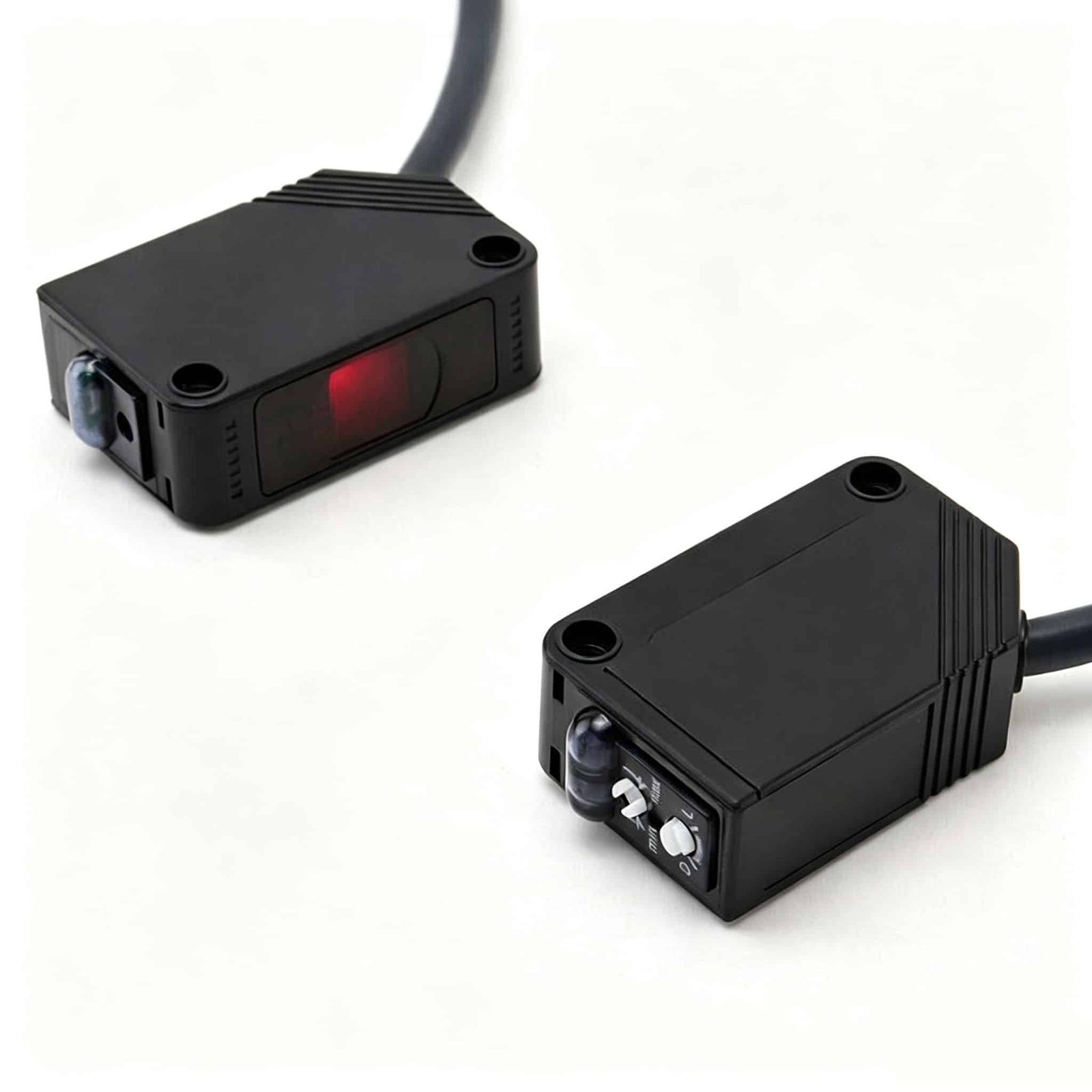

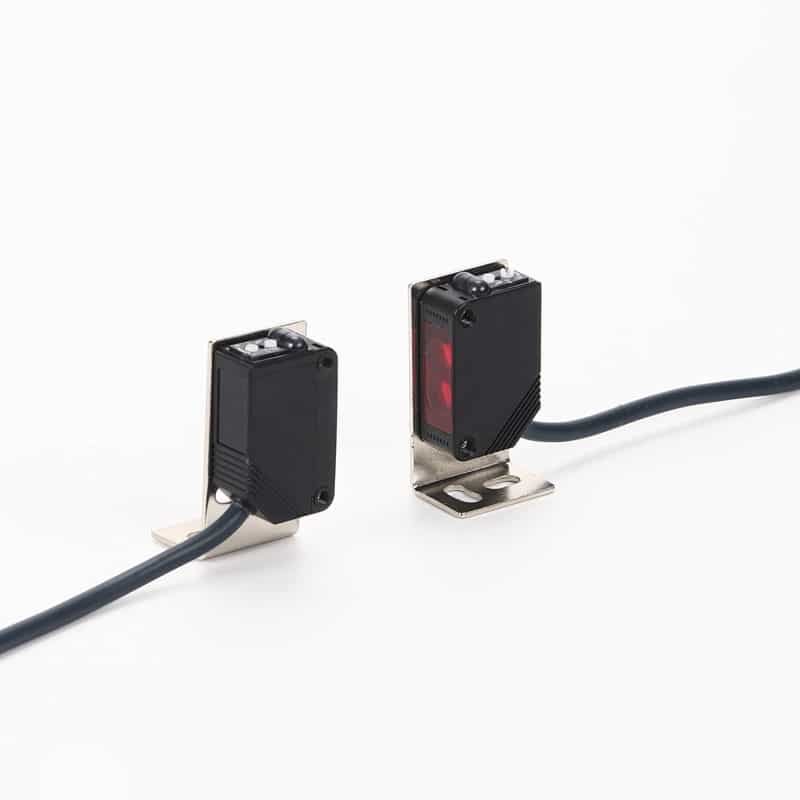

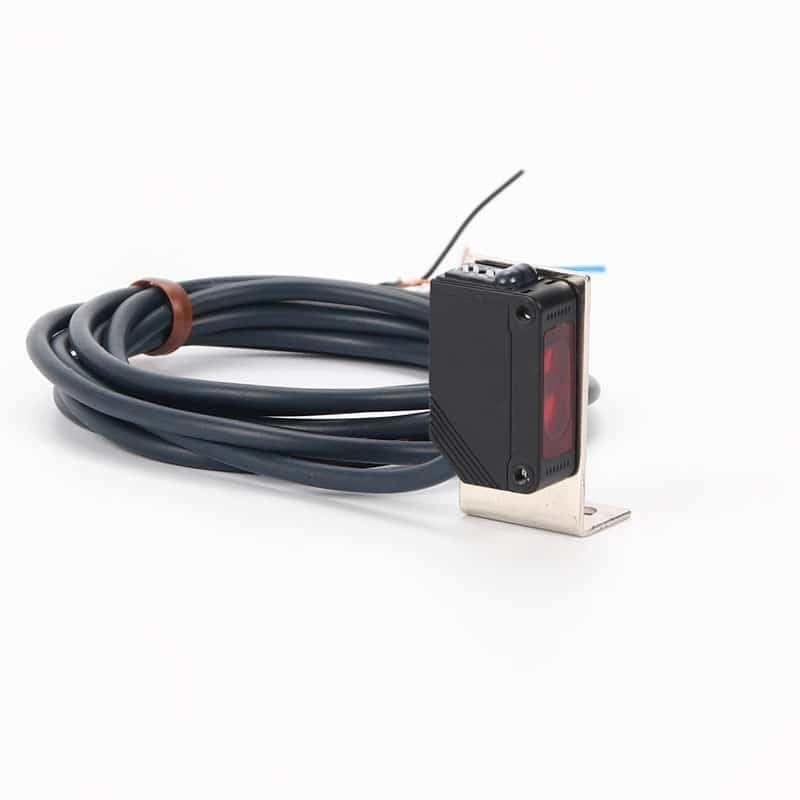

E3Z-D61 Adjustable Photoelectric Sensor
A compact 24 VDC sensor for close-range presence detection. The E3Z-D61 provides an adjustable 5 to 10 cm sensing range and NPN normally open output for logistics, storage and industrial automation equipment.
5-10 cm | NPN NO | 24 VDC
Fine-Tune Close-Range Detection
The E3Z-D61 gives machine builders a small, adjustable sensor for applications where the target position can vary. Set the working distance within the 5 to 10 cm range, then validate performance with the real target material and surface condition before final installation.
- Adjustable range supports practical on-machine setup
- NPN normally open output suits compatible sinking-input PLC circuits
- Compact body fits close to guides, conveyors and storage mechanisms
- Detects transparent and non-transparent objects in suitable application conditions
Made for Practical Machine Detection
5 to 10 cm Setup
Fine-tune the sensing distance around the actual installation space instead of using a single fixed distance.
NPN Normally Open
A straightforward NPN NO output for compatible control circuits and object-present logic.
31 x 20 x 10 mm
The compact black polymer housing is easy to fit beside tracks, slots and tight automation assemblies.
E3Z-D61 Technical Specifications
| Parameter | Specification |
|---|---|
| Model | E3Z-D61 |
| Product Type | Photoelectric sensor |
| Sensing Distance | Adjustable, 5 to 10 cm |
| Supply Voltage | 24 VDC |
| Output | NPN, normally open |
| Housing Material | Polymer |
| Housing Color | Black |
| Detection Capability | Transparent and non-transparent objects |
| Typical Use | Logistics warehouses, storage systems and industrial automation |
| Body Size | 31 x 20 x 10 mm |
Where the E3Z-D61 Fits Best
Use this model for close-range detection where installation space is limited and a simple NPN normally open signal is required.
01
Warehouse Conveyors
Confirm totes, cartons or parcels as they move through compact conveyor zones.
02
Storage Equipment
Detect bin, tray and carrier presence in storage and retrieval mechanisms.
03
Packaging Lines
Verify that a product or package is present before the next machine sequence begins.
04
Compact Assemblies
Monitor part presence or position beside narrow guides, fixtures and machine guards.
Selection and Installation Checklist
Confirm the real target
Transparent, glossy, dark or irregular targets can respond differently. Test the actual product at its normal angle and position before finalizing the setting.
Match the control input
Verify that the PLC or controller uses a compatible sinking-input circuit for the NPN normally open output before wiring.
Send These Details for Fast Selection
- Target material, transparency and dimensions
- Required working distance and mounting space
- PLC input type and wiring requirement
- Quantity, cable requirement and operating environment
Product Questions
Frequently Asked Questions
01
Can the E3Z-D61 detect transparent objects?
It is specified for transparent and non-transparent object detection. Confirm detection performance with the actual material, thickness, background and target path before bulk deployment.
02
Can it connect to a PLC?
Yes. Its NPN normally open output is intended for compatible sinking-input control circuits. Confirm the input type and wiring diagram before installation.
03
Why is the sensing range adjustable?
Adjustment helps accommodate installation tolerances and target variation. Set the sensor with enough operating margin, rather than using the extreme edge of its range.
04
Can XSZ support OEM orders?
Yes. Send the quantity, cable, labeling and packaging requirements for factory evaluation.
Need Pricing or an E3Z-D61 Sample?
Send the target material, working distance, PLC input and order quantity. XSZ will confirm the configuration before quotation.
