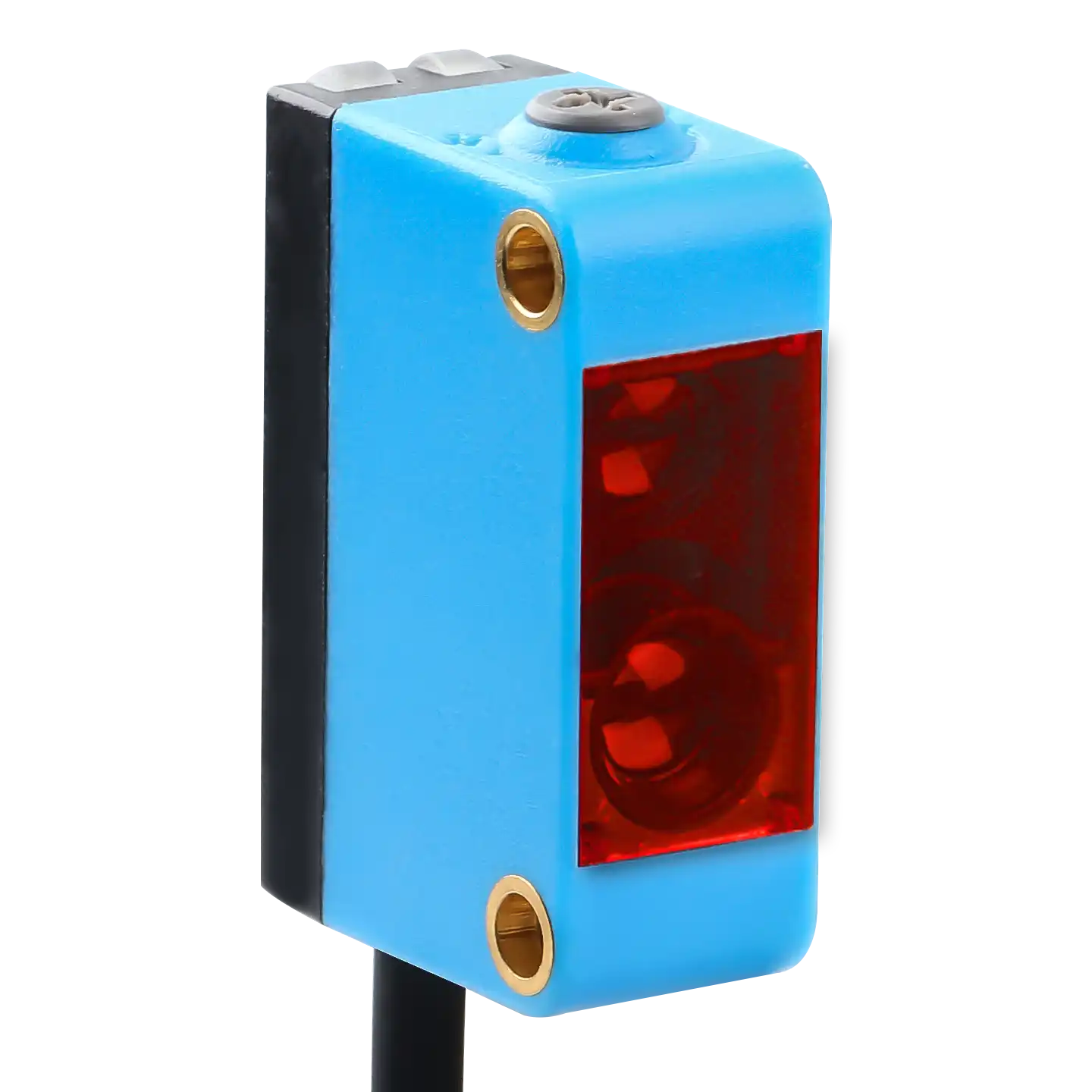

EZ Series BGS Photoelectric Sensor

Availability: In Stock

The EZ Series Background Suppression (BGS) Photoelectric Sensor is engineered for high-precision detection in challenging industrial environments. Utilizing advanced BGS technology, it ensures stable performance regardless of the target’s color, material, or background reflectance. Whether detecting jet-black or pure-white workpieces, the sensor maintains a consistent sensing distance, eliminating the need for frequent readjustments when switching production lines. With a robust IP65-rated housing, excellent anti-interference capabilities, and a rapid 2ms response time, the EZ series is the ideal solution for automated packaging, logistics, and precision assembly lines. Choose between Laser models for micro-spot accuracy or Red LED models for reliable general-purpose sensing.

Category:

描述

EZ Series BGS Sensor

Precision Background Suppression | Immune to Color Interference

Product Overview

The EZ Series leverages advanced Triangulation-based Background Suppression (BGS). Unlike standard sensors, its detection accuracy is independent of the target’s reflectance or color. Whether you are detecting a matte black plastic part or a glossy white ceramic tile, the EZ series ensures a consistent switching point, drastically reducing setup time for multi-product production lines.

Key Technical Features

Color Independence
Minimal black/white error; no need to re-adjust for different workpieces.
Triangulation Method
High-precision distance measurement rather than light intensity detection.
Harsh Environment Ready
IP65 rated with high ambient light immunity (up to 3,000 lx).
Universal Output
Supports NPN/PNP options with adjustable NO/NC settings.

Specifications

Parameter Laser Type Red LED Type
Sensing Range 350 mm 300 mm
Light Source Laser LED (680nm) Red LED (660nm)
Spot Size ø 2 mm ø 6-8 mm
Response Time Action/Reset: Max 2ms
Protection IEC IP65 / Short-circuit Protection

Industrial FAQ

Can this sensor detect objects on a shiny background?

Yes. Because the BGS technology measures distance via triangulation, it ignores any background (shiny or dark) that is beyond the set distance threshold.

Is it suitable for high-speed counting?

Absolutely. With a 2ms response time, it can reliably handle high-speed conveying and counting applications.
