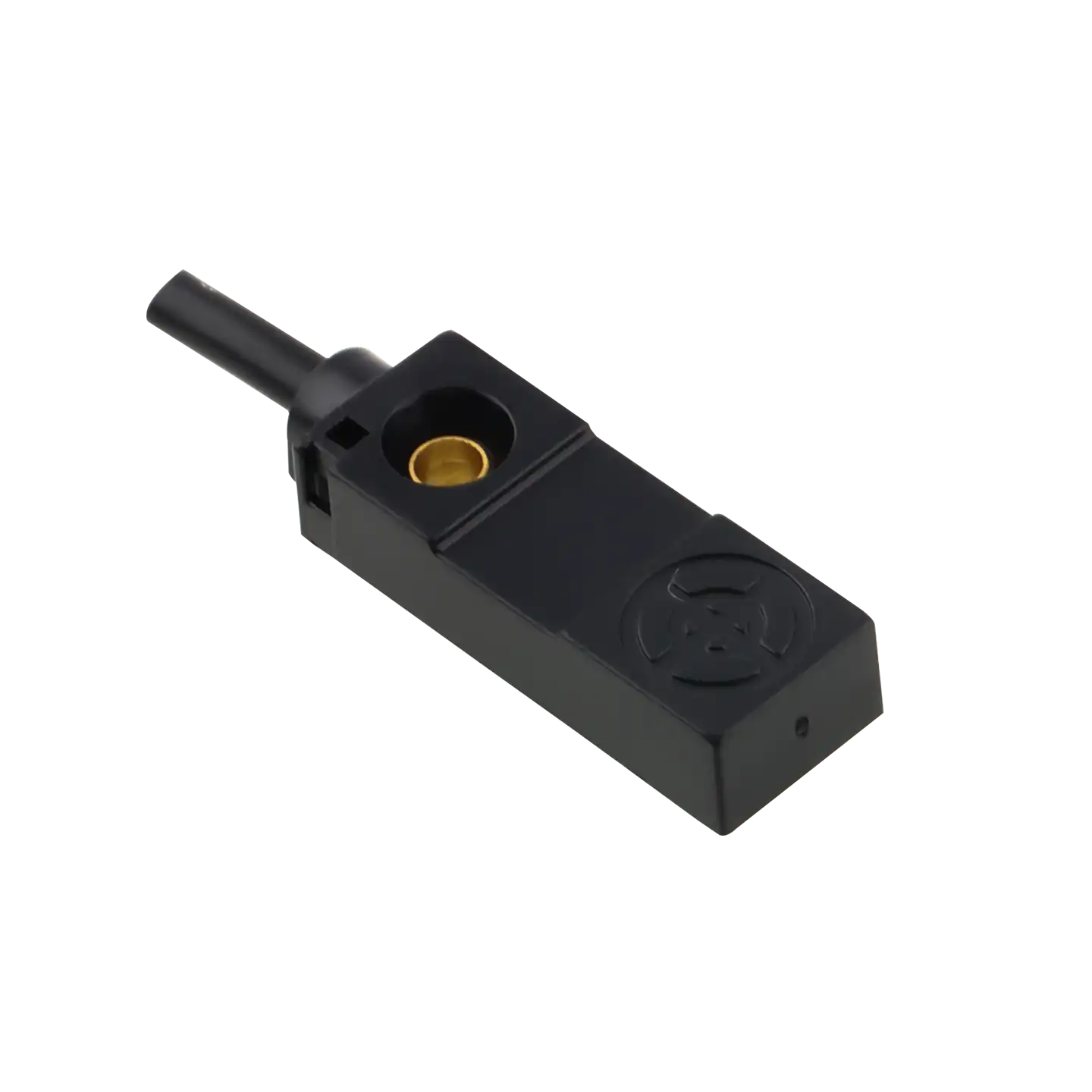

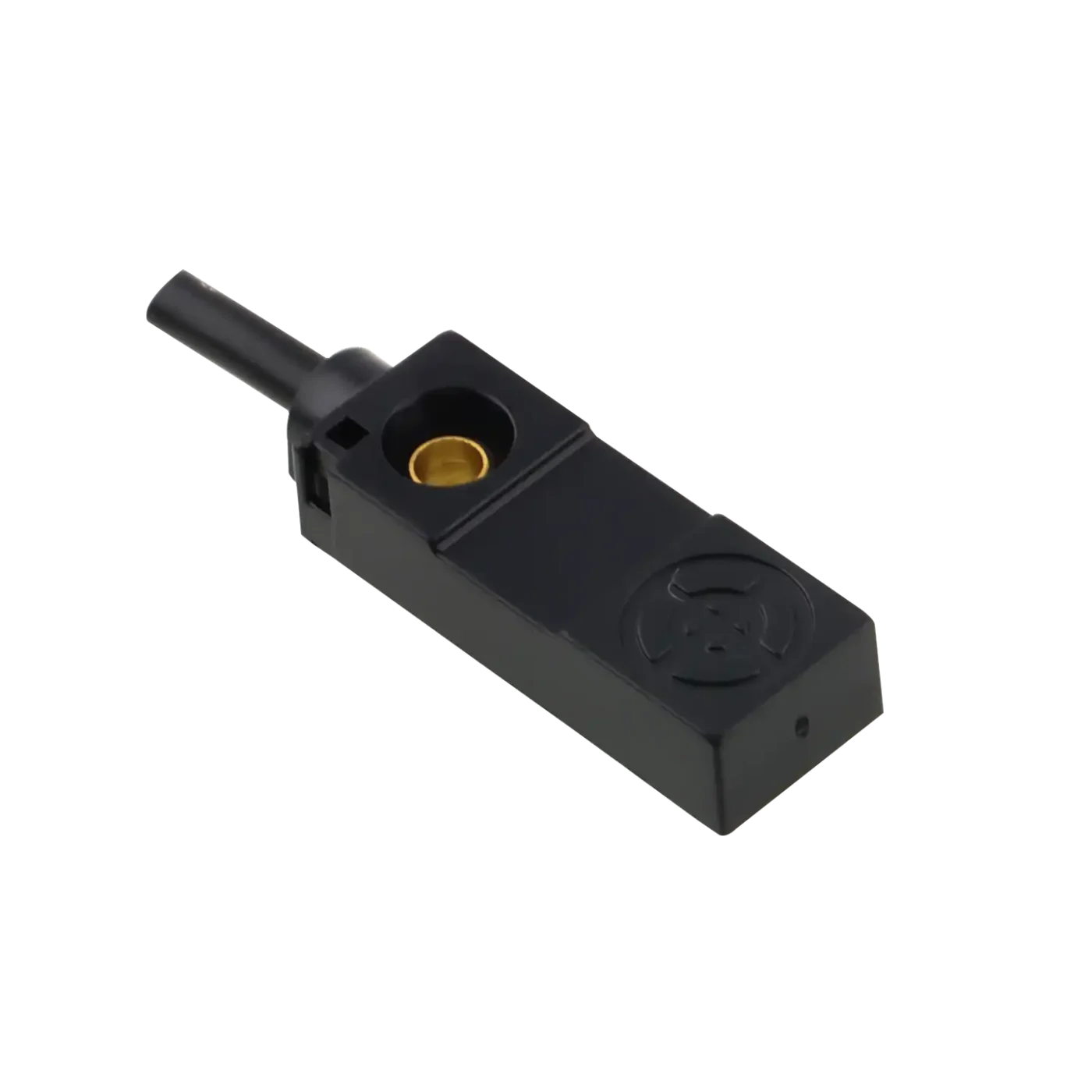

XSZ Flat-Pack Inductive Proximity Sensor
Space-saving, high-performance metal detection. The XSZ Flat-Pack Inductive Proximity Sensor (featuring W3, W5, and SND04 models) delivers stable 3mm and 5mm sensing ranges in a highly compact, flush-mountable rectangular housing, ensuring outstanding durability in oil-soaked and dusty industrial environments.
Key Performance Advantages
Ultra-Compact Footprint
The sleek, flat-pack rectangular design is tailor-made for flush mounting against machine walls and integrating into tight clearances where standard cylindrical sensors cannot be used.
Wear-Free Reliability
Non-contact inductive technology entirely eliminates mechanical wear. It provides a virtually limitless operational life while shrugging off cutting fluids, airborne dust, and severe vibrations.
High-Speed Processing
With a swift response frequency reaching up to 800Hz and a robust 200mA load capacity, it ensures precision and accuracy for fast-paced automated assembly operations.
Comprehensive Technical Specifications
| Specification | W3 Series | W5 / SND04 Series |
|---|---|---|
| Housing Design | Compact Rectangular Flat-Pack | |
| Installation Method | Flush Mount (Shielded) | |
| Sensing Distance | 3 mm ± 10% | 5 mm ± 10% |
| Standard Sensing Object | Iron 14 × 14 × 1 mm | Iron 18 × 18 × 1 mm |
| Response Frequency | 800 Hz | 600 Hz |
| Detectable Object | Magnetic metal (Sensing distance reduces for non-magnetic metals) | |
| Operating Voltage Range | DC 10 to 30V (12-24 VDC nominal, Ripple P-P: 10% max) | |
| Load Current (Output) | 200 mA Max. (Residual Voltage: 1.5V Max.) | |
| Current Consumption | 10 mA Max. | |
| Control Output | NPN / PNP | NO (Normally Open) / NC (Normally Closed) available | |
| Protection Circuits | Reversed power supply polarity protection | |
| Environmental Specs | Operating Temp: -25 to +70°C | Storage: -40 to 80°C | Connection: Pre-wired cable | |
Wiring & Circuit Diagram
Please consult the wiring diagrams below to securely integrate the NPN/PNP flat-pack proximity switch into your control panel.
Ideal Industrial Applications
Compact, flat profile seamlessly integrates into tight mechanical grippers and moving carriages.
Perfect for component verification and positioning in space-limited manufacturing stations.
Flush-mounts easily along narrow conveyor profiles for reliable metallic part tracking.
Maximize Your Space Efficiency
Connect with our XSZ technical experts to integrate our versatile flat-pack inductive sensors into your next tight-space project.
Zhejiang Xinsenzheng Automation Co., Ltd. – PRECISION & INNOVATION
