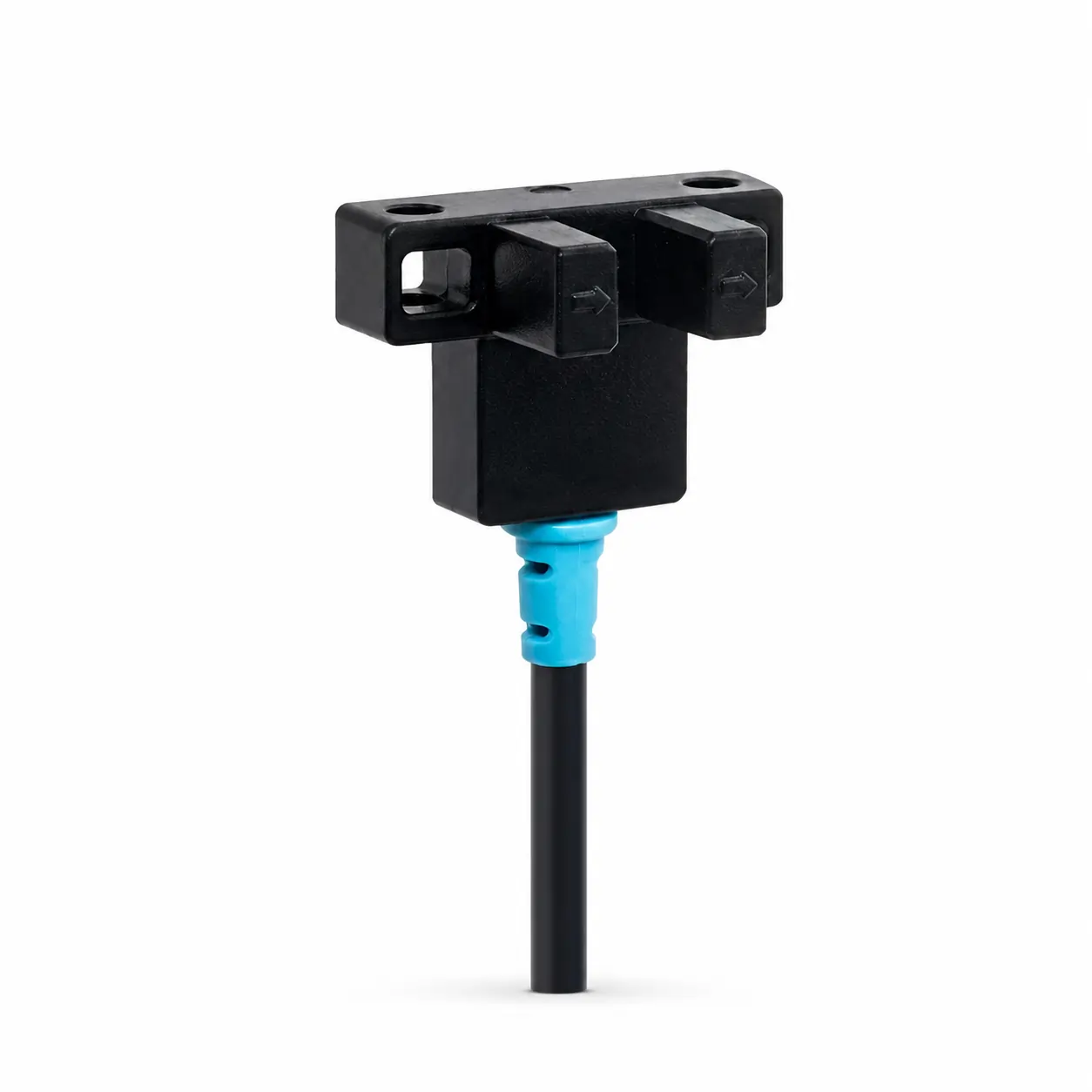

EUSL-U30 Series L Wired Slot Photo Sensor
Dual-Channel Precision meets Plug-and-Play Reliability – The Professional L Wired Slot Photo Sensor Choice for Confined Spaces & Vibration-Heavy Machinery.
The “L Wired” Advantage
The L Wired Slot Photo Sensor perfectly balances space optimization with mechanical durability. Its distinct L-shape geometry mounts flush against machinery walls, saving critical lateral space. Combined with a factory-sealed, pre-wired cable connection, it entirely eliminates connector detachment risks caused by high-frequency vibrations.
- Pre-wired 2M cable ensures 100% stable signal transmission
- L-shape geometry ideal for flush-mounting and edge guiding
- IP6X rated sealing at the wire entry point against dust and oil
Key Performance Advantages
Dual-Channel Independent Output
Equipped with independent A/B optical axes. Dedicated Red/Yellow LED indicators allow engineers to monitor dual-way signals directly from the sensor body.
1ms Ultra-Fast Response
With a maximum response time of 1ms, it eliminates signal lag, ensuring high-speed accuracy for counting, web guiding, and fast-moving elevator leveling.
Advanced Optical Shielding
Integrated with a proprietary ASIC chip, it offers unique optical signal crosstalk shielding and extreme resistance to factory ambient light (up to 10,000 lx).
Technical Specifications
| Parameter | Detailed Specification |
|---|---|
| Models | EUSL-U30R3C4-L-W (NPN) / EUSL-U30X3C4-L-W (PNP) |
| Detection Type | L Wired Slot Photo Sensor / 30mm Gap Distance |
| Detectable Object | Opaque object (above φ 12mm) |
| Supply Voltage | DC 10 to 30V (Ripple P-P: 10% Max.) |
| Operation Mode | Light-ON / Dark-ON (Selectable via control wire) |
| Control Output | Open collector output, Load current 100mA Max. |
| Number of Optical Axes | 2 Axes (Independent dual-channel) |
| Environment Resistance | Dust resistance >1500%; Ambient light: 10,000 lx max (Sunlight) |
| Material & Connection | Case: ABS, Lens: PC; Integrated Pre-wired 2M Cable (Oil-resistant) |
Wiring & Output Logic
*Note: The sensor supports both Light-ON and Dark-ON configurations depending on the pink/white wire connection. Please refer to the manual for detailed integration.
Versatile Pre-Wired L-Type Applications
- Space-Constrained Machinery: Flush-mounts to equipment walls seamlessly using the right-angle L-shape design.
- Vibrating Equipment: Ideal for stamping presses and feeders where plug-in connectors might rattle loose.
- Web Guiding Systems: Perfect clearance for monitoring the edges of moving films, paper, or conveyor belts.
- Wet/Oily Environments: The sealed wire entry point prevents fluid ingress better than standard M8/M12 connectors.
- Elevator Shafts: High-precision floor leveling in tight structural clearances.
Industrial Protection Features
Circuit Protection: Integrated safeguards against reversed power supply polarity and instantaneous overvoltage.
Smart LED Diagnostics: Three LED system (Green for Power/Circuit, Red/Yellow for A/B output channels) for instant troubleshooting.
Rugged Housing: ABS casing with high vibration resistance (10 to 55 Hz), designed to outlast harsh mechanical shocks.
