Large Static Ring Series

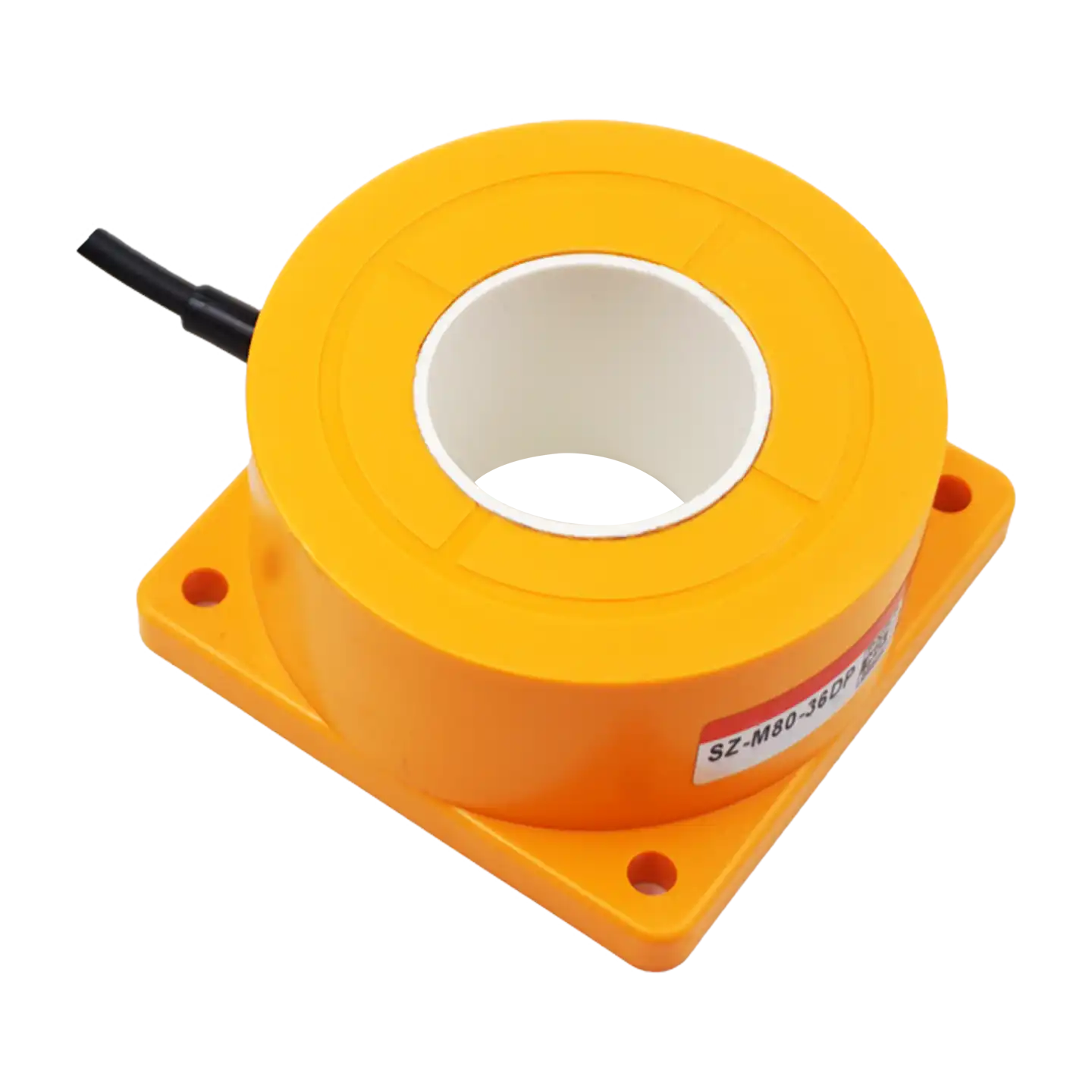

XSZ Large Inductive Static Ring Sensor
Unparalleled tracking for bulky industrial parts. The XSZ Large Inductive Static Ring Sensor provides continuous, highly reliable metal detection for heavy piece counting and automated jam control. With massive hole diameters from 36mm up to 174mm, it is perfectly engineered for large-scale automated feeding systems.
Key Performance Advantages
Continuous Static Detection
This static model generates a continuous output signal as long as bulky metallic objects remain within the detection ring, making it highly effective for monitoring major blockages and material jams in large feed pipes.
Extreme Size & Customization
Offering standard diameters ranging from 36mm to an incredible 174mm. We also support comprehensive non-standard customization to precisely match your unique mechanical requirements.
High Capacity & Precision Tuning
Equipped with a multi-turn potentiometer for fine sensitivity adjustments, it maintains a rapid response time of 35ms Max alongside robust surge protection for heavy electrical loads.
Comprehensive Technical Specifications
| Specification | Standard Value |
|---|---|
| Hole Diameter (Inner) | 36mm, 47mm, 60mm, 70mm, 85mm, 105mm, 155mm, 174mm |
| Customization Options | Support full customization for non-standard ring inner diameters |
| Detectable Object | Metals (Heavy hardware, thick cables, large springs, metal billets) |
| Sensitivity Adjustment | Multi-turn potentiometer |
| Operating Voltage Range | DC 10 to 30V (12-24 VDC nominal, Ripple P-P: 10% max) |
| Load Current (Output) | 200 mA Max. (Residual Voltage: 1.5V Max.) |
| Current Consumption | 17 mA Max. |
| Response Time | 35 ms (Max.) |
| Control Output | NPN / PNP | NO (Normally Open) / NC (Normally Closed) available |
| Protection Circuits | Reversed power supply polarity protection, Surge suppressor |
| Housing Material | Durable ABS |
| Environmental Specs | Operating Temp: -25 to +70°C | Storage: -40 to 80°C | Connection: Pre-wired cable |
Wiring & Circuit Diagram
Please consult the wiring diagrams below to securely integrate the NPN/PNP large ring sensor into your automated feeding control system.
Ideal Industrial Applications
Accurately inspects and counts massive metal blocks, heavy castings, and large hardware parts.
Provides immediate static detection for thick industrial cable breakage or structural faults.
Monitors wide feed lines for material blockages by generating a continuous signal when bulky parts accumulate.
Optimize Your Heavy Parts Inspection
Connect with our XSZ technical experts to customize the perfect large-aperture inductive ring sensor for your specific heavy feeding applications.
Zhejiang Xinsenzheng Automation Co., Ltd. – PRECISION & INNOVATION
