SZ-FJG Series Square Photoelectric Sensor

In Stock

The SZ-FJG Series square photoelectric sensor from Henghao Electronic Technology is a premium automation solution engineered for high-speed precision and versatility. Featuring a visible red LED light source and a concentrated small light spot, this series simplifies alignment and ensures pinpoint accuracy in detecting even small objects. It offers a wide range of detection modes, including Through-beam (up to 10m), Retro-reflective (4m), and Diffuse reflective types with adjustable distances up to 1500mm. Built for reliability, the SZ-FJG series boasts a rapid 5ms response time, making it ideal for high-speed production lines.

描述

Miniature IR Series

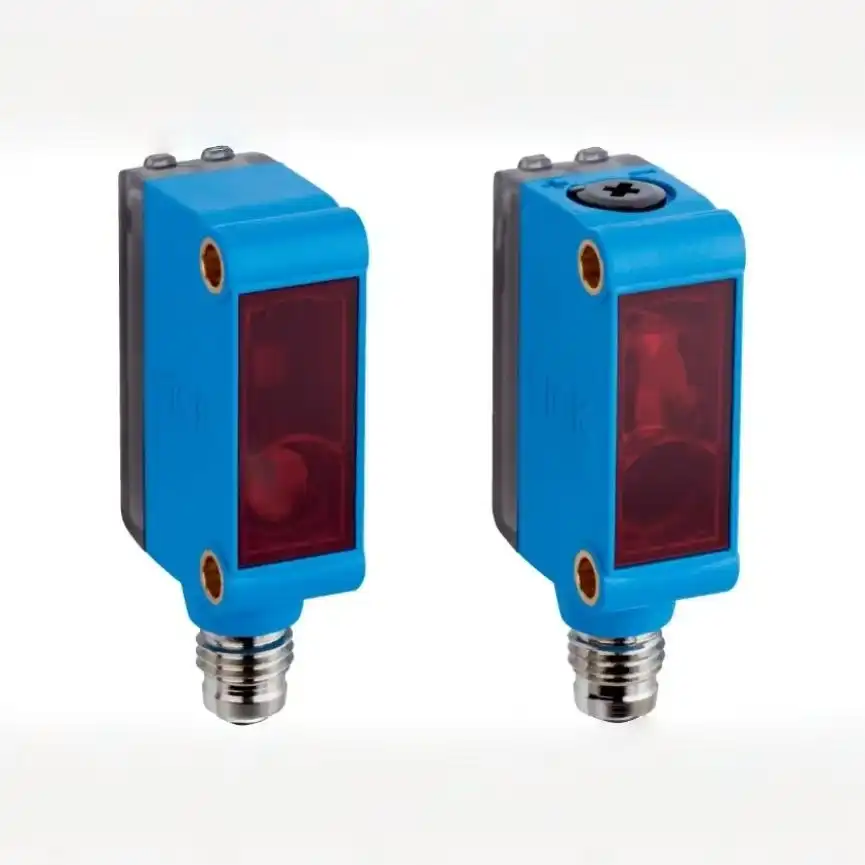

XSZ Miniature Square Infrared Photoelectric Sensor

Compact size meets high penetration power. The XSZ Miniature Square Infrared Sensor utilizes an invisible IR beam to effortlessly cut through dust and resist ambient light interference, all within a space-saving, flat-mountable housing ideal for confined industrial environments.

Get Quotes

✔ Invisible IR Beam | ✔ Flat Space-Saving Mount | ✔ High Dust Immunity

Key Performance Advantages

📡

Infrared Penetration

The powerful invisible infrared LED effortlessly penetrates airborne dust, paper particles, and mist, drastically reducing false alarms in challenging factory settings.

📐

Space-Saving Footprint

The ultra-compact rectangular profile is engineered to fit into tight machine clearances where standard cylindrical or heavy-duty sensors simply cannot be installed.

💡

Ambient Light Resistance

Highly immune to external optical interference from overhead factory lighting or direct sunlight, ensuring stable and reliable detection 24/7.

Comprehensive Technical Specifications

Specification	Standard Value
Housing Design	Miniature Square / Rectangular Flat Mount (High-durability polymer)
Sensing Modes	Diffuse Reflective / Retro-Reflective / Through-Beam
Light Source	Invisible Infrared (IR) LED
Sensing Distance	Diffuse: Up to 10cm-30cm \| Retro: Up to 2m \| Through-Beam: Up to 5m+ (Dependent on model)
Power Supply Voltage	DC 10~30V ± 10% (Ripple P-P < 10%)
Control Output	NPN / PNP Open Collector \| Light-ON / Dark-ON selectable \| Max 100mA
Response Time	Max 1 ms
Protection Circuits	Reverse polarity protection, Output short-circuit protection, Anti-interference design
Environmental Specs	Operating Temp: -25 to +55°C \| Protection Degree: IP65 / IP67 Equivalent

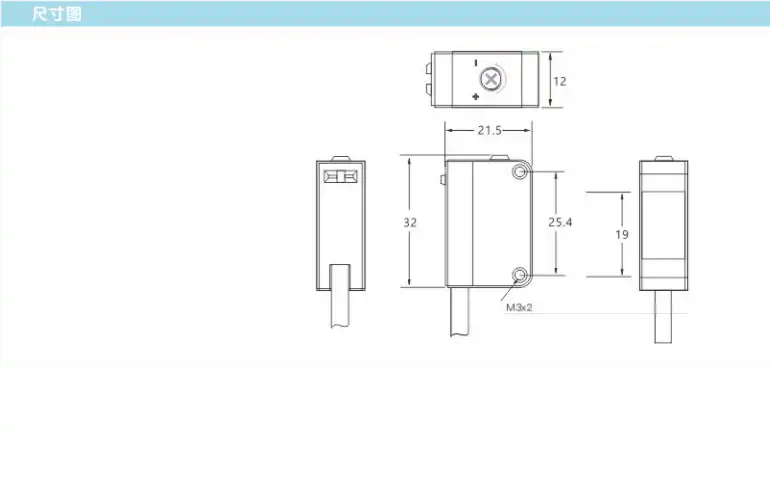

Wiring & Circuit Diagram

Please consult the wiring diagrams below to correctly connect the NPN/PNP output of your miniature IR sensor.

Ideal Industrial Applications

Printing & Paper Machinery
Highly effective at ignoring airborne paper dust while maintaining precise flat-mount detection.

Micro-Robotics & AGVs
Perfect for collision avoidance and object detection where internal mounting space is minimal.

Packaging Lines
Reliable carton and product counting despite variations in factory lighting conditions.

Maximize Reliability in Minimum Space

Our XSZ technical team is ready to help you seamlessly integrate these compact infrared sensors into your most demanding environments.

Get Quotes
