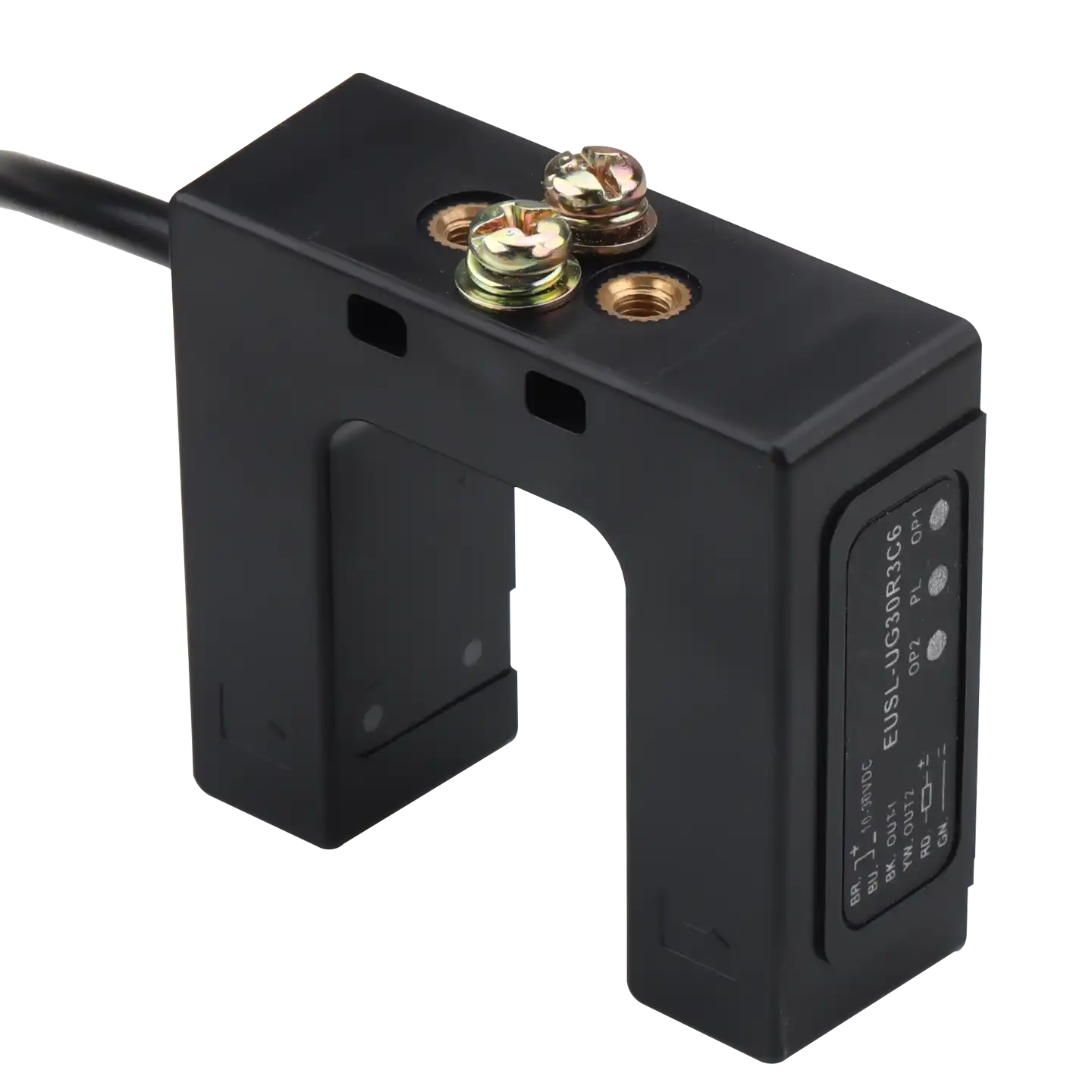

EUSL-U30 Series Level Photoelectric Switch
Dual-Channel Precision & High Dust Resistance – The Professional Choice for Elevator Leveling & Industrial Automation.
Key Performance Advantages
Dual-Way Detection
Equipped with independent dual-channel output and dedicated Red/Yellow LED indicators for simultaneous A/B monitoring.
1ms Ultra-Fast Response
Minimal response time of 1ms Max ensures high-speed accuracy for counting and positioning in dynamic systems.
Advanced Shielding
Unique optical signal crosstalk shielding and electromagnetic interference resistance for stable operation.
Technical Specifications
| Parameter | Detailed Specification |
|---|---|
| Models | EUSL-U30R3C4 (NPN) / EUSL-U30X3C4 (PNP) |
| Detection Type | Grooved-type (Slot Type) / 30mm Distance |
| Detectable Object | Opaque object (above φ 12mm) |
| Supply Voltage | DC 10 to 30V |
| Response Time | Operate or Reset: 1 ms Max. |
| Control Output | Open collector output, Load current 100mA Max. |
| Number of Optical Axes | 2 Axes (Independent dual-channel) |
| Environment Resistance | Dust resistance >1500%; Ambient light: 10,000 lx max (Sunlight) |
| Material & Connection | Case: ABS, Lens: PC; Pre-wired 2M Cable |
Versatile Applications
- Elevator Leveling: High-precision floor leveling and positioning.
- Logistics & Sorting: Package detection on fast-moving conveyors.
- Automated Manufacturing: Dual-channel counting and component checks.
- Robotics: Mechanical arm position feedback and travel limits.
- Opaque Object Sensing: Reliable detection for objects >12mm.
Protection Features
Circuit Protection: Reversed power supply polarity and instantaneous overvoltage protection.
Smart Indicators: Three LED system (Green for Circuit, Red/Yellow for A/B Channels) for instant diagnosis.
Rugged Design: ABS housing with high vibration resistance (10 to 55 Hz) for industrial stability.
Need more technical details on the EUSL-U30 Series? Contact us today.
