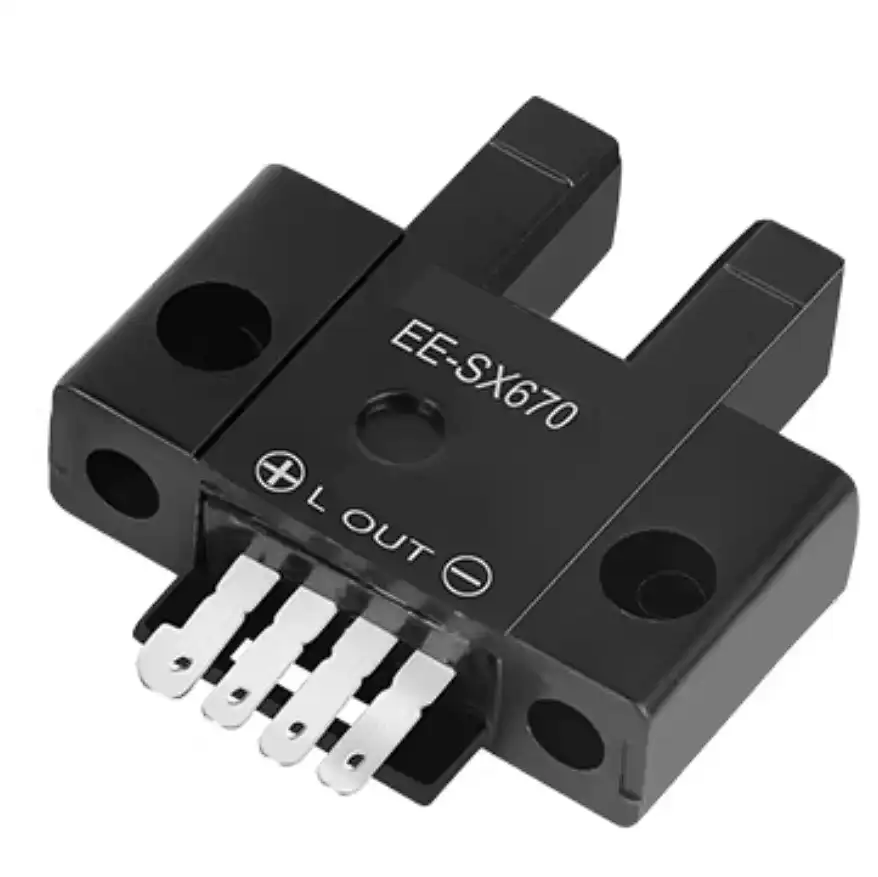

XSZ Compact Slot-Type Photoelectric Sensor
Engineered for precision in constrained spaces. The XSZ Compact Slot-Type Photoelectric Sensor features a standard 5mm slot width and a high-intensity infrared LED, delivering 1ms ultra-fast response times for micro-object detection in modern automation equipment.
Key Performance Advantages
Micro-Object Detection
Highly sensitive infrared optics guarantee the reliable detection of opaque objects as small as 2 x 0.8 mm, making it ideal for precision tracking.
Flexible Integration
Available in multiple form factors including the 45 Series, and the 67 Series with both pre-wired (WR) and convenient plug-in connector types.
Selectable Operation
Features built-in flexibility allowing users to easily switch between L.ON (Light-ON) and D.ON (Dark-ON) modes to suit any application requirement.
Comprehensive Technical Specifications
| Specification | Standard Value |
|---|---|
| Design Type | Compact Slot / U-Shaped (45 Series, 67 Pre-wired, 67 Plug-in) |
| Sensing Distance | 5 mm (Standard Slot Width) |
| Standard Sensing Object | Opaque object: 2 × 0.8 mm Min. |
| Light Source | Infrared (IR) LED |
| Power Supply Voltage | DC 12~24V ± 10% (Ripple P-P < 10%) |
| Current Consumption | 17 mA Max. |
| Control Output | NPN / PNP Open Collector | Load Current: 100mA Max. |
| Action Mode | L. ON (Light-intake) / D. ON (Light-blocking) Switchable |
| Response Time | Action / Reset: 1 ms Max. |
| Protection Circuits | Reversed power supply polarity protection, Surge Absorption |
| Environmental Specs | Operating Temp: -25 to +55°C | Ambient Illumination: Fluorescent lamp 1000 lx Max. |
Ideal Industrial Applications
Perfect for lead frame detection and indexing in highly constrained cleanrooms.
Lightweight and compact design for end-of-arm tooling and moving carriages.
Accurate timing marks, label counting, and edge detection on fast-moving webs.
Compact Solutions for High Precision
Our XSZ technical team is ready to help you implement our reliable slot-type sensors into your miniature assemblies.
