XSZ PROXIMITY SENSORS

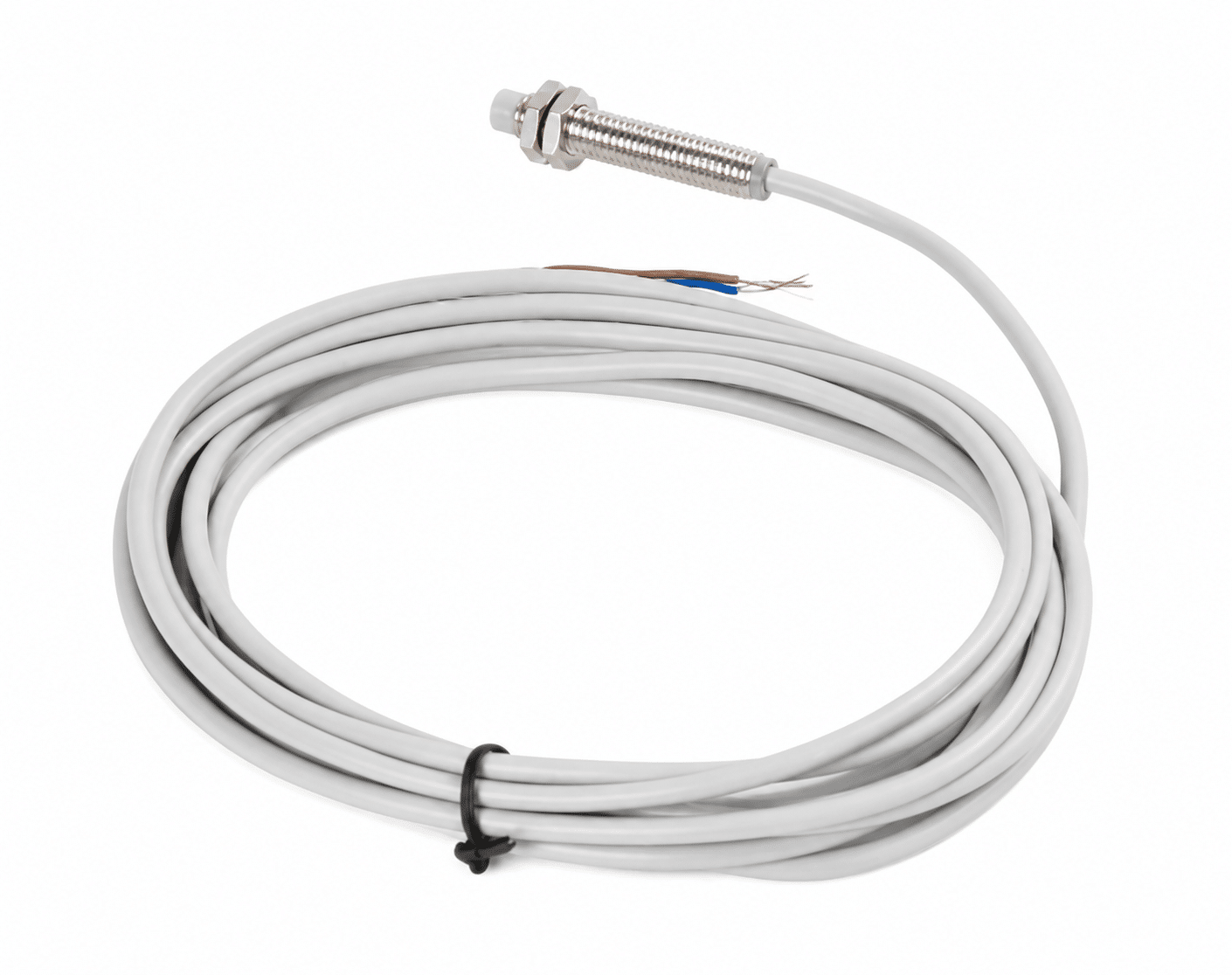

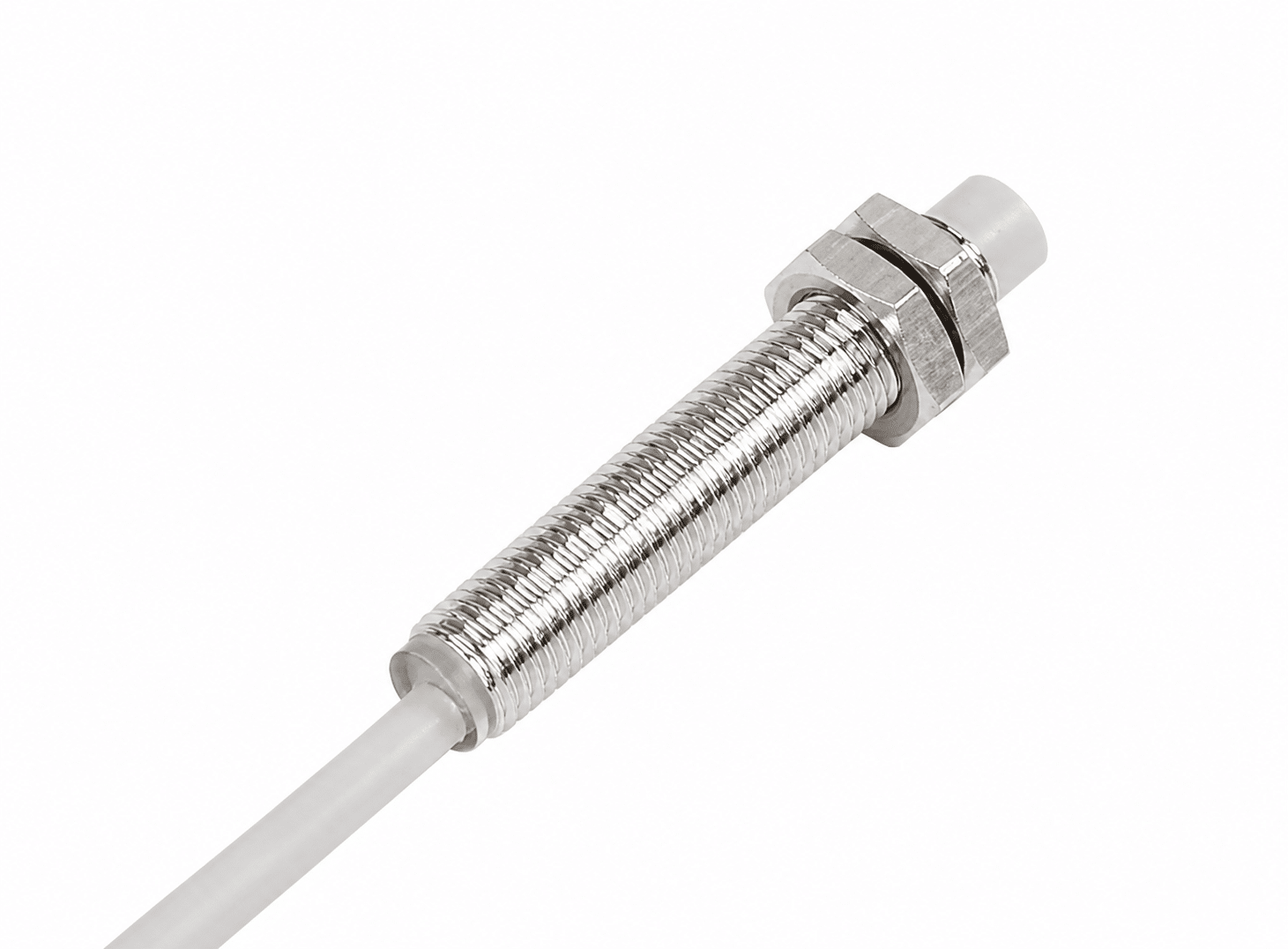

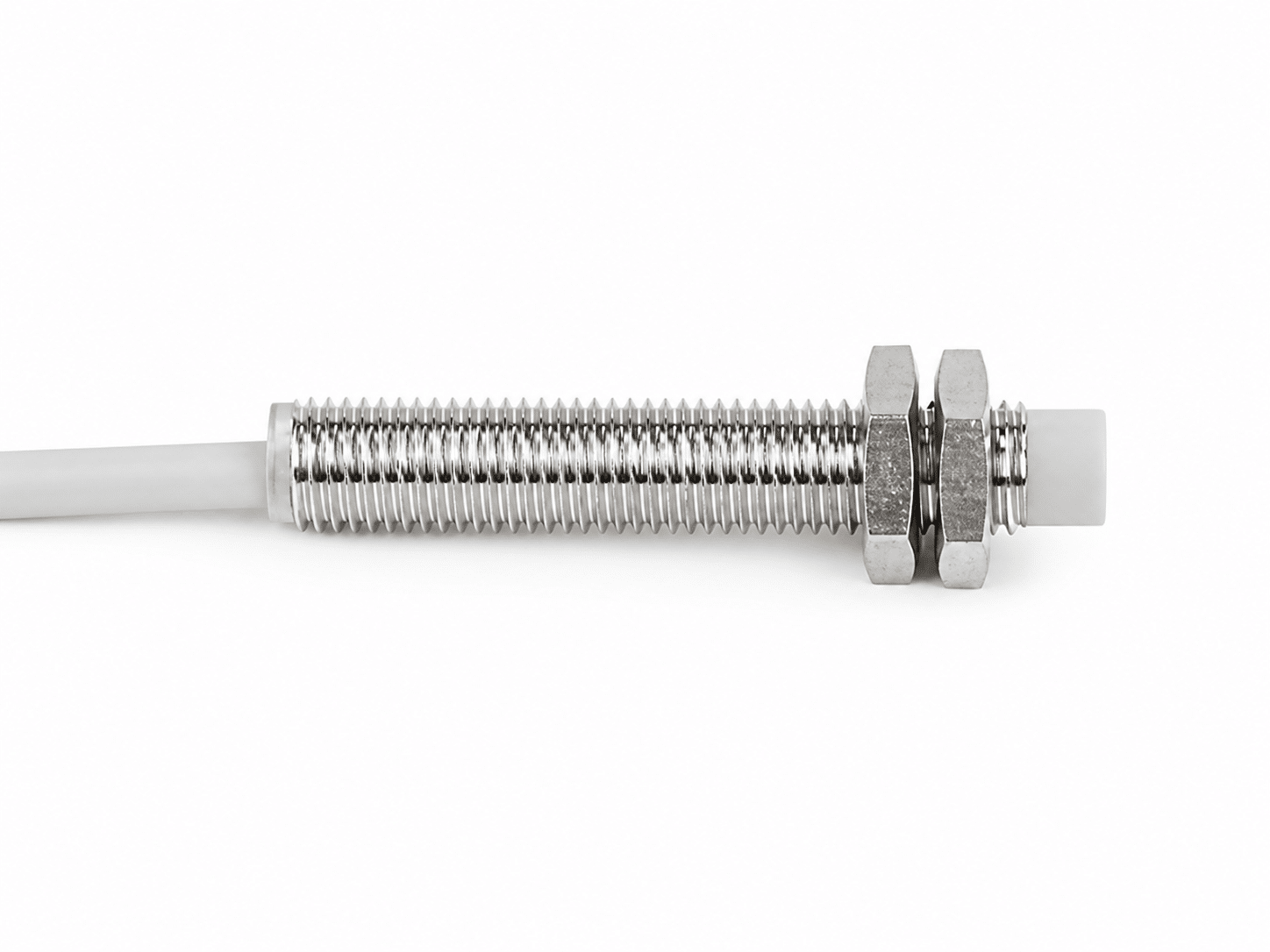

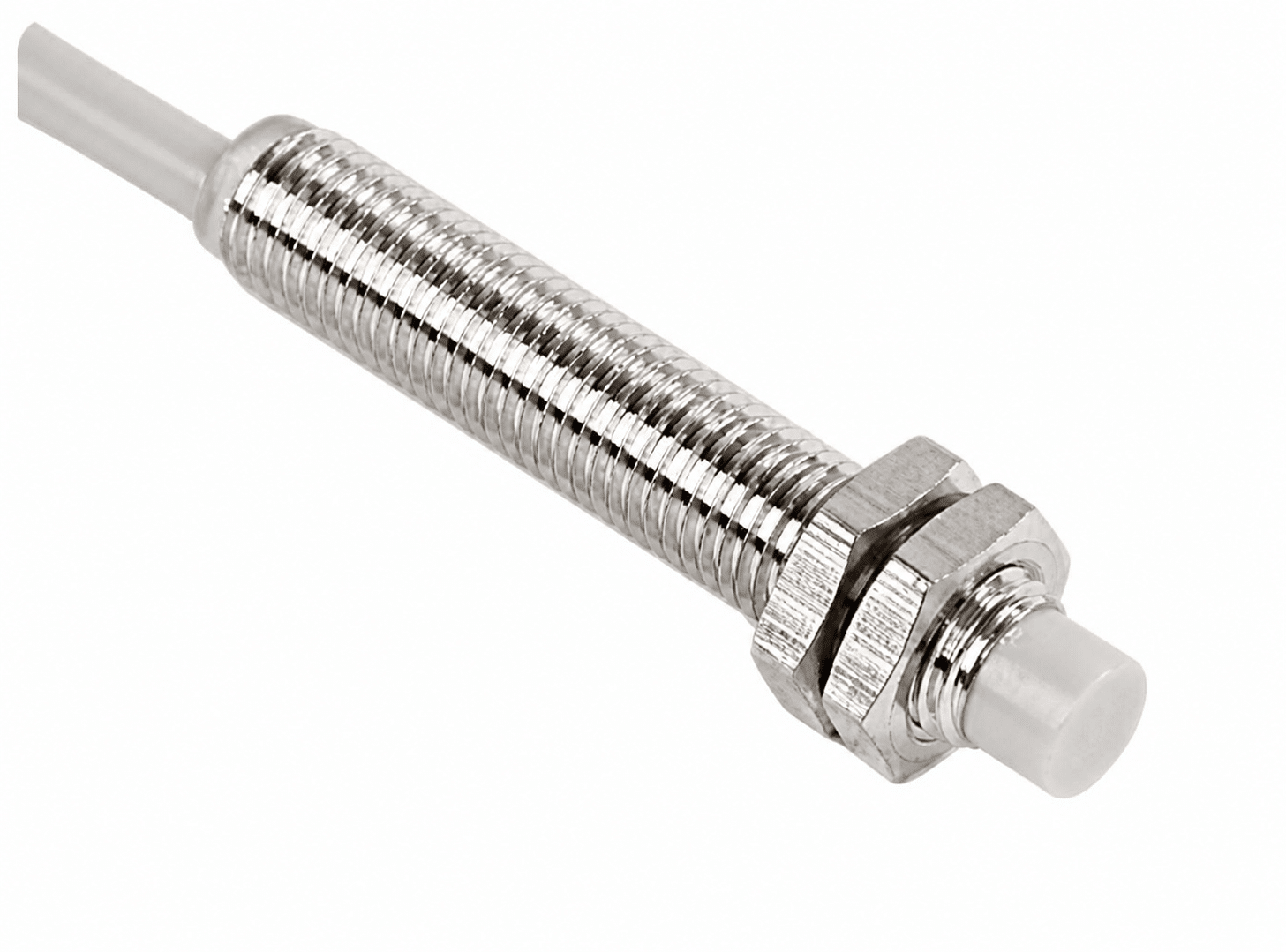

SZ-M8-2DN M8 Non-Flush Proximity Sensor
A compact M8 non-flush DC proximity sensor with NPN normally open output and a 2 mm sensing distance for industrial detection.
Choose a compact M8 non-flush sensor
XSZ SZ-M8-2DN is the 2 mm M8 non-flush DC NPN normally open model in the supplied matrix. It has a 45 mm body length, 8 mm diameter, an iron 12 x 12 x 1 mm standard target, 800 Hz response frequency, and 0.2 ms response time.
This page includes only 2 mm, 4 mm, and 6 mm M8 non-flush variants. Select the output configuration and sensing distance that match your controller and mounting requirements.
Key product advantages
M8 non-flush distances
The source provides 2 mm, 4 mm, and 6 mm non-flush options for compact M8 installations.
Output configuration choice
The source lists DC NPN, DC PNP, DC two-wire, and AC two-wire outputs where a corresponding model code is available.
Industrial reference parameters
The supplied specification table lists insulation, withstand voltage, circuit protection, environmental limits, and a nickel-plated brass housing with ABS sensing face.
Type and Specification
| Type and Specification | ||||
|---|---|---|---|---|
| Dimension | M8; body length 45 mm; body diameter 8 mm | |||
| Installation type | Non-flush, 2 mm | Non-flush, 4 mm | Non-flush, 6 mm | |
| NPN DC type | NO | SZ-M8-2DN | SZ-M8-4DN | SZ-M8-6DN |
| NC | SZ-M8-2DN2 | SZ-M8-4DN2 | SZ-M8-6DN2 | |
| PNP DC type | NO | SZ-M8-2DP | SZ-M8-4DP | SZ-M8-6DP |
| NC | SZ-M8-2DP2 | SZ-M8-4DP2 | SZ-M8-6DP2 | |
| DC two-wire type | NO | SZ-M8-2DO | SZ-M8-4DO | |
| NC | SZ-M8-2DC | SZ-M8-4DC | ||
| AC two-wire type | NO | SZ-M8-2AO | ||
| NC | SZ-M8-2AC | |||
| Sensing distance | 2 mm | 4 mm | 6 mm | |
| Standard detection target | Iron 12 x 12 x 1 mm | Iron 15 x 15 x 1 mm | Iron 20 x 20 x 1 mm | |
| Response frequency | 800 Hz | 800 Hz | 500 Hz | |
| Response time | 0.2 ms | 0.3 ms | 0.5 ms | |
| Repeat accuracy | 1% | |||
| Hysteresis | Less than 10% of detection range | |||
| Detectable target | Magnetic metal. Detection distance decreases for non-magnetic metal. | |||
| Consumption current | N/P type: less than 13 mA; D type: less than 0.8 mA; A type: less than 1.7 mA | |||
| Control output | N/P type: less than 300 mA; D type: less than 200 mA; A type: less than 400 mA | |||
| Circuit protection | N/P/D type: reverse-connection protection, surge absorption, and load short-circuit protection; A type: surge absorption | |||
| Operating and storage environment | -30 to +65 deg C, no freezing or condensation; 35-95% RH | |||
| Insulation resistance | At least 50 Mohm at DC 500 V megohmmeter, between live parts and housing | |||
| Withstand voltage | AC 1000 V, 50/60 Hz, 1 minute between live parts and housing | |||
| Temperature influence | -30 to +65 deg C at +23 deg C: within +/-15% of detection range; -25 to +65 deg C at +23 deg C: within +/-10% of detection range | |||
| Voltage influence | Within +/-15% of rated supply-voltage range; at rated supply voltage, within +/-10% of detection range | |||
| Material | Housing: nickel-plated brass; sensing face: ABS | |||
| Supply voltage, protection class, and connection | Confirm with XSZ before order | |||
Where it helps
Selection and installation checklist
- Verify that NPN normally open logic matches the connected controller input.
- Use the 2 mm non-flush version with the specified 12 x 12 x 1 mm standard iron target.
- Check that the target is magnetic metal; non-magnetic metal reduces the detection distance.
- Confirm supply voltage, protection class, connection type, wiring, and selected output configuration with XSZ before order.
Frequently asked questions
What is the SZ-M8-2DN sensing distance?
The selected M8 non-flush version has a 2 mm sensing distance and uses a 12 x 12 x 1 mm standard iron target.
Which non-flush M8 versions are listed?
This page lists 2 mm, 4 mm, and 6 mm M8 non-flush variants.
What is the response frequency?
The supplied matrix lists 800 Hz for the 2 mm and 4 mm versions and 500 Hz for the 6 mm version.
What should be confirmed before order?
Confirm the exact model configuration, supply voltage, protection class, connection and wiring, controller input, and target compatibility with XSZ.
Confirm the exact SZ-M8-2DN configuration
Send your target material, output requirement, supply voltage, and mounting layout for a factory quotation.
