XSZ PROXIMITY SENSORS

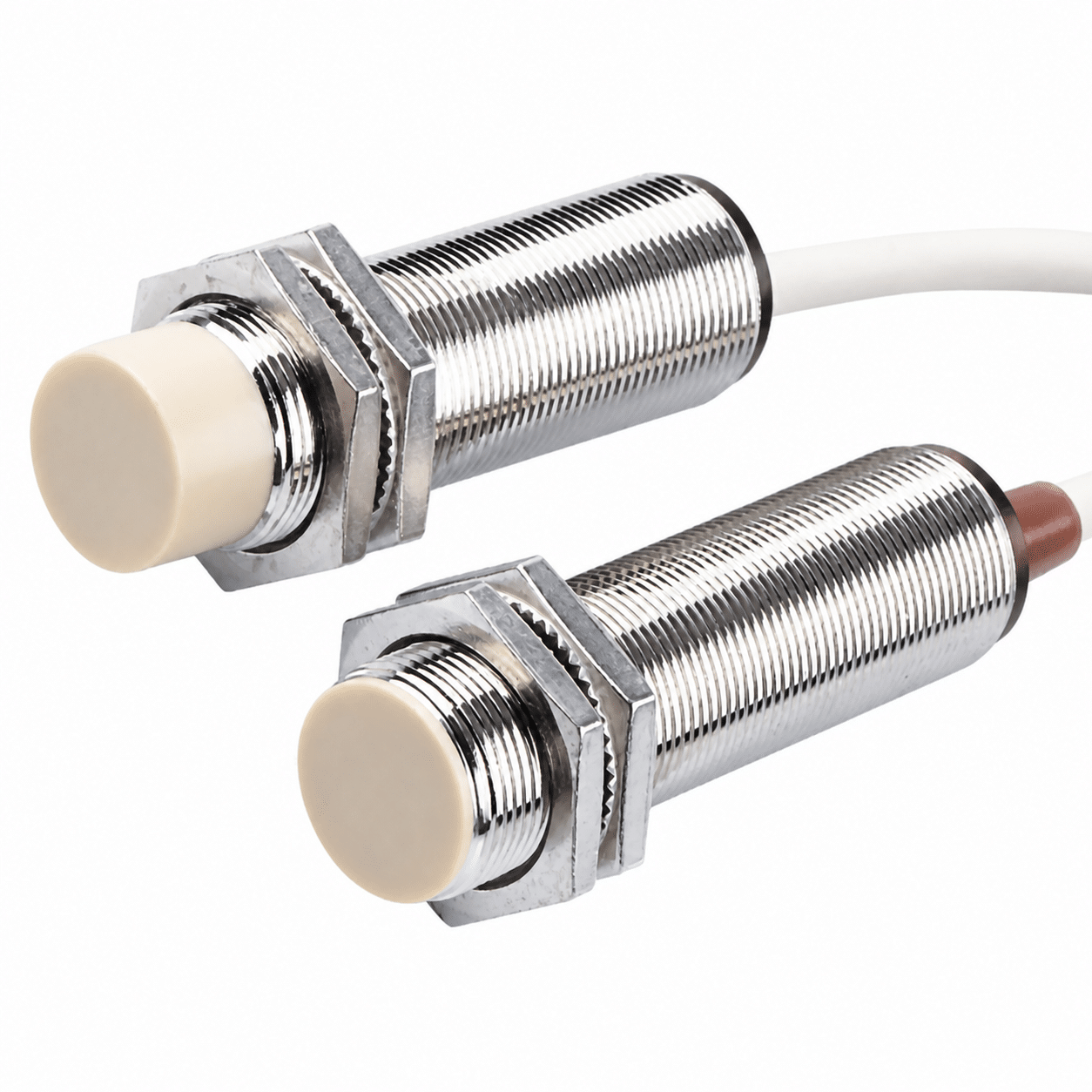

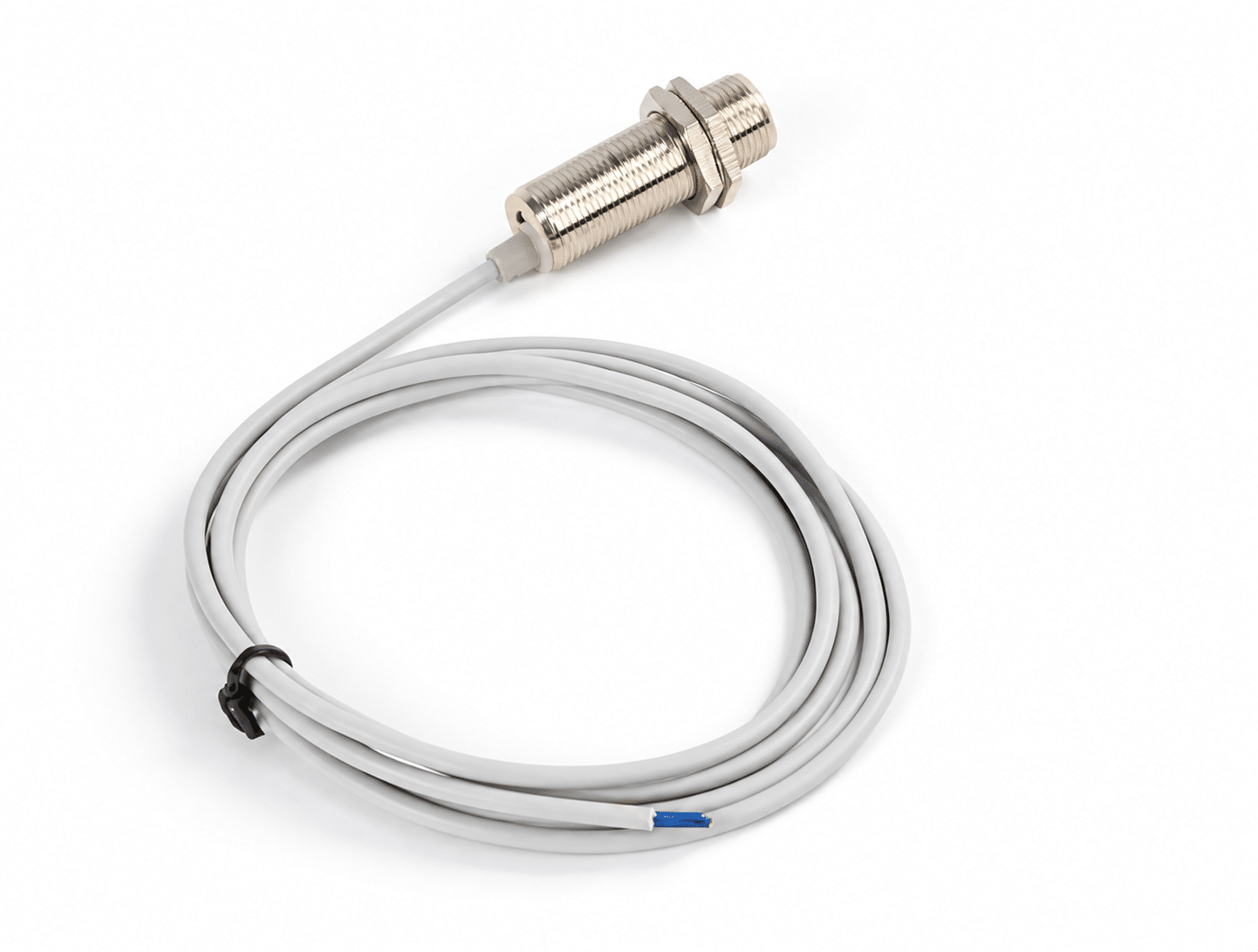

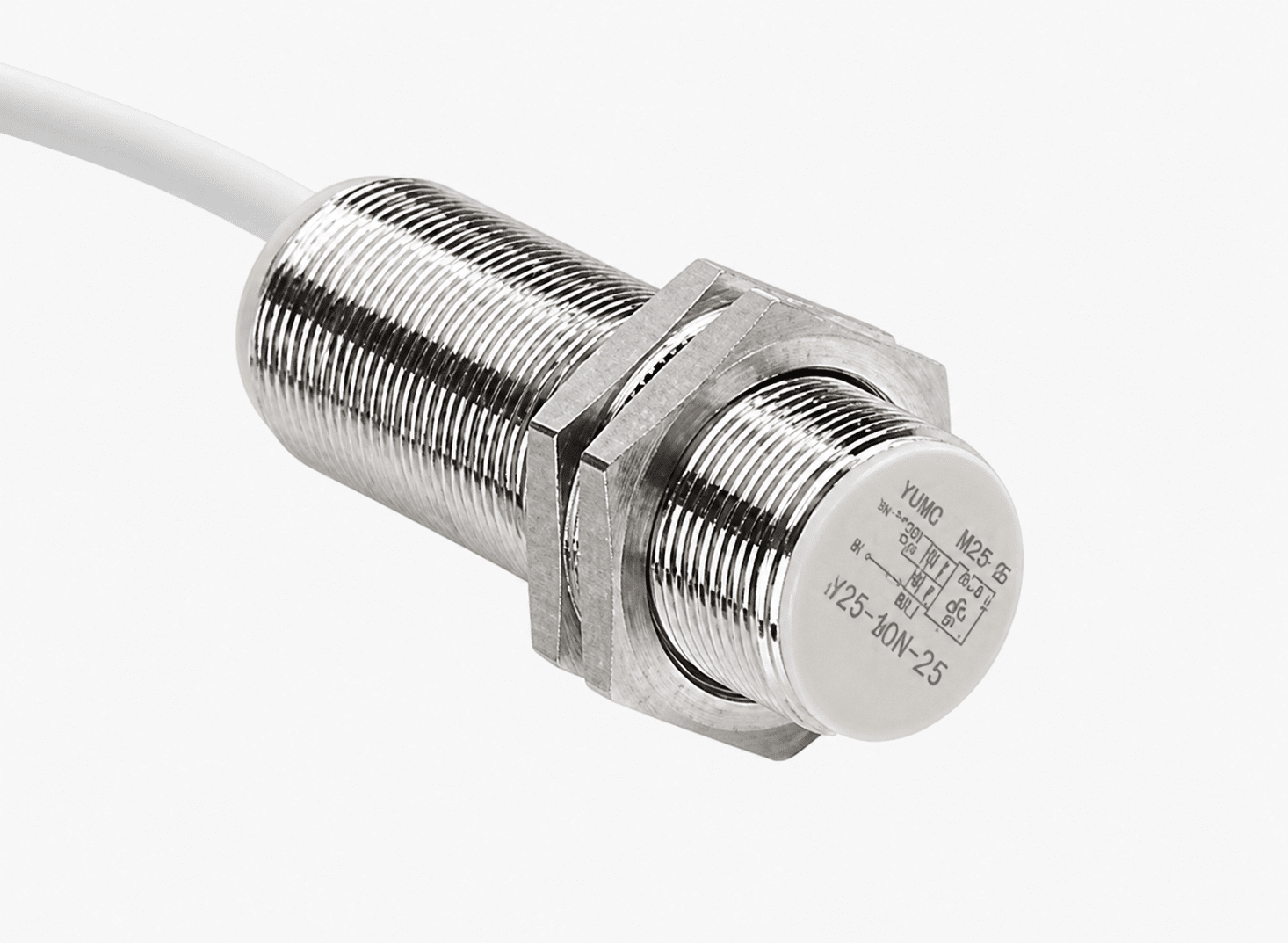

SZC-M30-10DN M30 Shielded Proximity Sensor
A DC NPN normally open proximity sensor in an M30 shielded form factor, specified with a 10 mm rated sensing distance for industrial detection tasks.
Choose an M30 sensor for machine detection
XSZ SZC-M30-10DN is the M30 shielded, DC NPN normally open version in the supplied M30 model matrix. It has a 10 mm +/-10% sensing distance, 0-8 mm setting distance, and 0.5 kHz DC response frequency.
Compare the M30 output and mounting options below, then confirm target compatibility, current ratings, wiring, and connection requirements with XSZ before order.
Key product advantages
M30 shielded format
The selected model is listed as an M30 shielded installation option for industrial machine layouts.
NPN normally open output
The selected configuration is DC NPN normally open. Confirm controller-input compatibility before installation.
Reference electrical data
The supplied parameter image lists 10-30 VDC operation, LED indication, short-circuit protection, and a nickel-plated copper housing.
Type and Specification
| Type and Specification | |||
|---|---|---|---|
| Dimension | M30 | ||
| Installation type | Shielded | Non-shielded | |
| NPN DC type | NO | SZC-M30-10DN | SZC-M30-20DN |
| NC | SZC-M30-10DN2 | SZC-M30-20DN2 | |
| PNP DC type | NO | SZC-M30-10DP | SZC-M30-20DP |
| NC | SZC-M30-10DP2 | SZC-M30-20DP2 | |
| AC 2-wire type | NO | SZC-M30-10AO | SZC-M30-20AO |
| NC | SZC-M30-10AC | SZC-M30-20AC | |
| Detection range | 10 mm +/-10% | 20 mm +/-10% | |
| Setting distance | 0-8 mm | 0-18 mm | |
| Response frequency | DC: 0.5 kHz; AC: 25 Hz | ||
| Detectable target | Listed reference targets: metal, non-metal, water, wood, stone, plastic, feed, and other materials. Confirm actual target compatibility with XSZ before order. | ||
| Operating voltage | DC type: 10-30 VDC; AC 2-wire type: Confirm with XSZ before order | ||
| Ripple | Less than 10% | ||
| Leakage current | Less than 0.01 mA | ||
| No-load and maximum-load current | Confirm with XSZ before order. The supplied reference image labels these two current values inconsistently. | ||
| Voltage drop | Less than 1.5 V | ||
| Switching hysteresis | Less than 15% (Sr) | ||
| LED indicator | With LED | ||
| Short-circuit protection | Yes | ||
| Housing material | Nickel-plated copper | ||
| Sensing face material | ABS | ||
| Protection class | Confirm with XSZ before order | ||
| Operating temperature | 0 to +60 deg C | ||
| Temperature drift | Less than 10% (Sr) | ||
| Connection and wiring | Confirm with XSZ before order | ||
Where it helps
Selection and installation checklist
- Verify that NPN normally open logic matches the connected DC controller input.
- Use the 0-8 mm setting distance for the listed 10 mm shielded sensing range.
- Confirm the target material, current ratings, connection type, and wiring before order.
- Select the AC two-wire version only after confirming its supply and wiring requirements with XSZ.
Frequently asked questions
What is the SZC-M30-10DN sensing distance?
The selected shielded M30 version has a 10 mm +/-10% rated sensing distance and a 0-8 mm setting distance.
Which M30 output choices are available?
The M30 table lists DC NPN and PNP, normally open and normally closed options, plus AC two-wire normally open and normally closed options.
What is the response frequency?
The source lists DC: 0.5 kHz and AC: 25 Hz for the M30 entries.
What should be confirmed before order?
Confirm actual target compatibility, current ratings, protection class, supply for AC versions, wiring, and connection type with XSZ.
Confirm the exact SZC-M30-10DN configuration
Send your target material, output requirement, supply voltage, and mounting layout for a factory quotation.
