XSZ PROXIMITY SENSORS

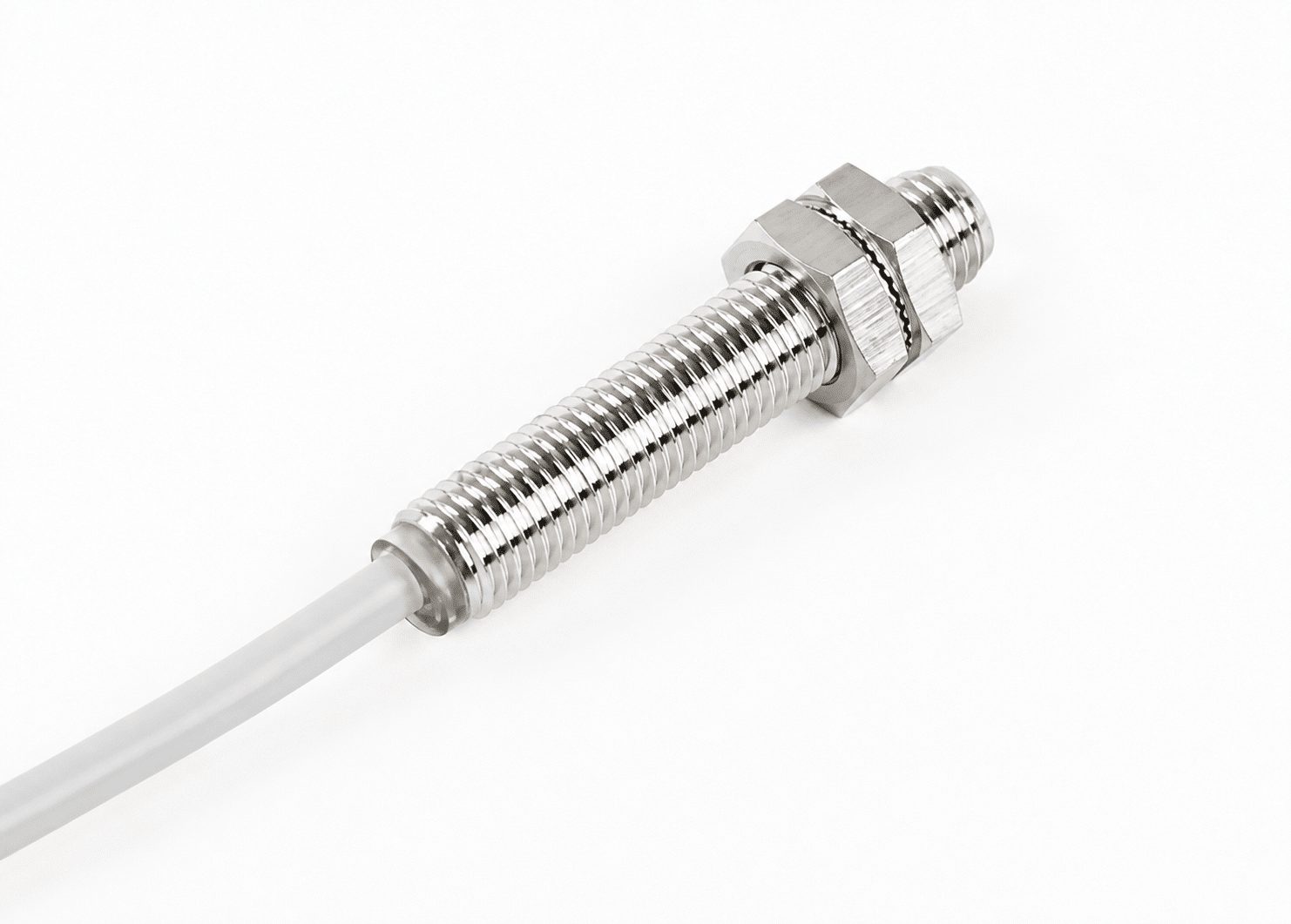

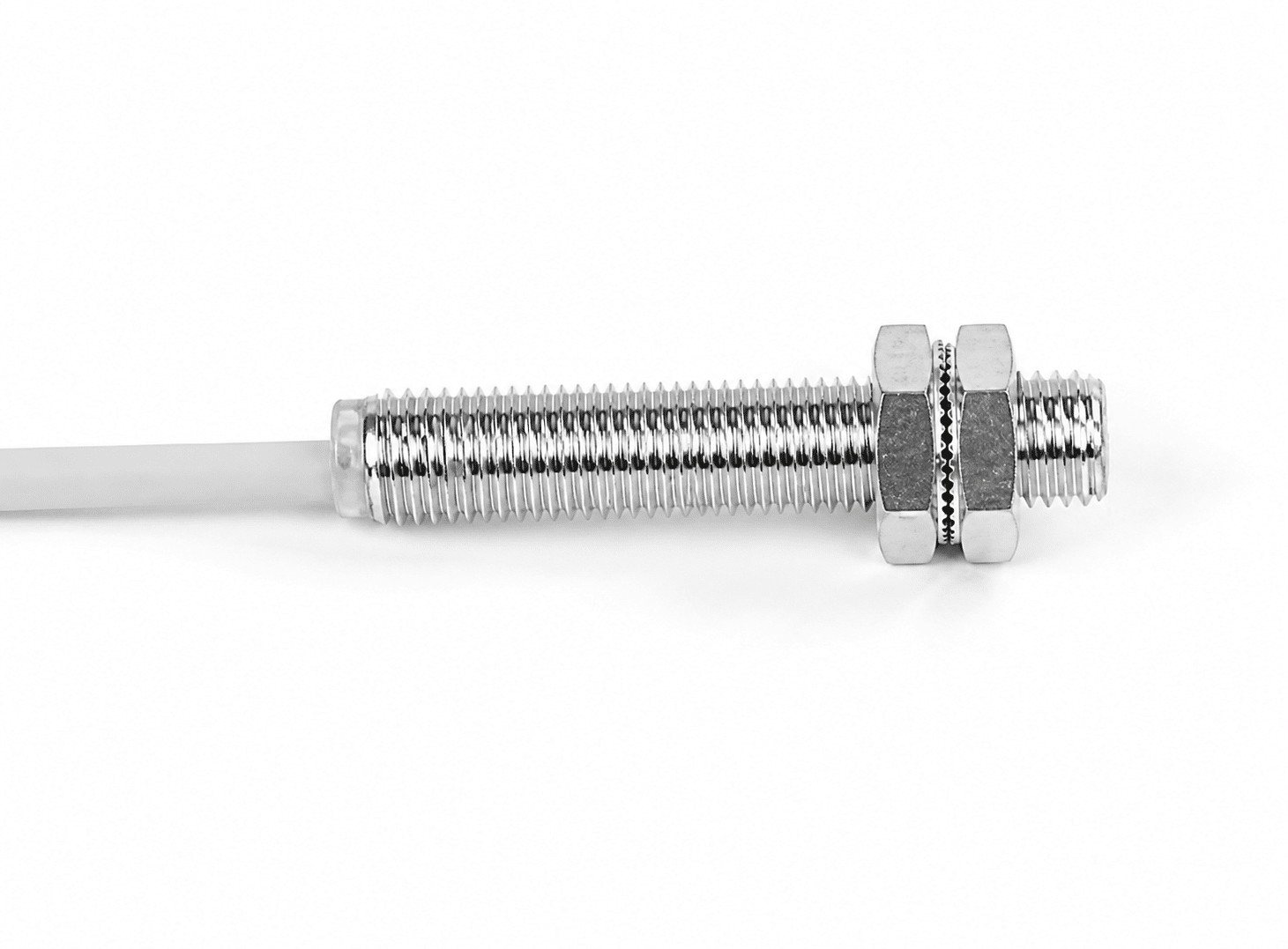

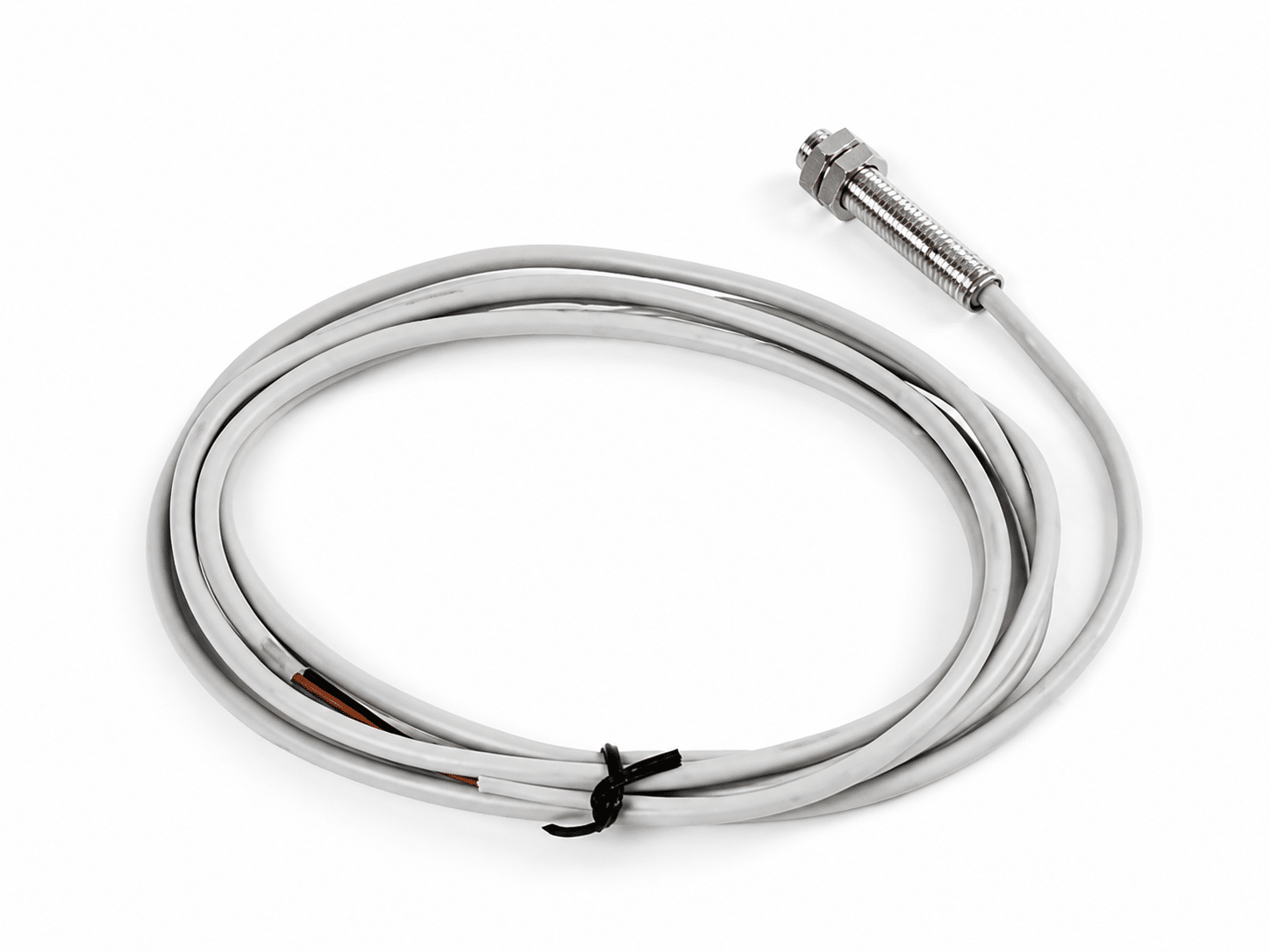

SZC-M8-1DN M8 Shielded Proximity Sensor
A compact DC sensor for close-range presence and position checks in space-constrained industrial equipment.
M8 shielded sensing for compact machine positions
The XSZ SZC-M8-1DN is the M8 shielded, NPN normally open model in the supplied M8 matrix. Its 1 mm +/-10% sensing distance and 0-0.8 mm setting distance support close-range applications where mechanical clearance is limited.
The source product drawing shows an 8 mm body diameter and 45 mm body length. Select this version when its NPN normally open switching logic matches the connected controller.
Key product advantages
Compact M8 sensor body
The supplied drawing lists an 8 mm body diameter and 45 mm body length for the shielded M8 construction.
NPN normally open output
The SZC-M8-1DN is listed as a DC NPN normally open model. Confirm the wiring and input compatibility before order.
Shielded close-range sensing
The listed shielded configuration provides a 1 mm +/-10% sensing distance with a 100 Hz response frequency.
Type and Specification
| M8 Model Matrix | |||
|---|---|---|---|
| Dimension | M8 | ||
| Installation type | Shielded | Non-shielded | |
| DC NPN, NO | SZC-M8-1DN | SZC-M8-2DN | |
| DC NPN, NC | SZC-M8-1DN2 | SZC-M8-2DN2 | |
| DC PNP, NO | SZC-M8-1DP | SZC-M8-2DP | |
| DC PNP, NC | SZC-M8-1DP2 | SZC-M8-2DP2 | |
| Sensing distance | 1 mm +/-10%, shielded | 2 mm +/-10%, non-shielded | |
| Setting distance | 0-0.8 mm | 0-1.7 mm | |
| Response frequency | 100 Hz | ||
| Selected Model Parameters | ||
|---|---|---|
| Selected model | SZC-M8-1DN: DC, NPN, normally open, M8 shielded | |
| Body dimension | 8 mm body diameter; 45 mm body length | |
| Sensing distance | 1 mm +/-10% | |
| Setting distance | 0-0.8 mm | |
| Response frequency | 100 Hz | |
| Detectable target | Confirm with XSZ before order. The supplied table lists metal, non-metal, water, wood, stone, plastic, feed, and other materials. | |
| Operating voltage | 10-30 VDC | |
| Ripple | Less than 10% | |
| LED indicator | With LED | |
| No-load current | Less than 8 mA | |
| Maximum load current | 150 mA | |
| Leakage current | Less than 0.01 mA | |
| Voltage drop | Less than 1.5 V | |
| Switching hysteresis | Less than 15% (Sr) | |
| Short-circuit protection | Yes | |
| Housing material | Nickel-plated copper | |
| Sensing face material | ABS | |
| Environmental protection | IP65 | |
| Operating temperature | 0 to +60 deg C | |
| Temperature drift | Less than 10% (Sr) | |
| Cable / connection | Confirm with XSZ before order | |
Where it helps
Selection and installation checklist
- Verify that NPN normally open logic matches the connected DC controller input.
- Use the shielded M8 model where the 1 mm +/-10% sensing distance and 0-0.8 mm setting distance suit the application.
- Confirm the actual target material and required sensing behavior with XSZ before order.
- Confirm supply voltage, wiring, housing material, environmental conditions, and cable specification before final selection.
- Choose the non-shielded M8 variant only if its separate 2 mm +/-10% sensing distance fits the installation.
Frequently asked questions
What is the SZC-M8-1DN sensing distance?
The selected shielded M8 version has a 1 mm +/-10% rated sensing distance and a 0-0.8 mm setting distance.
What output logic does this model use?
The supplied M8 matrix lists SZC-M8-1DN as a DC NPN normally open model. Confirm wiring and controller-input compatibility before order.
What are the listed dimensions?
The source product drawing shows an 8 mm body diameter and a 45 mm body length.
What is the response frequency?
The listed response frequency for the M8 versions is 100 Hz.
Confirm the exact SZC-M8-1DN installation details
Send your target material, output requirement, supply voltage, and mounting layout for a factory quotation.
