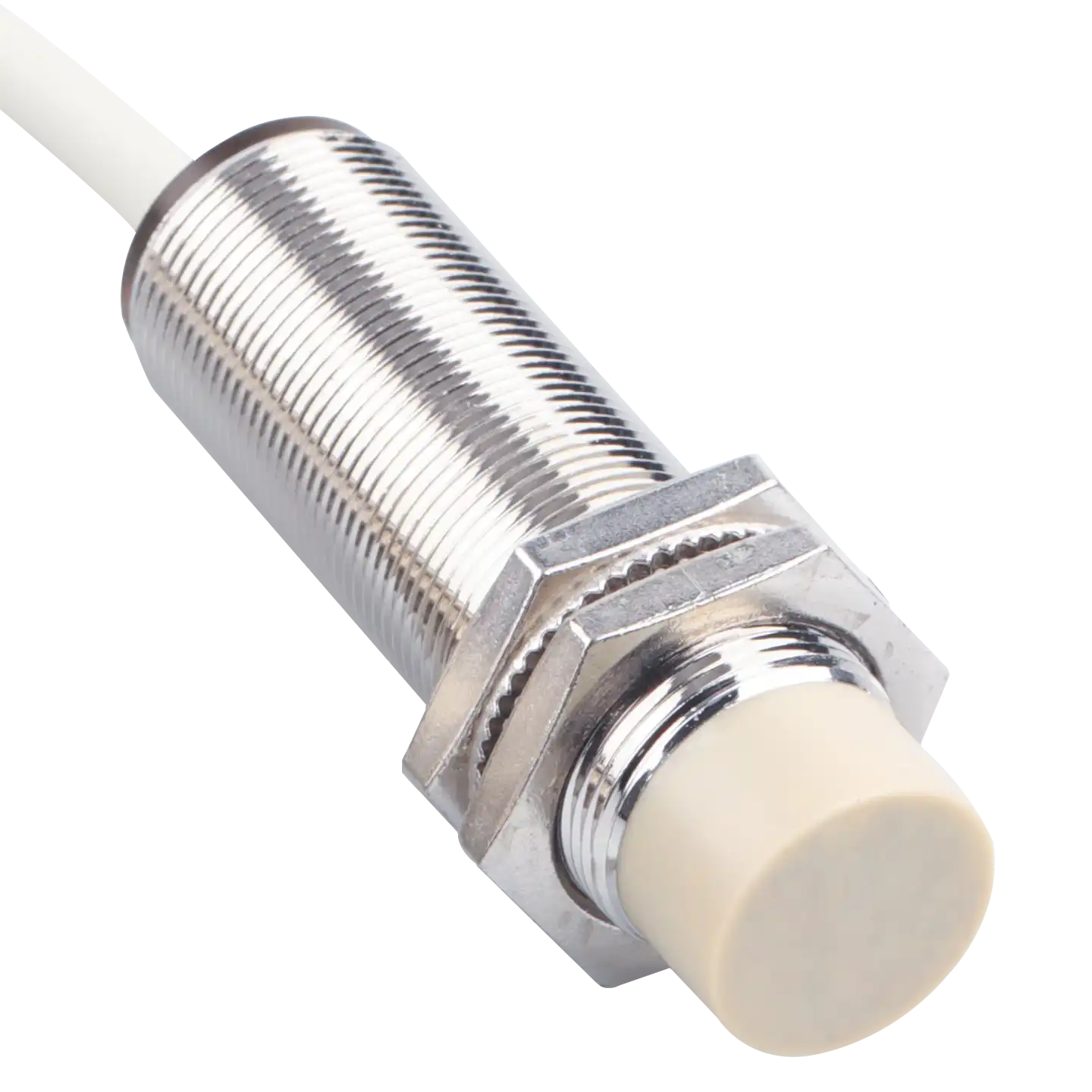

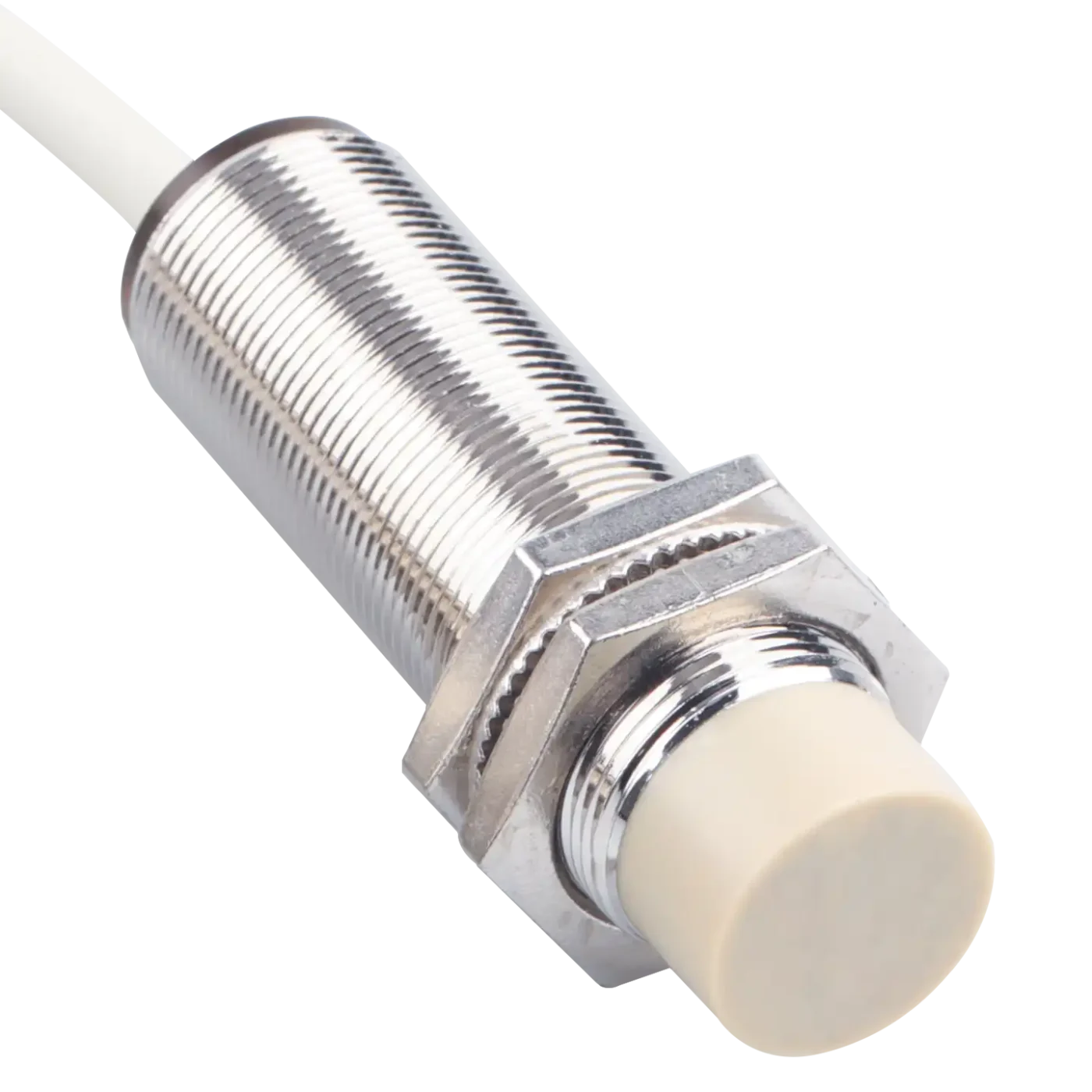

XSZ M30 Cylindrical Inductive Proximity Sensor
Heavy-duty, long-range non-contact metal detection. The XSZ M30 Inductive Proximity Sensor delivers a highly stable 10mm to 15mm sensing range within a massive, rugged threaded housing, ensuring ultimate durability in environments saturated with machine oil, heavy dust, and mechanical shock.
Key Performance Advantages
Robust M30 Integration
The large 30mm threaded cylindrical housing is designed for heavy machinery, enabling secure installation, long-range distance adjustment, and extreme mechanical stability.
Extreme Environmental Resilience
Engineered to thrive in the harshest industrial conditions. It remains completely unaffected by target color, cutting fluids, dense airborne dust, and severe vibrations.
Extended Sensing Range
Offering up to 15mm of non-contact detection distance, ensuring the sensor stays safely away from large moving parts while maintaining a reliable 200mA output capacity.
Comprehensive Technical Specifications
| Specification | M30 Flush Mount | M30 Non-Flush Mount |
|---|---|---|
| Sensing Distance | 10 mm ± 10% | 15 mm ± 10% |
| Standard Sensing Object | Iron 40 × 40 × 1 mm | Iron 54 × 54 × 1 mm |
| Response Frequency | 300 Hz | 200 Hz |
| Detectable Object | Magnetic metal (Sensing distance reduces for non-magnetic metals) | |
| Operating Voltage Range | DC 10 to 30V (12-24 VDC nominal, Ripple P-P: 10% max) | |
| Load Current (Output) | 200 mA Max. (Residual Voltage: 1.5V Max.) | |
| Current Consumption | 10 mA Max. | |
| Control Output | NPN / PNP | NO (Normally Open) / NC (Normally Closed) available | |
| Protection Circuits | Reversed power supply polarity protection | |
| Environmental Specs | Operating Temp: -25 to +70°C | Storage: -40 to 80°C | Connection: Pre-wired cable | |
Wiring & Circuit Diagram
Please consult the wiring diagrams below to securely integrate the NPN/PNP proximity switch into your heavy-duty control panel.
Ideal Industrial Applications
Highly resistant to shocks and large metallic debris, perfect for massive rotating equipment.
Reliable positioning and verification of large metal chassis and engine blocks.
Robust long-range detection for automated gantry cranes and large metallic pallets.
Upgrade Your Heavy Automation Infrastructure
Connect with our XSZ technical experts to integrate our heavy-duty M30 inductive sensors into your most demanding applications.
