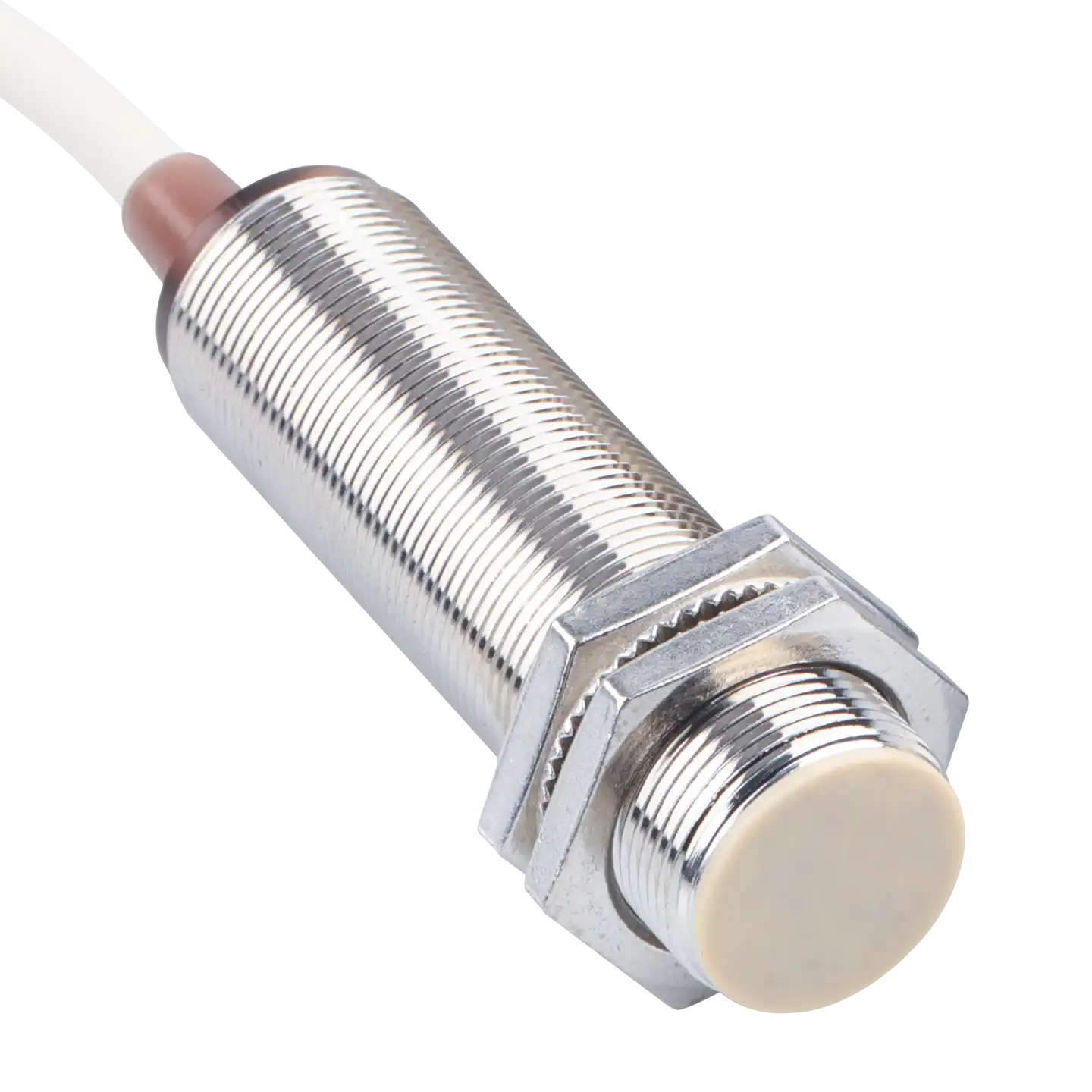

XSZ M18 Cylindrical Inductive Proximity Sensor
Heavy-duty, high-performance non-contact metal detection. The XSZ M18 Inductive Proximity Sensor delivers a highly stable 5mm to 8mm sensing range within a universally compatible threaded housing, ensuring outstanding durability in environments saturated with machine oil, dust, and industrial debris.
Key Performance Advantages
Versatile M18 Integration
The universally standard 18mm threaded cylindrical housing enables rapid installation, precise distance adjustment, and immediate drop-in replacement using standard industrial brackets.
Extreme Environmental Resilience
Designed to thrive in the harshest manufacturing conditions. It remains completely unaffected by target color variations, cutting fluids, heavy airborne dust, and mechanical vibrations.
Robust Performance
Boasting a high-capacity 200mA load output and a rapid response frequency of up to 600Hz, it provides rock-solid reliability for automated assembly and positioning tasks.
Comprehensive Technical Specifications
| Specification | M18 Flush Mount | M18 Non-Flush Mount |
|---|---|---|
| Sensing Distance | 5 mm ± 10% | 8 mm ± 10% |
| Standard Sensing Object | Iron 18 × 18 × 1 mm | Iron 24 × 24 × 1 mm |
| Response Frequency | 600 Hz | 400 Hz |
| Detectable Object | Magnetic metal (Sensing distance reduces for non-magnetic metals) | |
| Operating Voltage Range | DC 10 to 30V (12-24 VDC nominal, Ripple P-P: 10% max) | |
| Load Current (Output) | 200 mA Max. (Residual Voltage: 1.5V Max.) | |
| Current Consumption | 10 mA Max. | |
| Control Output | NPN / PNP | NO (Normally Open) / NC (Normally Closed) available | |
| Protection Circuits | Reversed power supply polarity protection | |
| Environmental Specs | Operating Temp: -25 to +70°C | Storage: -40 to 80°C | Connection: Pre-wired cable | |
Wiring & Circuit Diagram
Please consult the wiring diagrams below to securely integrate the NPN/PNP proximity switch into your control panel.
Ideal Industrial Applications
Reliable positioning and verification of metal chassis and engine components.
Highly resistant to cutting fluids, providing accurate tool and material detection.
Robust detection of metallic pallets and automated sorting mechanisms.
Upgrade Your Automation Infrastructure
Connect with our XSZ technical experts to integrate our heavy-duty M18 inductive sensors into your next project.
Zhejiang Xinsenzheng Automation Co., Ltd. – PRECISION & INNOVATION
