XSZ PROXIMITY SENSORS

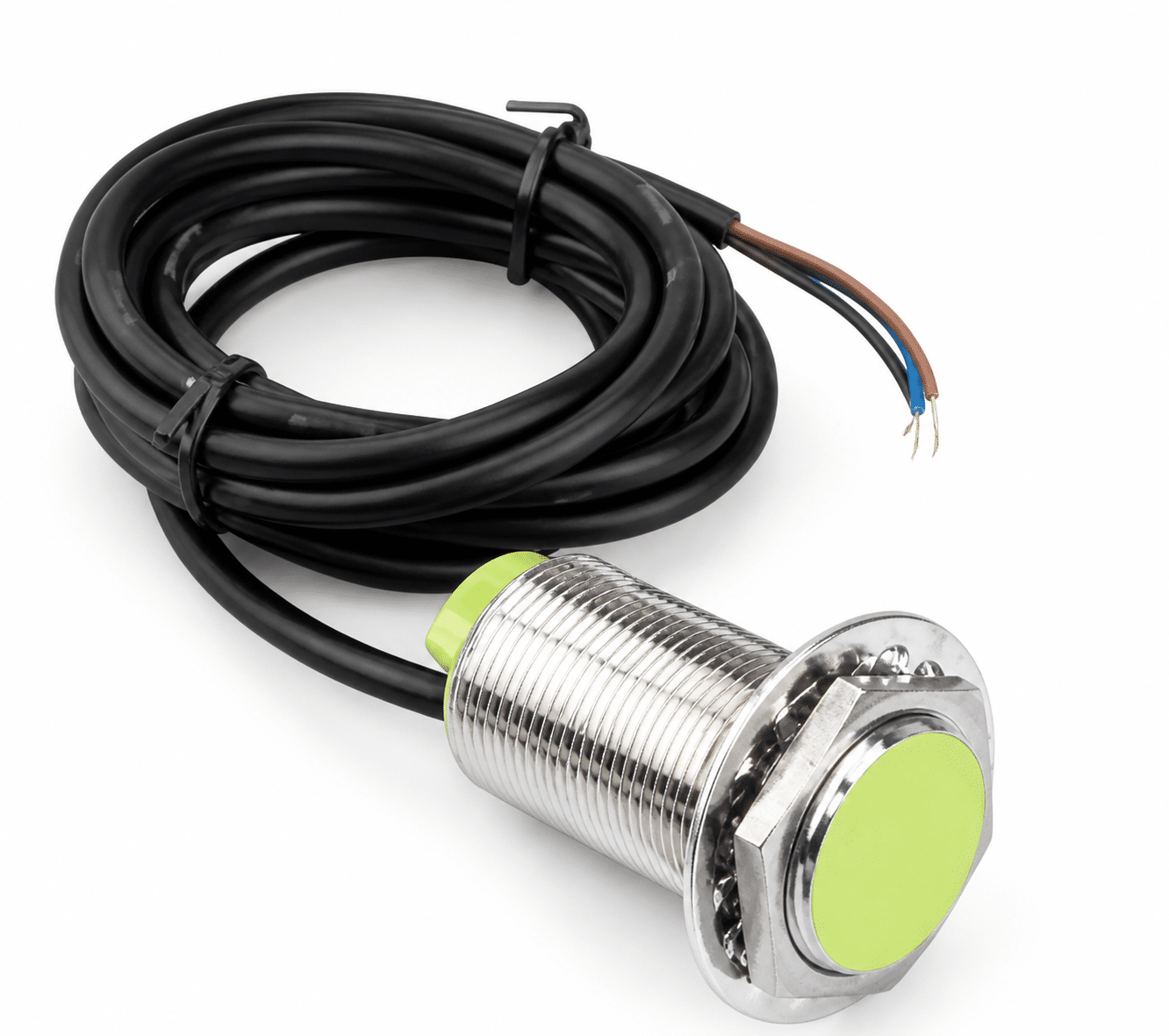

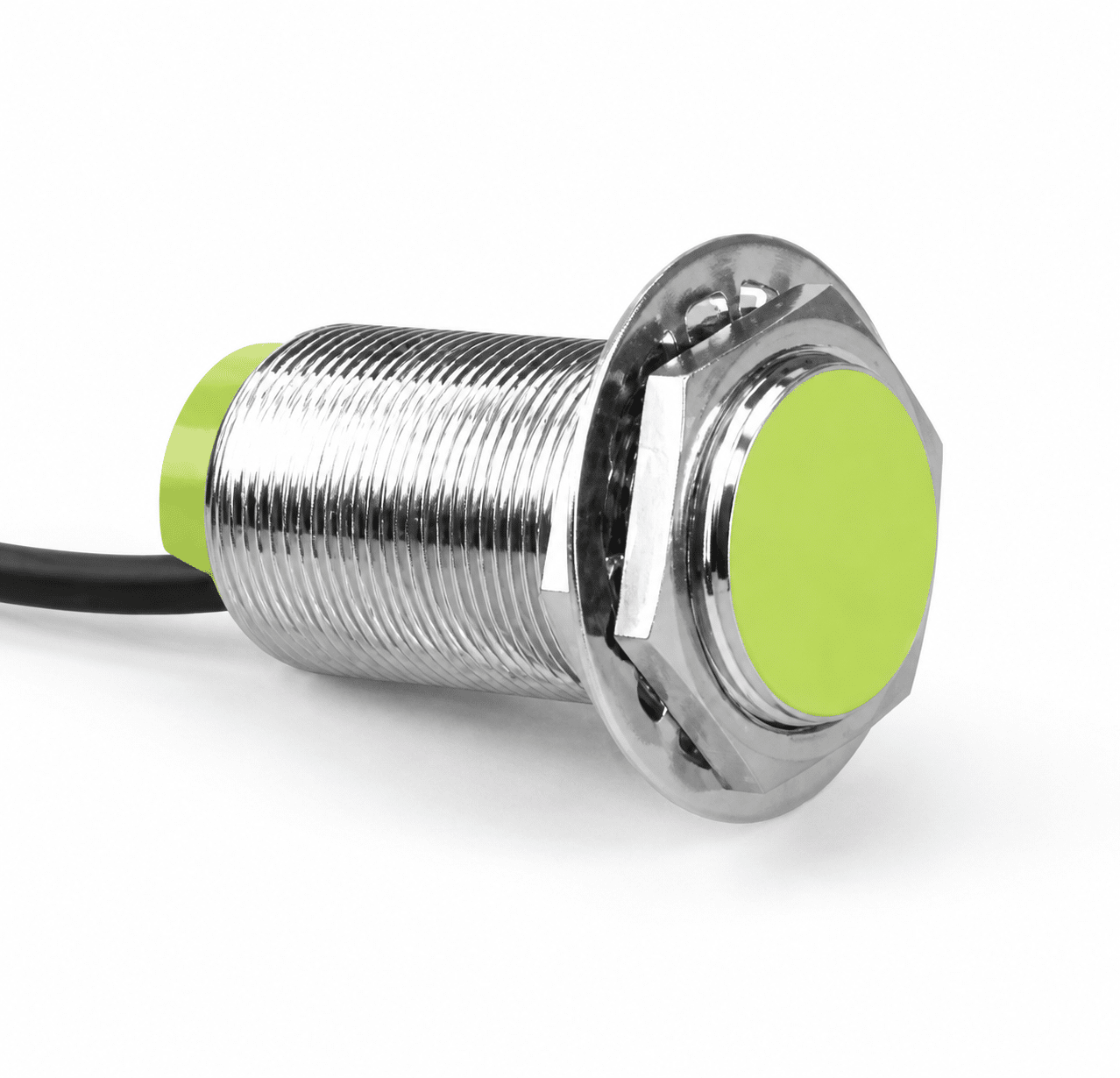

CR30-10DN CR30 Shielded Proximity Sensor
A CR30 shielded proximity sensor range for metal detection, with DC NPN, DC PNP, and AC two-wire model choices.
Shielded CR30 sensing for metal targets
The XSZ CR30-10DN is the shielded DC NPN normally open configuration, listed with a 10 mm +/-10% sensing distance and 0-8 mm setting distance. The shielded matrix also includes NPN, PNP, and AC two-wire normally open and normally closed models.
The supplied information specifies a red LED operating indicator and 2 m cable length. Confirm the connection type, wiring, and application target with XSZ before order.
Key product advantages
10 mm shielded sensing
The shielded CR30 configuration is listed with 10 mm +/-10% sensing distance and 0-8 mm setting distance.
Electrical choice
The matrix covers DC NPN, DC PNP, and AC two-wire output options, each with NO and NC models.
Installation reference
A red LED operating indicator and 2 m cable are listed in the supplied product information.
Type and Specification
| Type and Specification | |||
|---|---|---|---|
| Dimension | CR30 | ||
| Electrical type | Output type | Output logic | CR30 shielded |
| DC type | NPN | NO | CR30-10DN |
| NC | CR30-10DN2 | ||
| PNP | NO | CR30-10DP | |
| NC | CR30-10DP2 | ||
| AC 2-wire type | 2-wire | NO | CR30-10AO |
| NC | CR30-10AC | ||
| Sensing distance | 10 mm +/-10% |
|---|---|
| Setting distance | 0-8 mm |
| Standard detection target | Iron 50 x 50 x 1 mm |
| Hysteresis | No more than 20% of sensing distance |
| Rated supply voltage | DC: 10-30 VDC; AC: 90-250 VAC |
| Current consumption | DC: maximum 15 mA; AC: Confirm with XSZ before order |
| Leakage current | Maximum 2.2 mA |
| Response frequency | DC: 50 Hz; AC: 20 Hz |
| Residual voltage | DC: maximum 1.5 V; AC: maximum 20 V |
| Temperature influence | From -10 to +70 deg C: sensing distance is within +/-20% of the value at +20 deg C. |
| Control output | DC: 200 mA; AC: 5-200 mA |
| Insulation resistance | Minimum 50 Mohm, based on DC 500 V |
| Withstand voltage | 1500 VAC, 50/60 Hz, 1 minute |
| Vibration | Amplitude 1 mm, 10-55 Hz, X/Y/Z directions, 2 hours each |
| Shock | 500 m/s2 (50 G), X/Y/Z directions, 3 times each |

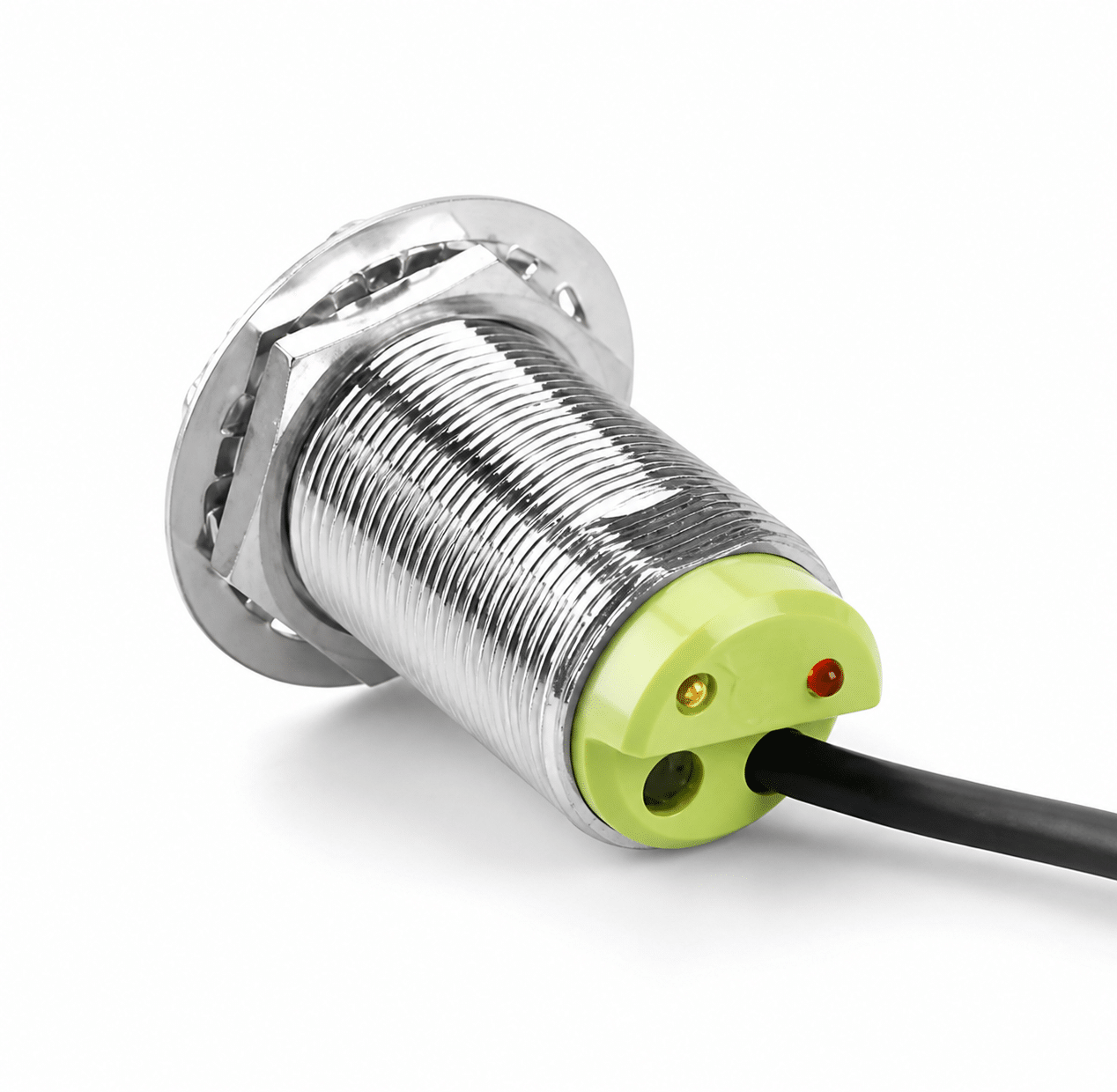

| Operating indicator | Red LED |
| Cable length | 2 m |
| Operating temperature | -10 to +70 deg C, no freezing or dew |
| Storage temperature | -30 to +80 deg C, no freezing or dew |
| Ambient humidity | 35-95% RH |
Where it helps
Selection and installation checklist
- Select the required NPN, PNP, or AC two-wire output and NO or NC operation.
- Use the listed 10 mm sensing distance and 0-8 mm setting distance during installation planning.
- Match the target to the listed iron 50 x 50 x 1 mm standard detection target.
- Confirm cable, connector, wiring, and target compatibility with XSZ before order.
Frequently asked questions
What sensing distance is listed?
The CR30 shielded configuration is listed at 10 mm +/-10%, with a 0-8 mm setting distance.
Which models are available?
The shielded matrix lists NPN, PNP, and AC two-wire NO and NC model codes.
Is an operating indicator listed?
Yes. The supplied specification lists a red LED operating indicator.
Can XSZ confirm AC details?
Yes. Confirm the AC model consumption current, cable, wiring, and application target with XSZ before order.
Need the right CR30 shielded model?
Send XSZ your required output logic, operating mode, and application details for model confirmation.
