XSZ PROXIMITY SENSORS

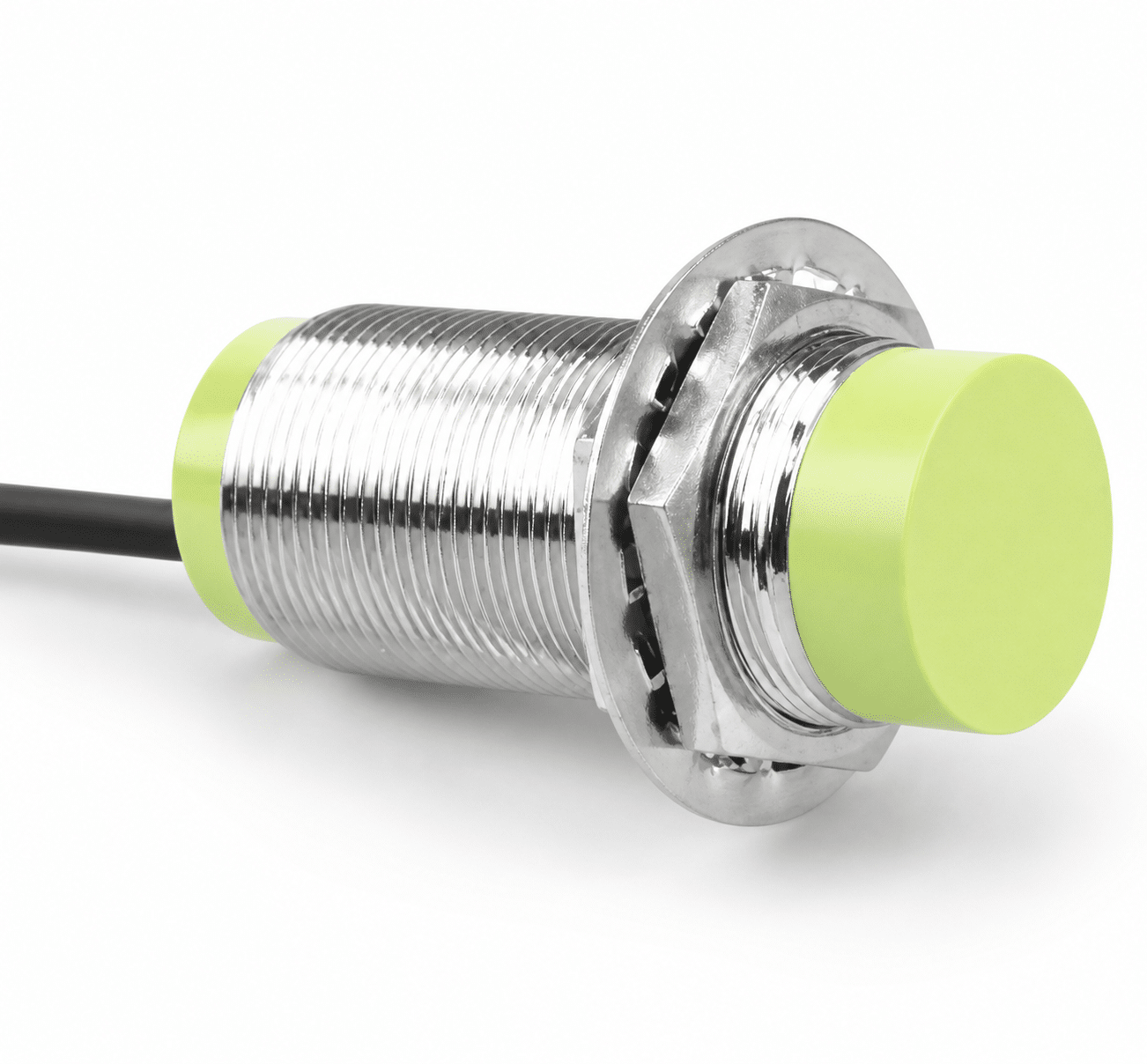

CR30-15DN CR30 Non-shielded Proximity Sensor
A CR30 non-shielded proximity sensor range for metal detection, with DC NPN, DC PNP, and AC two-wire model choices.
Non-shielded CR30 sensing for metal targets
The XSZ CR30-15DN is the non-shielded DC NPN normally open configuration, listed with a 15 mm +/-10% sensing distance and 0-1.5 mm setting distance. The non-shielded matrix also includes NPN, PNP, and AC two-wire normally open and normally closed models.

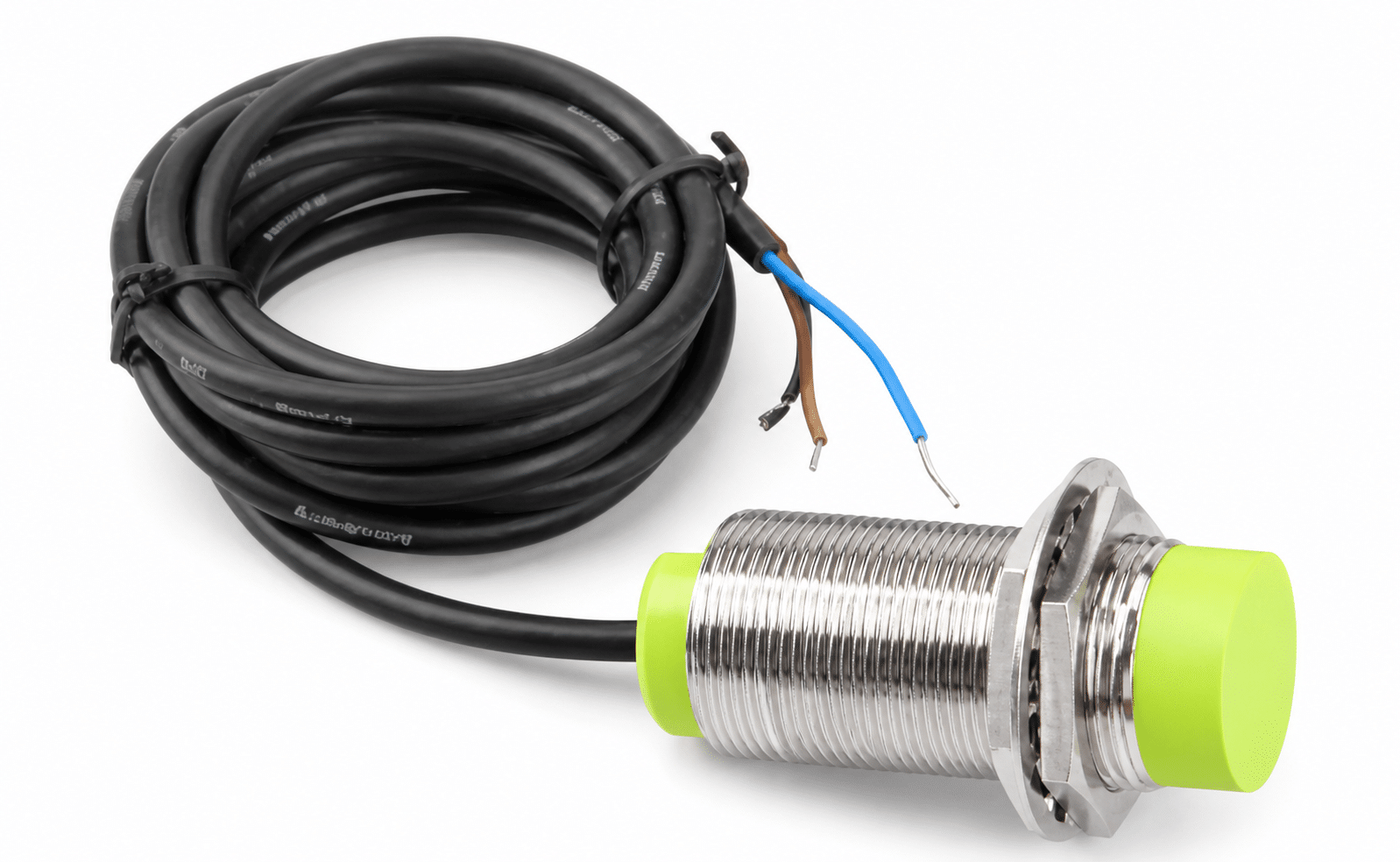

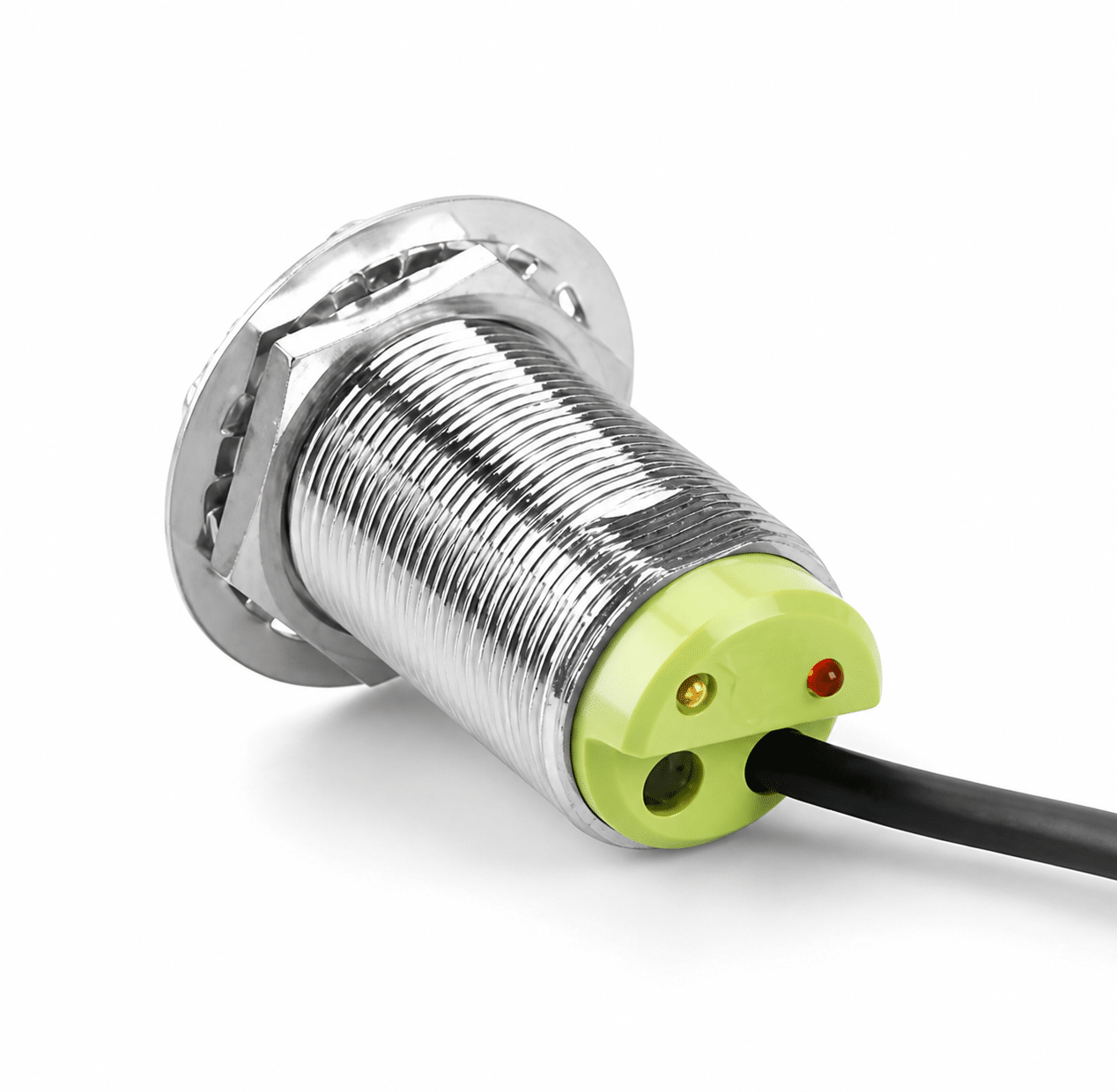

The supplied information specifies a red LED operating indicator and 2 m cable length. Confirm the connection type, wiring, and application target with XSZ before order.
Key product advantages
15 mm non-shielded sensing
The non-shielded CR30 configuration is listed with 15 mm +/-10% sensing distance and 0-1.5 mm setting distance.
Electrical choice
The matrix covers DC NPN, DC PNP, and AC two-wire output options, each with NO and NC models.
Installation reference
A red LED operating indicator and 2 m cable are listed in the supplied product information.
Type and Specification
| Type and Specification | |||
|---|---|---|---|
| Dimension | CR30 | ||
| Electrical type | Output type | Output logic | CR30 non-shielded |
| DC type | NPN | NO | CR30-15DN |
| NC | CR30-15DN2 | ||
| PNP | NO | CR30-15DP | |
| NC | CR30-15DP2 | ||
| AC 2-wire type | 2-wire | NO | CR30-15AO |
| NC | CR30-15AC | ||
| Sensing distance | 15 mm +/-10% |
|---|---|
| Setting distance | 0-1.5 mm |
| Standard detection target | Iron 50 x 50 x 1 mm |
| Hysteresis | No more than 20% of sensing distance |
| Rated supply voltage | DC: 10-30 VDC; AC: 90-250 VAC |
| Current consumption | DC: maximum 15 mA; AC: Confirm with XSZ before order |
| Leakage current | Maximum 2.2 mA |
| Response frequency | DC: 50 Hz; AC: 20 Hz |
| Residual voltage | DC: maximum 1.5 V; AC: maximum 20 V |
| Temperature influence | From -10 to +70 deg C: sensing distance is within +/-20% of the value at +20 deg C. |
| Control output | DC: 200 mA; AC: 5-200 mA |
| Insulation resistance | Minimum 50 Mohm, based on DC 500 V |
| Withstand voltage | 1500 VAC, 50/60 Hz, 1 minute |
| Vibration | Amplitude 1 mm, 10-55 Hz, X/Y/Z directions, 2 hours each |
| Shock | 500 m/s2 (50 G), X/Y/Z directions, 3 times each |
| Operating indicator | Red LED |
| Cable length | 2 m |
| Operating temperature | -10 to +70 deg C, no freezing or dew |
| Storage temperature | -30 to +80 deg C, no freezing or dew |
| Ambient humidity | 35-95% RH |
Where it helps
Selection and installation checklist
- Select the required NPN, PNP, or AC two-wire output and NO or NC operation.
- Use the listed 15 mm sensing distance and 0-1.5 mm setting distance during installation planning.
- Match the target to the listed iron 50 x 50 x 1 mm standard detection target.
- Confirm cable, connector, wiring, and target compatibility with XSZ before order.
Frequently asked questions
What sensing distance is listed?
The CR30 non-shielded configuration is listed at 15 mm +/-10%, with a 0-1.5 mm setting distance.
Which models are available?
The non-shielded matrix lists NPN, PNP, and AC two-wire NO and NC model codes.
Is an operating indicator listed?
Yes. The supplied specification lists a red LED operating indicator.
Can XSZ confirm AC details?
Yes. Confirm the AC model consumption current, cable, wiring, and application target with XSZ before order.
