XSZ MAGNETIC PROXIMITY SWITCHES
M8 Magnetic Proximity Switch
A shielded M8 magnetic proximity switch series with a listed 10 mm sensing distance and 0-8 mm setting distance.
M8 magnetic sensing overview
The M8 source column lists a shielded construction, 10 mm +/-10% sensing distance, 0-8 mm setting distance, and a phi 8 x 2 mm magnet standard target.

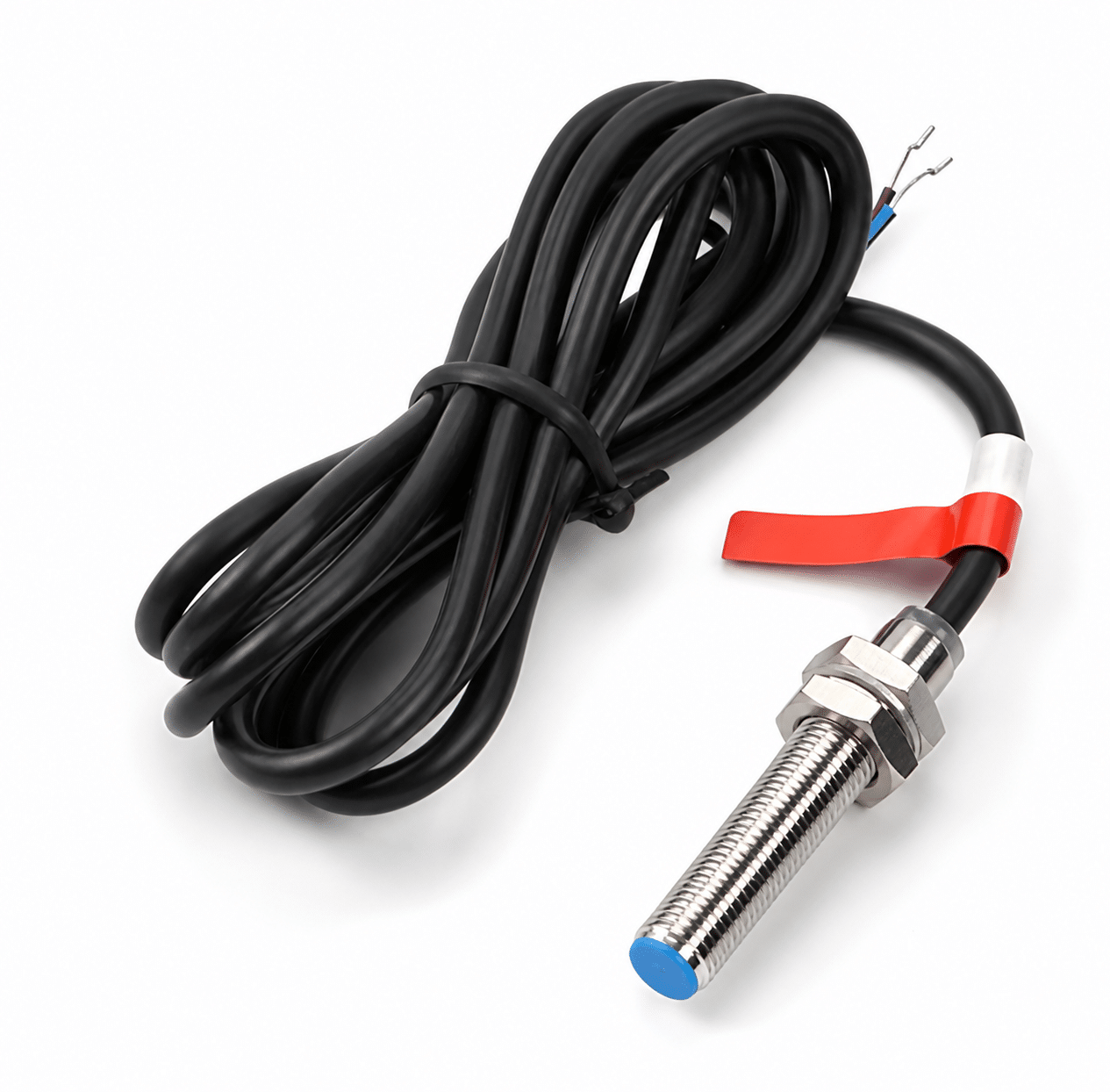

The product image shows an M8 body and 42 mm length. Confirm the selected electrical version, supply, output logic, continuous load, wiring, and target conditions with XSZ before order
Key product advantages
M8 shielded body

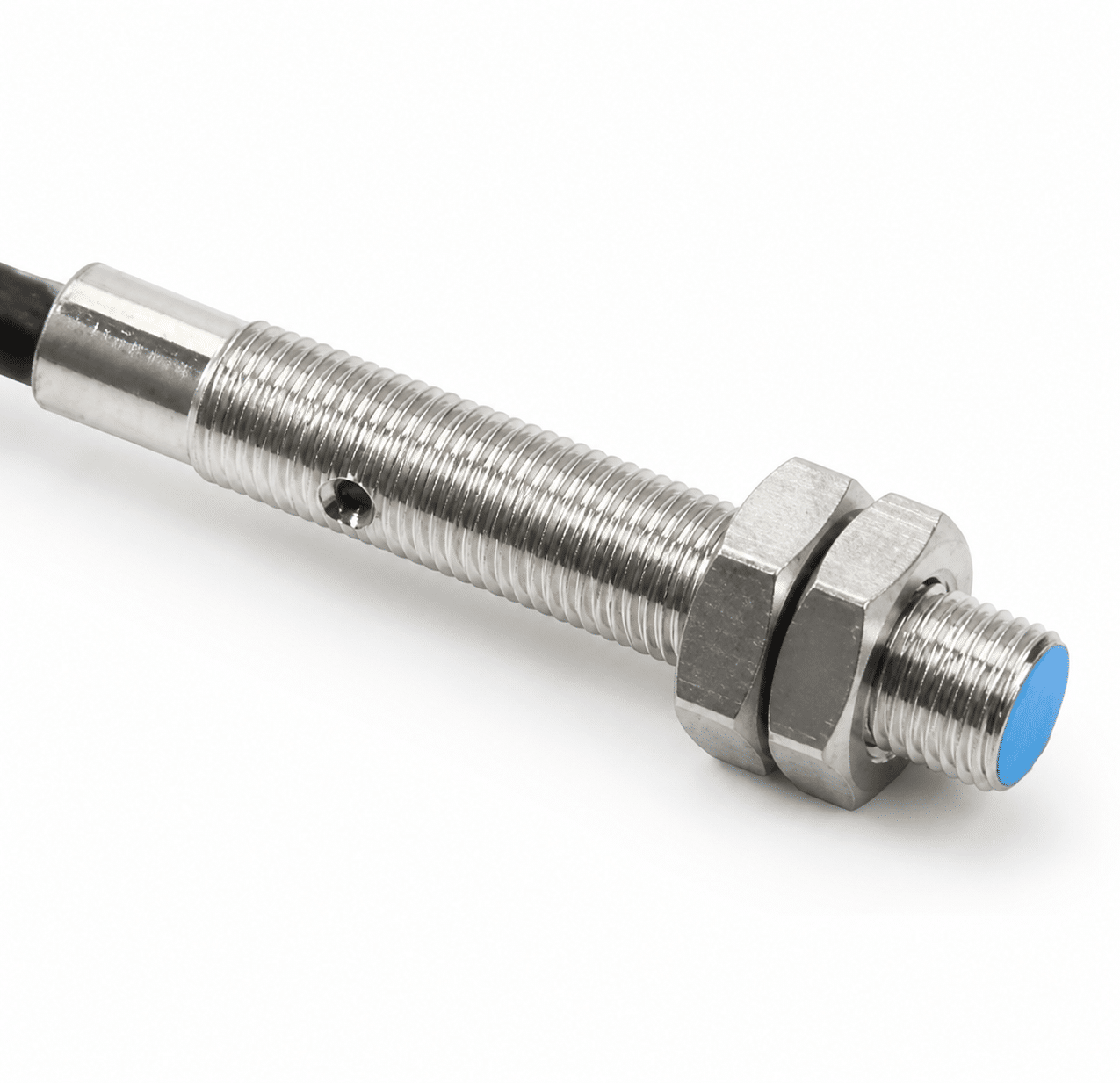

The source lists a shielded M8 construction and shows a 42 mm body length.
Magnet target reference
The standard detection target is listed as a phi 8 x 2 mm magnet.
Two-wire selections
The M8 source column includes source-listed DC two-wire and AC two-wire model options.
Product specification
| Type and Specification | ||
|---|---|---|
| Dimension | M8 | |
| Shielding type | Shielded | |
| Sensing distance | 10 mm +/-10% | |
| Setting distance | 0-8 mm | |
| Standard target | phi 8 x 2 mm magnet | |
| Continuous load current | 50 mA | |
| Output type | Output logic | Model |
| DC two-wire | NO | LG8A3-10-Z/EX |
| NC | LG8A3-10-Z/DX | |
| AC two-wire | NO | LG8A3-10-J/EZ |
| Product and output information | Product category: magnetic proximity switch Source parameter table lists normally open output; the M8 model table also lists an NC DC two-wire model |
|---|---|
| Supply voltage and hysteresis | Working voltage: DC 10-30 V Separate source supply row: DC 12-24 V (6-36 V); ripple (P-P) less than 10% Hysteresis: less than 10% of sensing distance |
| Output, load, and frequency | Source control-output field: up to 300 mA; M8 matrix continuous-load field: 50 mA Response-frequency row in the source shows 100 mA; Confirm the response-frequency value with XSZ before order |
| Temperature and humidity | Operating and storage: -30 to +65 deg C, no freezing or condensation Operating and storage humidity: 35-95% RH |
| Electrical safety | Insulation resistance: at least 50 Mohm at DC 500 V, between energized parts and housing Withstand voltage: AC 1000 V, 50/60 Hz, 1 minute, between energized parts and housing |
| Temperature and voltage influence | Temperature: -30 to +65 deg C, within +/-15% of sensing distance at +23 deg C; -25 to +60 deg C, within +/-10% at +23 deg C Voltage: within +/-15% of rated supply-voltage range; within +/-10% sensing distance at rated supply voltage |
| Protection class and material | Protection class: IP67 (IEC) Housing: nickel-plated brass; sensing face: ABS |
| Wiring diagram | Source wiring diagram: brown (BN) to +V; blue (BU) to 0 V Confirm the selected model wiring and cable configuration with XSZ before order |
Where it helps
Selection and installation checklist
- Select the required DC two-wire or AC two-wire model from the M8 source matrix.
- Plan around the listed 10 mm +/-10% sensing distance and 0-8 mm setting distance.
- Use the source-listed phi 8 x 2 mm magnet as the standard target reference.
- Confirm supply voltage, output logic, continuous load current, response frequency, wiring, and target conditions with XSZ before order.
Frequently asked questions
What sensing distance is listed?
The M8 source column lists 10 mm +/-10% sensing distance and 0-8 mm setting distance.
What target is listed?
The standard target is listed as a phi 8 x 2 mm magnet.
Which M8 models are shown?
The source lists two DC two-wire models and one AC two-wire model with filled M8 model codes.
What must be confirmed?
Confirm supply voltage, output logic, continuous load current, response frequency, wiring, and target conditions with XSZ before order.
Need M8 magnetic-sensor selection support?
Send XSZ your target magnet, sensing distance, supply, load, and wiring requirements for confirmation.
