XSZ PROXIMITY SENSORS

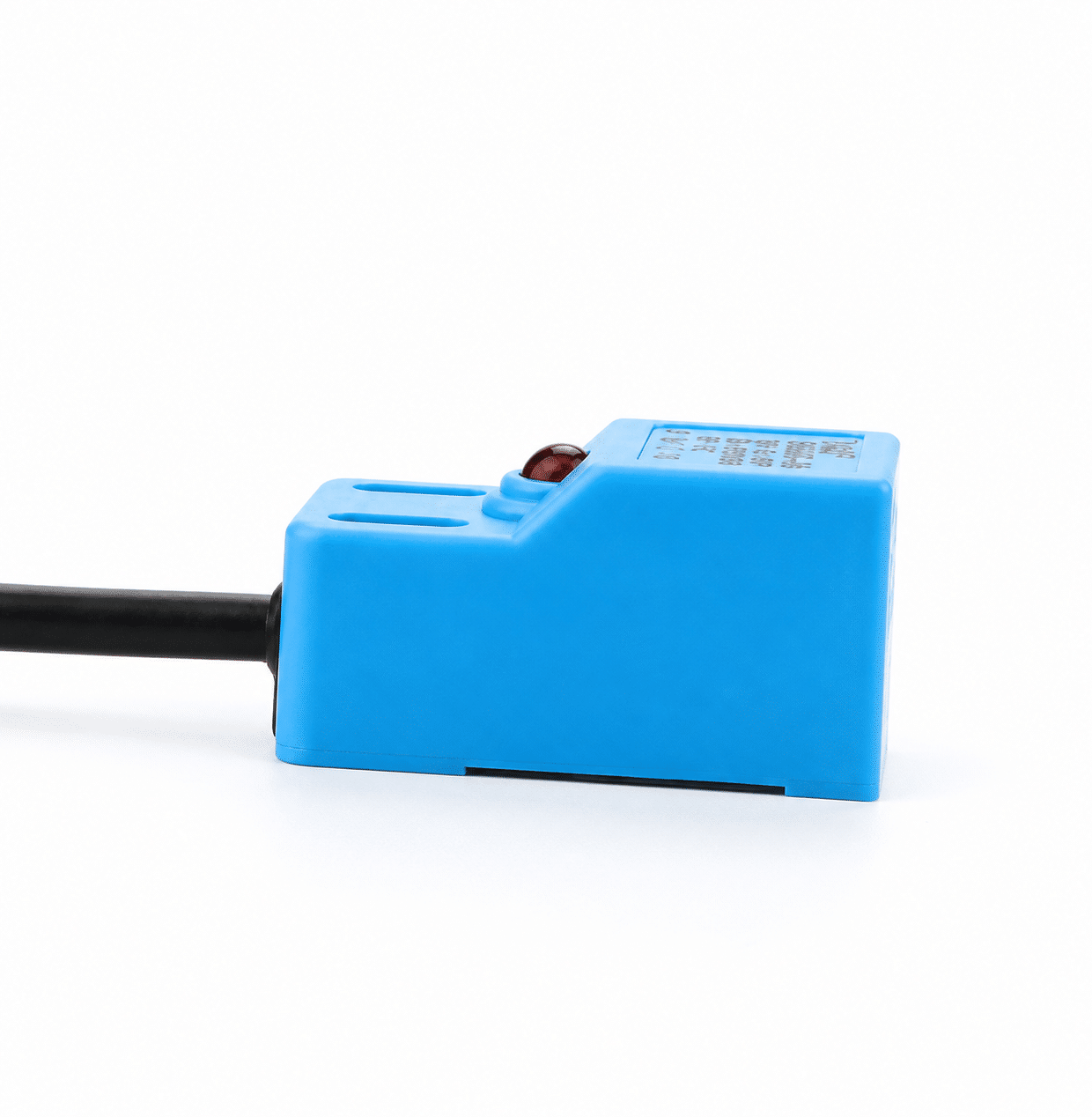

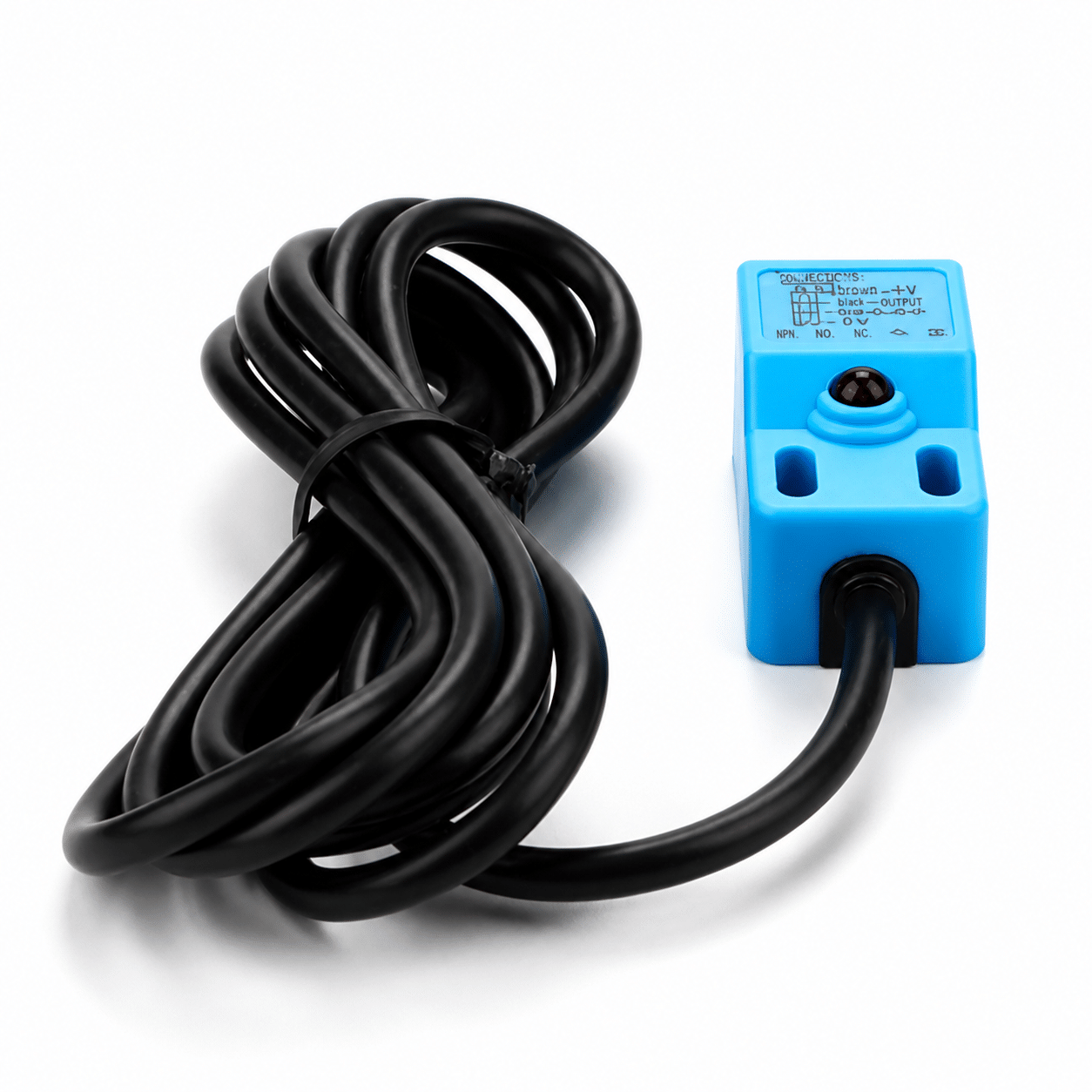

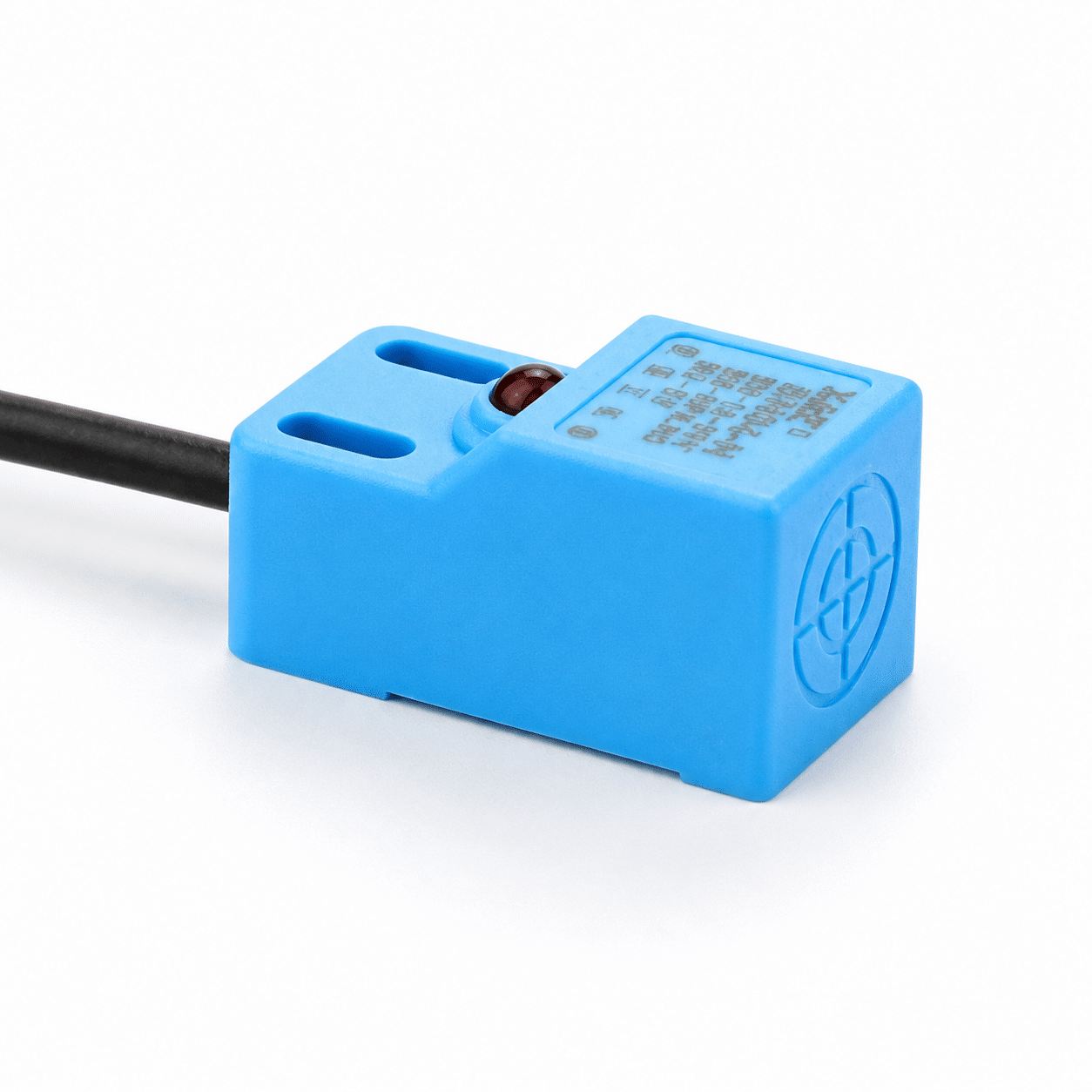

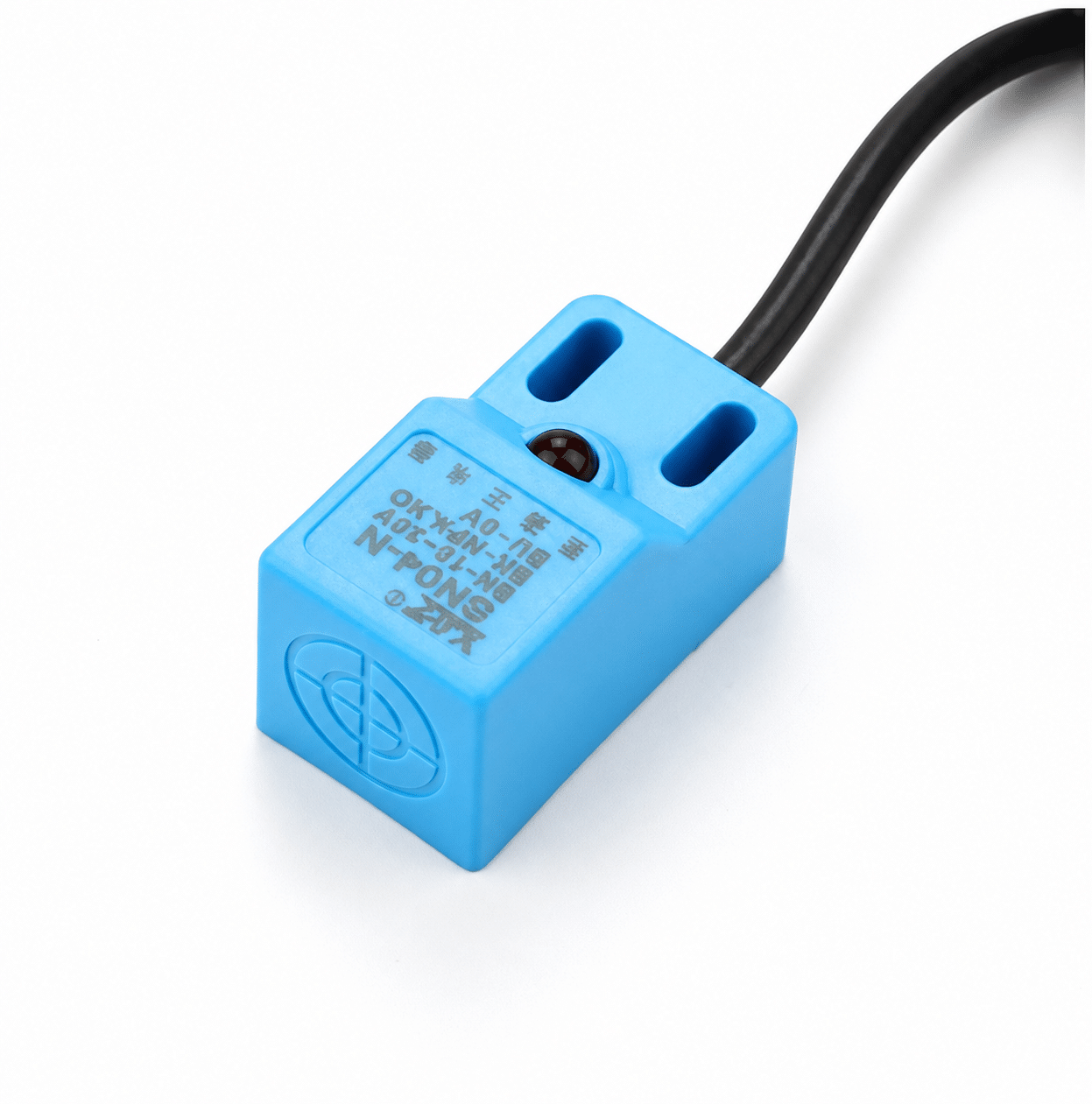

SN04-N 18 x 18 x 36 Non-shielded Proximity Sensor
A non-shielded proximity sensor range for magnetic-metal targets, with DC NPN, DC PNP, DC two-wire, and AC two-wire choices.
SN04 non-shielded sensing choices
The XSZ SN04-N is the NPN normally open model in the 18 x 18 x 36 non-shielded series. The filled model matrix also provides NPN and PNP NO, NC, and NO+NC choices, plus DC two-wire and AC two-wire NO and NC choices.
The source lists a 5 mm +/-10% sensing distance, a 0-4 mm setting distance, and an iron 18 x 18 x 1 mm standard detection target. It identifies magnetic metal as the detectable target and notes that sensing distance decreases with non-magnetic metal.
Key product advantages
18 x 18 x 36 format
The supplied model matrix specifies an 18 x 18 x 36 dimension.
5 mm sensing range
The series is listed with a 5 mm +/-10% sensing distance and a 0-4 mm setting distance.
Multiple output choices
Select from the filled NPN, PNP, DC two-wire, or AC two-wire model codes.
Type and Specification
| Type and Specification | |||
|---|---|---|---|
| Dimension | 18 x 18 x 36 | ||
| Electrical type | Output style | Output logic | Non-shielded model |
| DC type | NPN | NO | SN04-N |
| NC | SN04-N2 | ||
| NO+NC | SN04-N3 | ||
| PNP | NO | SN04-P | |
| NC | SN04-P2 | ||
| NO+NC | SN04-P3 | ||
| DC 2-wire | NO | SN04-D1 | |
| NC | SN04-D2 | ||
| AC type | AC 2-wire | NO | SN04-Y1 |
| NC | SN04-Y2 | ||
| Sensing distance | 5 mm +/-10% |
|---|---|
| Setting distance | 0-4 mm |
| Standard detection target | Iron 18 x 18 x 1 mm |
| Response frequency | DC: 0.5 kHz; AC: 25 Hz |
| Hysteresis | Less than 10% of sensing distance |
| Detectable target | Magnetic metal; sensing distance decreases with non-magnetic metal. |
| Supply voltage | DC type: DC 12-24 V (6-36 V), pulse (P-P) less than 10%; AC type: AC 110-220 V (36-250 V), 50/60 Hz. |
| Consumption current | N.P type: less than 13 mA; D type: less than 0.8 mA; A type: less than 1.7 mA. |
| Control output | N.P type: less than 300 mA; D type: less than 200 mA; A type: less than 400 mA. |
| Circuit protection | N.P.D type: reverse-connection protection, surge absorption, and load short-circuit protection; A type: surge absorption. |
| Ambient temperature and humidity | Operating and storage: -30 to +65 deg C, no freezing or dew; 35-95% RH. |
| Insulation resistance | At least 50 Mohm at DC 500 V megger, between the energized part and housing. |
| Withstand voltage | AC 1000 V, 50/60 Hz, 1 minute between the energized part and housing. |
| Temperature influence | -30 to +65 deg C: within +/-15% sensing distance at +23 deg C; -25 to +60 deg C: within +/-10% at +23 deg C. |
| Voltage influence | Within +/-15% of rated supply-voltage range; within +/-10% sensing distance at rated supply voltage. |
| Sensitivity adjustment | Side potentiometer adjustment |
| Protection class | IP67 |
| Material | Housing: ABS; sensing face: ABS. |
| Cable and connection | Confirm with XSZ before order |
Where it helps
Selection and installation checklist
- Select the required electrical type and NO, NC, or NO+NC output logic from the filled model list.
- Plan around the listed 5 mm +/-10% sensing distance and 0-4 mm setting distance.
- Match the target to the listed iron 18 x 18 x 1 mm standard detection target.
- Confirm cable, connector, wiring, and target compatibility with XSZ before order.
Frequently asked questions
What sensing distance is listed?
The SN04 non-shielded series is listed at 5 mm +/-10%, with a 0-4 mm setting distance.
Which output types are listed?
The filled matrix lists DC NPN, DC PNP, DC two-wire, and AC two-wire choices.
What target is specified?
The source identifies magnetic metal. It also notes that sensing distance decreases with non-magnetic metal.
Can XSZ confirm the connection?
Yes. Confirm cable, connector, wiring arrangement, and target compatibility with XSZ before order.
Need the right SN04 non-shielded model?
Send XSZ your required output type, logic, supply type, and target details for model confirmation.
