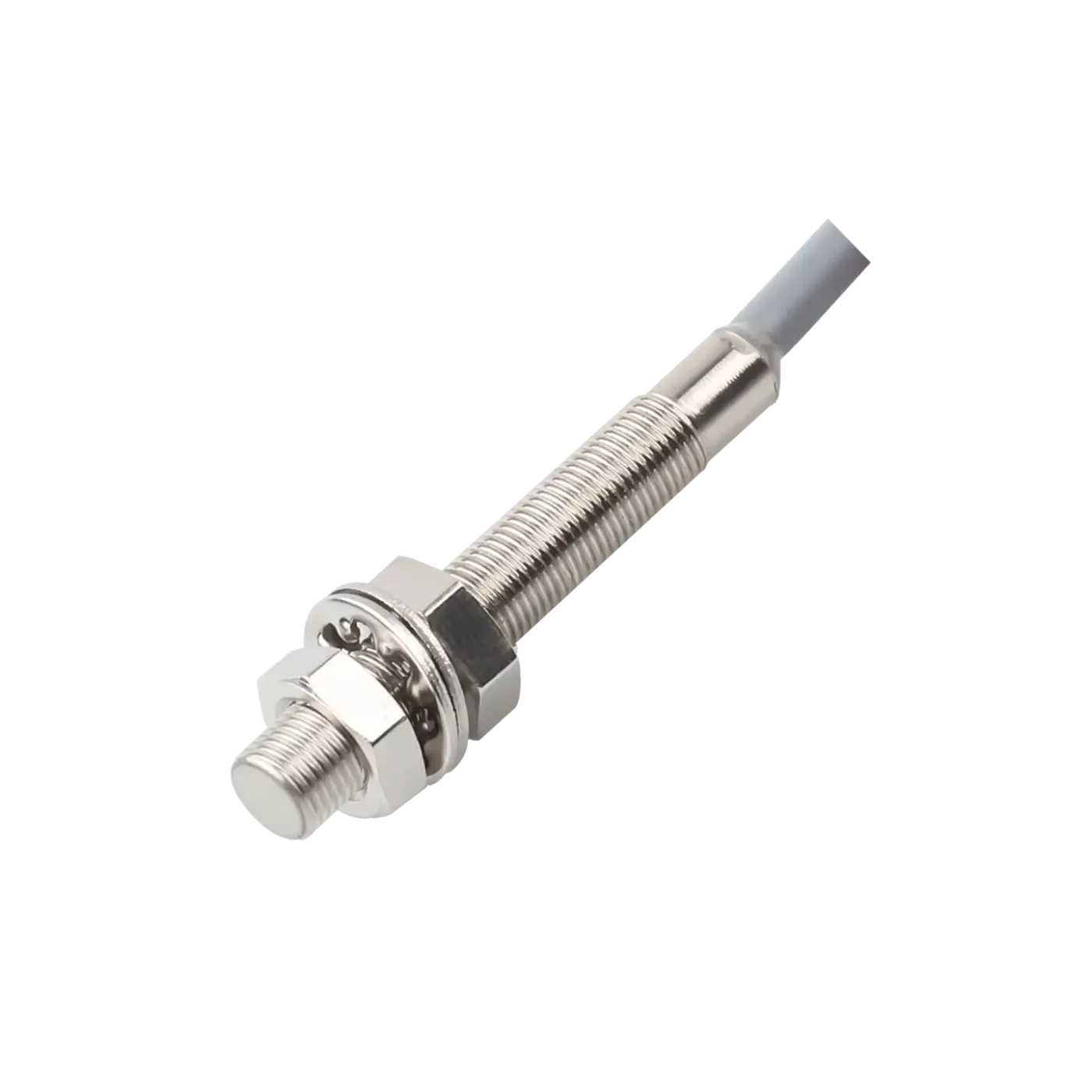

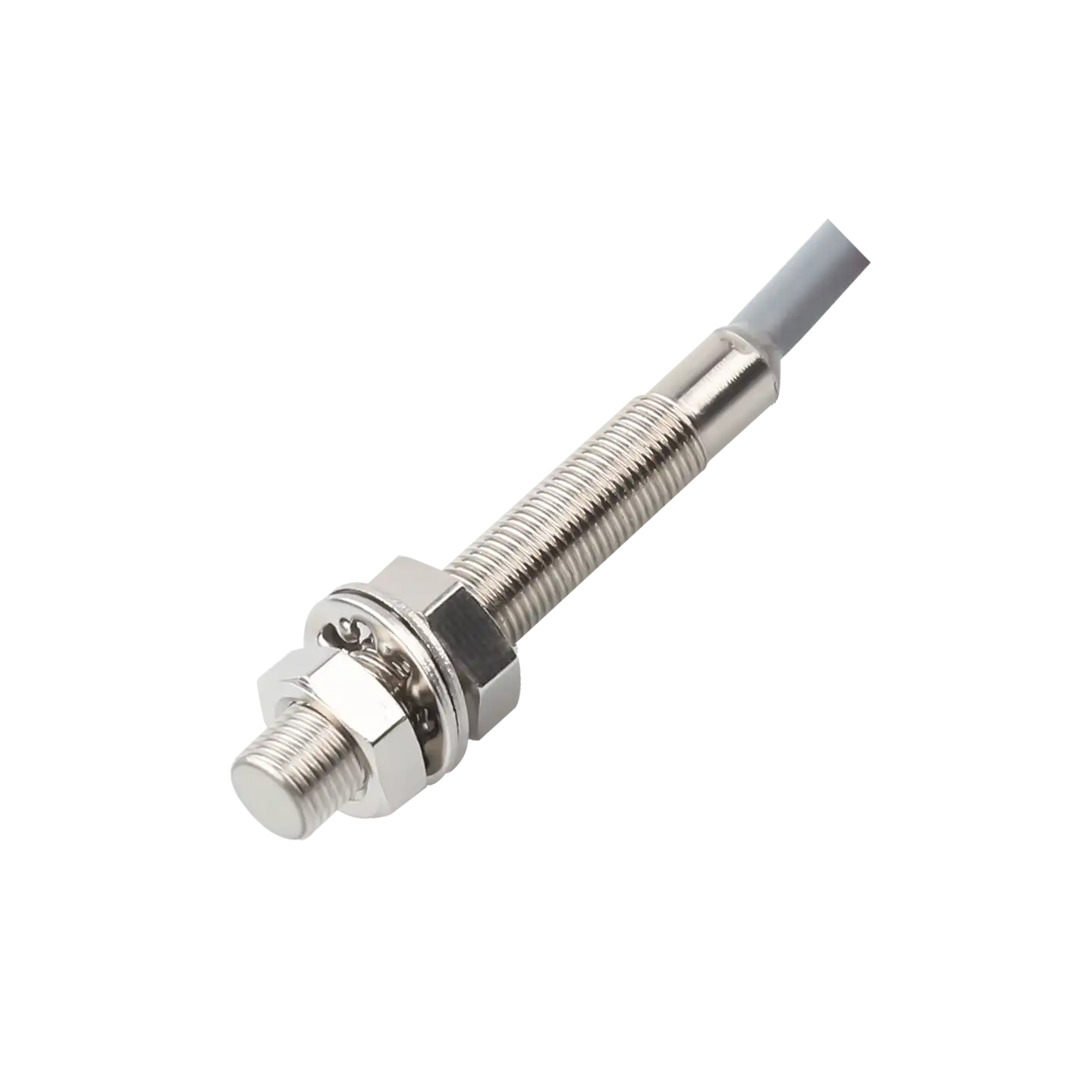

XSZ M5/M6 Miniature Inductive Proximity Sensor
Exceptionally reliable, non-contact metal detection for confined spaces. The XSZ M5 and M6 Miniature Inductive Proximity Sensors offer a highly stable 1mm sensing range within an ultra-compact threaded housing, making them perfect for micro-automation and precision machinery.
Key Performance Advantages
Compact Threaded Design
The standardized M5 and M6 threaded cylindrical housings allow for incredibly easy installation and precise distance adjustments in severely limited mounting spaces.
Wear-Free Durability
Non-contact magnetic metal detection entirely eliminates mechanical wear and physical damage, providing a virtually limitless service life even in harsh environments.
1KHz High-Speed Response
With a swift 1K Hz response frequency, this sensor is expertly engineered to handle rapid automated positioning and high-speed gear counting without missing a beat.
Comprehensive Technical Specifications
| Specification | Standard Value |
|---|---|
| Dimensions | M5 / M6 Options Available |
| Installation Method | Flush Mount (Shielded) |
| Sensing Distance | 1 mm ± 15% |
| Detectable Object | Magnetic metals (Sensing distance is reduced for non-magnetic metals) |
| Standard Sensing Object | Iron 5×5×1mm (for M5) / Iron 8×8×1mm (for M6) |
| Operating Voltage Range | DC 10 to 30V (12-24 VDC nominal, Ripple P-P: 10% max) |
| Current Consumption | 10 mA Max. |
| Load Current | 100 mA Max. (Residual Voltage: 1.5V Max.) |
| Response Frequency | 1K Hz |
| Control Output | NPN / PNP | NO (Normally Open) / NC (Normally Closed) |
| Protection Circuits | Reversed power supply polarity protection |
| Environmental Specs | Operating Temp: -25 to +70°C | Connection: Pre-wired cable |

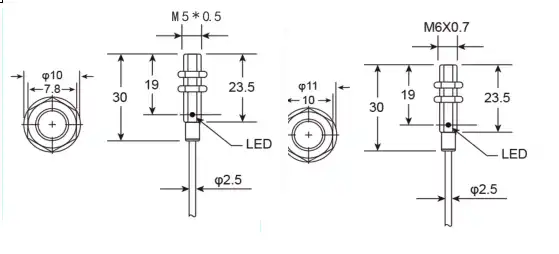

Wiring & Circuit Diagram
Please consult the wiring diagrams below to properly integrate the NPN/PNP output into your automation system.
Ideal Industrial Applications
Compact M5/M6 threads fit perfectly into mechanical grippers and small robotic joints.
Reliable positioning and counting of moving metal parts in confined machine areas.
High-frequency response allows for rapid detection on high-speed sorting lines.
Upgrade Your Metal Detection Today
Connect with our XSZ technical experts to integrate our durable miniature sensors into your next automation project.
Zhejiang Xinsenzheng Automation Co., Ltd. – PRECISION & INNOVATION
