Compact PNP Photoelectric Detection

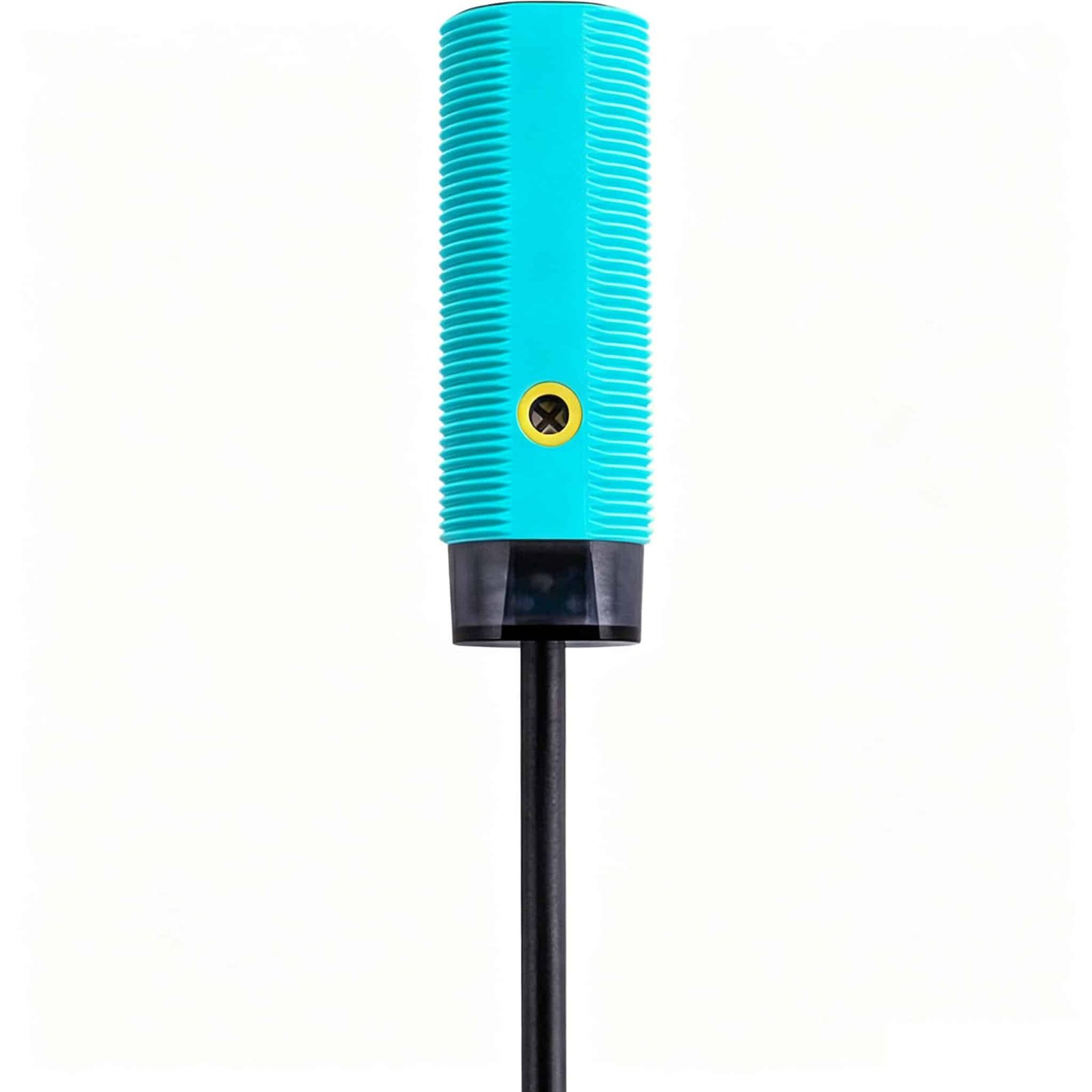

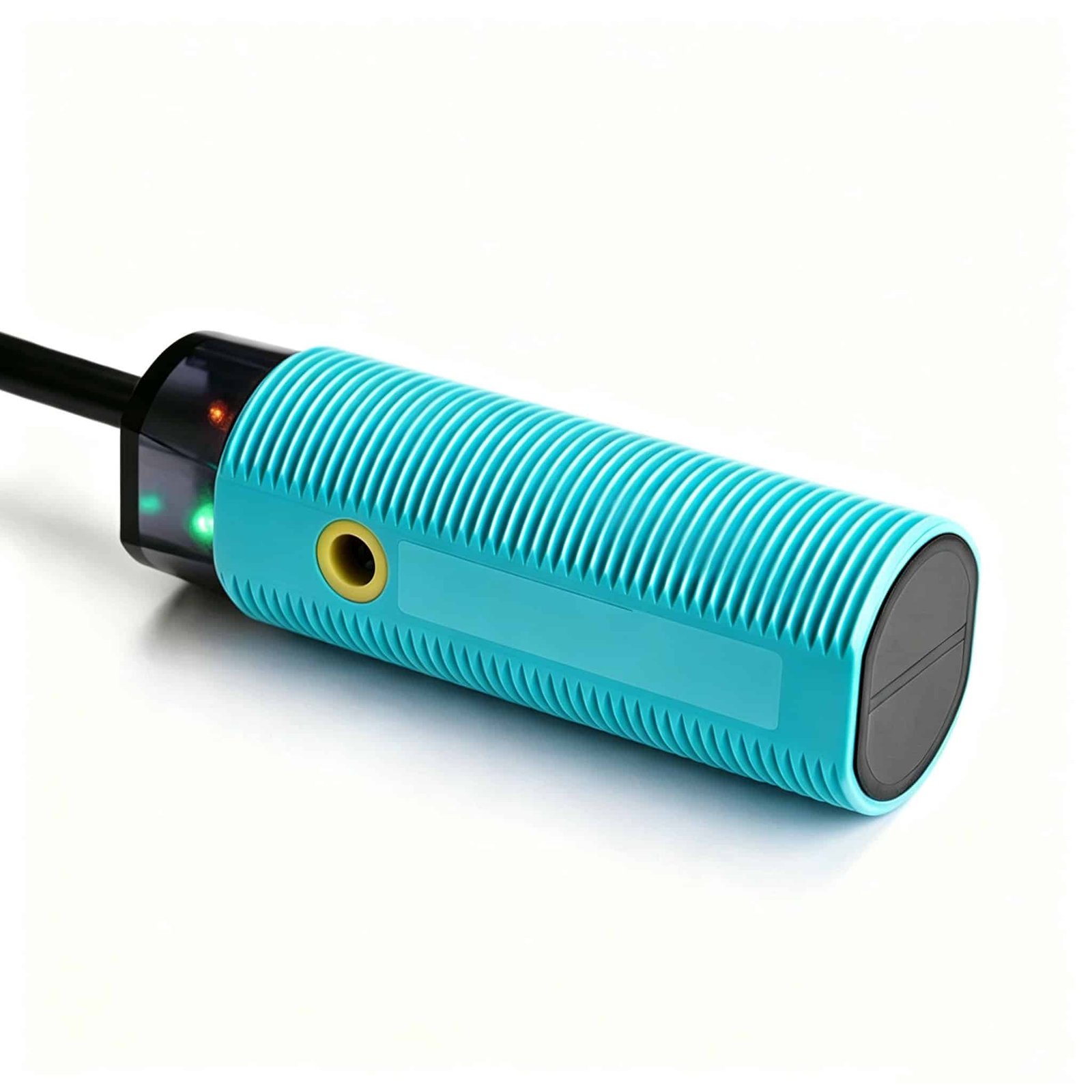

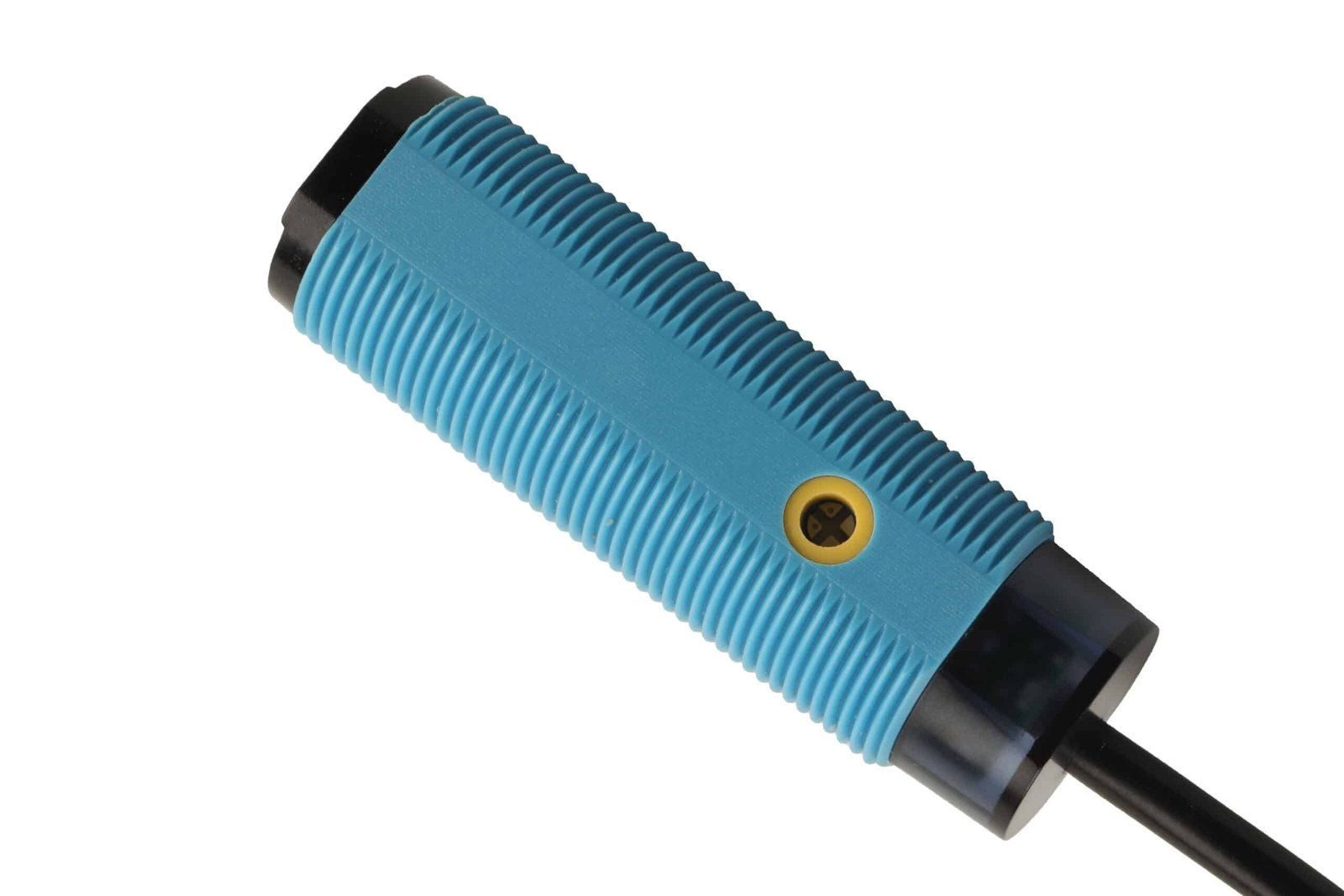

E3FA-DN50 Compact Photoelectric Sensor
A compact PNP sensor for industrial automation. The E3FA-DN50 combines a 50 cm sensing distance, 12 VDC operation and DC three-wire output for presence detection, position checks and straightforward control integration.
Compact PNP Sensing for Everyday Automation
The E3FA-DN50 is designed for applications that need a compact photoelectric sensor and a PNP control signal. Its blue-green ABS housing fits space-conscious equipment while the 50 cm sensing range supports useful separation between the sensor and target.
- 50 cm sensing distance for practical object detection zones
- PNP output works with compatible sourcing-input PLC circuits
- DC three-wire connection supports common control integration
- Compact ABS housing is suitable for tight machine layouts
Simple Integration, Useful Detection Range
01 / PNP OUTPUTControl Ready
Connect the PNP output to compatible sourcing-input control circuits for clear machine feedback.
02 / WORKING RANGE50 cm Detection
A practical range for conveyors, transfer points and compact machine stations.
03 / COMPACT BODY55 g ABS Housing
The lightweight compact body fits beside guides, fixtures and machine structures.
E3FA-DN50 Technical Specifications
| Parameter | Specification |
|---|---|
| Model | E3FA-DN50 |
| Product Type | Photoelectric sensor |
| Sensing Distance | 50 cm |
| Supply Voltage | 12 VDC |
| Output | DC three-wire PNP |
| Housing Material | ABS |
| Housing Color | Blue-green |
| Typical Use | Industrial automation |
| Weight | 55 g |
| Listed Body Size | 55 x 18 x 1 mm; confirm installation drawing before order |
Where the E3FA-DN50 Fits Best
Use this model where a PNP signal, 12 VDC operation and a compact sensor body are required for an industrial detection task.
01
Conveyor Detection
Confirm products, trays or carriers at a fixed point on compact conveyor systems.
02
Packaging Equipment
Provide object-present feedback before labeling, sealing or transfer processes.
03
Assembly Fixtures
Check that a component, carrier or fixture has reached the expected position.
04
Material Handling
Monitor object movement in compact sorting, transfer and handling equipment.
Selection and Installation Checklist
Confirm input compatibility
Verify that the control system has a compatible sourcing-input circuit for a PNP sensor. Confirm wiring and signal logic before installation.
Confirm the detection task
Send the target material, color, size and mounting arrangement. XSZ can help confirm the suitable optical configuration for the real application.
Send These Details for Fast Selection
- Target material, size, color and speed
- Required working distance and mounting space
- PLC input type and required output logic
- Quantity, cable requirement and operating environment
Product Questions
Frequently Asked Questions
01
Can the E3FA-DN50 connect to a PLC?
Yes. Its DC three-wire PNP output is intended for compatible sourcing-input control circuits. Confirm the PLC input type and wiring diagram before installation.
02
Does it use a 12 VDC supply?
The provided specification lists a 12 V supply. Confirm the final operating voltage and wiring requirement with XSZ before ordering.
03
Will every target be detected at 50 cm?
Reliable sensing depends on the sensor configuration, target material, size, color, finish and mounting condition. Test the actual target before final installation.
04
Can XSZ support OEM orders?
Yes. Send the quantity, cable, labeling and packaging requirements for factory evaluation.
Need Pricing or an E3FA-DN50 Sample?
Send the target, working distance, PLC input, installation space and order quantity. XSZ will confirm the configuration before quotation.
