Detection for Elevated-Temperature Areas

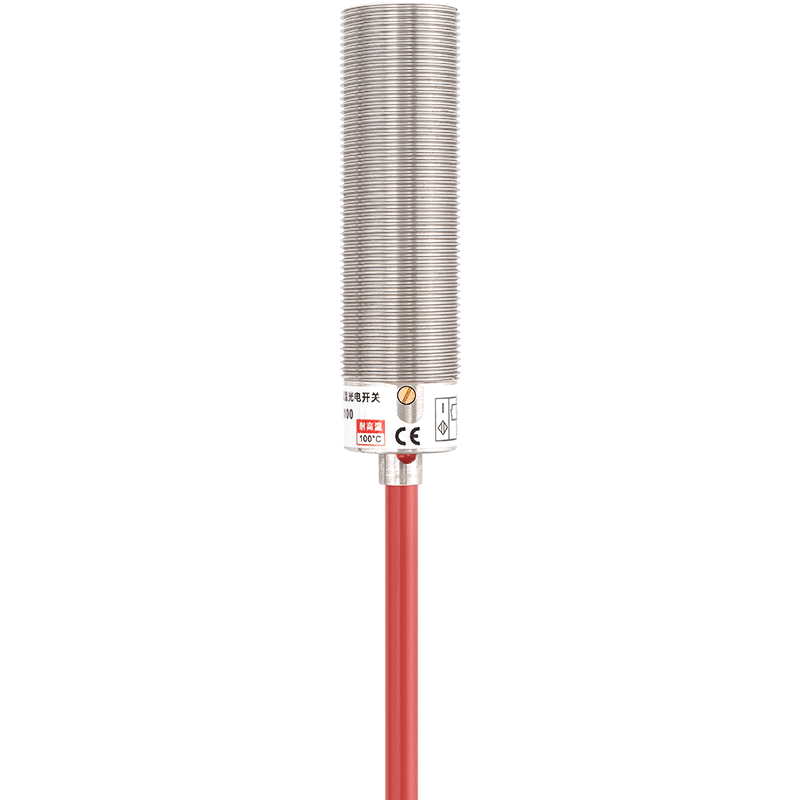

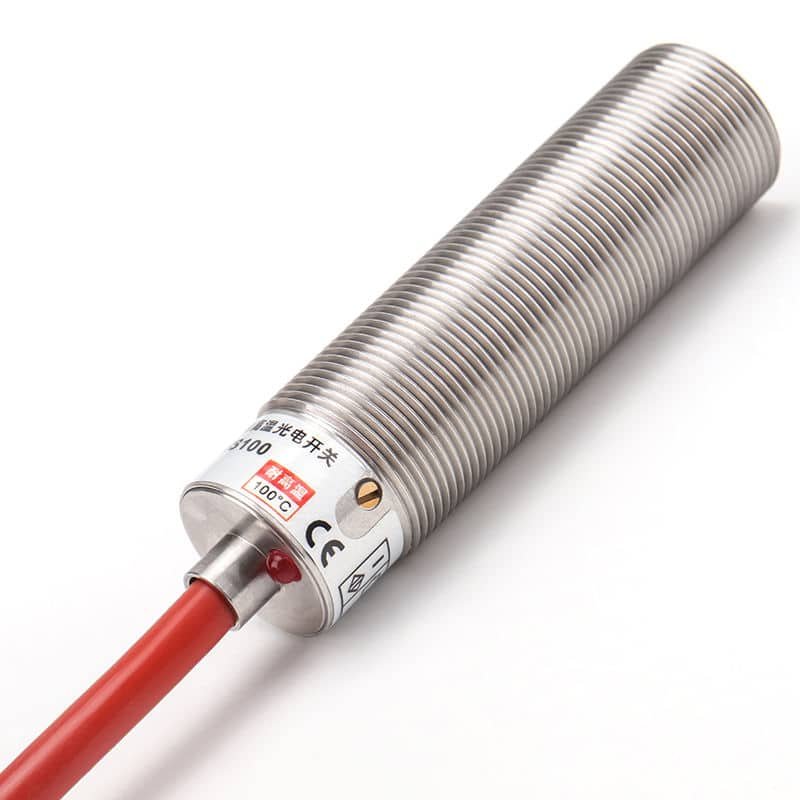

E3FM-DS30N1-100 Photoelectric Sensor
A metal-body photoelectric sensor for industrial object detection where elevated temperatures place extra demands on the sensing point. The E3FM-DS30N1-100 provides NPN normally open output, 10-30 VDC supply and a listed 10-30 cm sensing range.
Stable Detection Near Heat Sources
The XSZ E3FM-DS30N1-100 is designed for industrial applications where a sensing point is exposed to elevated ambient temperatures. Its metal housing and high-temperature-resistant construction support practical detection around heated machinery, processes and material handling lines.
- Metal body for industrial installation near heat sources
- Listed 10-30 cm sensing range for flexible placement
- NPN normally open output for compatible sinking-input PLC circuits
- Red cable supports clear identification during installation
Built for Demanding Sensing Points
01 / HEAT-READY BODYMetal Construction
A metal sensor body provides a robust installation format for elevated-temperature industrial areas.
02 / NPN NOPLC-Compatible Output
Use the DC three-wire normally open signal with a compatible sinking-input control circuit.
03 / FLEXIBLE RANGE10-30 cm Detection
Place the sensor at a suitable offset from the target and heat source while maintaining the required working distance.
E3FM-DS30N1-100 Technical Specifications
| Parameter | Specification |
|---|---|
| Model | E3FM-DS30N1-100 |
| Product Type | High-temperature photoelectric sensor |
| Sensing Distance | 10-30 cm |
| Output | DC three-wire, NPN normally open |
| Supply Voltage | 10-30 VDC |
| Housing Material | Metal |
| Housing Color | Silver |
| Weight | 100 g |
| Listed Body Size | 65 x 18 x 1 mm; confirm installation drawing and temperature rating before order |
Where the E3FM-DS30N1-100 Fits Best
Choose this model when the sensing point is exposed to elevated temperature and the control system needs a DC three-wire NPN normally open signal.
Heated Production Lines
Detect products, carriers or material flow near process zones with elevated ambient temperatures.
Drying and Curing Equipment
Provide presence feedback around heated tunnels, ovens and material treatment equipment.
Metal Processing Fixtures
Confirm workpiece position where equipment generates heat close to the sensor mounting point.
Industrial Conveyors
Monitor parts moving through hot or warm process areas before they enter the next station.
Selection and Installation Checklist
Confirm the real temperature at the sensor
Measure the ambient temperature at the sensor body and cable, not only the process temperature. Share the maximum, minimum and exposure duration with XSZ for configuration confirmation.
Protect the cable and optical path
Route the cable away from hot surfaces and confirm the target, distance, dust, steam and background conditions before installation.
Send These Details for Fast Selection
- Ambient and peak temperature at sensor and cable
- Target material, color, size and working distance
- PLC input type and available supply voltage
- Mounting space, cable length and production quantity
Product Questions
Frequently Asked Questions
What temperature can this model withstand?
This is a high-temperature-resistant model. Send the actual ambient temperature at the sensor and cable so XSZ can confirm the applicable configuration and rating.
Can it connect to a PLC?
Yes. The DC three-wire NPN normally open output is intended for compatible sinking-input PLC circuits. Confirm the final wiring diagram before connection.
Will it always detect at 30 cm?
Actual sensing performance depends on target material, size, color, surface condition, contamination and installation. Test the real target before final deployment.
Can XSZ support OEM orders?
Yes. Send the temperature range, cable, labeling, packaging and quantity requirements for factory evaluation.
Need Pricing or an E3FM-DS30N1-100 Sample?
Send the target, working distance, actual temperature, PLC input and order quantity. XSZ will confirm the configuration before quotation.
