Motor Speed and Stall Monitoring

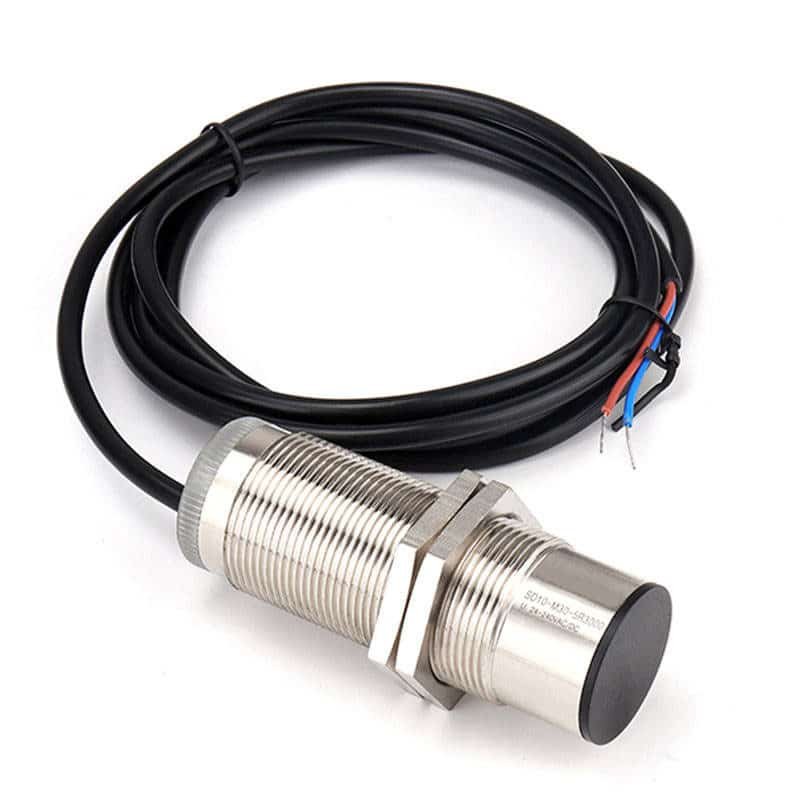

SD10-M30-5R3000 Speed Sensor
A rugged M30 stainless steel sensor for monitoring rotating equipment. The SD10-M30-5R3000 supports a 5-3000 rpm setting range and helps identify low-speed, stopped or abnormal rotation conditions in industrial automation.
Protect Production from Rotation Failures
When motors, rollers, shafts or conveyor drives slow down unexpectedly, production quality and equipment uptime can suffer. The XSZ SD10-M30-5R3000 gives machine builders a practical monitoring point for rotation feedback and stall detection.
- 5-3000 rpm setting range for different rotating assets
- 10 mm sensing distance for a nearby metal detection target

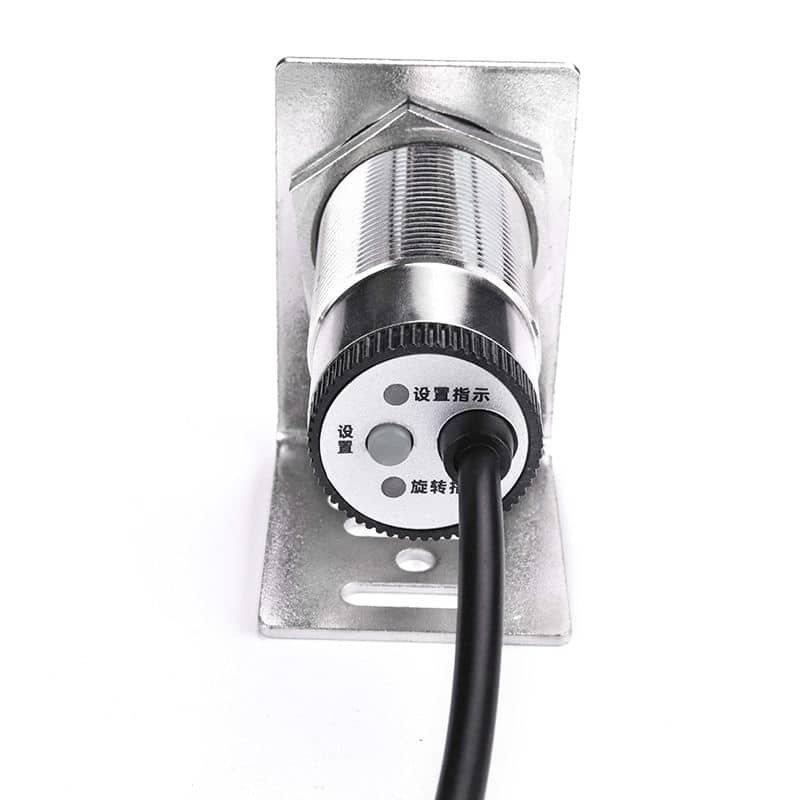

- M30 threaded body supports standard bracket installation
- Stainless steel housing for demanding industrial environments
Built for Clear Rotation Feedback
01 / RPM SETTING5-3000 rpm Range
Configure the monitoring threshold to suit the operating speed of your rotating mechanism.
02 / M30 BODYStainless Steel Housing
The threaded M30 metal body is suited to stable installation near motors, rollers and shafts.
03 / 10 MMClose-Range Detection

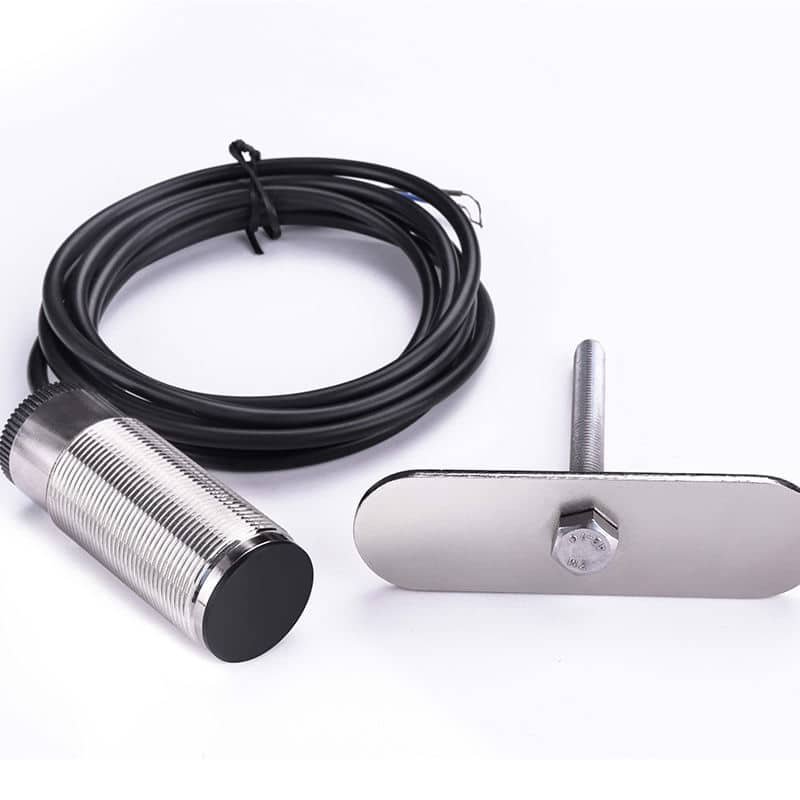

Place a suitable metal target within the specified sensing distance for reliable rotation monitoring.
SD10-M30-5R3000 Technical Specifications
| Parameter | Specification |
|---|---|
| Model | SD10-M30-5R3000 |
| Product Type | Industrial speed sensor |
| Speed Setting Range | 5-3000 rpm |
| Sensing Distance | 10 mm |
| Supply Voltage | 24 VDC |
| Housing Material | Stainless steel |
| Mounting Format | M30 threaded cylindrical body |
| Housing Color | Silver |
| Weight | 150 g |
| Listed Body Size | 90 x 30 x 1 mm; confirm the mechanical drawing before order |
Typical Monitoring Applications
Use the SD10-M30-5R3000 where the machine must respond when rotation becomes too slow, stops or departs from the expected operating speed.
Conveyor Roller Monitoring
Monitor drive or idler rotation to detect belt slip, jam conditions or unexpected stoppage.
Motor Stall Protection
Give the control system a speed signal for reacting to stalled or low-speed motors.
Rotary Packaging Equipment
Confirm the movement of wheels, shafts and rotating fixtures before the next machine sequence.
Process Machinery
Apply speed feedback to mixers, feeders, fans and other industrial rotating equipment.
Selection and Installation Checklist
Match the target to the installation
Confirm the target material, size, teeth or marker arrangement, mounting gap and shaft speed across the full operating range.
Confirm output and alarm logic
The supplied reference does not specify the output interface. Confirm the final output type, wiring diagram, load and fail-safe alarm logic with XSZ before ordering.
Send These Details for Fast Selection
- Minimum and maximum operating rpm
- Target shape, material and available sensing gap
- Required output, power supply and control input
- Mounting drawing, cable requirement and operating environment
Product Questions
Frequently Asked Questions
What speed range can this sensor monitor?
The listed intelligent setting range is 5-3000 rpm. Share your actual minimum and maximum speeds so XSZ can confirm suitability.
Can it detect a stopped motor?
It is designed for motor speed and stall monitoring. The final alarm behavior depends on the configured threshold and control-system logic.
What is the sensing gap?
The listed sensing distance is 10 mm. Final performance depends on the target and installation; verify the real sensing gap before deployment.
Can XSZ support OEM orders?
Yes. Send the required speed range, output, cable, labeling and packaging requirements for factory evaluation.
Need Pricing or an SD10-M30-5R3000 Sample?
Send the speed range, target drawing, sensing gap, output requirement and order quantity. XSZ will confirm the configuration before quotation.
