Embedded Short-Range Detection

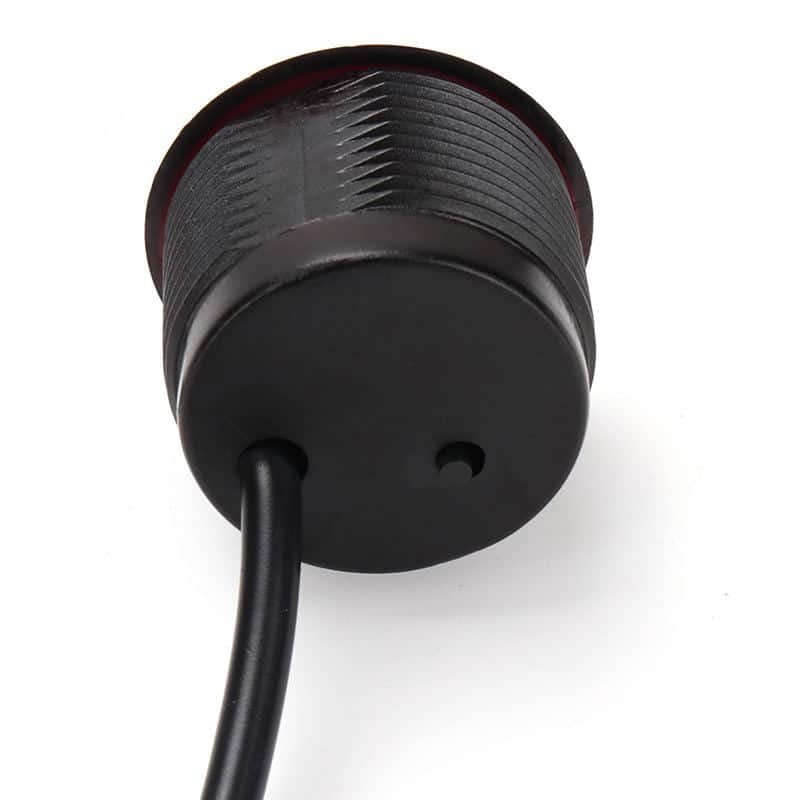

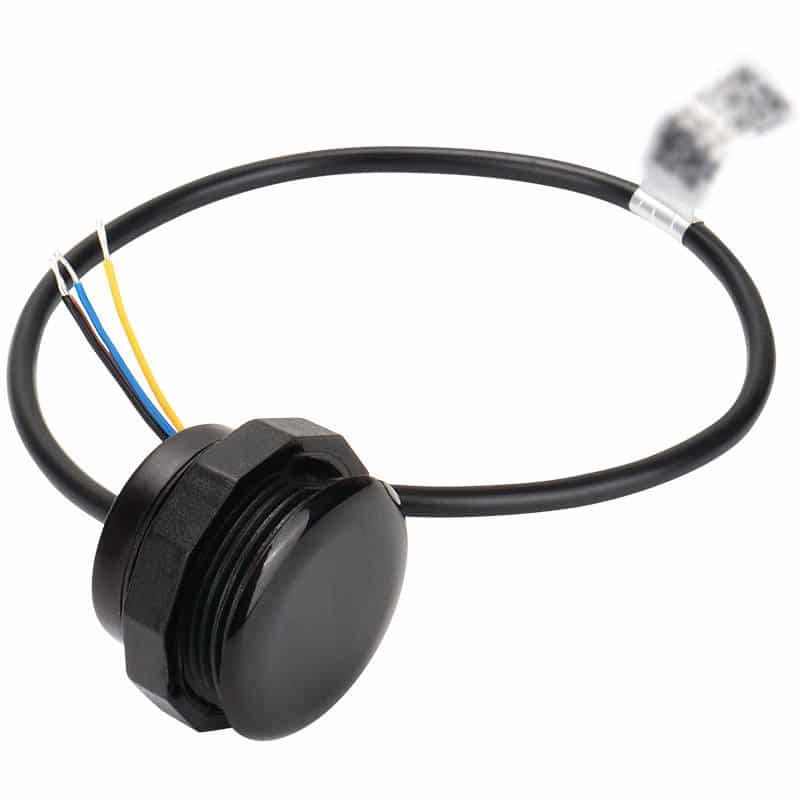

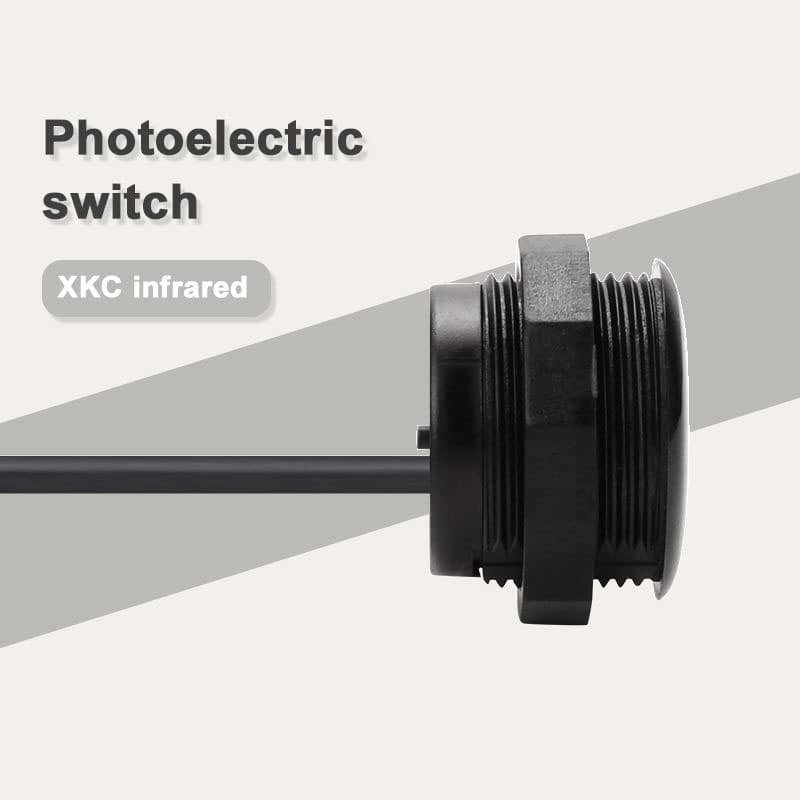

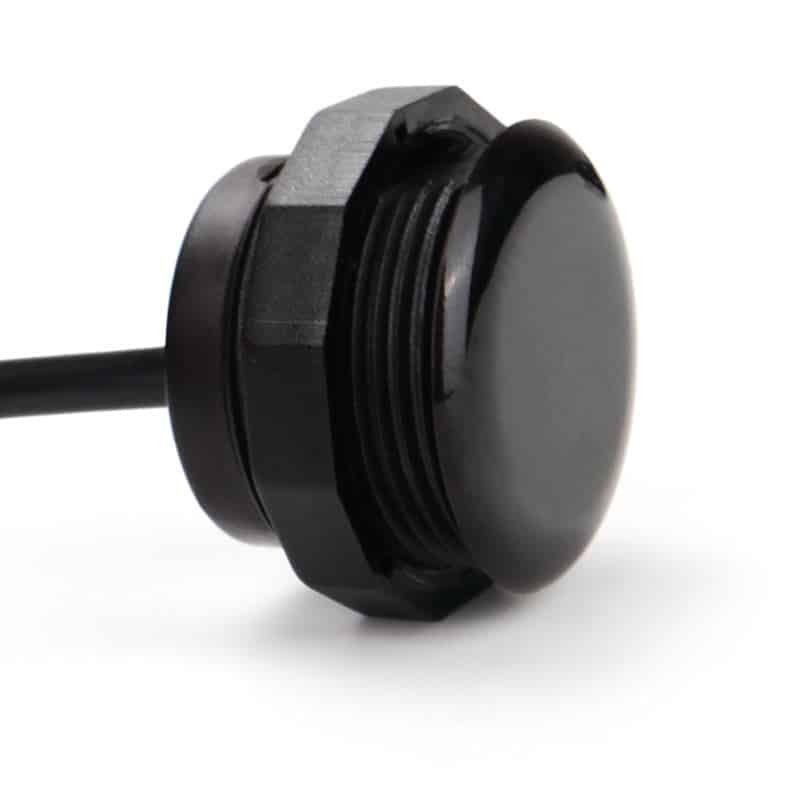

XKC-KD200-M Photoelectric Sensor
A compact panel-mount photoelectric sensor for 0-200 mm non-contact presence and position detection. The XKC-KD200-M combines an ABS body, 5-24 VDC supply and relay normally open output for industrial automation equipment.
Designed for Clean Embedded Installation
The XSZ XKC-KD200-M is suited to compact equipment where the sensor must sit flush with a panel, guard or fixture. Use it to detect an approaching object, verify a position or provide a simple relay signal to an automation circuit.
- 0-200 mm working range for local detection tasks
- Embedded mounting keeps the sensing head protected and tidy
- Relay normally open output for compatible control circuits
- ABS body supports practical machine and panel installations
Practical Features for Compact Equipment
01 / ADJUSTABLE RANGE0-200 mm Detection
Set an appropriate sensing zone for local presence, object approach and position-confirmation tasks.
02 / PANEL MOUNTEmbedded Installation
The compact round body is designed for installation through a machine panel, fixture or protective cover.
03 / RELAY NOStraightforward Signal
Use the normally open relay contact with a compatible control circuit after confirming the final wiring diagram.
XKC-KD200-M Technical Specifications
| Parameter | Specification |
|---|---|
| Model | XKC-KD200-M |
| Product Type | Photoelectric sensor |
| Sensing Distance | 0-200 mm |
| Output | Relay, normally open |
| Supply Voltage | 5-24 VDC |
| Housing Material | ABS |
| Mounting | Embedded panel installation |
| Housing Color | Black |
| Listed Body Size | 31 x 30 x 1 mm; confirm the installation drawing before order |
Where the XKC-KD200-M Fits Best
Choose this model when you need a compact sensor mounted through a panel and a short, adjustable detection range.
Machine Guards and Panels
Detect parts or doors approaching a protected machine zone without occupying external mounting space.
Dispensing and Vending Equipment
Confirm the approach or presence of an item within a compact enclosure.
Material Transfer Fixtures
Provide a simple relay signal when a carrier, container or part reaches a set position.
Custom Automation Projects
Use the compact embedded body where equipment designers need a clean sensor integration point.
Selection and Installation Checklist
Check the target and working distance
Target color, material, surface finish, angle and ambient light can affect optical sensing. Test the actual target within the required working distance.
Confirm panel cutout and wiring
Confirm the mounting hole, panel thickness, cable length, terminal arrangement and relay contact requirements before ordering.
Send These Details for Fast Selection
- Target material, color, size and speed
- Required working range and installation drawing
- Power supply and relay load requirement
- Quantity, cable length and operating environment
Product Questions
Frequently Asked Questions
Is the sensing distance adjustable?
The listed sensing range is 0-200 mm. Confirm the required working distance and target conditions with XSZ before selecting the final configuration.
Can it be installed through a panel?
Yes. This model is intended for embedded installation. Confirm the mounting cutout and body dimensions with the final drawing before machining the panel.
What output does it provide?
The listed output is relay normally open. Please confirm the relay contact rating and control wiring requirement before connecting the sensor.
Can XSZ support OEM orders?
Yes. Send the quantity, cable, labeling, packaging and technical requirements for factory evaluation.
Need Pricing or an XKC-KD200-M Sample?
Send the target, working distance, panel drawing, supply voltage, relay load and order quantity. XSZ will confirm the configuration before quotation.
